Model # 113248321 Official Craftsman 12" band saw

Here are the diagrams and repair parts for Official Craftsman 113248321 12" band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

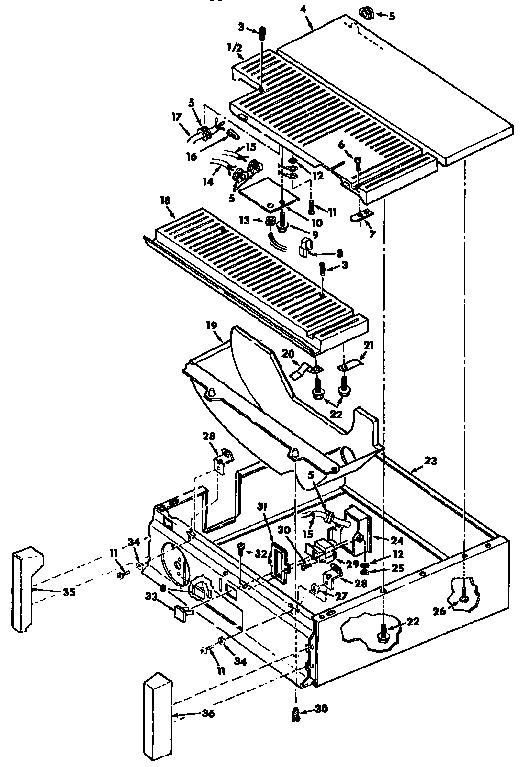

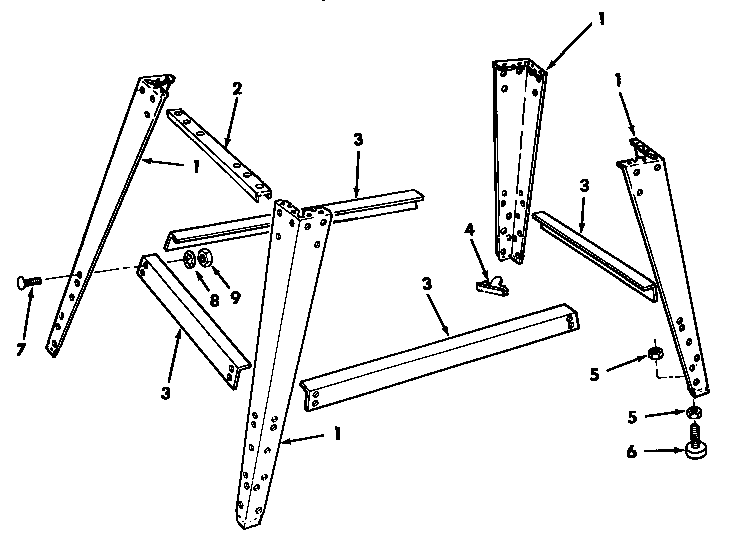

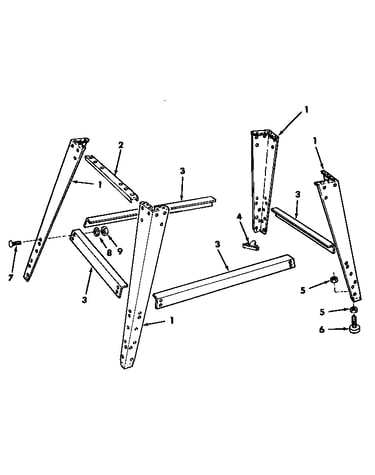

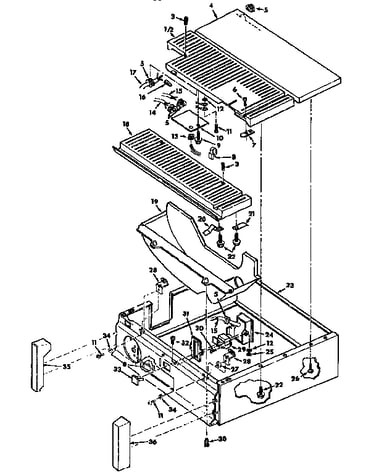

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Power Tool Washer 30767
#1

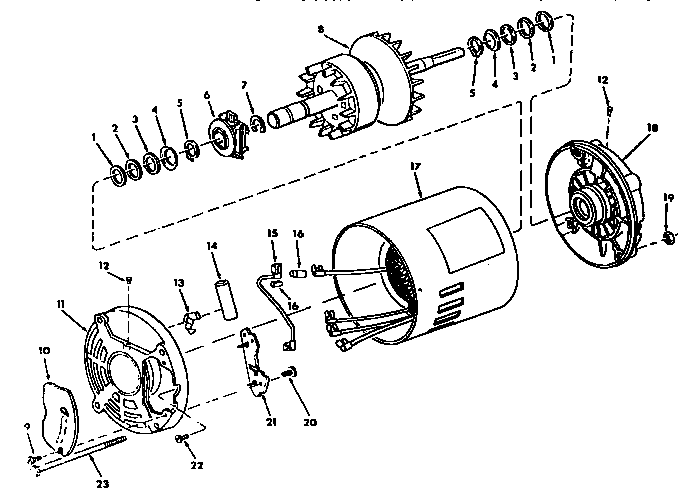

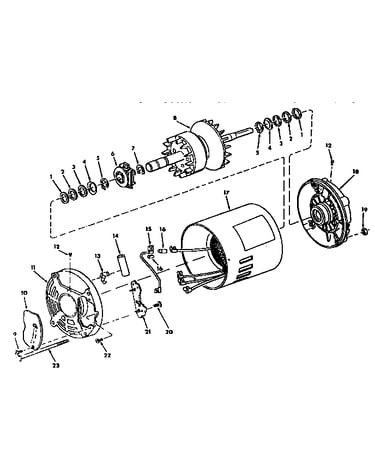

Motor diagram

Power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Band Saw Motor (replaces 816612r) 816612
#37

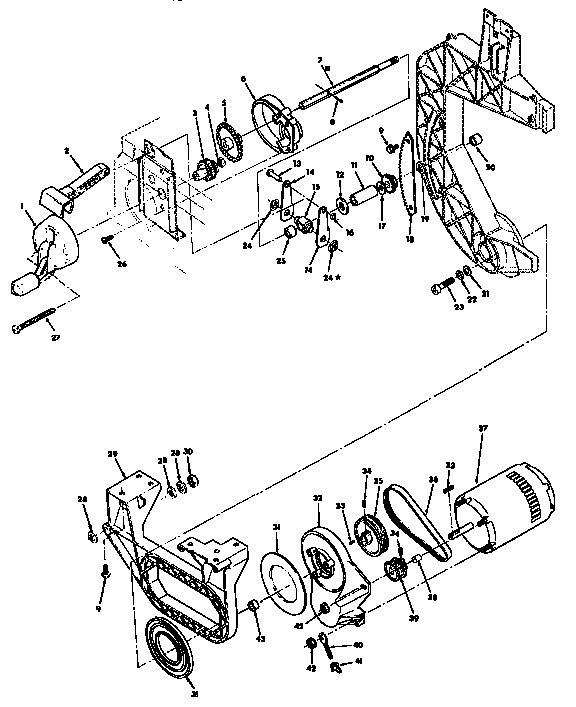

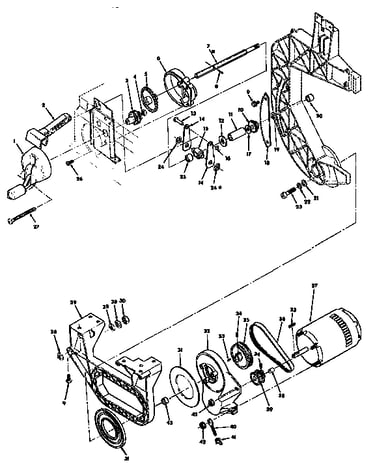

Bevel drive and motor mount assembly parts diagram

Band saw motor (replaces 816612r)

Part #816612

The manufacturer no longer makes this part, and there's no substitute part

Band Saw Wheel Shaft, Lower 816387
#42

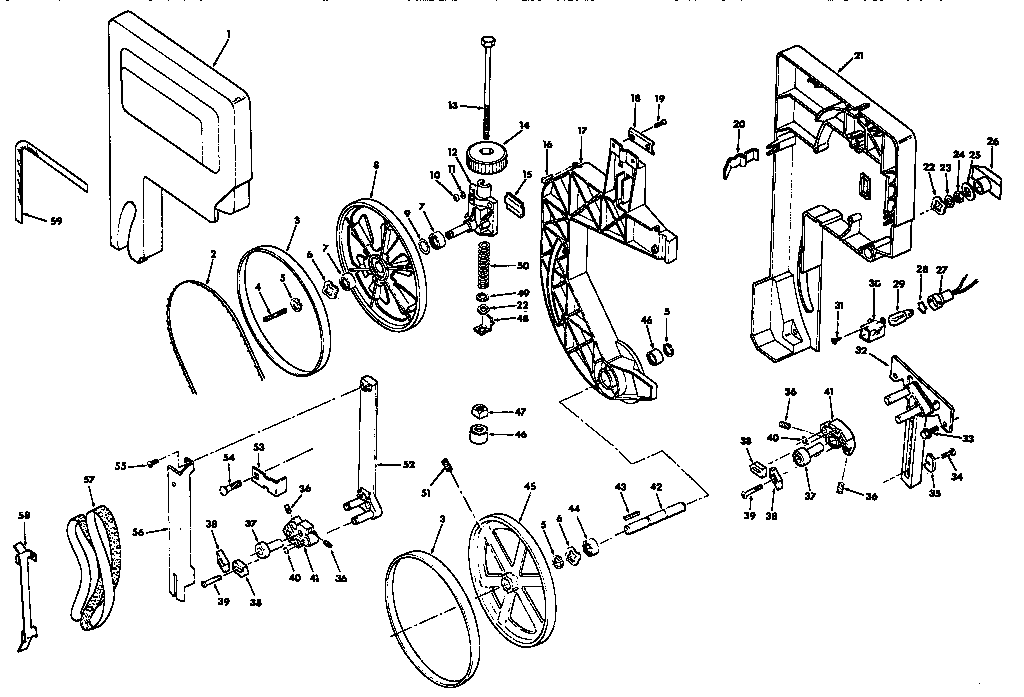

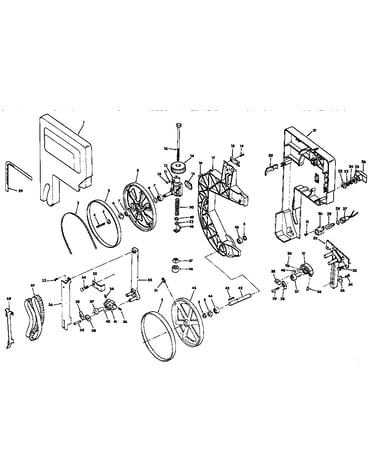

Drive assembly parts diagram

Band saw wheel shaft, lower

Part #816387

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Push Nut, 3/8-in 60240
#24

Bevel drive and motor mount assembly parts diagram

Radial arm saw push nut, 3/8-in

Part #60240

The manufacturer no longer makes this part, and there's no substitute part

Band Saw Tire (replaces 13033, 13571, 13611) 41815
#3

Drive assembly parts diagram

Band saw tire (replaces 13033, 13571, 13611)

Part #41815

The manufacturer no longer makes this part, and there's no substitute part

Band Saw Nut 816817
#42

Bevel drive and motor mount assembly parts diagram

Band saw nut

Part #816817

The manufacturer no longer makes this part, and there's no substitute part

Washer 60317
#19

Bevel drive and motor mount assembly parts diagram

Washer

Part #60317

The manufacturer no longer makes this part, and there's no substitute part

Band Saw Blade Guide 816379
#38

Drive assembly parts diagram

Band saw blade guide

Part #816379

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bolt 109093
#54

Drive assembly parts diagram

Carriage bolt

Part #109093

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Retainer Ring 38879
#9

Drive assembly parts diagram

Power tool retainer ring

Part #38879

The manufacturer no longer makes this part, and there's no substitute part
