Washer

Model # 11027062603 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 11027062603 washer, as well as links to manuals and error code tables, if available.

Manual Installation Icon

Installation guide

Owner's Manual Icon

Owner’s manual

By Schematic

By Part

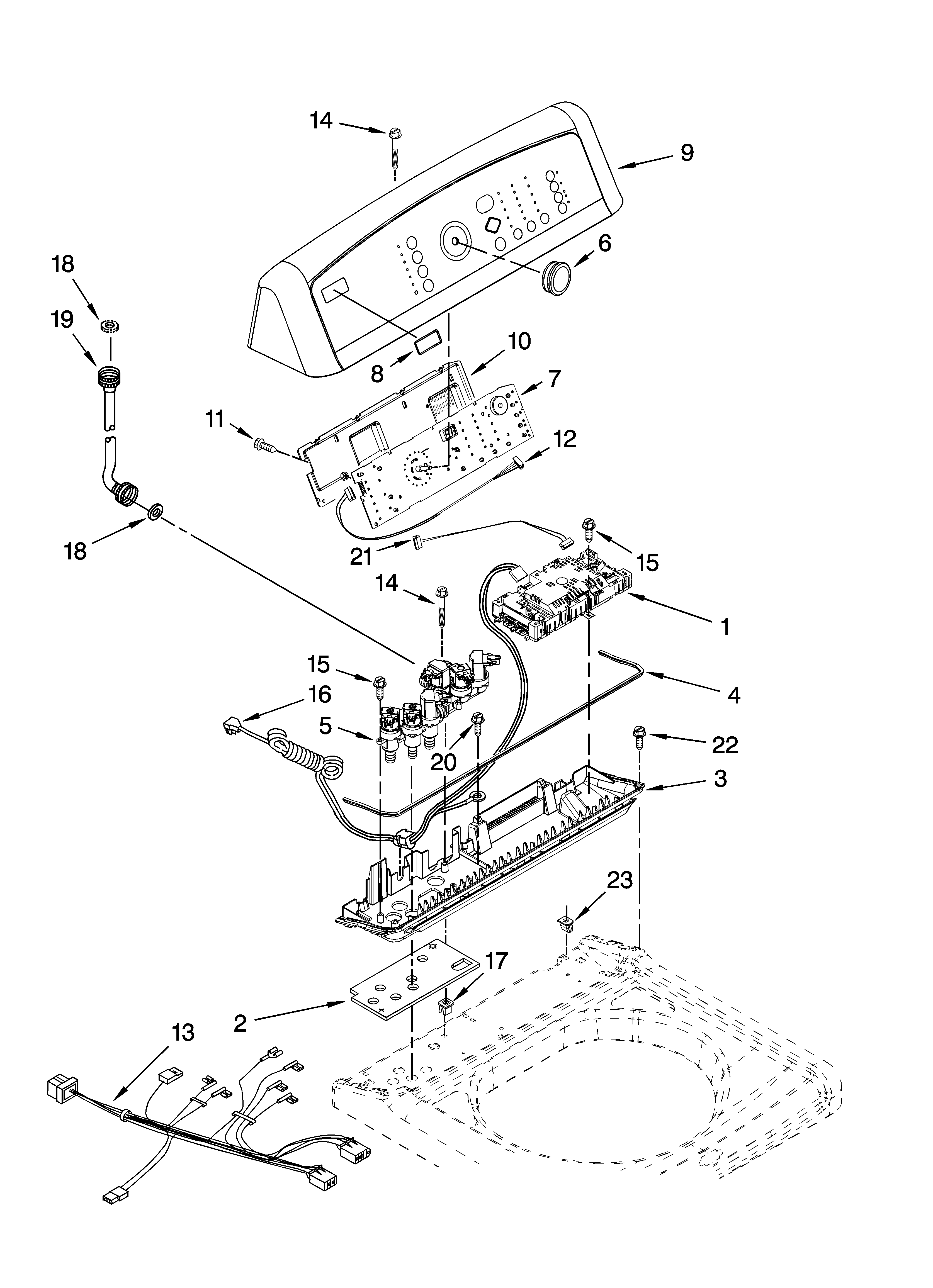

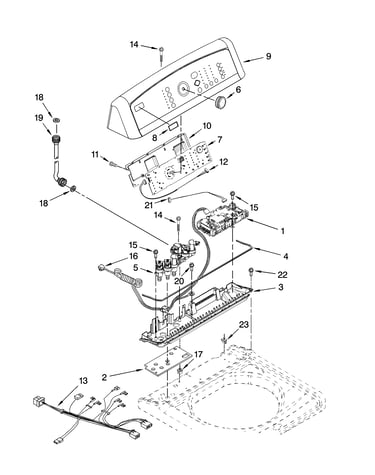

SELECT DIAGRAM

Browse Parts for11027062603 Washer

#(NI)

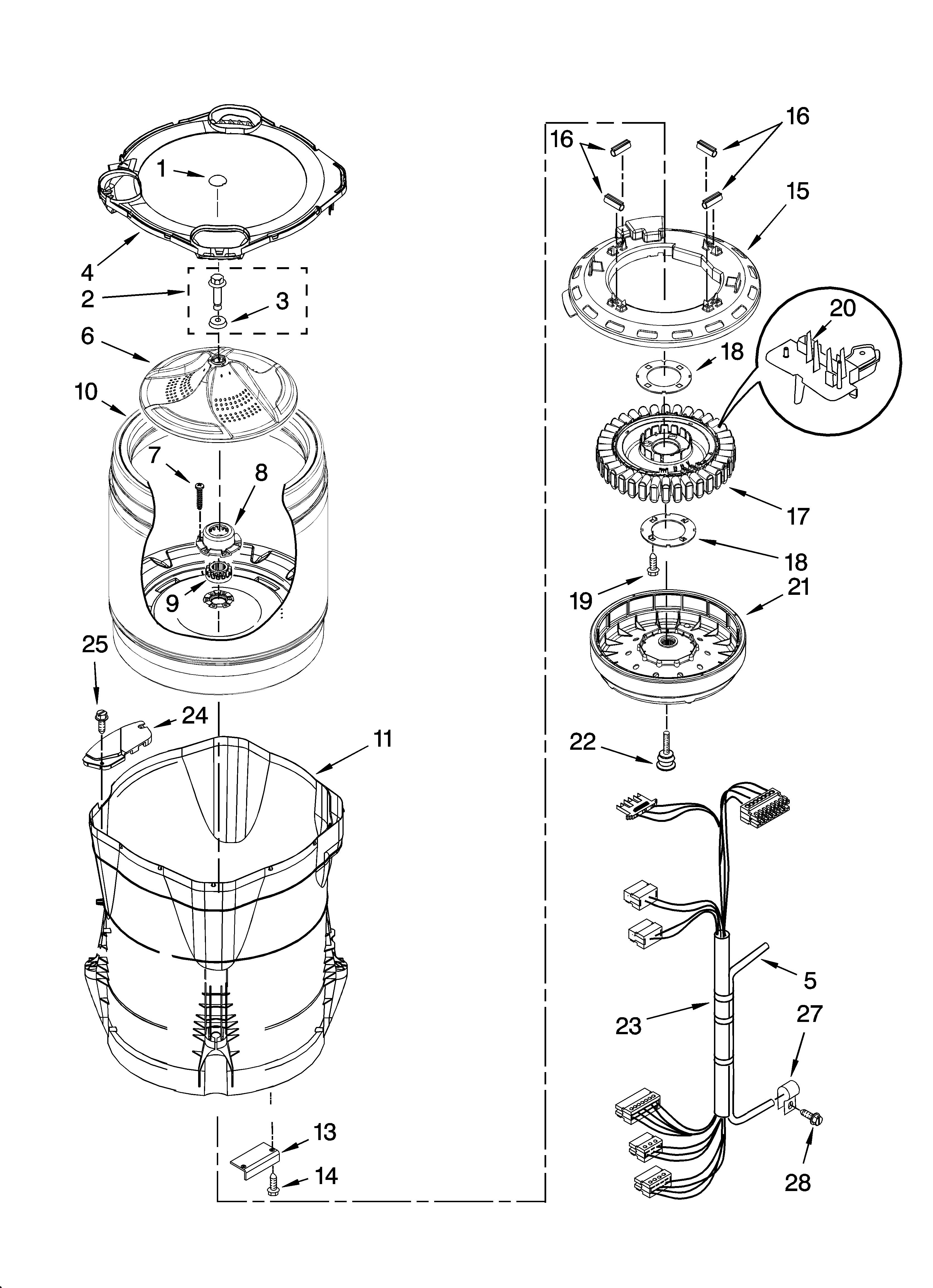

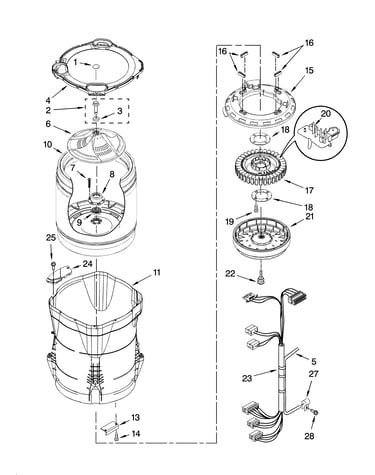

Motor, basket and tub parts diagram
Whirlpool washer tub bearing and drive shaft kit
Part #W10435302
$96.97 |
11% OFF Phone Price : $108.97
In Stock
Qty
#9
Motor, basket and tub parts diagram
Hub
Part #8545953
Replaced by #W10820039
?
Manufacturer substitution
This part replaces 8545953. Substitute parts can look different from the original.
$28.37 |
17% OFF Phone Price : $34.37
In Stock
Qty
#8
Motor, basket and tub parts diagram
Hub
Part #W10118114
Replaced by #W10820039
?
Manufacturer substitution
This part replaces W10118114. Substitute parts can look different from the original.
$28.37 |
17% OFF Phone Price : $34.37
In Stock
Qty
#10

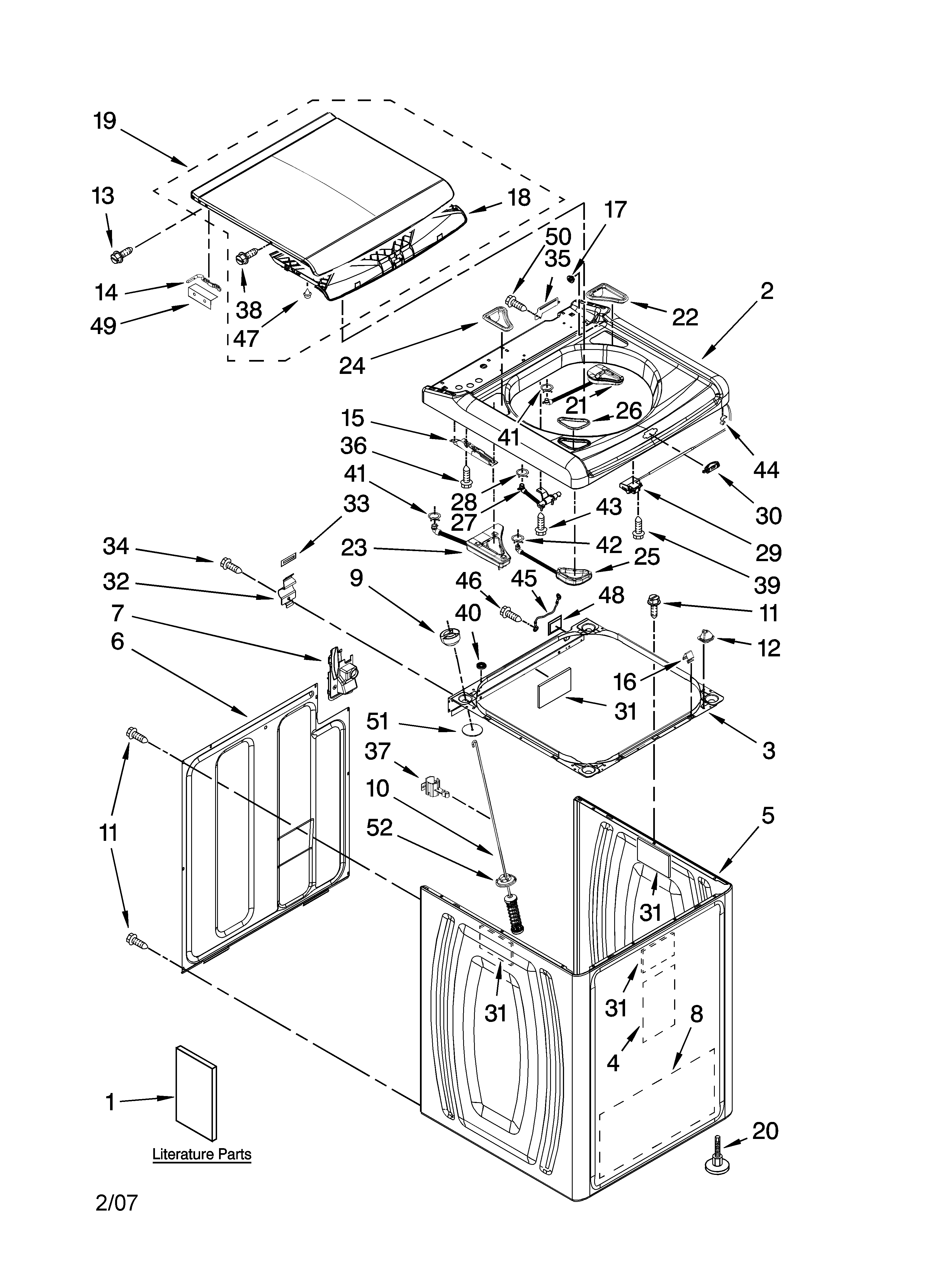

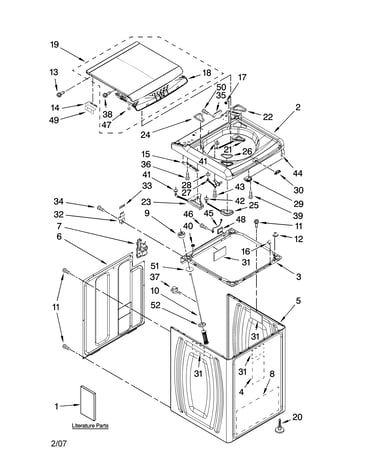

Top and cabinet parts diagram
Suspension
Part #8564009
Replaced by #W10820048
?
Manufacturer substitution
This part replaces 8564009. Substitute parts can look different from the original.
$58.01 |
9% OFF Phone Price : $64.01
In Stock
Qty
#1

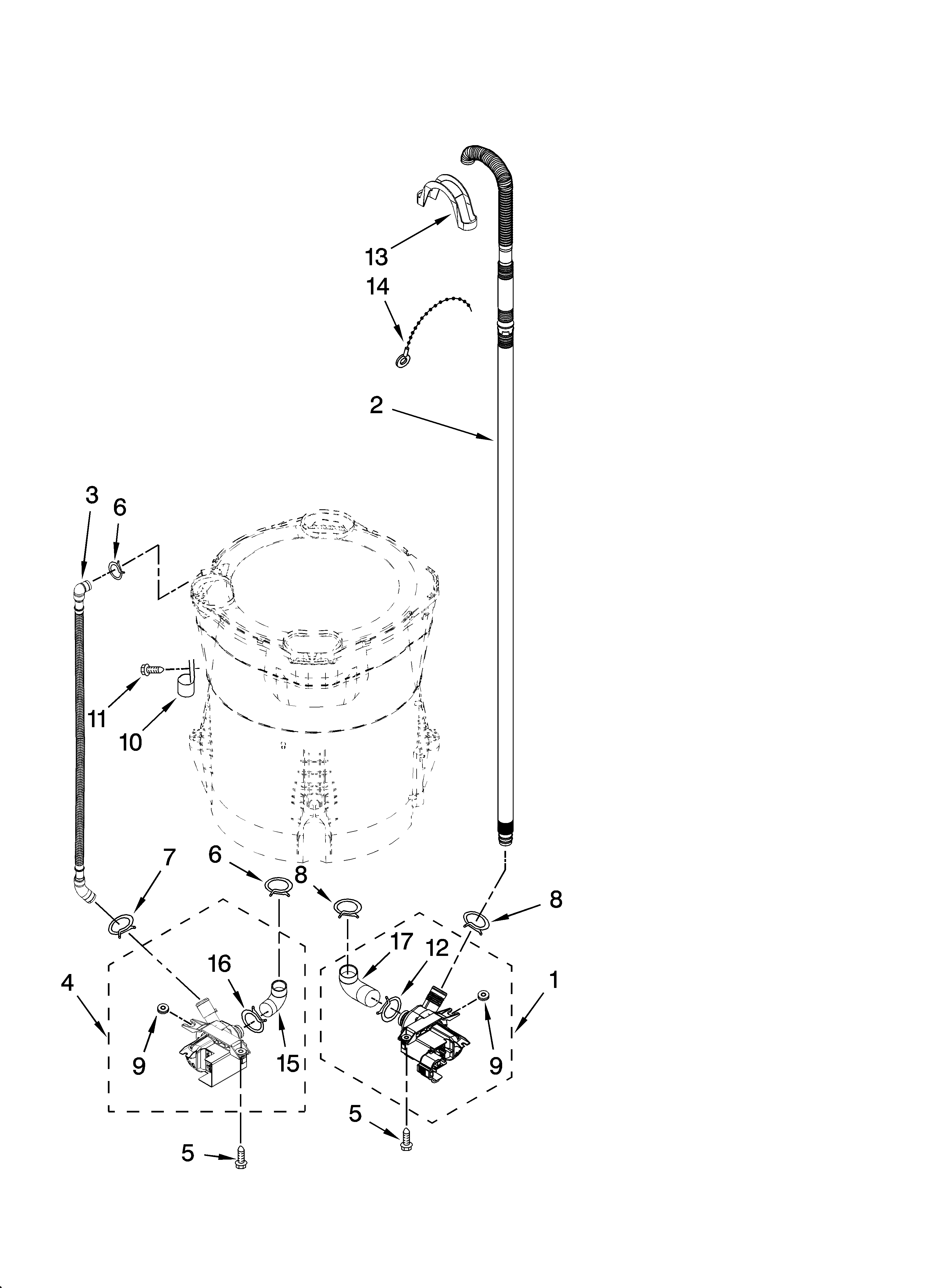

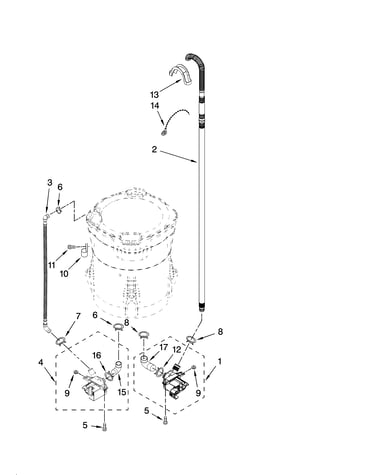

Pump parts, optional parts (not included) diagram
Pump-water
Part #W10049390
Replaced by #W10536347
?
Manufacturer substitution
This part replaces W10049390. Substitute parts can look different from the original.
$84.91 |
7% OFF Phone Price : $90.91
In Stock
Qty
#17
Motor, basket and tub parts diagram
Stator
Part #8565170
Replaced by #WPW10419333
?
Manufacturer substitution
This part replaces 8565170. Substitute parts can look different from the original.
$177.64 |
6% OFF Phone Price : $189.64
In Stock
Qty
#21
Motor, basket and tub parts diagram
Rotor
Part #8565177
Replaced by #280146
?
Manufacturer substitution
This part replaces 8565177. Substitute parts can look different from the original.
$183.17 |
6% OFF Phone Price : $195.17
In Stock
Qty
#29
Top and cabinet parts diagram
Washer lid lock
Part #W10059230
Replaced by #WPW10619844
?
Manufacturer substitution
This part replaces W10059230. Substitute parts can look different from the original.
$65.65 |
8% OFF Phone Price : $71.65
In Stock
Qty
#7
Motor, basket and tub parts diagram
Washer screw
Part #8533953
Replaced by #WP8533953
?
Manufacturer substitution
This part replaces 8533953. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Qty
#5
Motor, basket and tub parts diagram
Hose
Part #8572540
Replaced by #WP353244
?
Manufacturer substitution
This part replaces 8572540. Substitute parts can look different from the original.
$43.64 |
12% OFF Phone Price : $49.64
In Stock
Qty

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Appliance spray paint (white)
$16.44 |
11% OFF Phone Price : $18.44
Qty
Appliance spray paint (gray primer)
$46.40 |
11% OFF Phone Price : $52.40
Qty
Danby appliance touch-up paint, 0.6-oz (white)
$7.13 |
14% OFF Was : $8.29
Qty

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Why won't my washing machine drain?

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Why won't my washing machine agitate or spin?

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Why won't my washing machine start?

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Why your washing machine won't finish its cycle

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Why is my washing machine noisy or shaking?

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Why won't my washing machine fill?

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Why doesn't my washing machine work at all?

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Why does my washing machine overfill?

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Why is the water in my washing machine the wrong temperature?

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
