GE PSI23SGMDFBS refrigerator - m series Parts

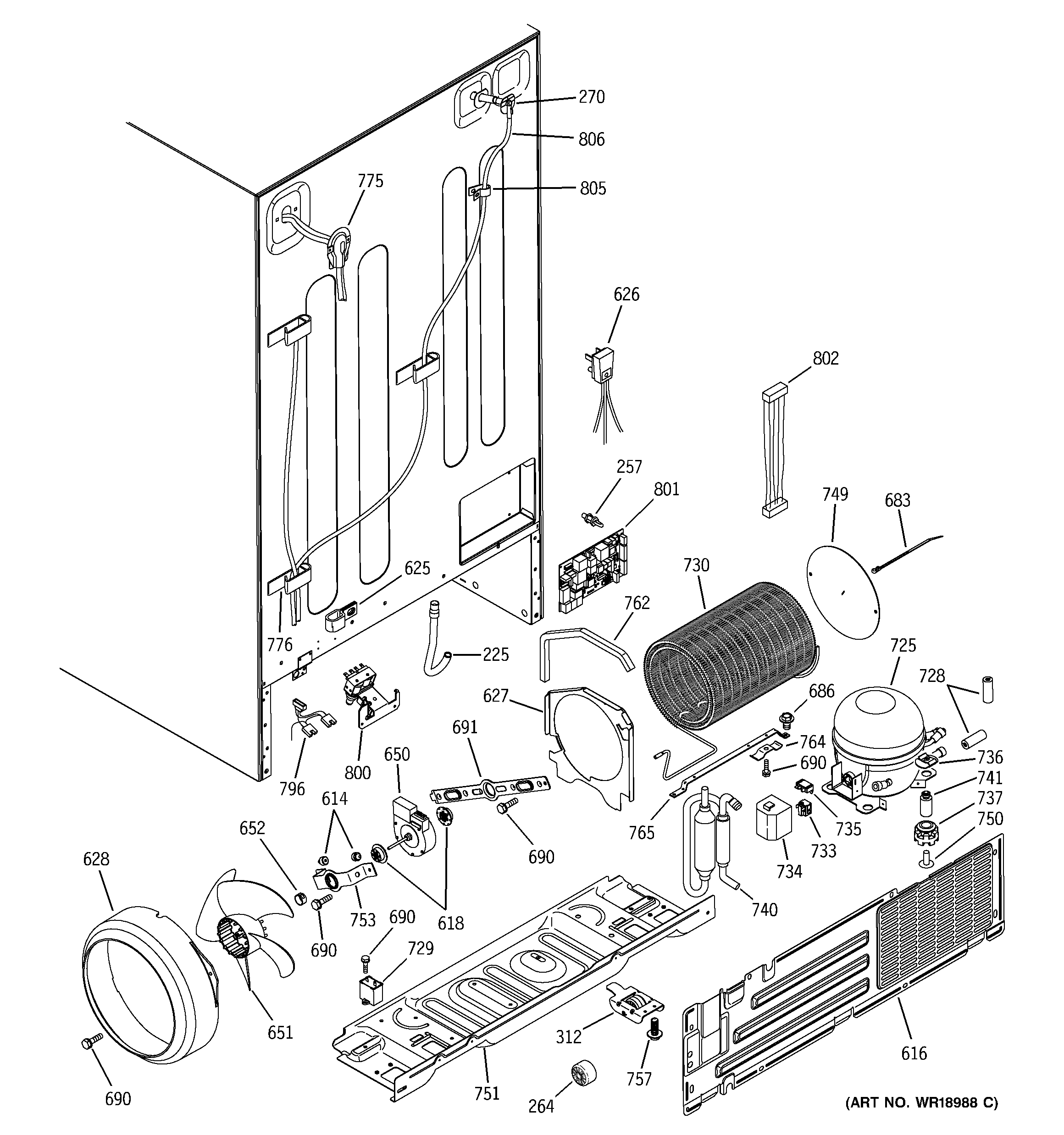

The five main parts that make a refrigerator like the GE PSI23SGMDFBS cool properly are the compressor, condenser coil, evaporator coil, metering device (capillary tube/expansion device), and a temperature control system (thermostat or electronic control). Together, they move heat out of the cabinet and keep food at safe temperatures.

These are the components that do the refrigeration work:

• Compressor: pumps refrigerant through the sealed system.
• Condenser coil: releases heat under or behind the refrigerator (warm air at the bottom is normal).

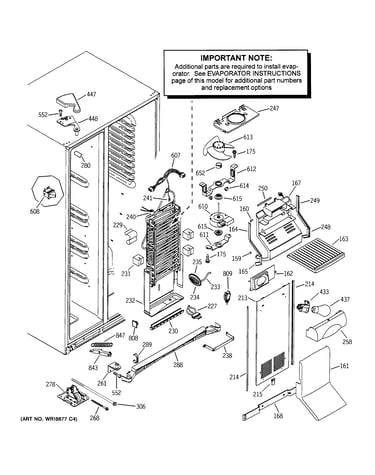

• Evaporator coil: absorbs heat inside the freezer section.
• Metering device (capillary tube/expansion device): drops refrigerant pressure so it can absorb heat.
• Temperature control (thermostat or control board plus sensors): tells the system when to run.

For model-specific operating details like preset temperatures (commonly 0°F freezer and 37°F fresh food), use the owner's manual.

These parts do not create cooling, but they strongly affect performance and symptoms:

• Evaporator fan motor (moves cold air through the compartments)
• Defrost heater and defrost thermostat (prevents frost buildup on the evaporator)
• Door gaskets (prevent warm, humid air leaks)
• Water inlet valve and water filter (dispenser and ice maker water supply)

When you know the “main five,” troubleshooting gets faster: cooling problems usually trace back to the sealed system (compressor, coils, metering device) or to control and airflow issues (sensor, fans, defrost). That helps you focus on the right checks and parts.

Last updated: February 2026

To find the correct GE refrigerator part number for model PSI23SGMDFBS, start by confirming the model number from the ID tag, then use the parts list for that exact model to match the part by name and diagram location. Your owner's manual also helps identify assemblies and serviceable components.

• Locate the refrigerator’s model/serial tag (commonly inside the fresh food compartment on a side wall, ceiling, or near the crisper area; sometimes on the cabinet edge behind a door).
• Write the model number exactly as shown: PSI23SGMDFBS.
• Identify what is failing (example: warm temperatures, no water dispensing, lights out, ice chute not closing).

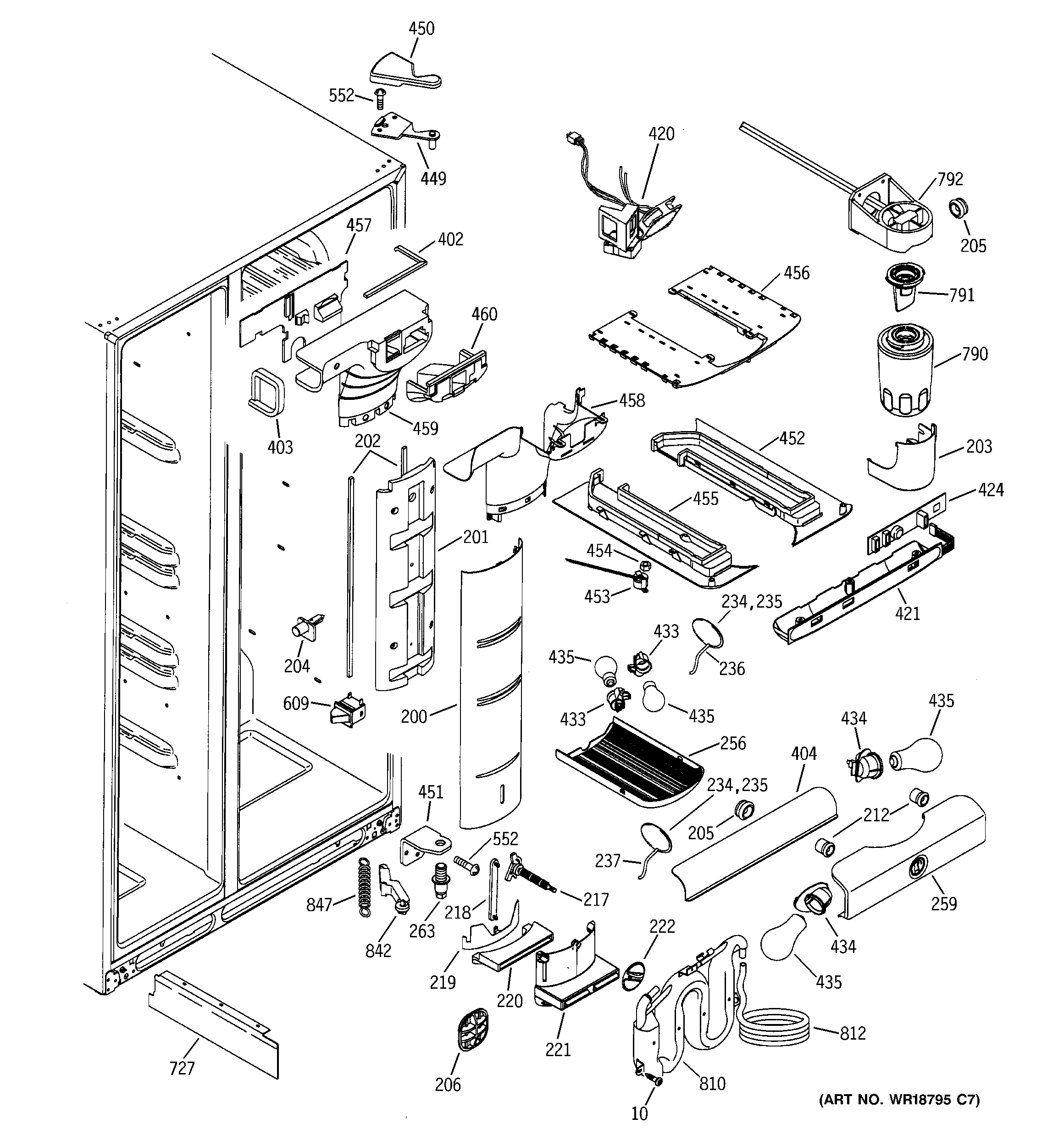

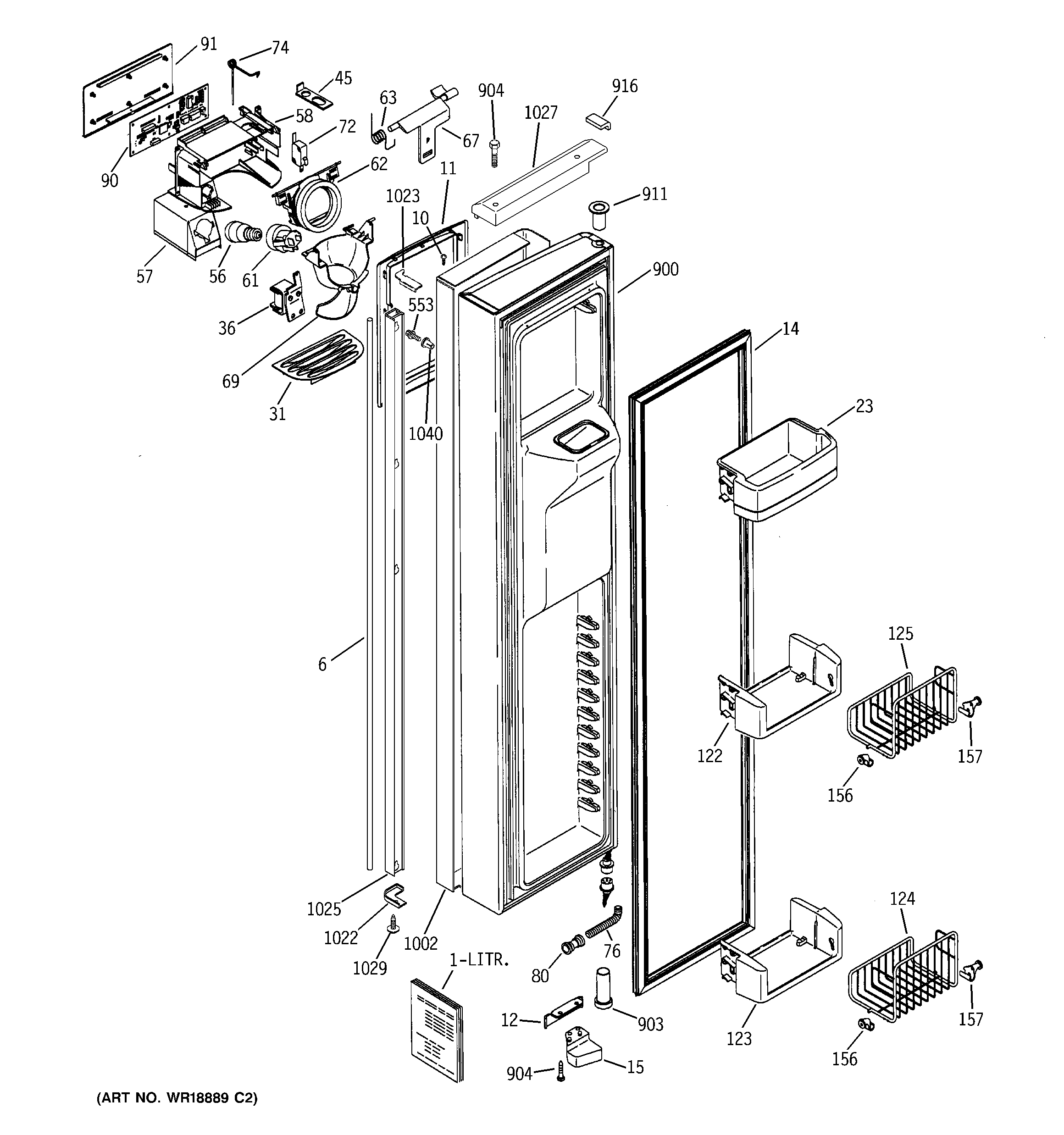

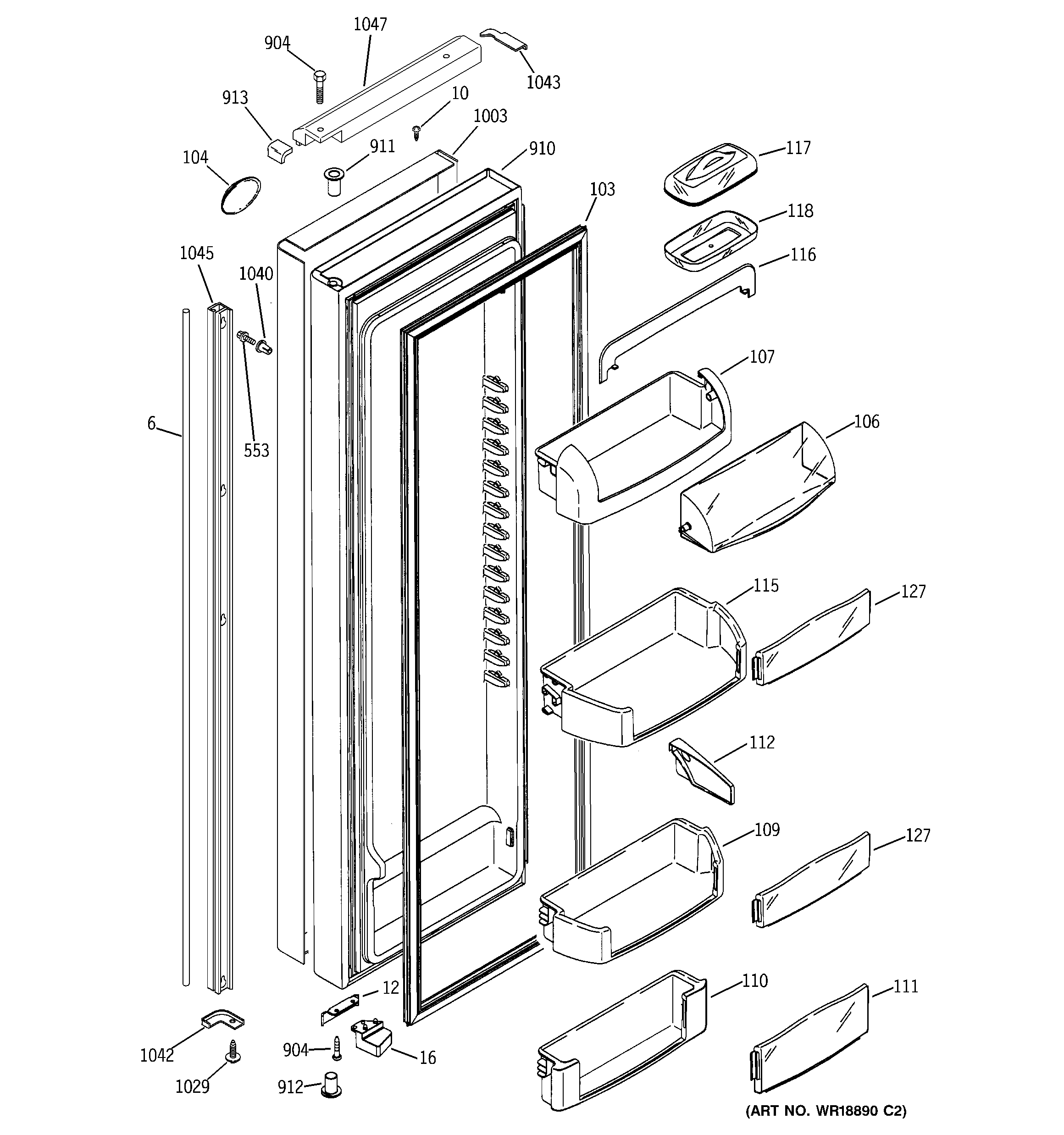

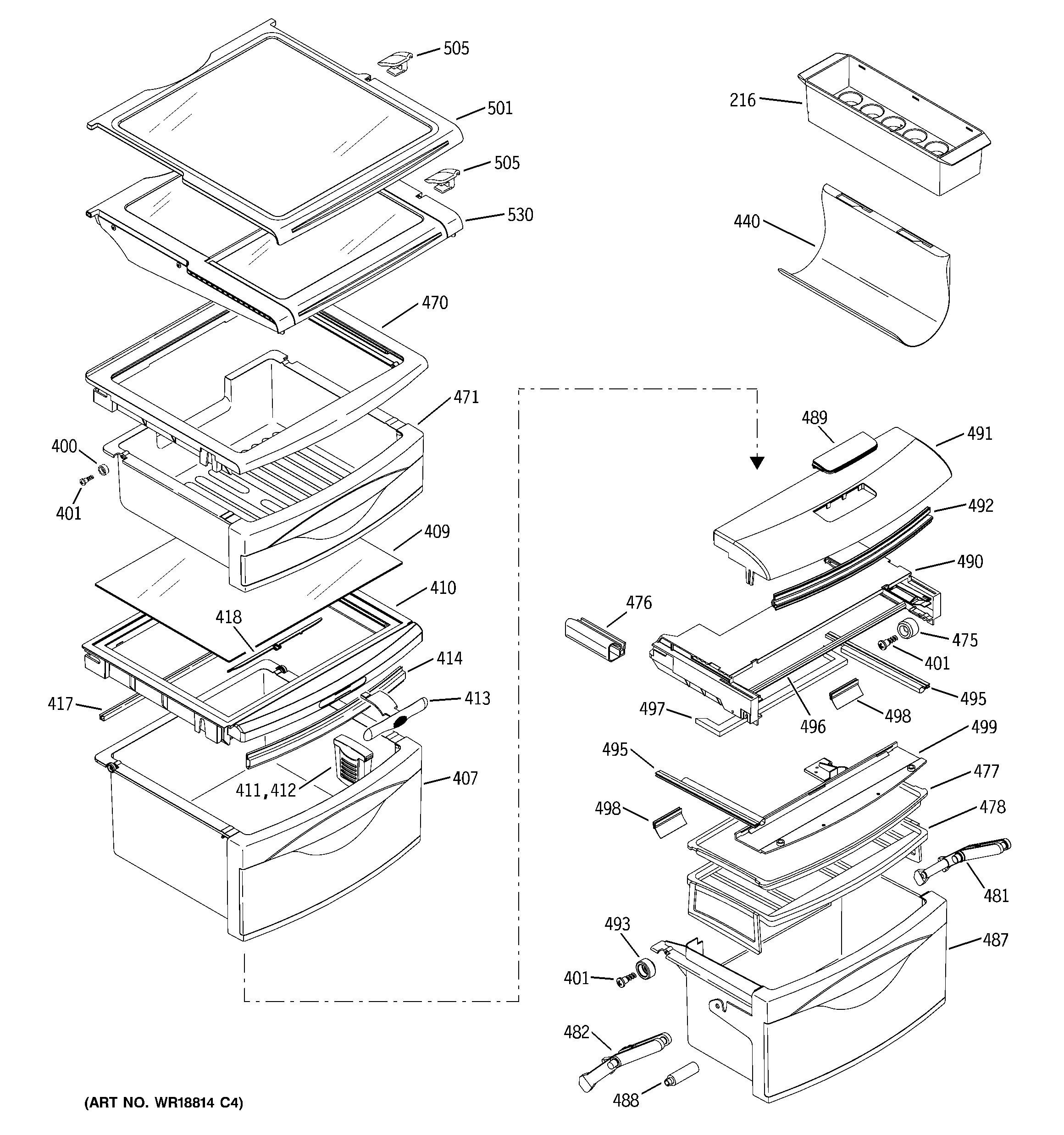

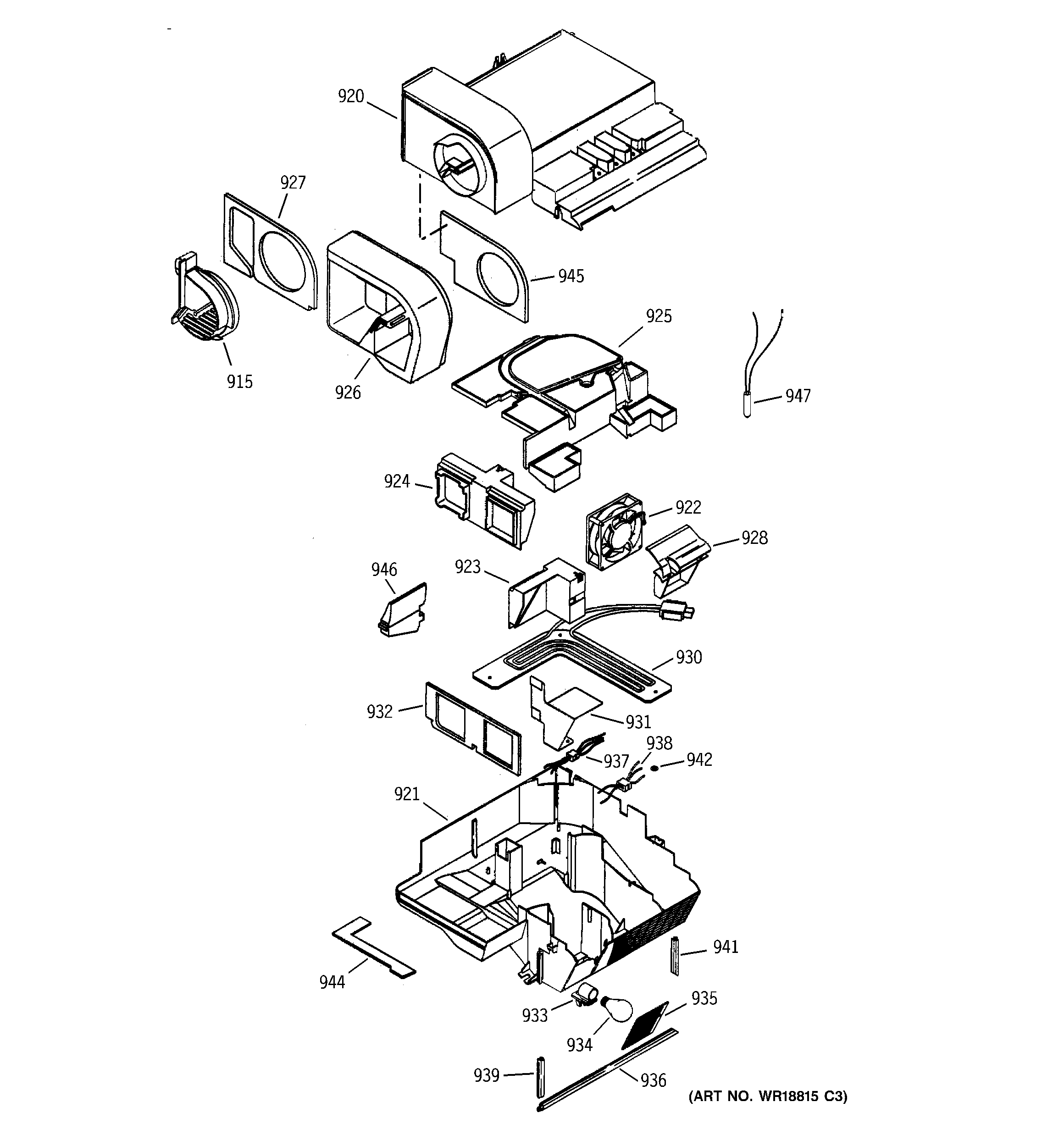

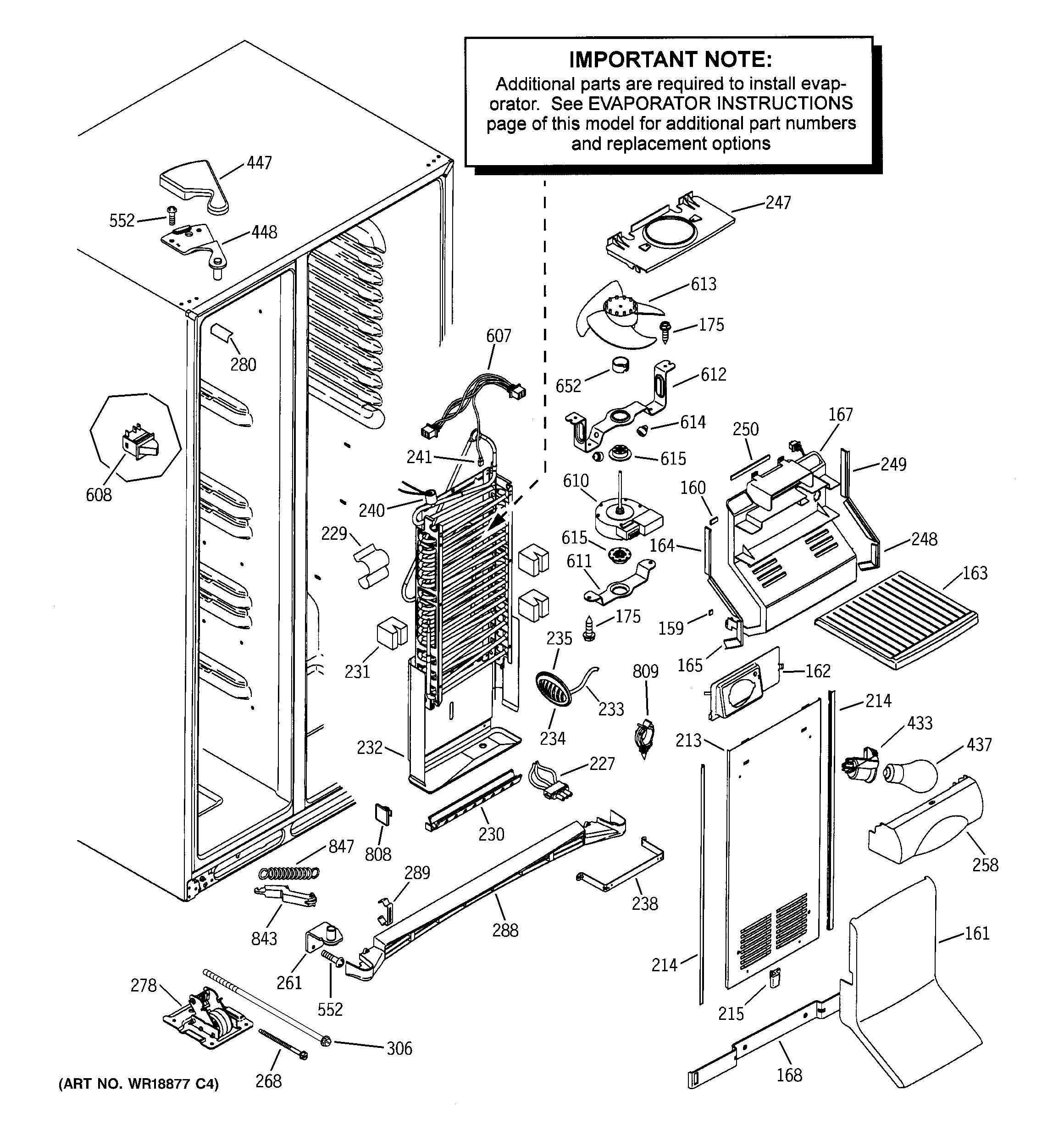

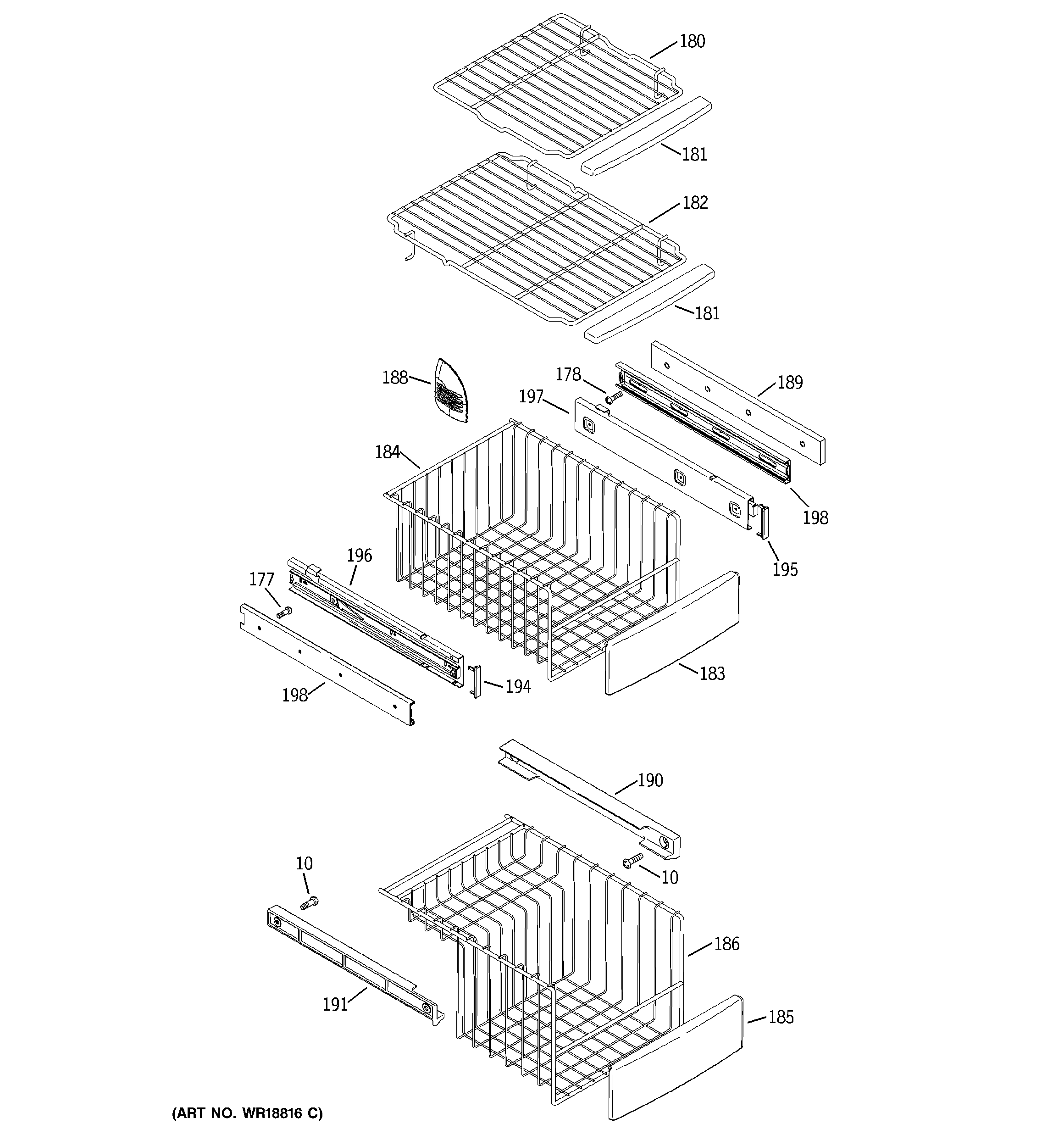

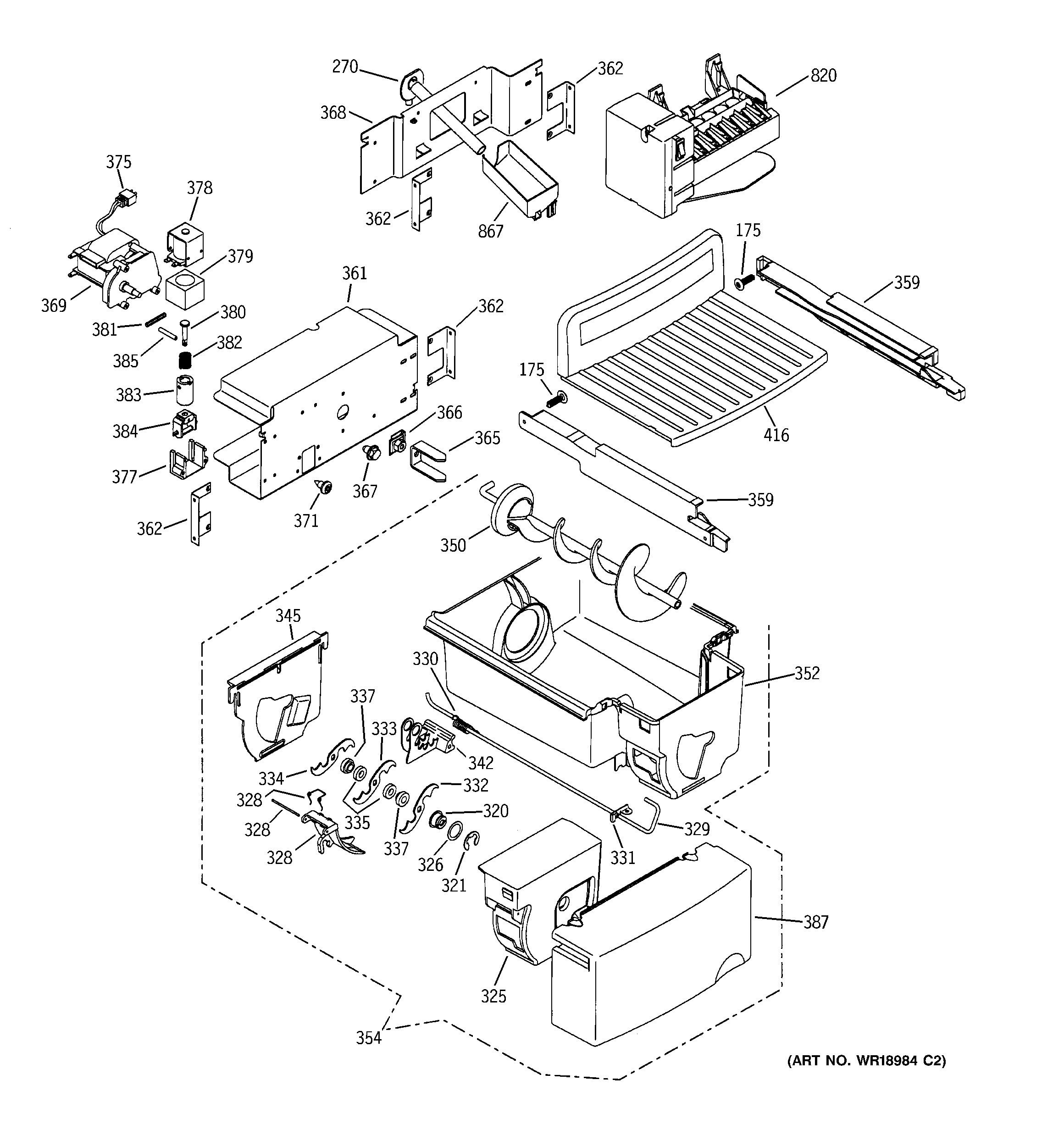

• Use the model-specific parts diagrams to find the part name and reference number.
• Match that diagram callout to the part listing to get the correct part number/part ID.
• If multiple similar parts appear, compare details like location (freezer vs fresh food), connector style, and whether it is an “assembly” vs a single component.

If you already know the symptom, these are frequently searched items for PSI23SGMDFBS:

GE often uses multiple similar-looking parts across close model variations. Matching the part to PSI23SGMDFBS prevents ordering a look-alike that does not fit, does not plug in correctly, or does not resolve the cooling, ice, or water issue.

Last updated: February 2026

The most common GE refrigerator complaint is not cooling properly, which is usually tied to airflow restrictions, a defrost issue, or a control setting problem. On your GE PSI23SGMDFBS, we start by checking temperatures, door sealing, and basic operating conditions listed in the owner's manual.

• Not cooling or weak cooling: confirm controls are not set to OFF; allow up to 24 hours after plugging in for temperatures to stabilize.
• Runs a lot or cycles frequently: often normal with frequent door openings, hot rooms, or large food loads.

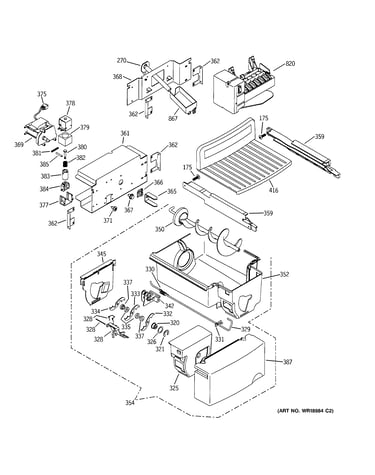

• Ice maker not making ice: make sure the water supply is connected and the ice maker is turned on.
• Small or hollow ice cubes: a clogged water filter is a common cause.
• Buzzing, gurgling, or rattling sounds: many are normal (pressure equalization, refrigerant flow); some indicate the unit needs leveling.
• Water leaks: commonly a drain or defrost-related issue; check for ice buildup and water collecting under drawers.

1. Set both temperature controls to a normal cooling setting (not OFF).
2. If the refrigerator was just plugged in, wait 24 hours for full cool-down.
3. Check that doors fully close and nothing is holding them open.
4. If ice is small or slow to make, replace the refrigerator water filter MWFP.
5. If cooling is inconsistent, inspect for frost buildup that can point to a defrost problem.

Cooling and ice-making problems usually get worse if airflow is restricted or a defrost issue is left alone. Catching it early helps protect food, reduces compressor run time, and prevents ice buildup that can lead to leaks.

Last updated: February 2026

Replacing the main control board on a GE PSI23SGMDFBS refrigerator costs the price of the board plus labor. Most side-by-side refrigerator control board repairs land in the $250 to $700 total range, depending on the exact board used and local service rates.

• Control board: commonly $150 to $450
• Service call/diagnosis: commonly $75 to $150
• Labor to replace the board: commonly $150 to $300
• Possible extras: wiring repair, connector replacement, or additional troubleshooting time

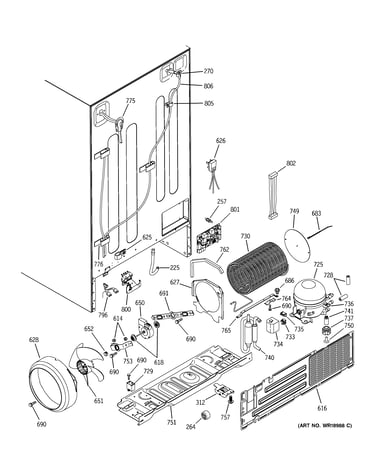

For GE PSI23SGMDFBS, the model parts list includes a main control board option: refrigerator main board WR55X10942C. Match by model and any board markings before ordering.

These quick checks often point to a simpler cause than the control board:

• Confirm the outlet is properly grounded and power is stable.
• Verify temperature settings; GE notes the factory presets are 37°F fresh food and 0°F freezer, and it can take 24 hours to stabilize after changes.
• Power reset: unplug for 2 to 5 minutes, then restore power.
• Inspect wiring and connectors at the board area for looseness or corrosion.
• Rule out common “look-alike” failures such as a bad sensor or defrost problem.

Control boards are expensive compared with sensors, thermostats, and wiring fixes. Using the diagnostic and temperature-control guidance in the owner's manual helps confirm symptoms before you invest in an electronic control.

Last updated: February 2026
