How many cubic feet is the Whirlpool fridge model ED5PVEXWS10?
The Whirlpool side-by-side refrigerator model ED5PVEXWS10 is typically in the 25 cubic foot class for total capacity. For the exact total, fresh food, and freezer cubic feet for your specific configuration, use the capacity/specifications section in the ED5PVEXWS10 owner's manual.
What to look for in the capacity spec
Manufacturers list capacity as interior volume, usually split into two compartments.
- Total capacity (cu. ft.): combined refrigerator plus freezer volume
- Refrigerator (fresh food) capacity: the larger right-side compartment on most side-by-sides
- Freezer capacity: the left-side compartment on most side-by-sides
- Usable space is less than stated capacity because shelves, bins, and the ice maker take up room
- Capacity is a specification, not a measurement you need to calculate yourself
Typical capacity ranges for this style
These ranges help set expectations when comparing models, but the manual gives the exact ED5PVEXWS10 numbers.
| Compartment | Typical range for Whirlpool side-by-side models | What affects it most |
|---|---|---|
| Total | 23 to 26 cu. ft. | cabinet size, insulation, dispenser/ice features |
| Freezer | 7 to 10 cu. ft. | ice maker and ice bin size |
| Fresh food | 14 to 17 cu. ft. | shelf layout, door bin design |
Why it matters
Capacity helps us match the right Whirlpool refrigerator parts and storage components (shelves, bins, ice container) and helps you compare side-by-side models realistically, since “25 cu. ft.” does not equal 25 cu. ft. of usable shelf space.
Last updated: January 2026
Where is the defrost timer located on a Whirlpool side by side?
On Whirlpool side-by-side refrigerators such as model ED5PVEXWS10, defrost timing is commonly handled by an electronic defrost control (adaptive defrost control) in the temperature control housing rather than a separate, dial-style defrost timer. Use the ED5PVEXWS10 owner's manual wiring and control-area diagrams to identify the exact defrost control used on your unit.
Where to look first on ED5PVEXWS10
Check these access points in order; they match the most common Whirlpool side-by-side layouts for this design:

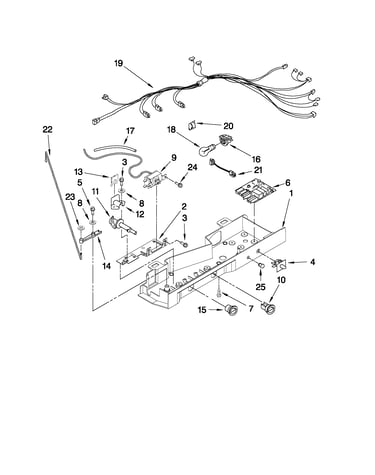

- Inside the fresh food section control console (where the temperature controls and light are)
- Behind the toe grille (lower front kickplate) for a small control module or harness connections
- Rear lower machine compartment area near the compressor (for control box and wiring junctions)
How to tell “timer” vs “electronic defrost control”
A true mechanical timer is easy to spot; an electronic control looks different and is tested differently.
| What you find | What it indicates | What to do next |
|---|---|---|
| Small module with an advance dial/slot | Mechanical defrost timer | Confirm it advances and switches into defrost |
| Circuit board, no dial/slot | Electronic defrost control (ADC) | Troubleshoot heater, thermostat, and control outputs |
| Heavy frost on evaporator cover | Defrost system not clearing frost | Test heater and bi-metal thermostat |
Safe access steps
Before removing covers or reaching into the control area:
- Unplug the refrigerator or switch off the breaker
- Use a flashlight; avoid pulling on wire connectors
- Take a photo of wire routing before disconnecting anything
- Reinstall all covers before restoring power
Why it matters
If ED5PVEXWS10 uses an electronic defrost control, you will not find a separate “timer” with a dial. Frost and warming issues often trace to the heater or thermostat, such as the refrigerator defrost heater WP2323198 and the refrigerator defrost bi-metal thermostat WPW10225581.
Last updated: January 2026
Where is the water filter on a side by side Whirlpool refrigerator?
On the Whirlpool ED5PVEXWS10 side-by-side refrigerator, the water filter is typically located inside the fresh food (refrigerator) compartment, often in the upper-right area or in the base grille at the bottom front. Use the ED5PVEXWS10 owner's manual to confirm the exact filter location and removal direction for your configuration.
How to find it quickly
Check these common spots in this order:
- Upper-right corner inside the refrigerator compartment (near the ceiling)
- Upper-left corner inside the refrigerator compartment
- Base grille at the bottom front (you may see a round filter cap)
- Inside a small filter housing along the side wall
How removal usually works on this style
Many Whirlpool side-by-side filters use a simple release method. If your housing says “lift up to remove,” that usually means you lift the filter or cap to release the latch, then pull the filter straight out.
- Turn the filter or cap only if the housing indicates a twist-lock
- Pull straight out; do not force it at an angle
- Keep a towel handy for a small amount of water
- After installing the new filter, run water to clear air and carbon fines
Which replacement filter fits this model
For ED5PVEXWS10, a common replacement is the refrigerator water filter EDR3RXD1. Match the filter style and seating depth to your existing filter housing.
| What you see | What it usually means | Next step |
|---|---|---|
| Filter inside fridge ceiling | Internal cartridge style | Press, lift, or pull to release |
| Filter behind base grille | Grille-mounted cartridge | Pull out or twist per label |
| Cap on the end of filter | Cap transfers to new filter | Move cap to new filter before installing |
Why it matters
Finding the correct filter location and release method prevents cracked housings, leaks at the water inlet valve, and poor water flow at the dispenser or ice maker.
Helpful DIY guidance
- Use how to replace the water filter in a Whirlpool refrigerator for step-by-step filter change tips and flushing guidance.
Last updated: January 2026
