Kenmore
Mechanical Sewing Machine

Model # 1581595281 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 1581595281 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

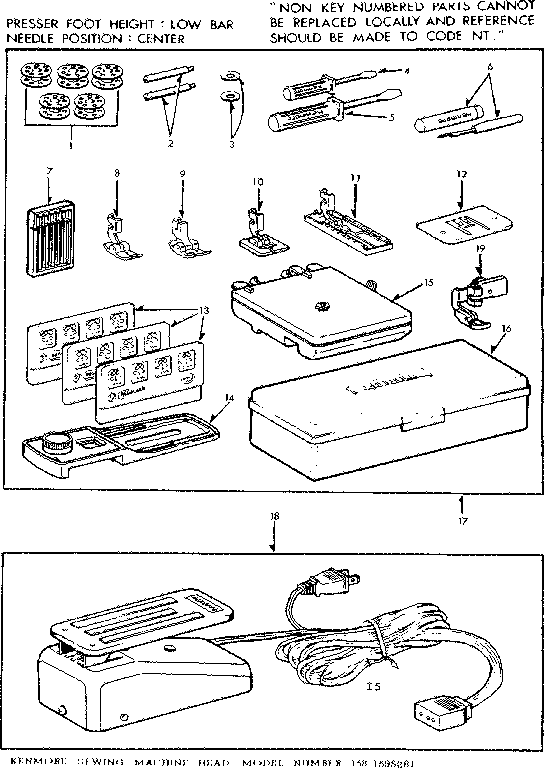

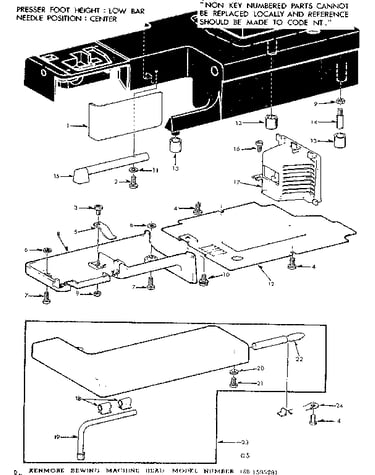

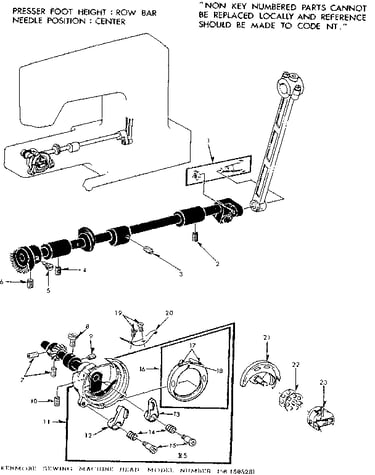

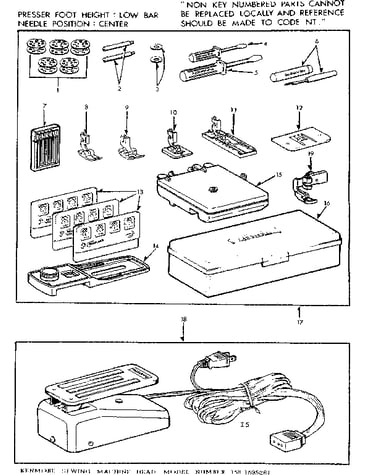

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |

Sewing Machine Needle Plate 45614
#12

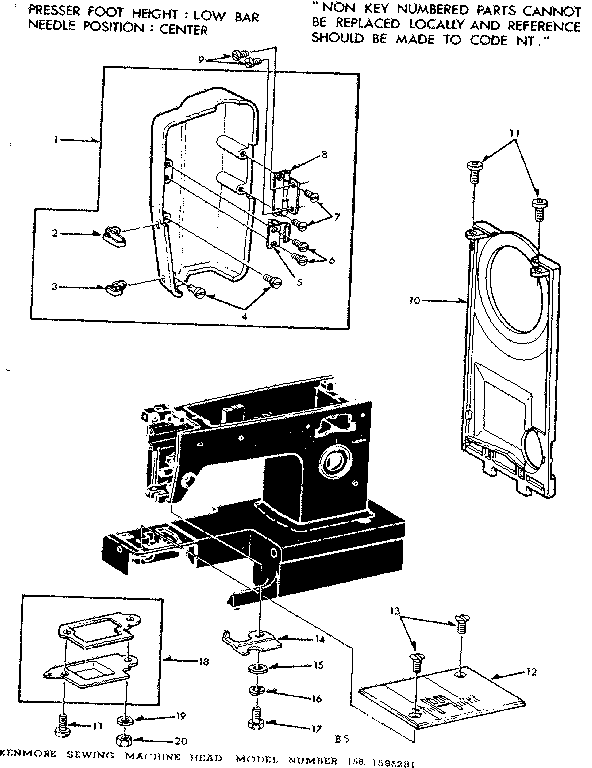

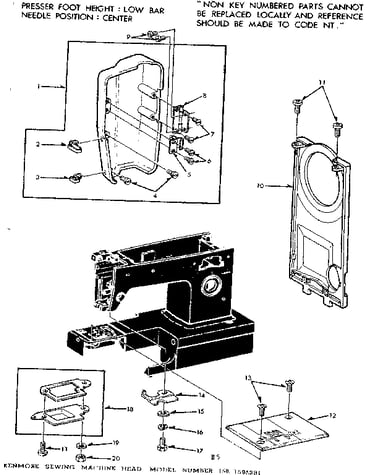

Needle plate diagram

Sewing machine needle plate

Part #45614

The manufacturer no longer makes this part, and there's no substitute part

Pivot Stud 32881
#2

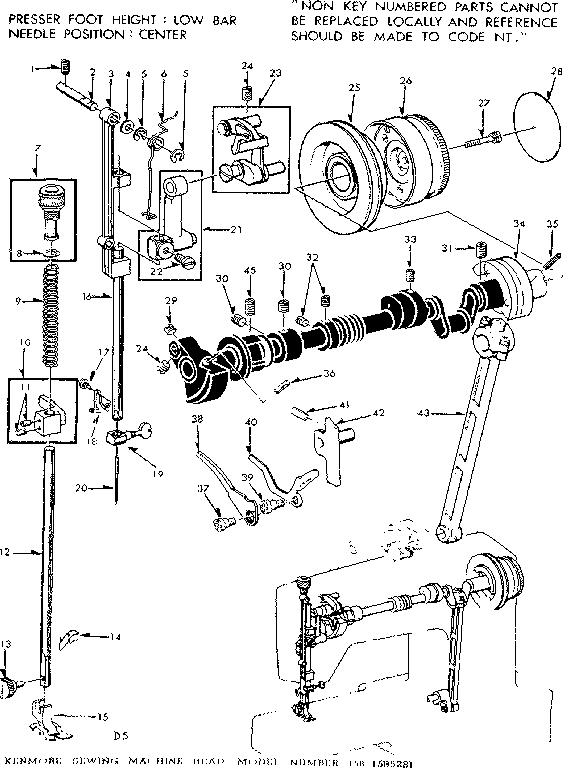

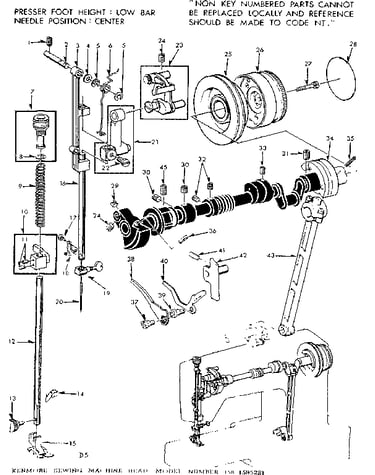

Presser bar assembly diagram

Pivot stud

Part #32881

The manufacturer no longer makes this part, and there's no substitute part

Slide Assembly 49776
#8

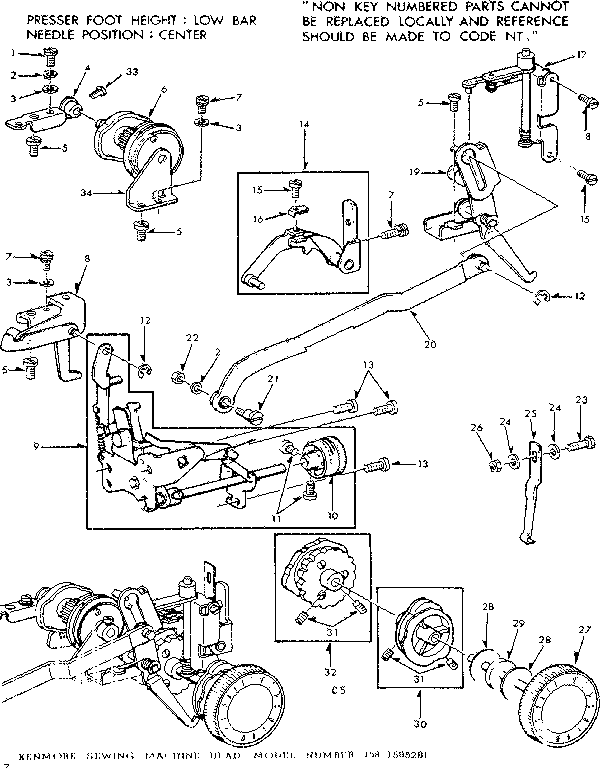

Zigzag guide assembly diagram

Slide assembly

Part #49776

The manufacturer no longer makes this part, and there's no substitute part

Bracket 57914
#34

Zigzag guide assembly diagram

Bracket

Part #57914

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 45463
#22

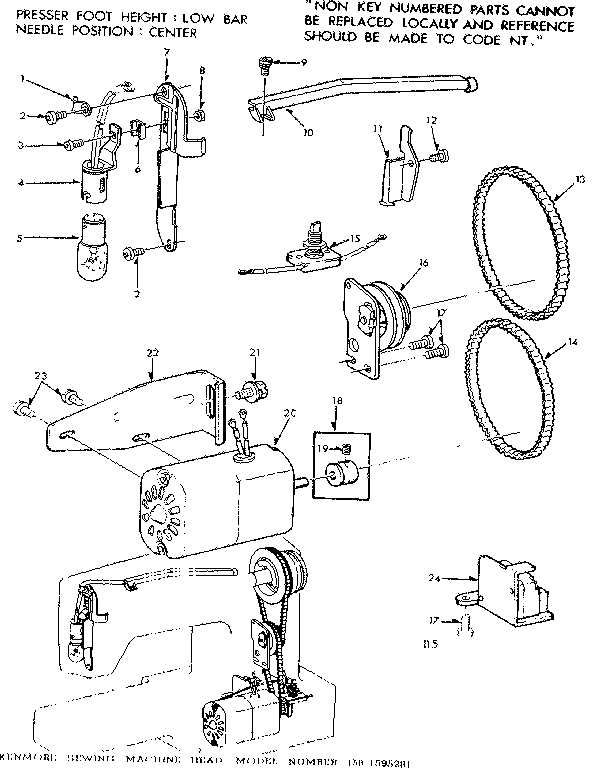

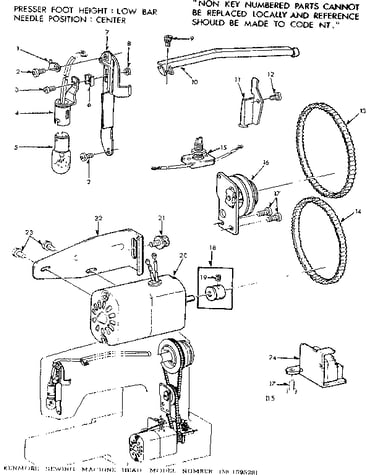

Motor assembly diagram

Motor bracket

Part #45463

The manufacturer no longer makes this part, and there's no substitute part

Hanger 32305
#18

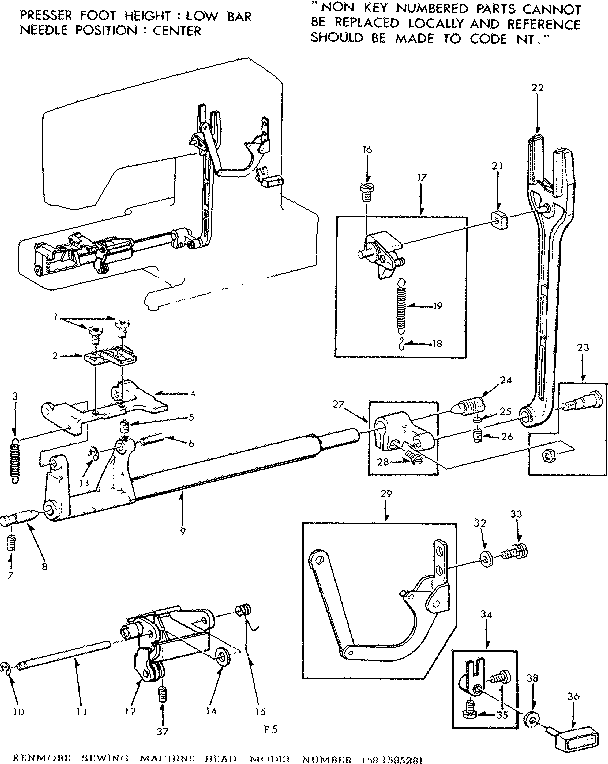

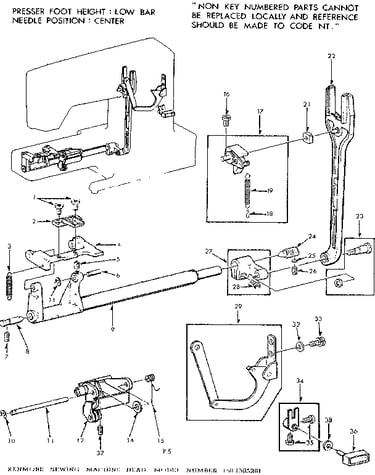

Feed regulator assembly diagram

Hanger

Part #32305

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate 53276
#25

Zigzag guide assembly diagram

Spring plate

Part #53276

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Belt 56973
#14

Motor assembly diagram

Sewing machine belt

Part #56973

The manufacturer no longer makes this part, and there's no substitute part

Washer 33060
#8

Presser bar assembly diagram

Washer

Part #33060

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 57917
#16

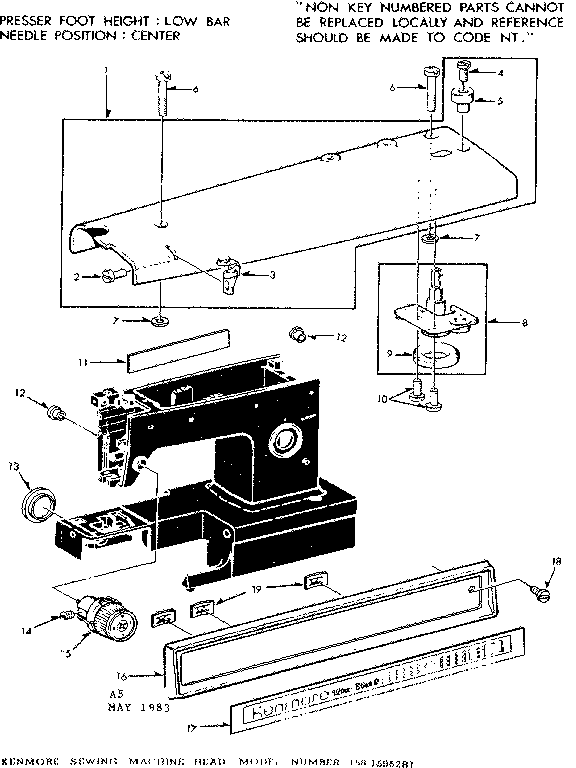

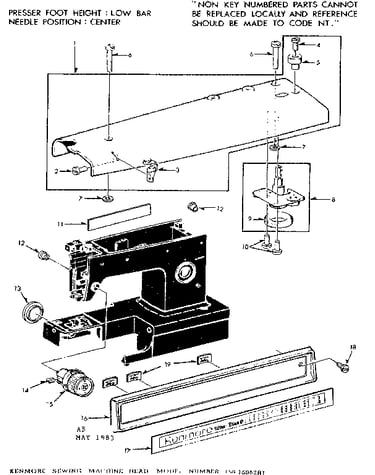

Base assembly diagram

Control panel

Part #57917

The manufacturer no longer makes this part, and there's no substitute part
