Kenmore
Electric Range

Model # 79092851302 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79092851302 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

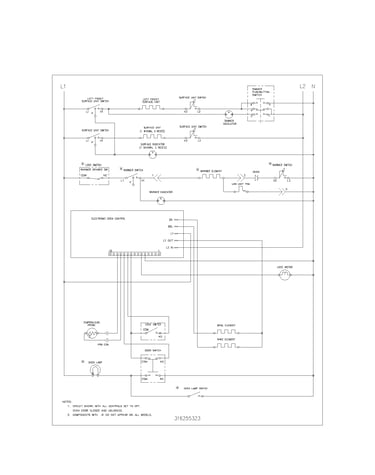

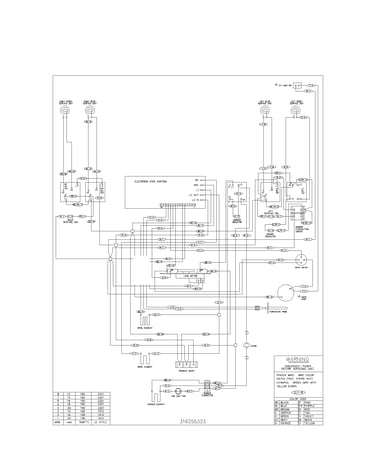

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |

Range Surface Element Control Switch 316021501
#54A

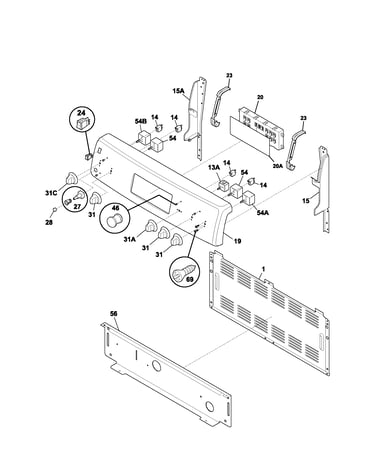

Backguard diagram

Range surface element control switch

Part #316021501

Replaced by #316436001

?
Manufacturer substitution
This part replaces 316021501. Substitute parts can look different from the original.
BEST SELLER
$36.81
12% OFF Phone Price : $41.81
In Stock
Range Oven Light Bulb 5303013071
#15

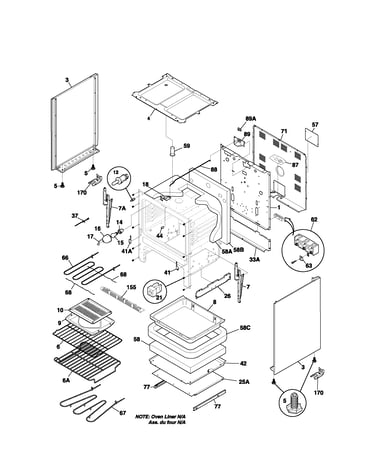

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.78
11% OFF Phone Price : $17.78
In Stock
Cooktop Surface Element 08067762
#15A

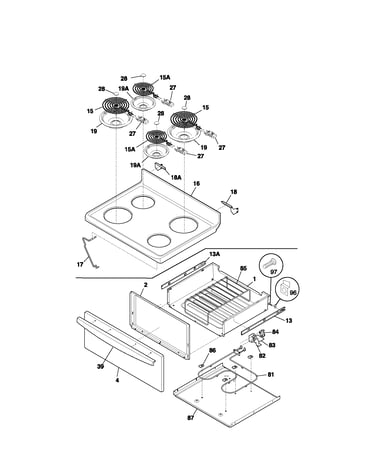

Top/drawer diagram

Cooktop surface element

Part #08067762

Replaced by #318372211

?
Manufacturer substitution
This part replaces 08067762. Substitute parts can look different from the original.
BEST SELLER
$37.44
12% OFF Phone Price : $42.44
In Stock
Range Oven Door Inner Glass 316237100
#8

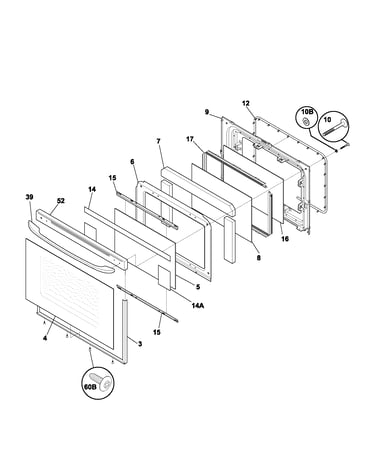

Door diagram

Range oven door inner glass

Part #316237100

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316237100. Substitute parts can look different from the original.
BEST SELLER
$85.47
6% OFF Phone Price : $90.47
In Stock
Block 5303912666
#27

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.10
33% OFF MSRP : $12.00
In Stock
Range Broil Element (replaces 316200600) 316203301
#66

Body diagram

Range broil element (replaces 316200600)

Part #316203301

BEST SELLER
$141.88
11% OFF MSRP : $160.00
In Stock
Oven Switch 316021500
#54

Backguard diagram

Oven switch

Part #316021500

Replaced by #316436000

?
Manufacturer substitution
This part replaces 316021500. Substitute parts can look different from the original.
BEST SELLER
$57.73
8% OFF Phone Price : $62.73
In Stock
Oven Probe 316233900
#37

Body diagram

Oven probe

Part #316233900

Replaced by #316217008

?
Manufacturer substitution
This part replaces 316233900. Substitute parts can look different from the original.
BEST SELLER
$25.89
16% OFF Phone Price : $30.89
Back Order
Range Drip Pan 5303935055
#19A

Top/drawer diagram

Range drip pan

Part #5303935055

Replaced by #A316222201

?
Manufacturer substitution
This part replaces 5303935055. Substitute parts can look different from the original.
BEST SELLER
$10.31
16% OFF Phone Price : $12.31
In Stock
Range Screw (replaces 5304479277) 316001013
#10

Door diagram

Range screw (replaces 5304479277)

Part #316001013

BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
