Model #58714002990 Kenmore dishwasher

Here are the diagrams and repair parts for Kenmore 58714002990 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 102 parts


Dishwasher Pump O-Ring, Rear

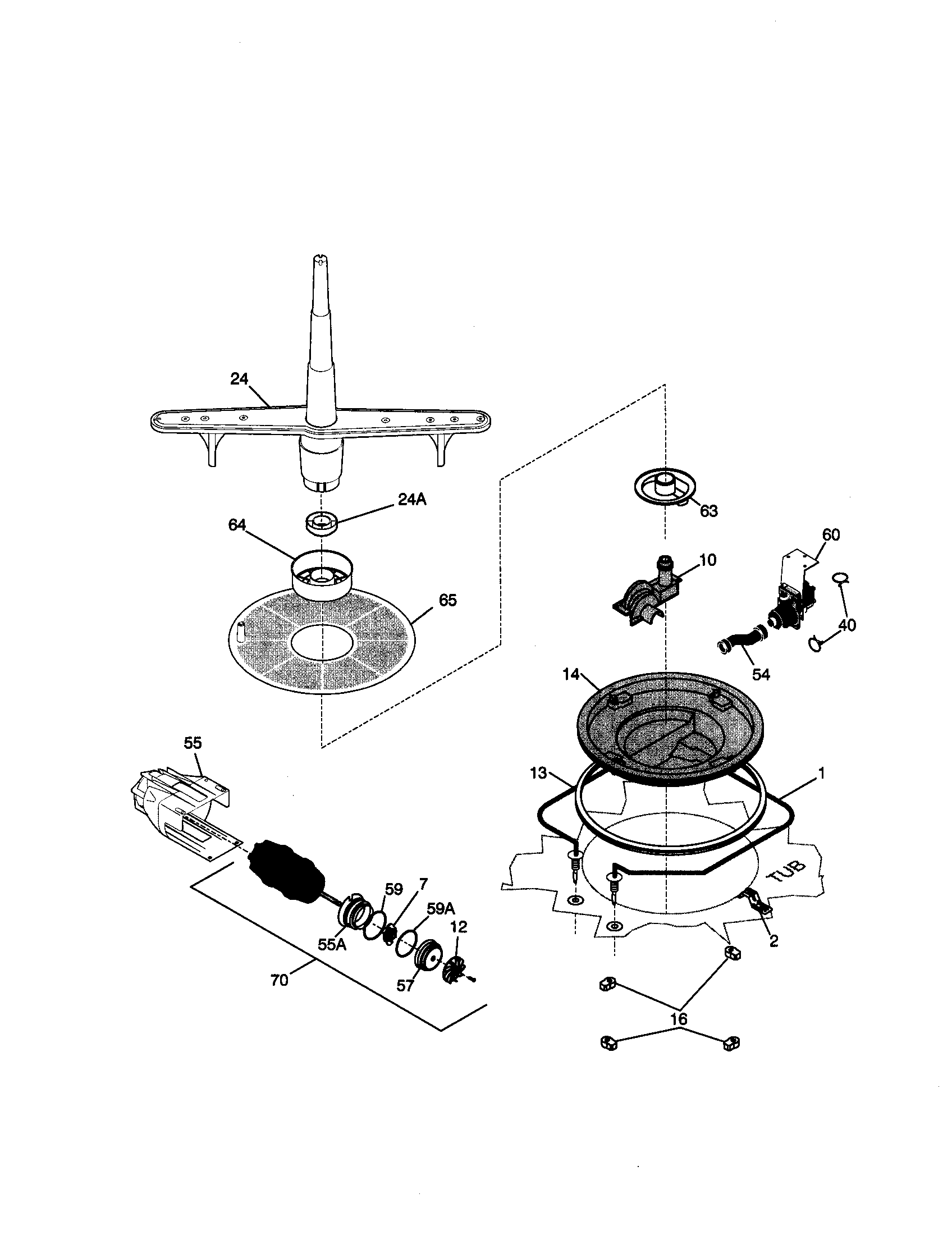

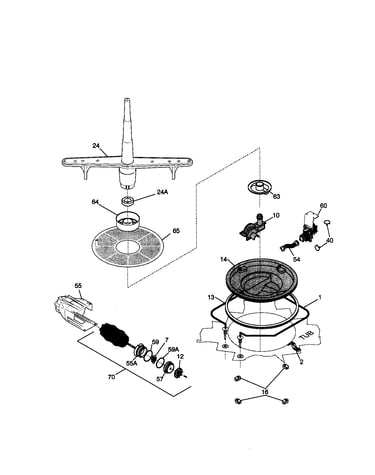

Motor/heater/spray arm Diagram

$28.58 |
25% OFF MSRP:$38.00

In Stock

Dishwasher Door Spring

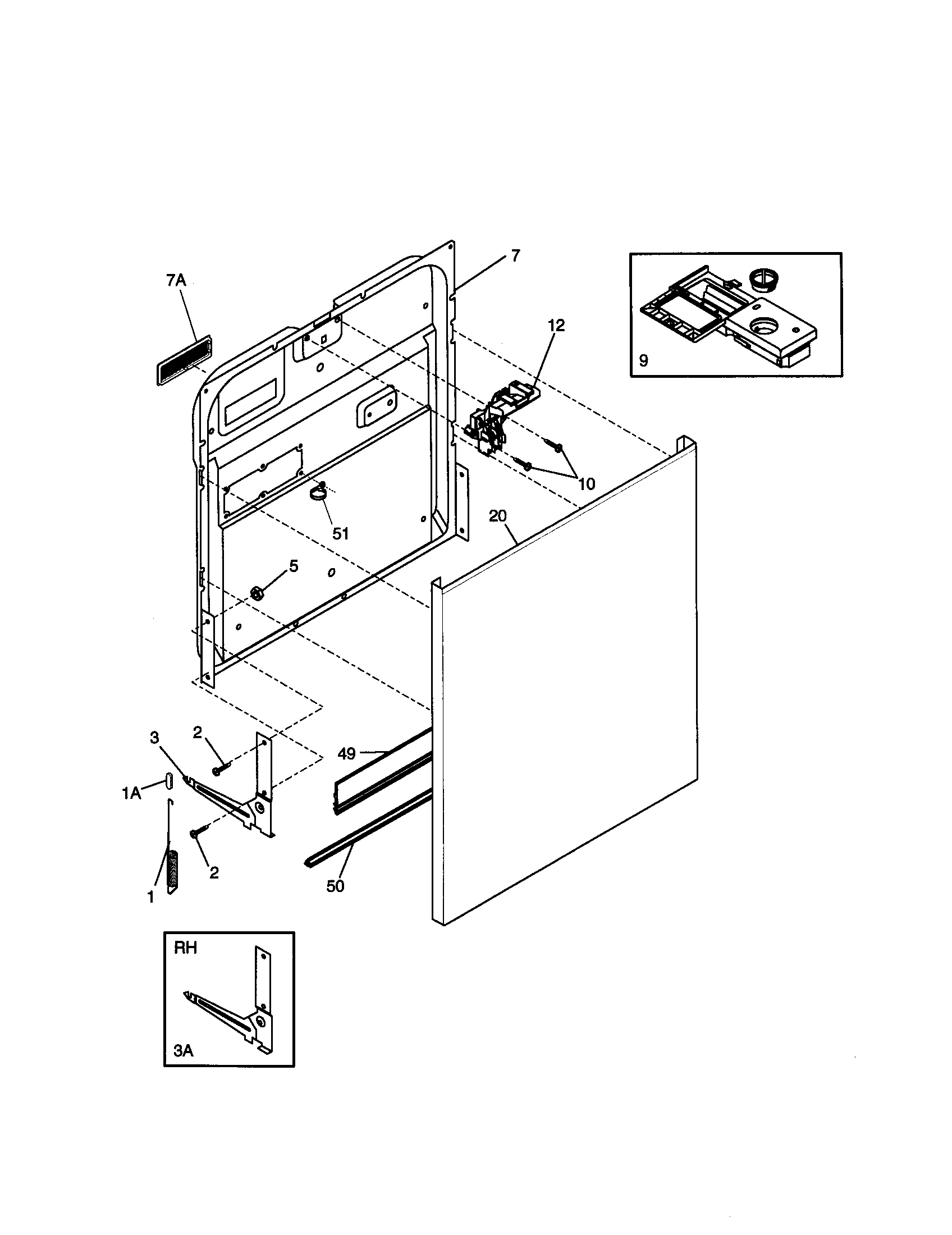

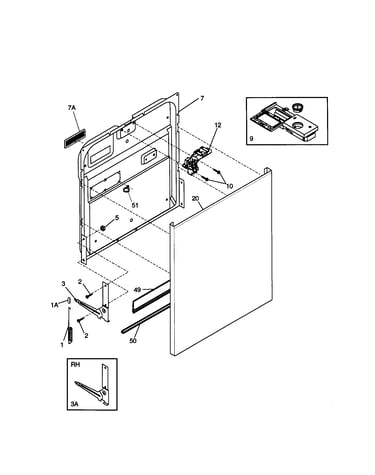

Door Diagram

Dishwasher door spring

Part #154325201
$18.47 |
29% OFF MSRP:$26.00

In Stock

Dishwasher Thermostat

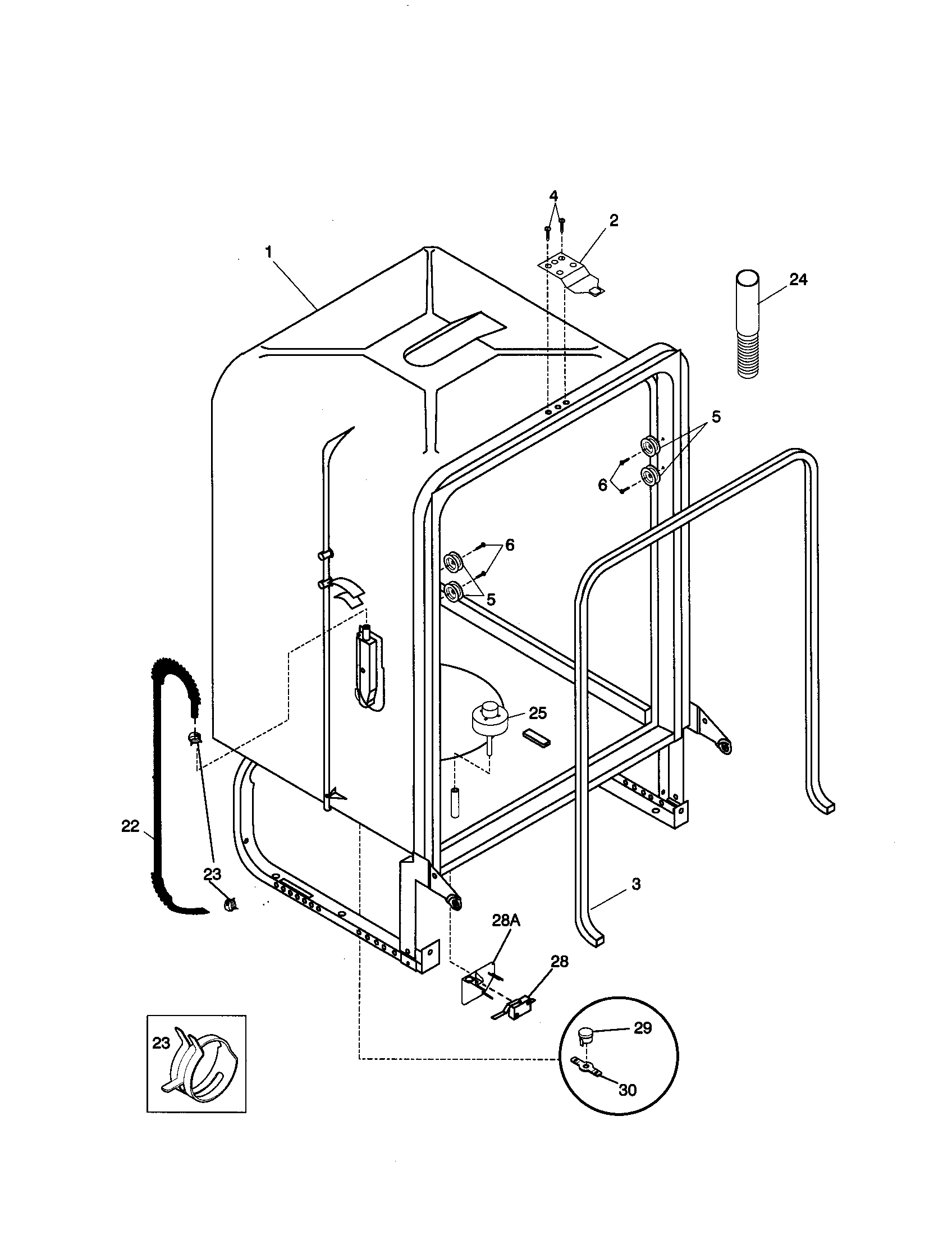

Tub Diagram

Dishwasher thermostat

Part #154290204
$33.77 |
20% OFF MSRP:$42.00

In Stock

Dishwasher Spray Arm Nut


Motor/heater/spray arm Diagram

Dishwasher spray arm nut

Part #154335201
$25.74 |
11% OFF MSRP:$29.00

In Stock

Dishwasher Heating Element Terminal Shield


Motor/heater/spray arm Diagram

Dishwasher heating element terminal shield

Part #154289801
This item is not returnable
$4.60 |
8% OFF MSRP:$5.00

In Stock

Dishwasher Dishrack Slide Rail Stop

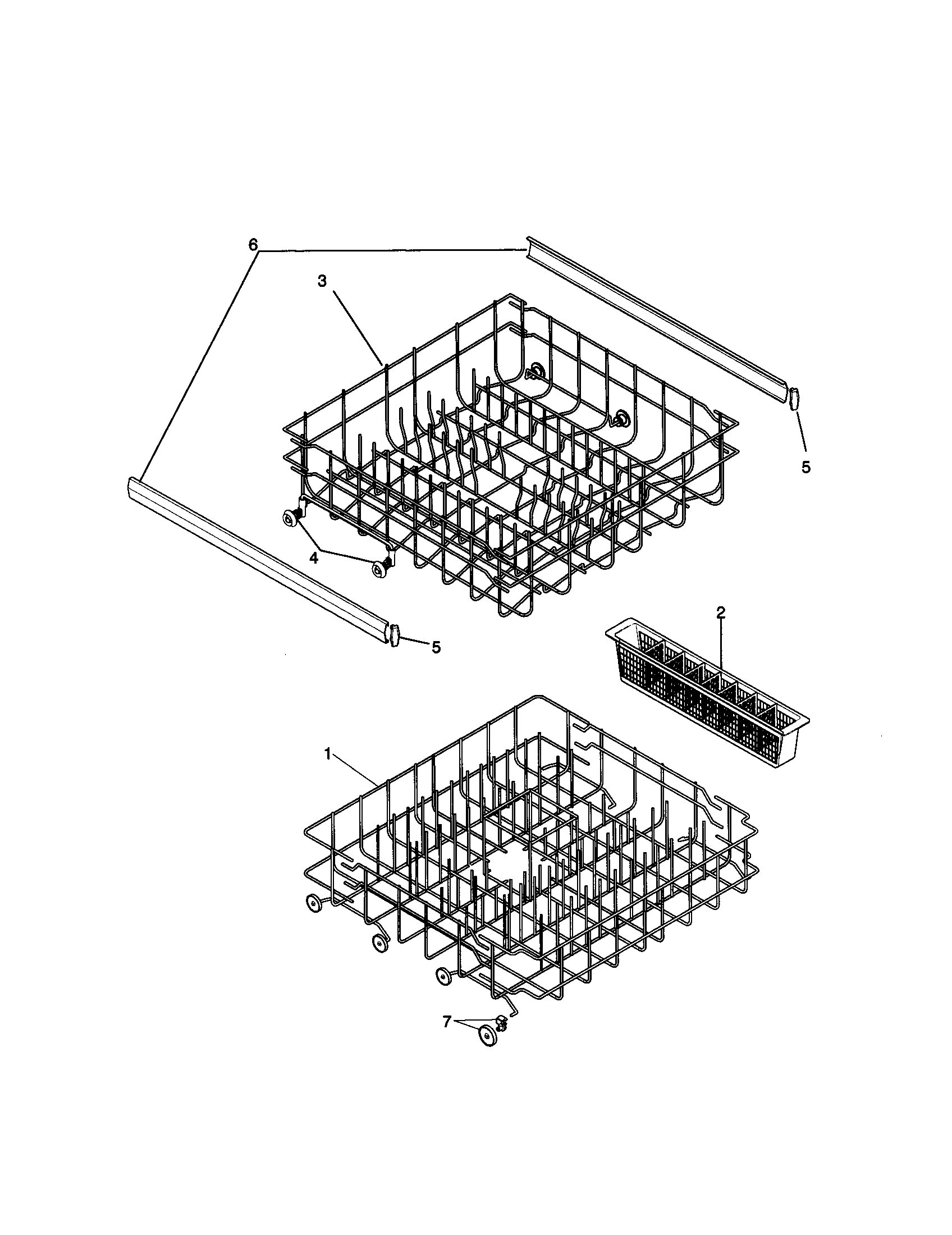

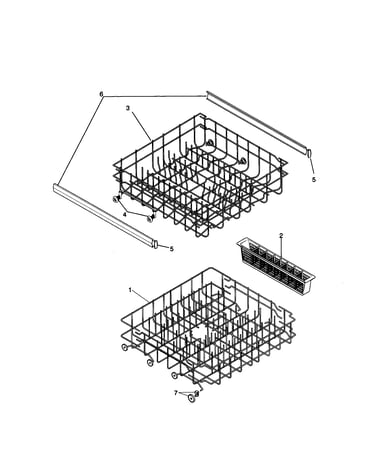

Rack Diagram

$17.48 |
35% OFF MSRP:$27.00

In Stock

Dishwasher Sump Gasket


Motor/heater/spray arm Diagram

Dishwasher sump gasket

Part #154246801
$72.97 |
17% OFF MSRP:$88.00

In Stock

Dishwasher Dishrack Track Roller Screw and Washer


Tub Diagram

$10.09 |
8% OFF MSRP:$11.00

In Stock

Dishwasher Timer Knob

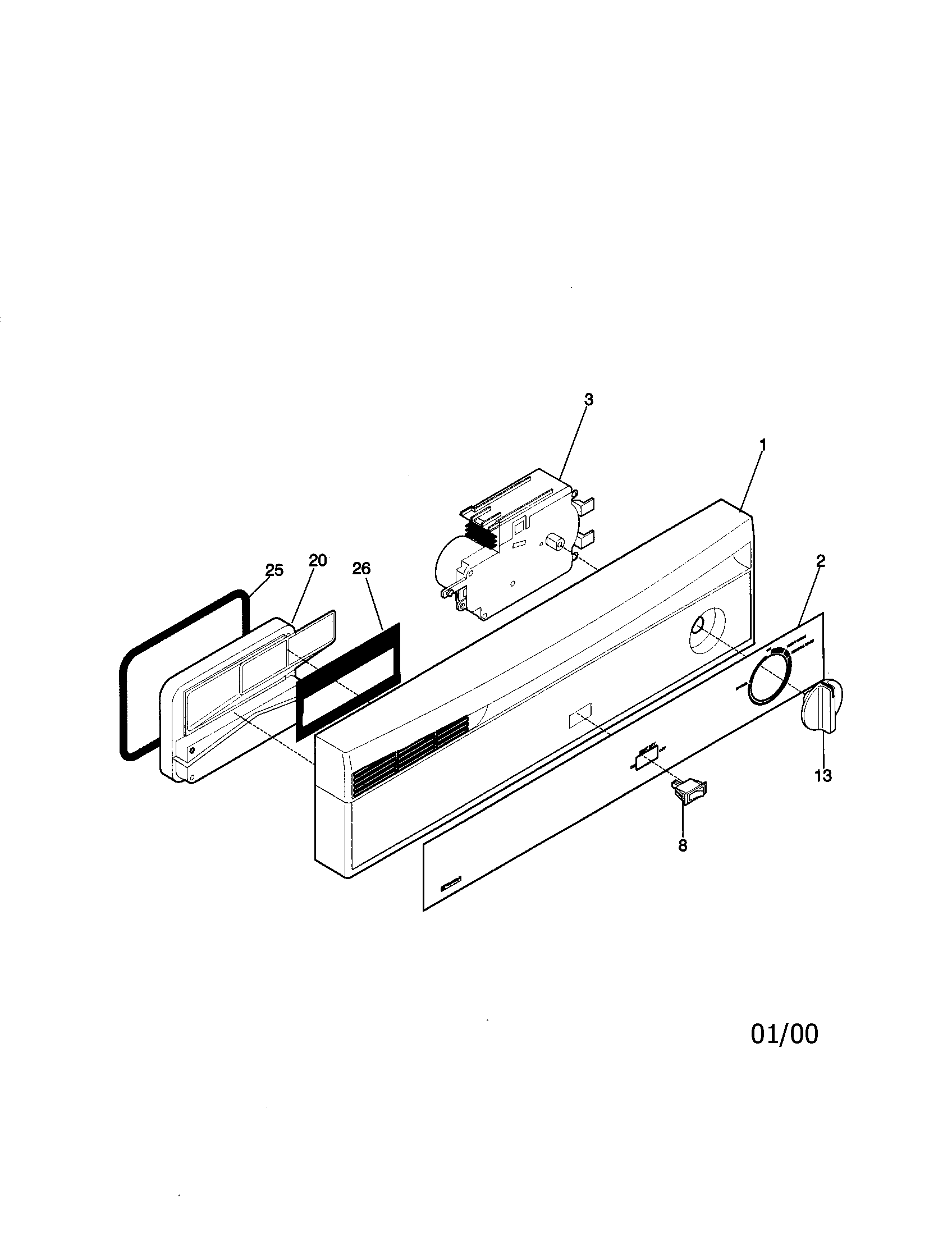

Control panel Diagram

Dishwasher timer knob

Part #154338301
$35.74 |
22% OFF MSRP:$46.00

In Stock

Dishwasher Pump Impeller


Motor/heater/spray arm Diagram

Dishwasher pump impeller

Part #154245801
$14.20 |
5% OFF MSRP:$15.00

In Stock

Showing 10 of 102 parts

Symptoms common to all dishwashers

Choose a symptom to see related dishwasher repairs.

Main cause: damaged rack height adjuster
Main causes: broken door spring, detergent dispenser failure, cabinet mounting brackets loose or broken
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm or pump problems
