Model # FRU17B2JW24 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRU17B2JW24 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forFRU17B2JW24 Refrigerator

  • Freezer Evaporator 297414900
    #15

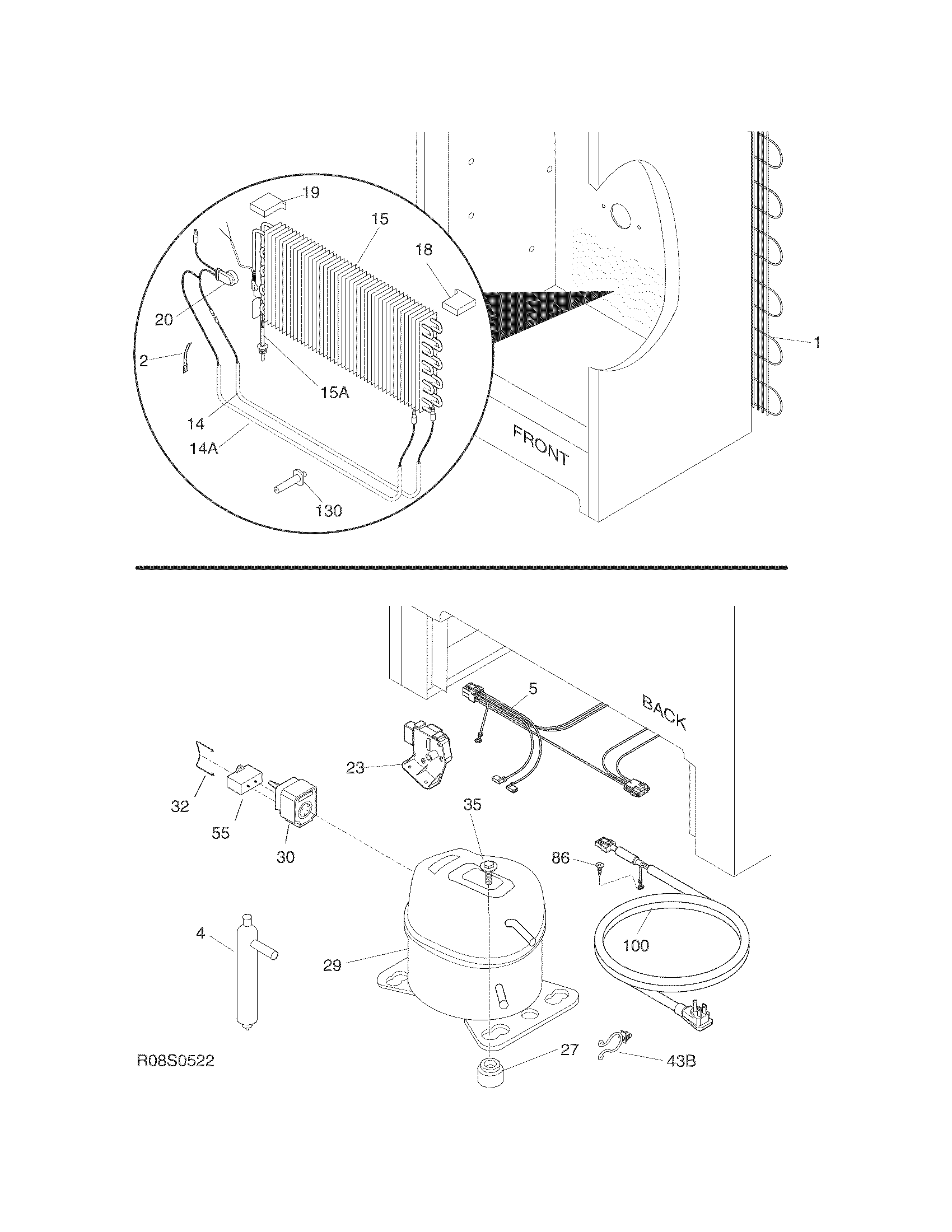

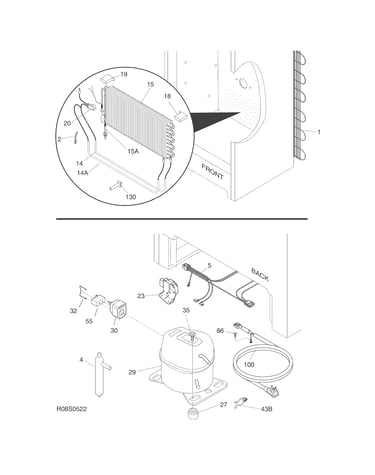

    System diagram

    Freezer evaporator

    Part #297414900

    Replaced by #297414901

    ?
    Manufacturer substitution
    This part replaces 297414900. Substitute parts can look different from the original.
    BEST SELLER
    $102.35 |
    10% OFF Phone Price : $114.35
    In Stock
  • Refrigerator Heat Exchange 297440900
    #15A

    System diagram

    Refrigerator heat exchange

    Part #297440900

    Replaced by #297217900

    ?
    Manufacturer substitution
    This part replaces 297440900. Substitute parts can look different from the original.
    BEST SELLER
    $60.23 |
    9% OFF Phone Price : $66.23
    In Stock
  • Freezer Door Gasket 216522359
    #1

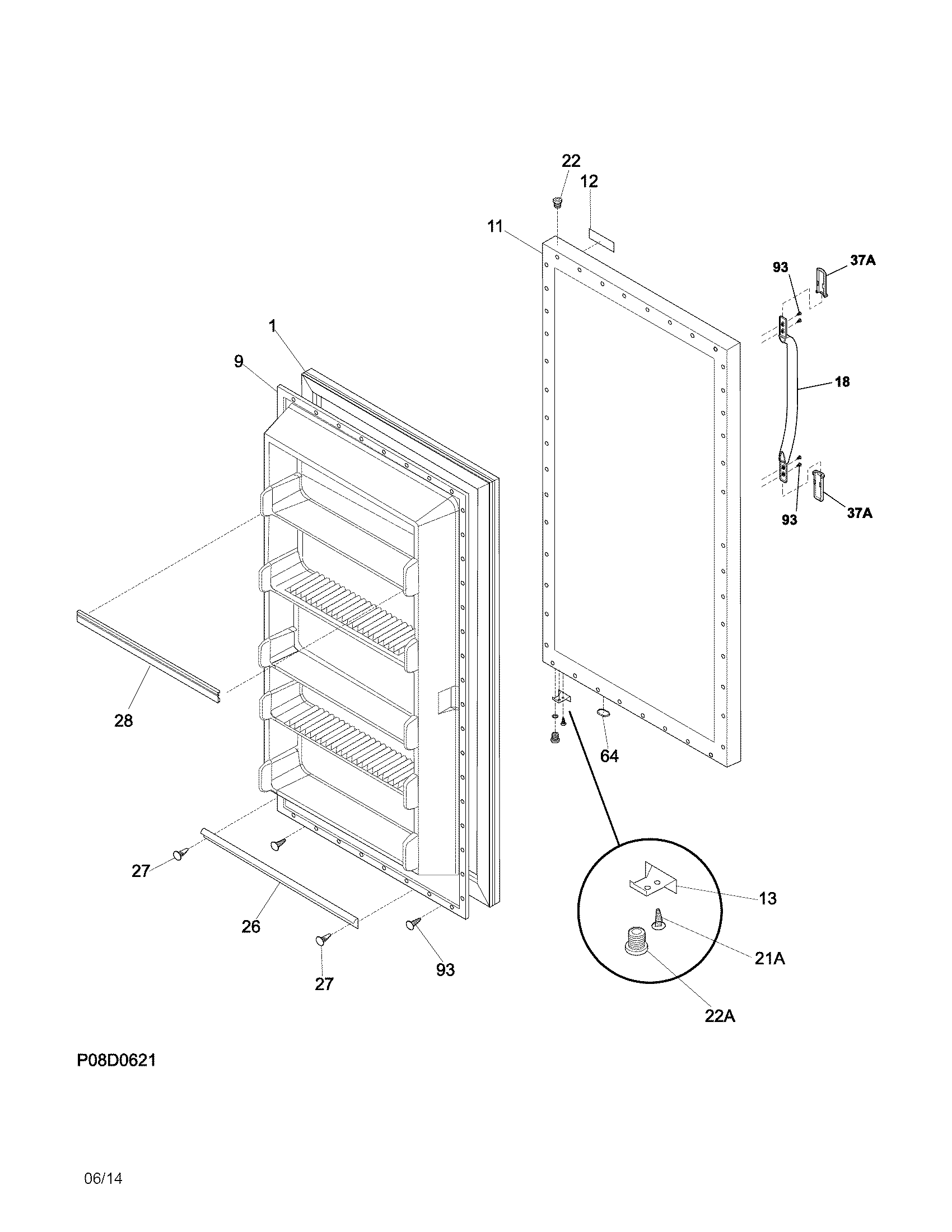

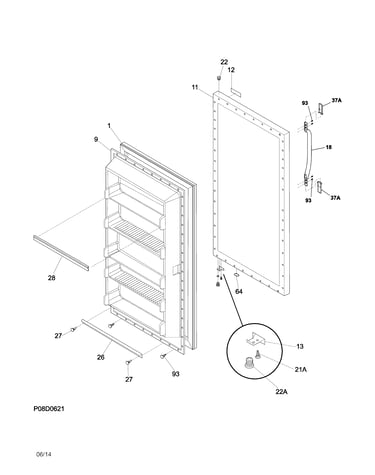

    Door diagram

    Freezer door gasket

    Part #216522359

    Replaced by #5304507200

    ?
    Manufacturer substitution
    This part replaces 216522359. Substitute parts can look different from the original.
    BEST SELLER
    $106.86 |
    10% OFF Phone Price : $118.86
    In Stock
  • Blade 216325600
    #5

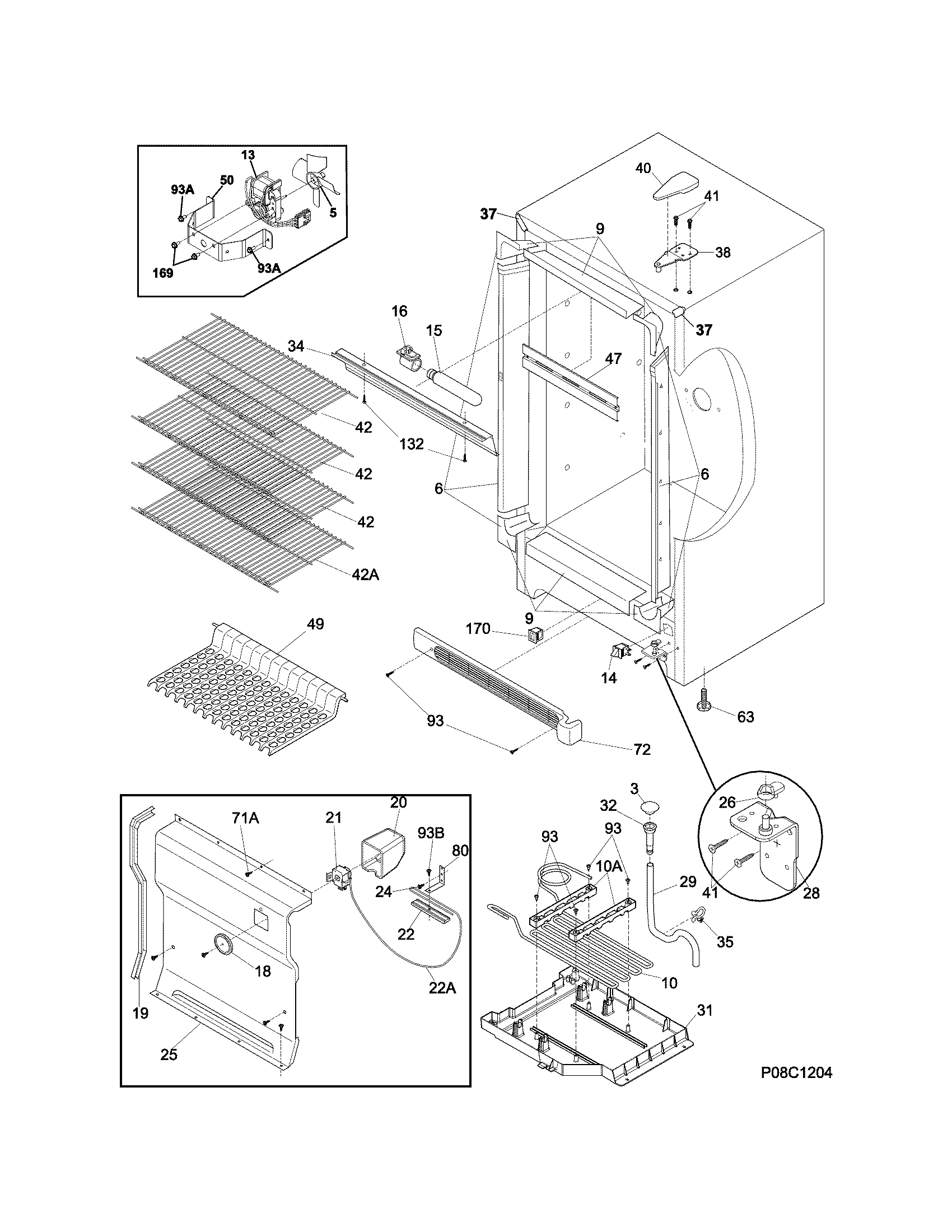

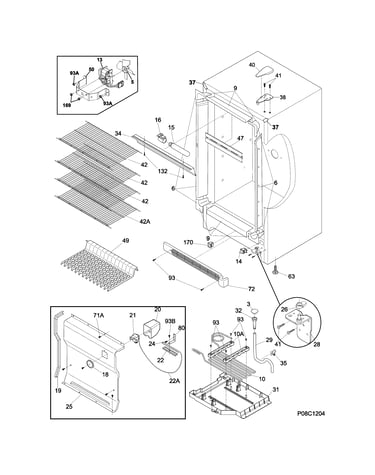

    Cabinet diagram

    Blade

    Part #216325600

    Replaced by #5308000010

    ?
    Manufacturer substitution
    This part replaces 216325600. Substitute parts can look different from the original.
    BEST SELLER
    $43.26 |
    12% OFF Phone Price : $49.26
    In Stock
  • Freezer Defrost Timer 297318010
    #23

    System diagram

    Freezer defrost timer

    Part #297318010

    Replaced by #5304518034

    ?
    Manufacturer substitution
    This part replaces 297318010. Substitute parts can look different from the original.
    BEST SELLER
    $35.26 |
    15% OFF Phone Price : $41.26
    In Stock
  • Freezer Evaporator Fan Motor 297250000
    #13

    Cabinet diagram

    Freezer evaporator fan motor

    Part #297250000

    Replaced by #297309000

    ?
    Manufacturer substitution
    This part replaces 297250000. Substitute parts can look different from the original.
    BEST SELLER
    $39.97 |
    13% OFF Phone Price : $45.97
    In Stock
  • Frigidaire Freezer Gasket And Liner Fastener Kit 5304406520
    #NI

    Door diagram

    Frigidaire freezer gasket and liner fastener kit

    Part #5304406520

    BEST SELLER
    $104.10 |
    10% OFF Phone Price : $116.10
    In Stock
  • Freezer Door Switch 216822900
    #14

    Cabinet diagram

    Freezer door switch

    Part #216822900

    BEST SELLER
    $54.19 |
    10% OFF Phone Price : $60.19
    In Stock
  • Freezer Compressor 216966300
    #29

    System diagram

    Freezer compressor

    Part #216966300

    Replaced by #5304507767

    ?
    Manufacturer substitution
    This part replaces 216966300. Substitute parts can look different from the original.
    BEST SELLER
    $489.63 |
    $12.00 OFF Phone Price : $501.63
    In Stock
  • Freezer Door Hinge, Upper 297283800
    #38

    Cabinet diagram

    Freezer door hinge, upper

    Part #297283800

    Replaced by #297283803

    ?
    Manufacturer substitution
    This part replaces 297283800. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $18.26 |
    10% OFF Phone Price : $20.26
    In Stock
