KitchenAid KFIV29PCMS02 refrigerator Parts

KitchenAid refrigerators typically last 14 years on average. For a French door bottom-mount like KitchenAid KFIV29PCMS02, a realistic lifespan range is 10 to 17 years, with longer life when airflow stays clear, seals stay tight, and cooling issues are fixed early (see the owner's manual).

Most full-size refrigerators fall into a similar window; KitchenAid units often land toward the middle to upper end when maintained.

• Typical overall lifespan: 10 to 17 years
• Common “average” expectation: about 14 years
• Big life extenders: clean condenser area, good door seal, stable temperatures
• Big life reducers: restricted airflow, dirty coils, frequent warm door openings, ignored cooling symptoms

These are the highest-impact habits for a bottom-mount French door refrigerator.

• Keep door gaskets clean and sealing evenly
• Avoid overpacking so air can circulate through shelves and vents
• Replace consumables on schedule (air filter, water filter, produce preserver)
• Keep the ice maker and dispenser system from running with low water flow
• Address frost buildup or fan noise quickly (they often signal airflow problems)

When these parts start failing, the refrigerator may still run, but it works harder and wears faster.

A refrigerator rarely “dies suddenly.” Most end-of-life failures start as small symptoms (temperature swings, frost, noisy fan, weak ice production). Fixing those early reduces compressor run time and helps the sealed system last longer.

We list model-matched replacement parts for KFIV29PCMS02 on this page; you can also search by model number on Sears PartsDirect.

Last updated: February 2026

A bottom-mount refrigerator like the KitchenAid KFIV29PCMS02 keeps the fresh-food section at a more convenient height, so you reach everyday items with less bending. This design also supports efficient cooling and can provide generous fresh-food storage features (such as a full-width pantry drawer on many French door bottom-mount models). See the owner's manual for the feature layout and operating details.

• Fresh food at eye level: easier to see and grab frequently used items.
• Less bending: the freezer is lower, so you bend less often during normal meal prep.
• Strong fresh-food storage: many bottom-mount French door designs maximize refrigerator-space organization.
• Efficient operation: high-efficiency compressors commonly run longer at varying speeds to match cooling demand.
• Better food separation (on some models): dual-evaporator designs can help keep the refrigerator cool and humid while the freezer stays cold and dry.

Most households open the refrigerator compartment far more than the freezer. With a bottom-mount design, the items you use most (produce, dairy, leftovers) stay in the most ergonomic zone, which makes the refrigerator feel easier to live with every day.

Even though the layout is the main advantage, a few maintenance items help the refrigerator stay fresh and efficient:

• Replace the air filter on schedule (example part: refrigerator air filter W10311524).
• Keep door seals clean so doors close tightly.
• Avoid blocking vents so cold air can circulate.
• Set temperatures to recommended ranges in the owner's manual.

If you’re shopping for replacement parts for KFIV29PCMS02, we list model-matched parts on this page, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

Yes. KitchenAid is widely considered a premium, upper-mid-range appliance brand. For the KitchenAid KFIV29PCMS02 bottom-mount refrigerator, that typically means strong build quality, refined design, and feature-focused performance, without being positioned as ultra-luxury.

Premium brands like KitchenAid generally emphasize:

• More precise temperature management and airflow design
• Quieter operation and better fit-and-finish
• More advanced food-storage features (humidity control, air filtration, etc.)
• Higher parts and repair costs compared with entry-level models

For model-specific features and operating details, we recommend checking the KFIV29PCMS02 owner's manual.

Premium refrigerators often include more specialized components that support performance and food preservation. On the KFIV29PCMS02, common maintenance items include filtration and preservation components.

• If odors are an issue, replacing the refrigerator air filter W10311524 on schedule helps keep the fresh-food section smelling clean.
• If you use the dispenser, keeping up with the water filter (and flushing/purging after changes) helps protect taste and flow.

• Keep vents inside the refrigerator and freezer clear for proper airflow.
• Replace consumables (air filter, water filter, produce preserver) on schedule.
• If cooling seems uneven, check for blocked returns and listen for the evaporator fan.
• Use the correct replacement parts listed for your model to avoid fit issues.

Last updated: February 2026

The most common issues we see with KitchenAid refrigerators like model KFIV29PCMS02 are ice maker and water system problems, cooling or temperature swings, and water leaks or frost buildup. These symptoms usually trace back to airflow, defrost, or water-supply components and basic maintenance.

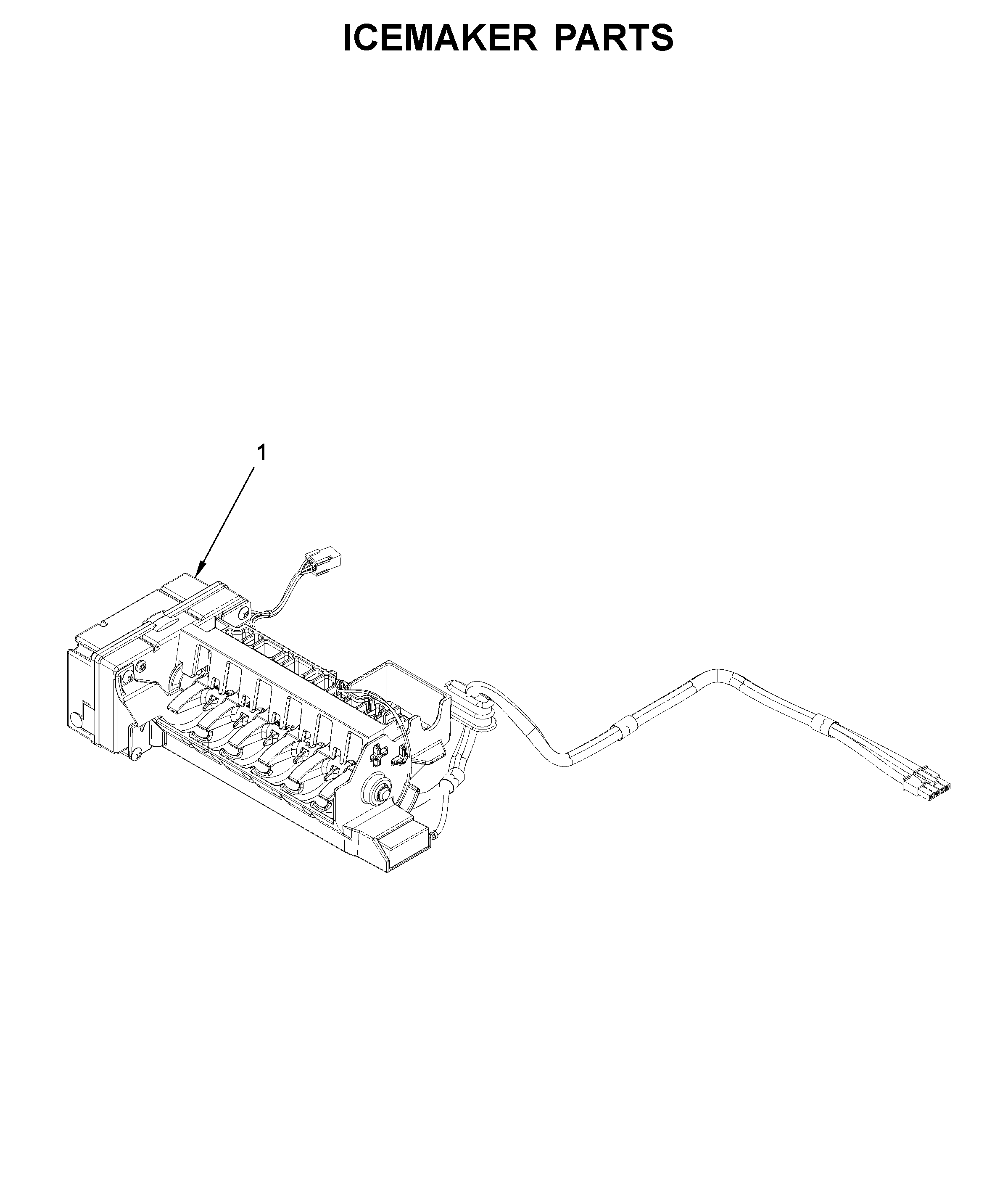

• Ice maker not making ice or slow ice: water supply restriction, fill tube icing, or ice maker failure
• Fridge warm or freezer too warm: poor airflow, evaporator fan issue, damper problem, or temperature sensor drift
• Water under the fridge or inside compartments: defrost drain issue or a leaking water line/valve
• Frost buildup on the back wall or freezer: defrost heater or airflow problem
• Noisy operation: fan motor noise, ice maker cycling, or airflow restrictions

1. Confirm temperatures: set refrigerator to about 37°F and freezer to about 0°F, then allow 24 hours to stabilize.
2. Check airflow: do not block vents; make sure items are not packed tightly against the back wall.
3. Inspect the water supply: the manual lists typical water requirements of 30 to 120 psi and 33° to 100°F water temperature; low pressure often causes weak dispensing and ice maker issues.
4. Replace consumables on schedule: a clogged filter can reduce flow and affect ice and water.

These problems often look bigger than they are. For example, a “not cooling” complaint can be caused by restricted airflow or a failing evaporator fan, while “no ice” is frequently a water-pressure or valve issue. Catching the root cause early helps protect food temperatures and prevents repeat failures.

• Use the troubleshooting and specs in the KFIV29PCMS02 owner's manual.
• For water filter steps, follow how to replace the water filter in a KitchenAid refrigerator.
• To shop all replacement parts by diagram for this model, use the parts list on this page or search by model at Sears PartsDirect.

Last updated: February 2026
