If your Kenmore dryer model 11077522600 won’t run (or runs but has no heat), a blown thermal fuse is a common cause. We confirm it by unplugging the dryer and testing the fuse for continuity with a multimeter; a fuse that reads open/no continuity is blown.

Quick symptoms that point to a blown thermal fuse

A thermal fuse is a one-time safety device; when it opens, it can stop the motor or shut down heat depending on the design.

• Dryer will not start or stops shortly after starting
• Drum tumbles but there is no heat (especially on electric models with heat issues)
• You recently had poor airflow (clogged lint screen, crushed vent, long vent run)
• Burning smell or overheating before the failure
• Problem returns quickly after resetting breakers (points away from power supply)

How we test it (safe, reliable method)

Use the steps in the 11077522600 owner’s manual for safe access and power disconnection guidance.

1. Unplug the dryer (or shut off power at the breaker).

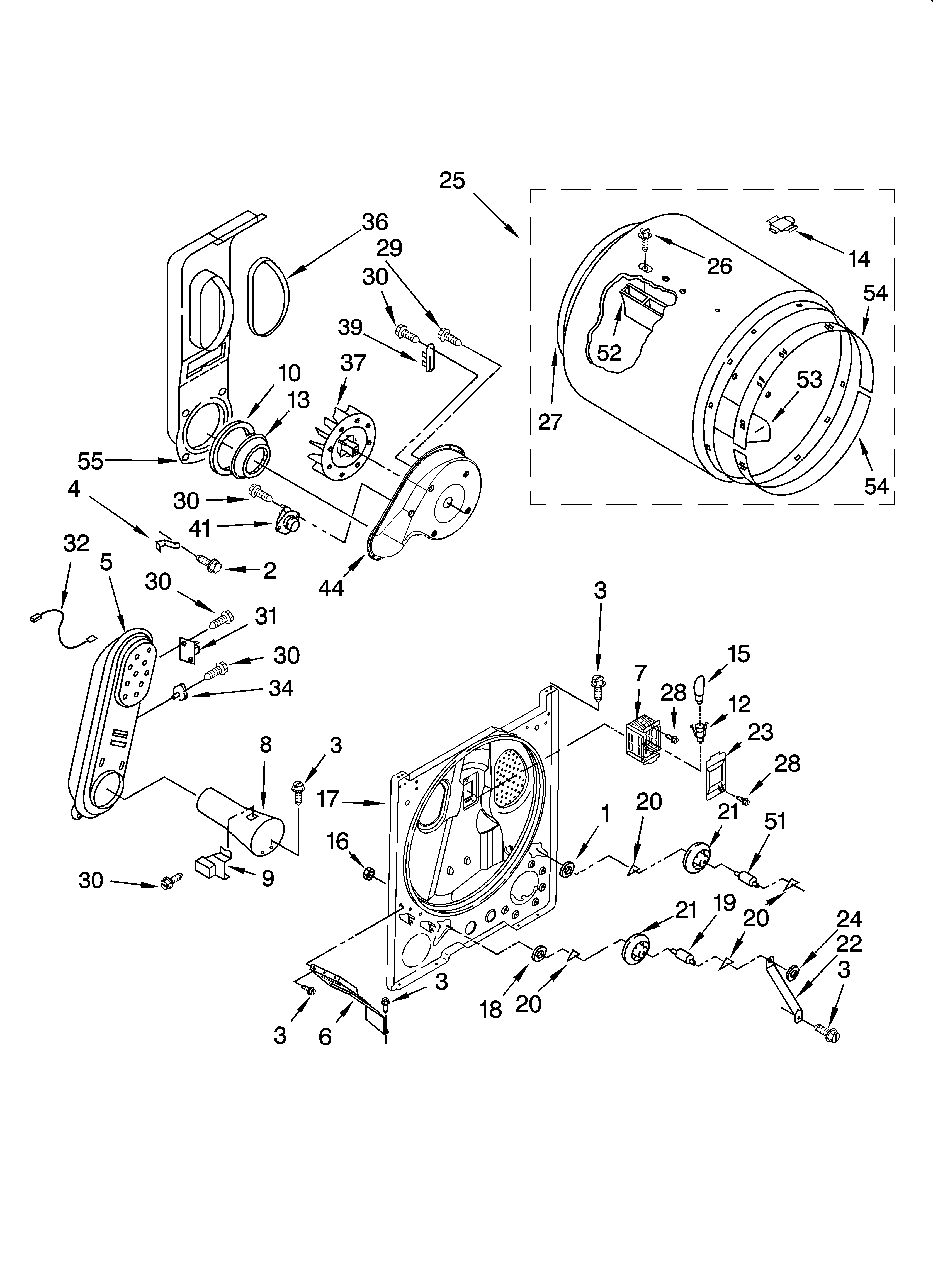

2. Access the thermal fuse (location varies by design; commonly on the blower housing or exhaust duct).
3. Pull one wire off the fuse terminal.
4. Set your multimeter to continuity (or lowest ohms).
5. Touch probes to the two fuse terminals.

What the meter reading means

Meter result	What it means	What to do next
Beep / near 0 ohms	Fuse is good	Check door switch, timer, motor circuit, airflow restrictions
No beep / OL / infinite ohms	Fuse is blown	Replace the fuse and correct the airflow problem

Why it matters (and what to fix with it)

A thermal fuse usually blows because the dryer overheated from restricted airflow. Replacing only the fuse without fixing airflow often leads to another failure.

• Clean the lint screen and housing
• Inspect and clear the vent duct to the outside
• Confirm the outside vent hood opens freely
• Verify the dryer is installed with proper venting per the 11077522600 installation guide

Related checks if the dryer will not run

The manual troubleshooting for “dryer will not run” also points to basics that can mimic a blown fuse:

• Check both household fuses/breakers (many dryers use two)

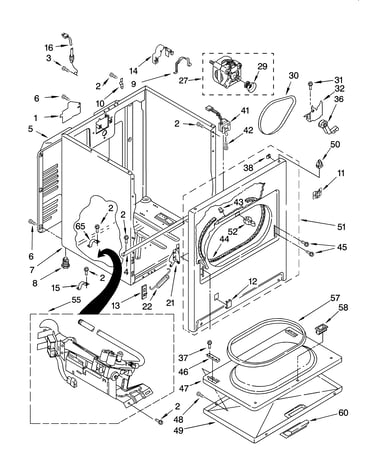

• Make sure the door is firmly closed; test the door switch if needed
• Confirm a cycle is selected and Start is pressed firmly

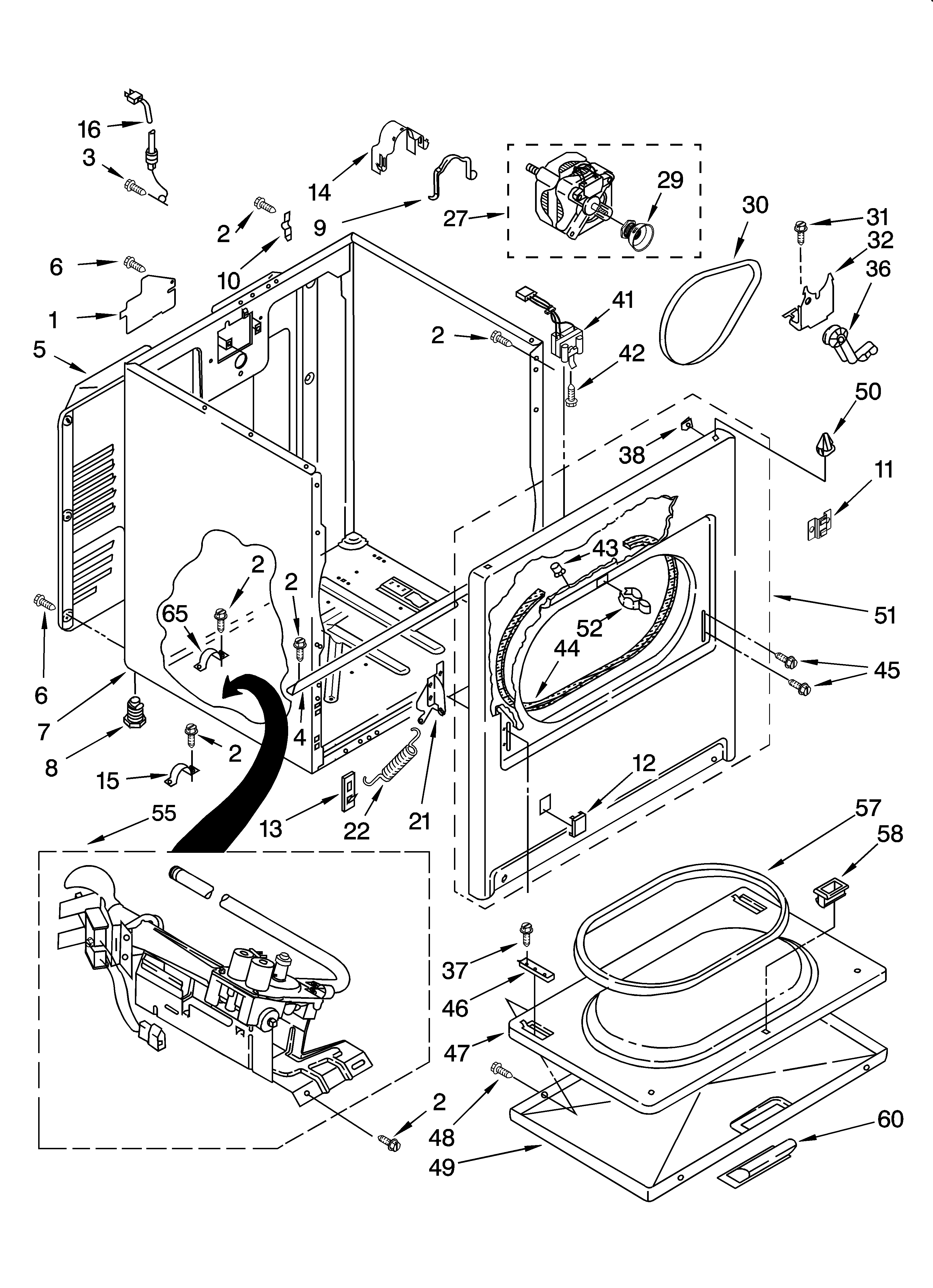

If the door switch is intermittent, the dryer door switch WP3406107 is a common wear item on this platform.

Last updated: February 2026

For your Kenmore dryer, the model number is printed on the model and serial number label; on model 11077522600, that label is located at the top inside the dryer door well. Write down the full model number and serial number exactly as shown before ordering parts or scheduling service.

Where to look on Kenmore model 11077522600

Check these common label locations in this order:

• Top inside the dryer door well (most common on this model)
• Inside the door opening on the cabinet frame
• Rear panel near the top (some versions place an additional label there)
• On the door well area near the opening (rating plate information may be nearby)

Use the location diagram and wording in the 11077522600 owner's manual to confirm the exact label position for your unit.

What to write down (and why)

Record the information exactly as it appears on the label:

• Model number (example format: 110.XXXXXXXX)
• Serial number
• Purchase date (helpful for service history)

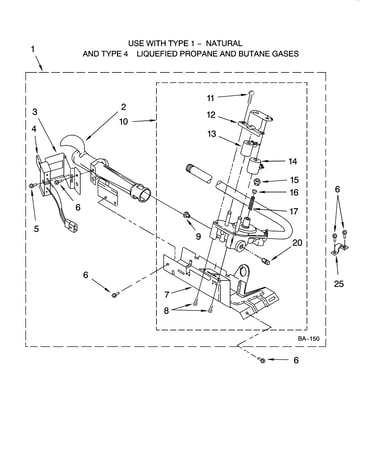

• Gas type notes if shown on the rating plate (important for gas dryers)

Quick reference

Item on label	What it’s used for	Example
Model number	Matching parts and diagrams	11077522600
Serial number	Production run details	Varies
Purchase date	Warranty and service records	Varies

Why it matters

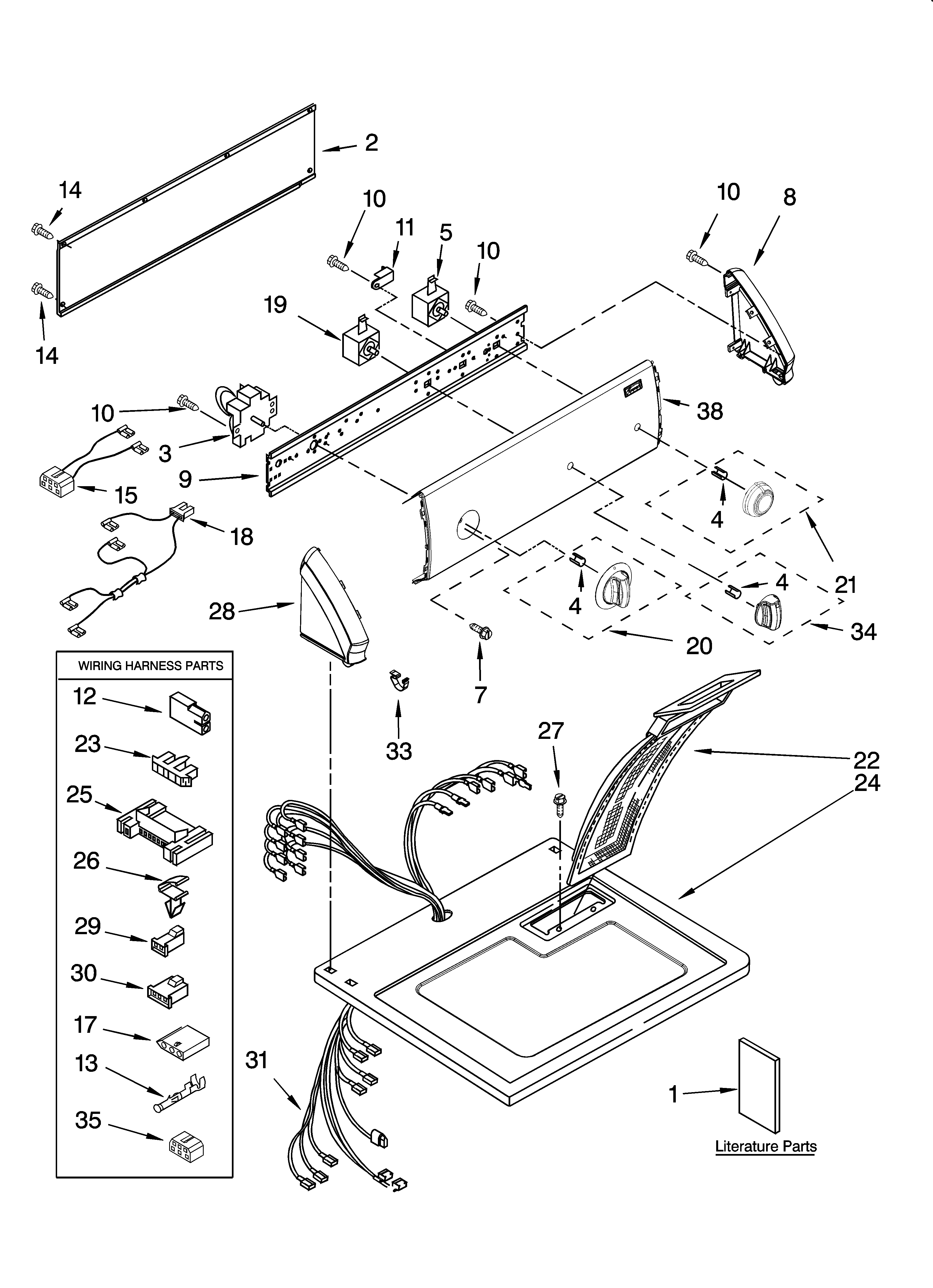

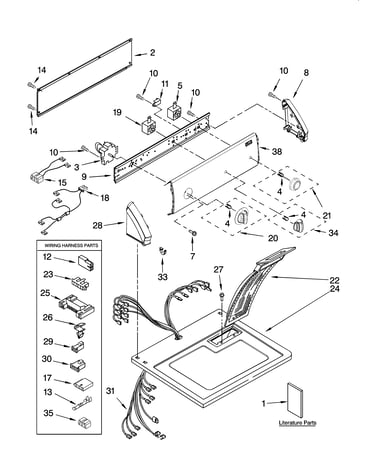

Kenmore model numbers can look similar, but small differences change the correct parts (like a door switch, drum belt, or thermostat) and the right installation requirements. Using the exact model number helps us match the correct diagrams and compatible replacement parts the first time.

Last updated: February 2026

The average lifespan of a Kenmore dryer like model 11077522600 is about 13 years with normal household use. Regular vent cleaning and replacing wear items (like belts and rollers) on time helps you reach that lifespan with fewer breakdowns.

Typical lifespan and what affects it

Most dryers reach their full service life when airflow stays strong and moving parts stay aligned.

• Heavy loads and frequent cycles shorten life
• Restricted venting overheats the dryer and stresses thermostats
• Worn drum support parts increase noise and motor strain
• Skipping lint removal increases heat and drying time
• Proper installation clearances reduce vibration and wear (see the installation guide)

Wear items you should expect to replace

These parts commonly wear out during a dryer’s life; replacing them prevents bigger failures.

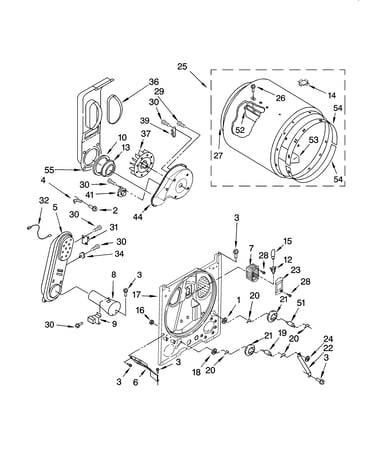

• Drum belt: dryer drum belt 341241
• Idler pulley: dryer idler pulley WP691366
• Drum support components (rollers, shafts, bearings)
• Door switch and door catch/strike if the door stops latching
• Thermostats or sensors if overheating occurs

Quick maintenance schedule

Task	How often	Why it helps
Clean lint screen	Every load	Improves airflow and drying time
Clean vent duct to outside	Every 6 to 12 months	Prevents overheating and long dry times
Check for unusual squeal/thump	Monthly	Catches belt/roller wear early
Verify installation clearances	Once a year	Reduces vibration and noise transfer

Why it matters

A dryer that runs hot or has drag in the drum system can still “work,” but it ages faster. Keeping airflow clear and replacing wear parts (belt, idler, drum supports) protects the drive motor and heat system.
