On Kenmore Elite refrigerator model 79571073013, the “Accela Ice” feature is the same fast-ice function labeled Ultra Ice in the controls; it temporarily boosts freezing and ice-making for about 24 hours, then shuts off automatically. Details and button locations are in the 79571073013 owner's manual.

How Accela (Ultra) Ice works

When we turn on Ultra Ice, the refrigerator increases both freezing and ice-making capability for a short period. It is designed for times when you need extra ice quickly.

• Turns on by touching the Ultra Ice button
• Stays on for 24 hours, then turns off automatically
• Can be turned off early by touching Ultra Ice again
• Helps most when the freezer is already at the correct temperature and doors stay closed

When to use it (and when it will not help)

Ultra Ice helps most for parties, hot weather, or heavy dispenser use. It will not overcome common issues that reduce ice production.

Situation	What to do	Why it matters
New install or after a long outage	Allow 12 to 24 hours to start making ice	The icemaker needs time to reach operating temperature
Doors opened often	Reduce door openings	Warm air slows freezing and ice cycles
Ice looks discolored or tastes off	Replace the filter and discard early batches	Water quality and filter condition affect ice
Low water pressure	Confirm supply pressure is in range	Low pressure reduces cube size and output

Quick checks if you still are not getting enough ice

These are the most common causes we see on bottom-mount refrigerators like the 79571073013:

• Make sure all doors are fully closed; the dispenser will not work with a door open
• Confirm the freezer temperature is set cold enough (typical target is 0°F)
• Verify the icemaker is switched ON and the bin is not jammed
• Replace the water filter on schedule (about every 6 months)

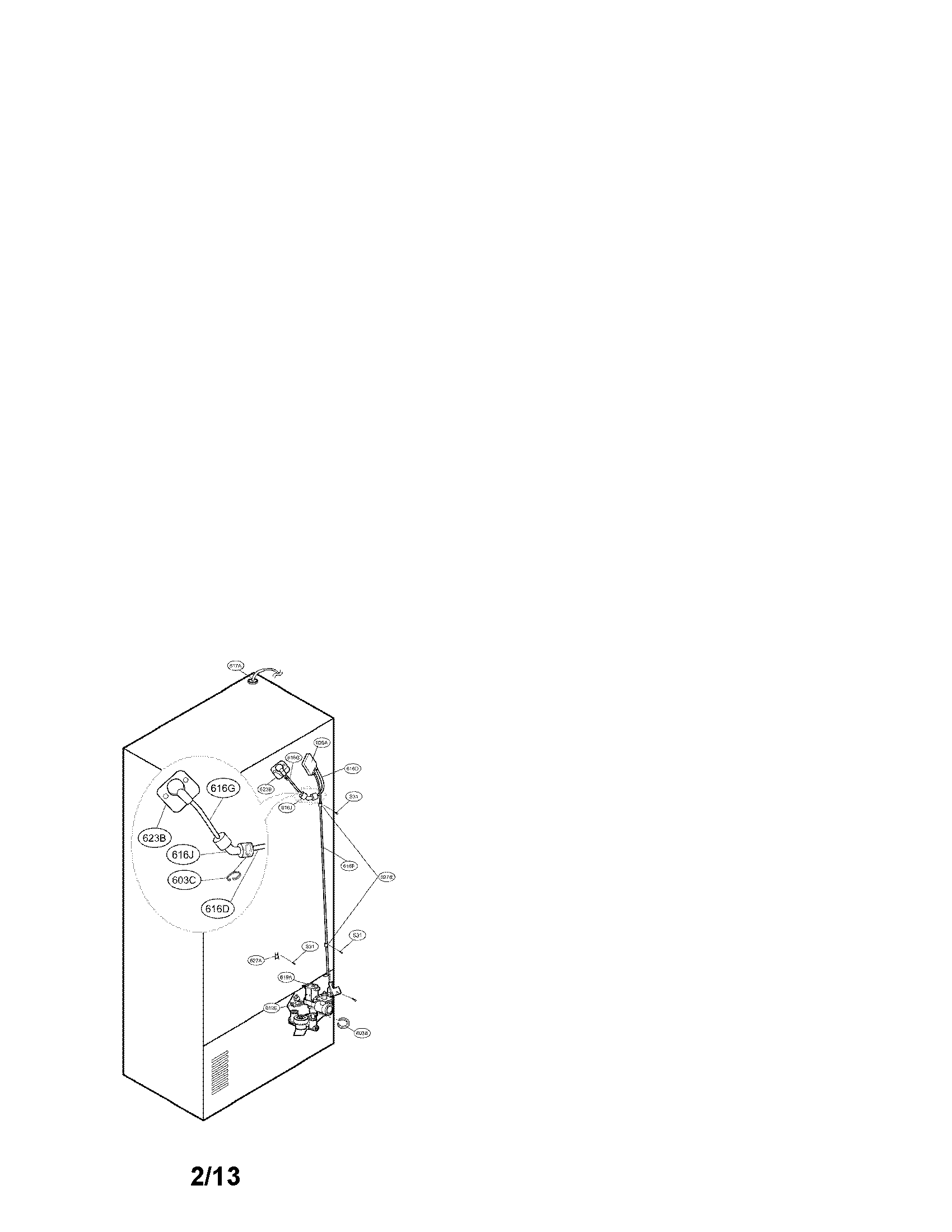

• If you are troubleshooting water flow, check the lg refrigerator water inlet valve AJU72992601

Why it matters

Fast-ice modes are meant to cover short-term demand. Using Ultra Ice correctly helps you avoid slow ice production, small cubes, and dispenser complaints that are often caused by temperature, door sealing, or water supply issues.

For replacement parts for your Kenmore Elite 79571073013, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

On Kenmore Elite refrigerator model 79571073013, dH (often shown as Er dH) indicates a defrost heater circuit problem. The refrigerator may stop responding to buttons and cooling performance can suffer until the defrost system issue is corrected; use the 79571073013 owner's manual for control and troubleshooting guidance.

What you’ll notice when dH is active

• Temperature may rise in the fresh food section or freezer
• Frost buildup on the evaporator cover (behind the rear panel in the freezer)
• Fan noise changes, or airflow feels weak
• Ice production slows or stops
• Controls may seem unresponsive while the error is displayed

Quick checks we recommend first

1. Power reset: Unplug the refrigerator (or switch off the breaker) for 5 minutes, then restore power.
2. Airflow basics: Make sure vents are not blocked by food packages.
3. Door sealing: Confirm doors close fully; warm air leaks increase frost and defrost load.
4. Condenser cleaning: Dust buildup can worsen cooling symptoms that appear alongside defrost issues.

Parts that commonly relate to a dH (defrost heater) error

A dH code points to the defrost heater circuit, which typically involves the heater, wiring, and controls. While the heater itself is not listed in the parts shown here, these model-specific parts can still be involved in symptoms or diagnosis:

What it affects	Part to consider	When it’s relevant
Temperature readings and defrost logic	Refrigerator temperature sensor 6500JB2001B	Temps seem wrong, defrost timing seems off
Defrost control decisions	Lg refrigerator electronic control board EBR73304209	Repeated dH after reset, erratic operation
Overall cooling load	Refrigerator condenser coil ACG73784701	Poor cooling, hot cabinet sides, long run times

Why it matters

Defrost keeps the evaporator from icing over. When the defrost heater circuit fails, frost can block airflow, causing warm temperatures, weak cooling, and ice maker problems even though the compressor is running.

When to stop and get service

• You smell burning or see melted plastic
• The unit is not cooling and food safety is at risk
• The error returns immediately after a reset

You can order replacement parts for model 79571073013 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

If your Kenmore Elite refrigerator model 79571073013 is not cooling enough, the most common causes are restricted airflow (blocked vents or dirty condenser area), doors not sealing or closing fully, or temperature settings that need time to stabilize. Use the troubleshooting and care steps in the 79571073013 owner's manual to pinpoint the cause.

Quick checks that fix most “not cold enough” complaints

• Make sure the doors close firmly and stay closed; a door left slightly open quickly warms the cabinet.
• Confirm food packages are not blocking the door or preventing drawers/bins from seating fully.
• Check that interior air vents are not blocked by containers (especially in the freezer).
• Adjust temperatures one increment at a time, then wait 24 hours between changes.
• Verify the room temperature is within the normal operating range (about 55°F to 110°F); extreme conditions reduce cooling performance.

Temperature setting guidance (what to expect)

The controls do not change temperature instantly. After any adjustment, cooling performance and cabinet temperatures can take up to 24 hours to fully stabilize.

Situation you see	What it usually means	What to do
Fresh food section too warm	Door openings, warm room, large food load	Set refrigerator temp colder; wait 24 hours
Freezer too warm or ice slow	Blocked vents, frequent openings, heavy ice use	Set freezer temp colder; clear vents; wait 24 hours
Unit runs a lot but still warm	Heat load is high or airflow is restricted	Reduce door openings; check vents and door closing

When a part is likely involved

If airflow and settings are correct and temperatures still do not recover after 24 hours, a failed cooling component is a common next step.

Common parts tied to cooling symptoms include:

• Refrigerator condenser coil ACG73784701 (restricted heat transfer can reduce cooling)
• Refrigerator compressor TCA38091801 (sealed system cooling source)
• Refrigerator compressor overload protector 6750CL0001D (can prevent compressor from running)
• Refrigerator temperature sensor 6500JB2001B (can misread temps and affect cycling)

Why it matters

Low cooling can lead to food spoilage and excessive run time. Restoring airflow, proper door closing, and correct control settings usually resolves the issue quickly; if not, checking the cooling-system components helps you target the right repair.

You can order replacement parts for model 79571073013 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Common problems on the Kenmore Elite 79571073013 bottom-mount refrigerator include weak or no cooling, long run times, water leaks, and ice maker or dispenser issues. Many symptoms trace back to airflow (dirty coils or fan), defrost operation, door sealing, or water supply.

Most common symptoms and likely causes

• Not cooling or weak cooling: dirty condenser coils, airflow restriction, fan issue, control settings, or compressor-related trouble.
• Runs too much: warm room, frequent door openings, large food load, doors not fully closed, dirty back cover/coils.
• Noises: popping from normal expansion, sizzling during defrost, fan airflow noise, or vibration from poor leveling.
• Water leaks/puddles: clogged defrost drain or drain tube.

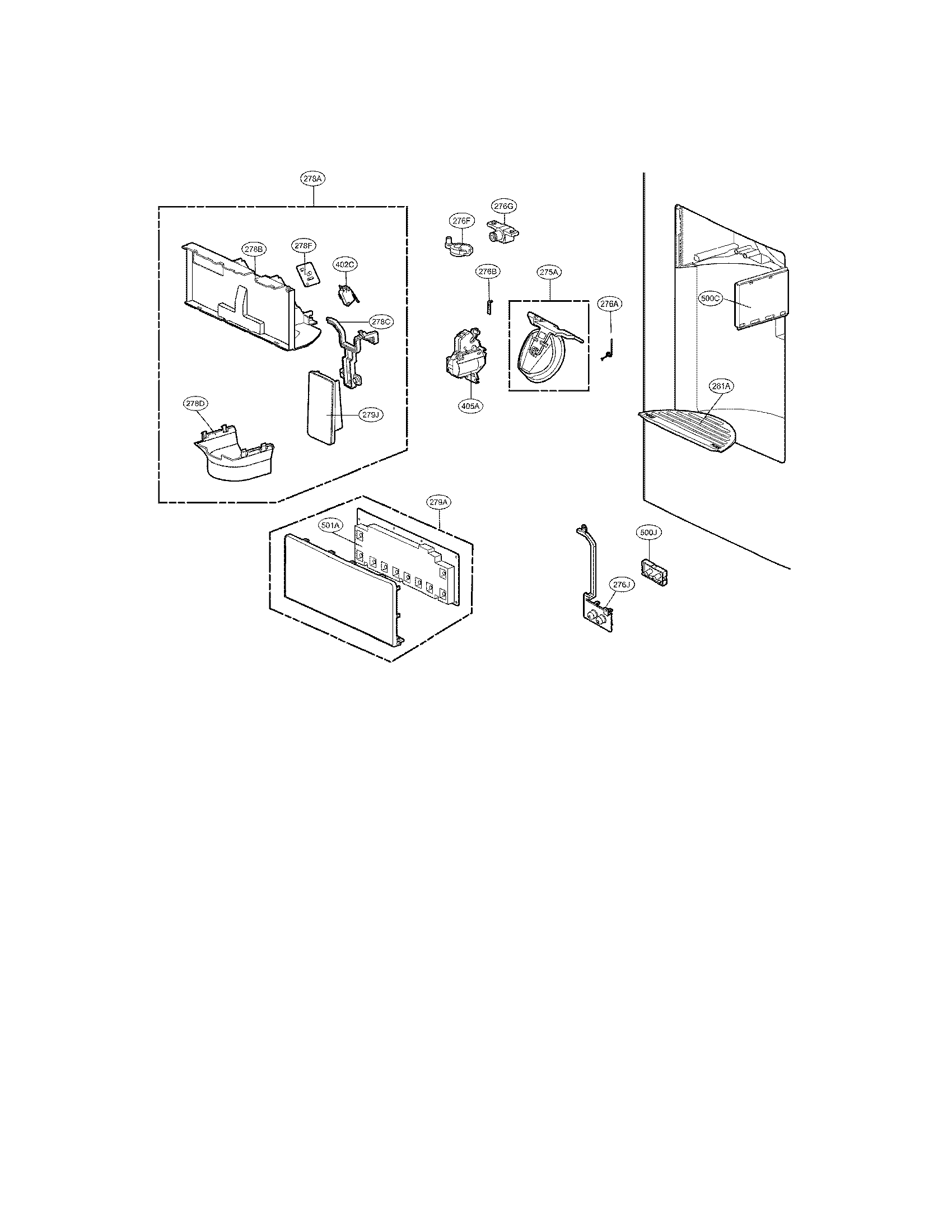

• Ice maker stops or dispenses poorly: ice bin uneven, ice compartment door not sealing, or water inlet problem.

Quick checks we recommend first

• Exit Demo Mode (cooling disabled): open one door, then press Ultra Ice and Refrigerator Temp together for 5 seconds.
• Give defrost time to finish: allow about 30 minutes if cooling seems paused.
• Confirm doors seal and close fully: poor sealing drives frost and temperature swings.
• Clean condenser coils: improves cooling and reduces compressor run time.

Parts that often match the symptom

Symptom	What to check	Example part for this model
No water to ice/dispenser	Water inlet valve	Lg refrigerator water inlet valve AJU72992601
Puddles or leaking	Drain path and tube	Refrigerator drain tube 5251JA3003D

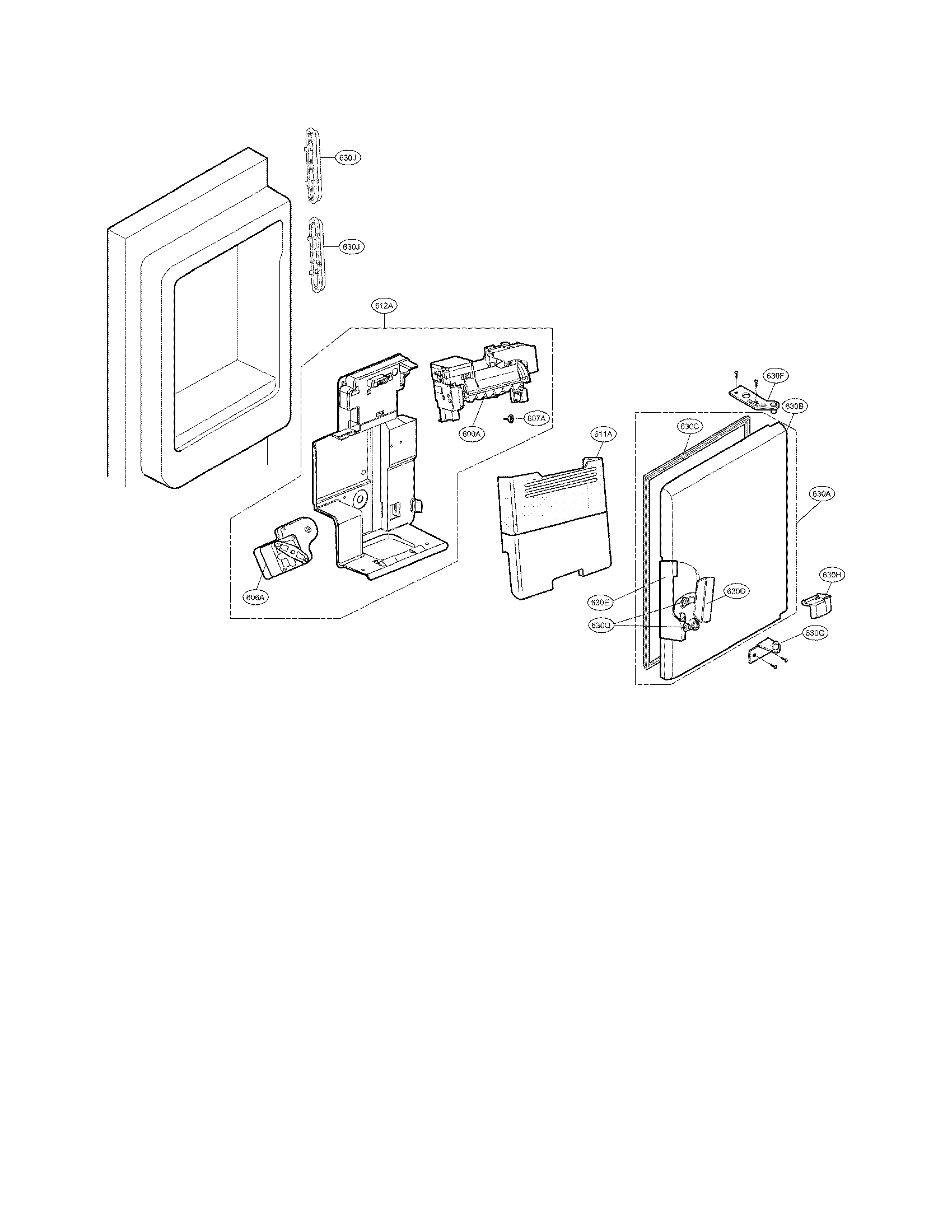

Not making ice	Ice maker assembly	Ice maker assembly (AEQ73110203) - refrigerator ice making component by lg AEQ73110203
Poor cooling after cleaning	Sealed system/compressor	Refrigerator compressor TCA38091801

Why it matters

Addressing airflow, drain, and water-supply issues early helps prevent food spoilage, reduces excessive run time, and avoids repeat icing and leaking.

For model-specific troubleshooting and care steps, use the owner's manual. For ordering, use the parts list for model 79571073013 or search by model on Sears PartsDirect.

Last updated: February 2026

Kenmore Elite refrigerator model 79571073013 is a bottom-freezer design; for an exact fit, use the dimensions and required clearances listed in the 79571073013 owner's manual. That spec section is the right source for width, height, depth (with and without handles), and installation spacing.

What “size” should include (so you get the right fit)

When customers ask size, we treat it as both cabinet dimensions and space needed to operate:

• Overall width, height, and depth (often listed with and without handles)
• Door swing clearance so doors open fully
• Freezer drawer pull-out clearance in front
• Airflow space behind and above for proper cooling
• Water line routing space if you have an ice maker or dispenser

How to measure your space correctly

Measure the opening and the path into the kitchen before moving or replacing the refrigerator:

• Measure the cabinet opening width at the front and back
• Measure height to the lowest overhead cabinet (include flooring changes)
• Measure depth to the wall and note any baseboards
• Measure doorways and hall turns on the delivery path
• Plan for leveling adjustment so doors seal correctly

Quick planning guide (then confirm exact numbers in the manual)

Use these planning checks, then match them to the manual’s spec page.

Item to confirm	Why it matters	Where to verify
Width, depth, height	Prevents cabinet and doorway surprises	79571073013 owner's manual
Required clearances	Ensures airflow and full door/drawer movement	79571073013 owner's manual
Water connection needs	Avoids kinked tubing and low water flow	79571073013 owner's manual

Why it matters

Correct sizing prevents doors hitting cabinets, freezer drawers not opening fully, and poor cooling from restricted airflow.

Related parts if you are measuring due to a fit or door issue

If the “size” question is coming from doors not closing or sealing, these model-matched parts are commonly involved:

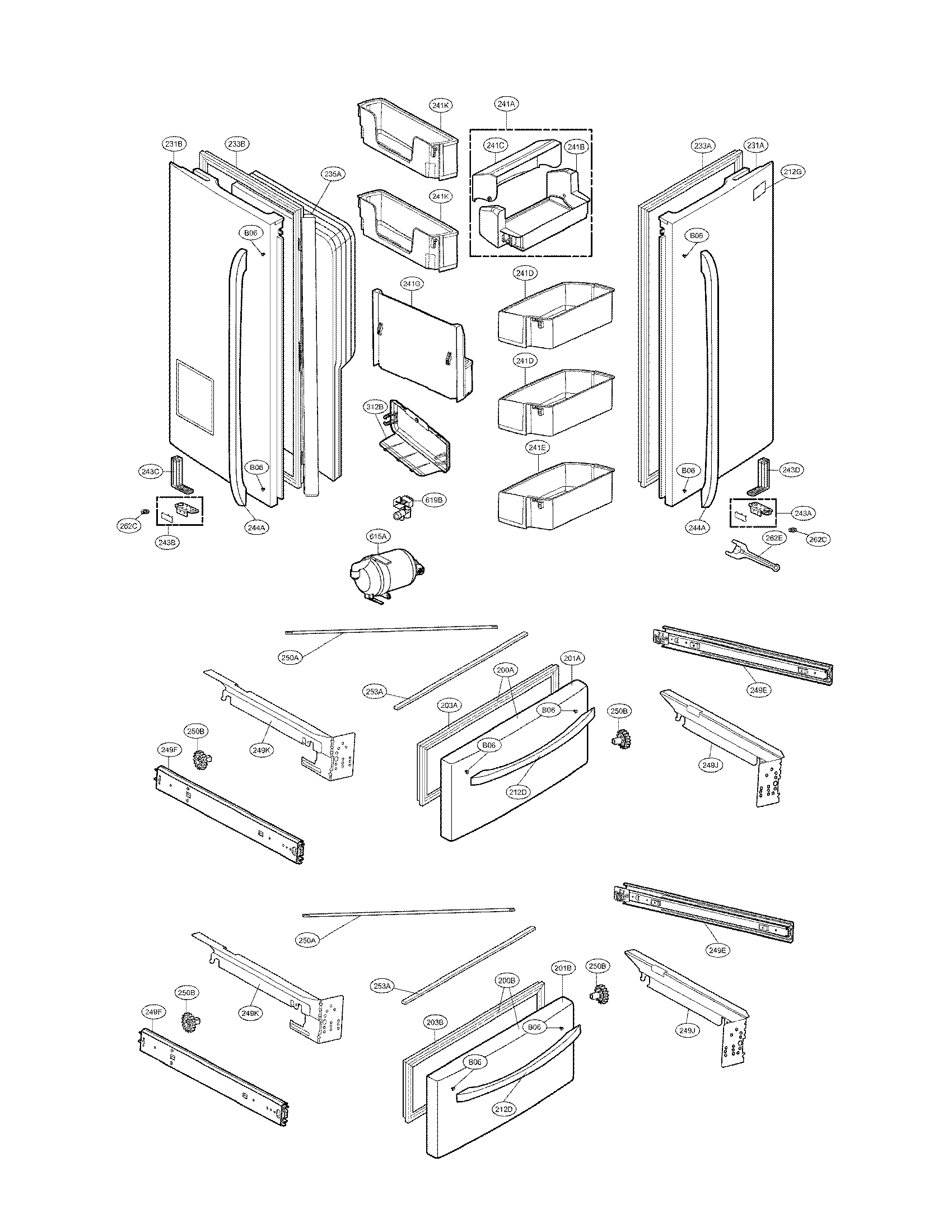

• Door not closing or light staying on: refrigerator door switch 6600JB1010A
• French door center seal not lining up: refrigerator flipper assembly AGU75188619

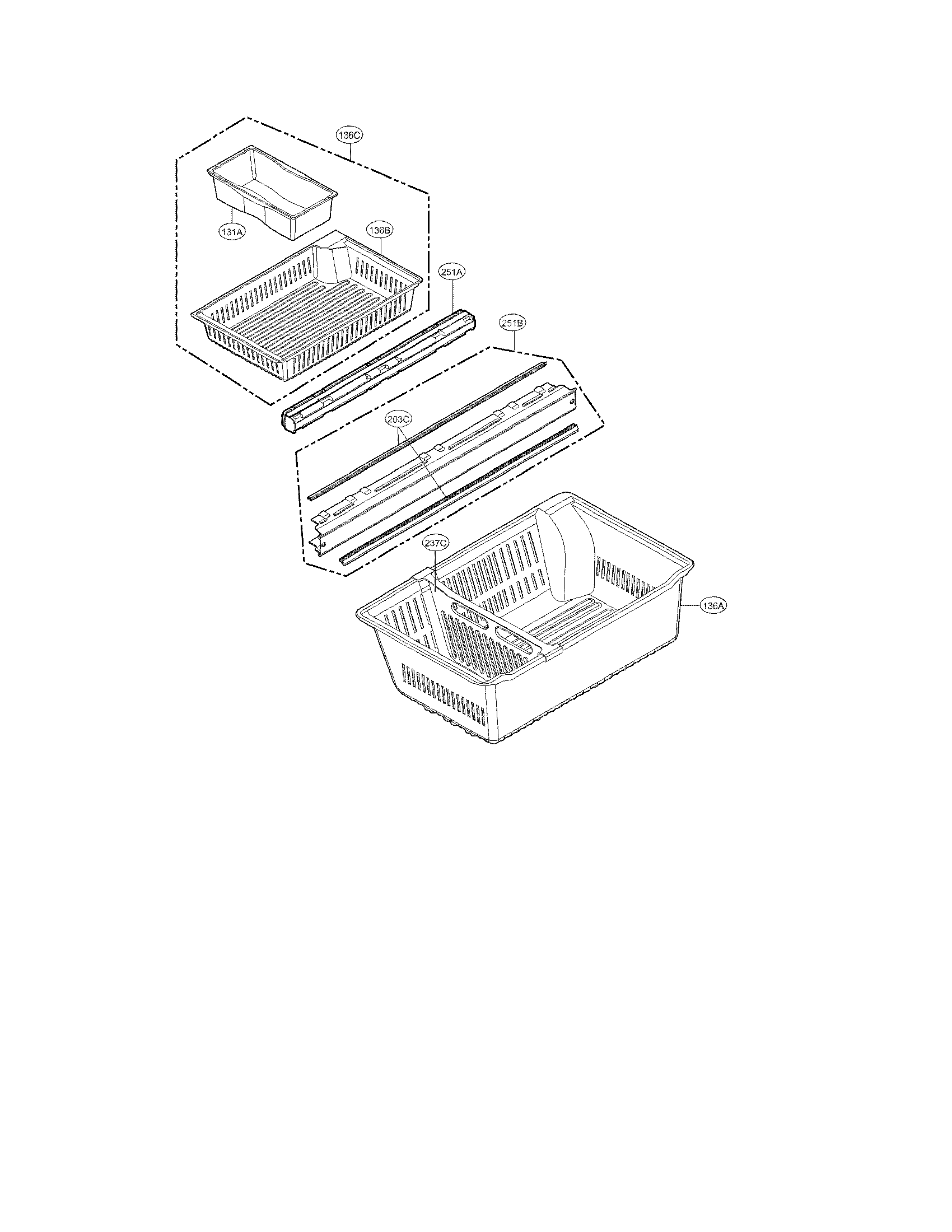

• Freezer drawer not sliding smoothly: refrigerator freezer drawer slide rail, left MGT61844109

You can order replacement parts for model 79571073013 from the parts list for this model, or search by model number on Sears PartsDirect.
