Kenmore
Canister Vacuum

Model #11629914900-1980 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Kenmore 11629914900-1980 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 84 parts

Dust Bag#86

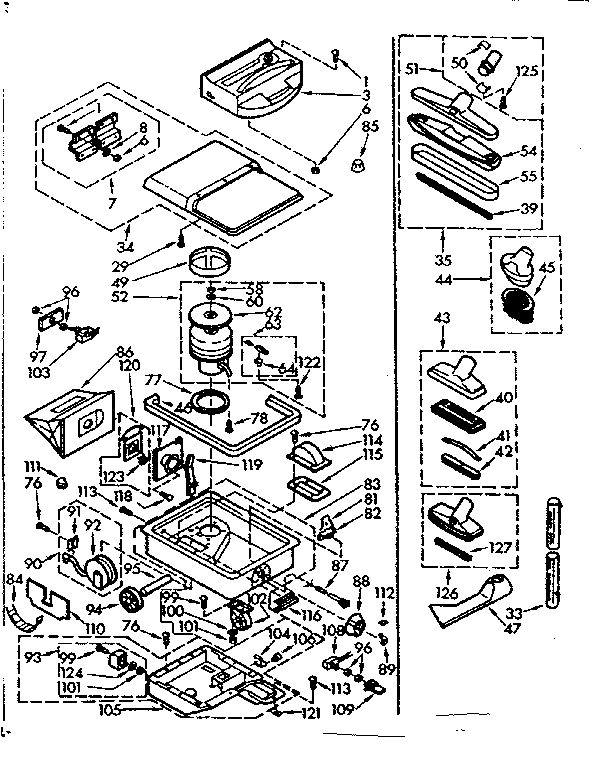

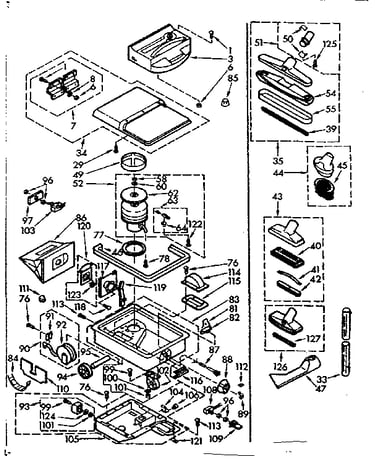

Vacuum cleaner and attachment parts Diagram

Dust bag

Part #20-5023

The manufacturer no longer makes this part, and there's no substitute part

Switch#103

Vacuum cleaner and attachment parts Diagram

Switch

Part #762585

The manufacturer no longer makes this part, and there's no substitute part

Nut#85

Vacuum cleaner and attachment parts Diagram

Nut

Part #596564

The manufacturer no longer makes this part, and there's no substitute part

Motor#52A

Vacuum cleaner and attachment parts Diagram

Motor

Part #700387

The manufacturer no longer makes this part, and there's no substitute part

Base#83

Vacuum cleaner and attachment parts Diagram

Base

Part #763147

The manufacturer no longer makes this part, and there's no substitute part

Spring#41

Vacuum cleaner and attachment parts Diagram

Spring

Part #667704

The manufacturer no longer makes this part, and there's no substitute part

Receptacle#87

Vacuum cleaner and attachment parts Diagram

Receptacle

Part #763386

The manufacturer no longer makes this part, and there's no substitute part

Spring#112

Vacuum cleaner and attachment parts Diagram

Spring

Part #762917

The manufacturer no longer makes this part, and there's no substitute part

Gasket#123

Vacuum cleaner and attachment parts Diagram

Gasket

Part #763450

The manufacturer no longer makes this part, and there's no substitute part

Washer#124

Vacuum cleaner and attachment parts Diagram

Washer

Part #486260

The manufacturer no longer makes this part, and there's no substitute part

Symptoms common to all vacuum cleaners

Choose a symptom to see related vacuum cleaner repairs.

Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring failure
Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose
Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor
Main causes: lack of power, bad power cord, drive motor failure, wiring failure

Repair guides for canister vacuums

How to replace a vacuum power head ribbed drive belt

Some canister vacuums have a ribbed drive belt that spins the brush roll on a power brush attachment. If the brush roll slips, you can replace it using these instructions.

Repair difficulty
Time required
 30 minutes or less
How to replace a vacuum suction motor

The suction motor on a vacuum creates the draw of air at the cleaning head that picks up dirt. If the vacuum won't run, give it a new life by replacing the suction motor. These steps explain how.

Repair difficulty
Time required
 15 minutes or less
How to replace a vacuum beater bar

Replace the brush roll if the bristles ares worn or the cylinder is damaged.

Repair difficulty
Time required
 30 minutes or less
