Model # 358351202 Official Craftsman chainsaw

Here are the diagrams and repair parts for Official Craftsman 358351202 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |

Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#190

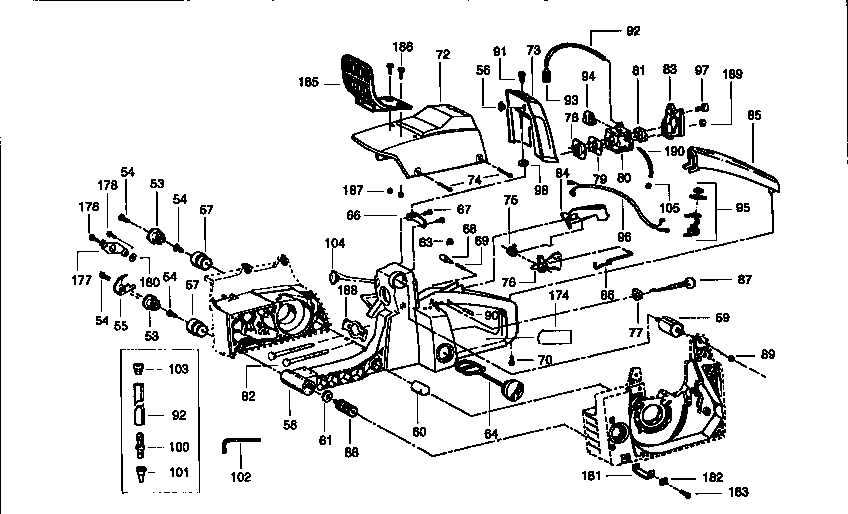

Main frame diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
This item is not returnable
$6.41
13% OFF Phone Price : $7.41
In Stock
Gasket 530035213
#171

Carburetor diagram

Gasket

Part #530035213

Replaced by #530069844

?
Manufacturer substitution
This part replaces 530035213. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$14.37
12% OFF Phone Price : $16.37
Back Order
Rope Kit 530069233
#16

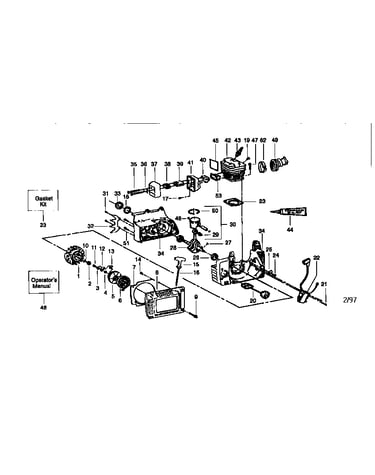

Engine diagram

Rope kit

Part #530069233

Replaced by #530069232

?
Manufacturer substitution
This part replaces 530069233. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Repair Kit 530035209
#170

Carburetor diagram

Repair kit

Part #530035209

Replaced by #530069849

?
Manufacturer substitution
This part replaces 530035209. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$17.99
10% OFF Phone Price : $19.99
Back Order
Chainsaw Check Valve (replaces 5300261-19, 530-026119) 530026119
#101

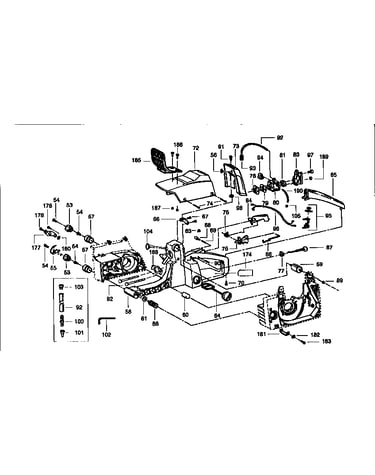

Main frame diagram

Chainsaw check valve (replaces 5300261-19, 530-026119)

Part #530026119

This item is not returnable
Back Order
Chain, 20-in 713635
#130

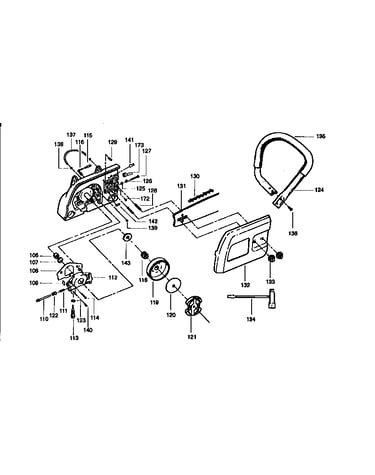

Handle assembly diagram

Chain, 20-in

Part #713635

Replaced by #20BPX078G

?
Manufacturer substitution
This part replaces 713635. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$37.93
12% OFF Phone Price : $42.93
In Stock
Chainsaw Clutch Drum (replaces 530-048084, 952048086) 530048084
#119

Handle assembly diagram

Chainsaw clutch drum (replaces 530-048084, 952048086)

Part #530048084

This item is not returnable
$19.91
11% OFF MSRP : $22.29
In Stock
Chainsaw Isolator Kit 530027394
#59

Main frame diagram

Chainsaw isolator kit

Part #530027394

$12.09
14% OFF Phone Price : $14.09
In Stock
Chainsaw Bar Adjuster Pin 530023064
#125

Handle assembly diagram

Chainsaw bar adjuster pin

Part #530023064

This item is not returnable
$5.40
16% OFF Phone Price : $6.40
Back Order
Nut 530015445
#133

Handle assembly diagram

Nut

Part #530015445

Replaced by #530015251

?
Manufacturer substitution
This part replaces 530015445. Substitute parts can look different from the original.
This item is not returnable
$2.49
33% OFF MSRP : $3.70
In Stock
