Model #LG6901XKW0 Whirlpool dryer

Here are the diagrams and repair parts for Whirlpool LG6901XKW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

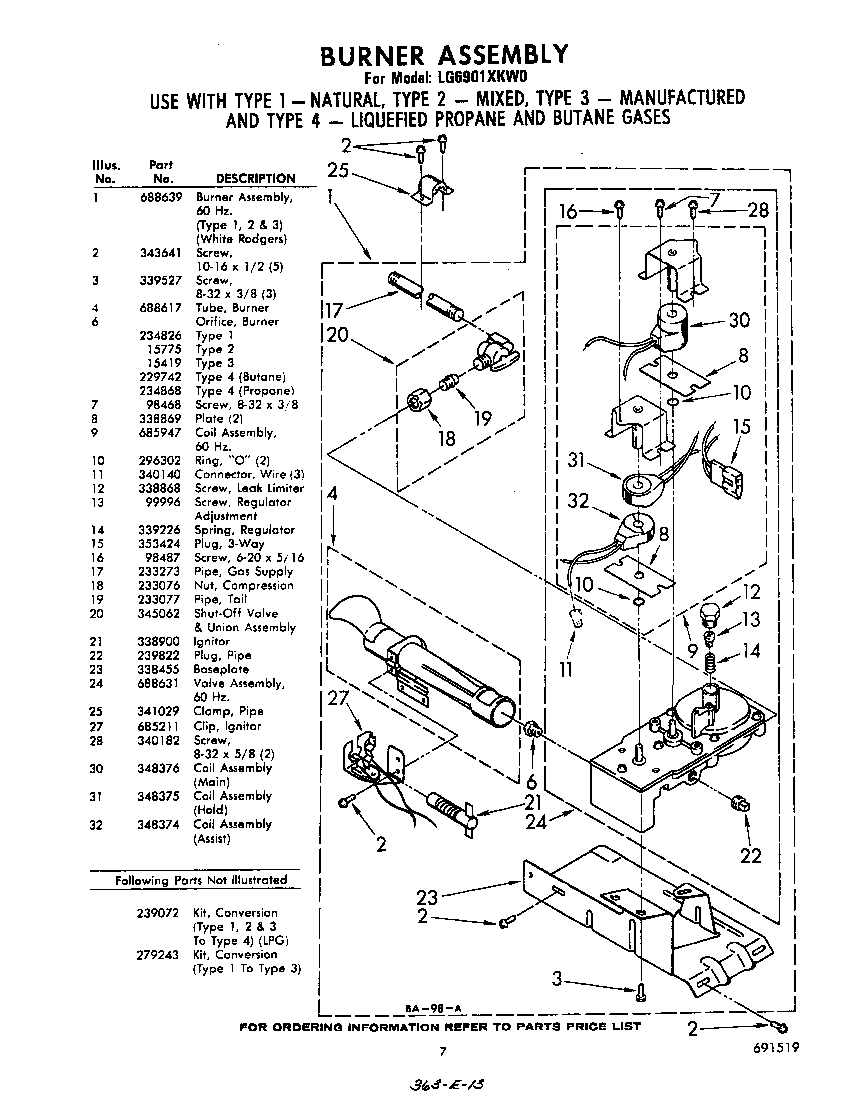

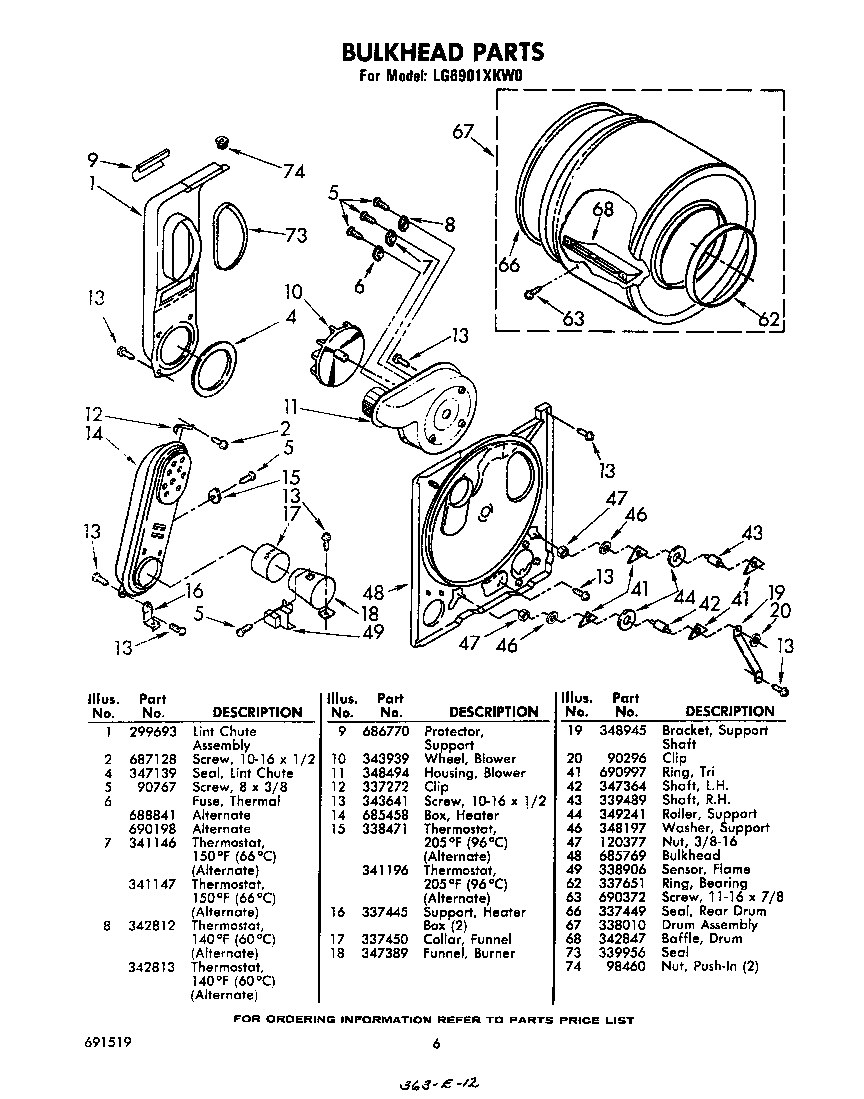

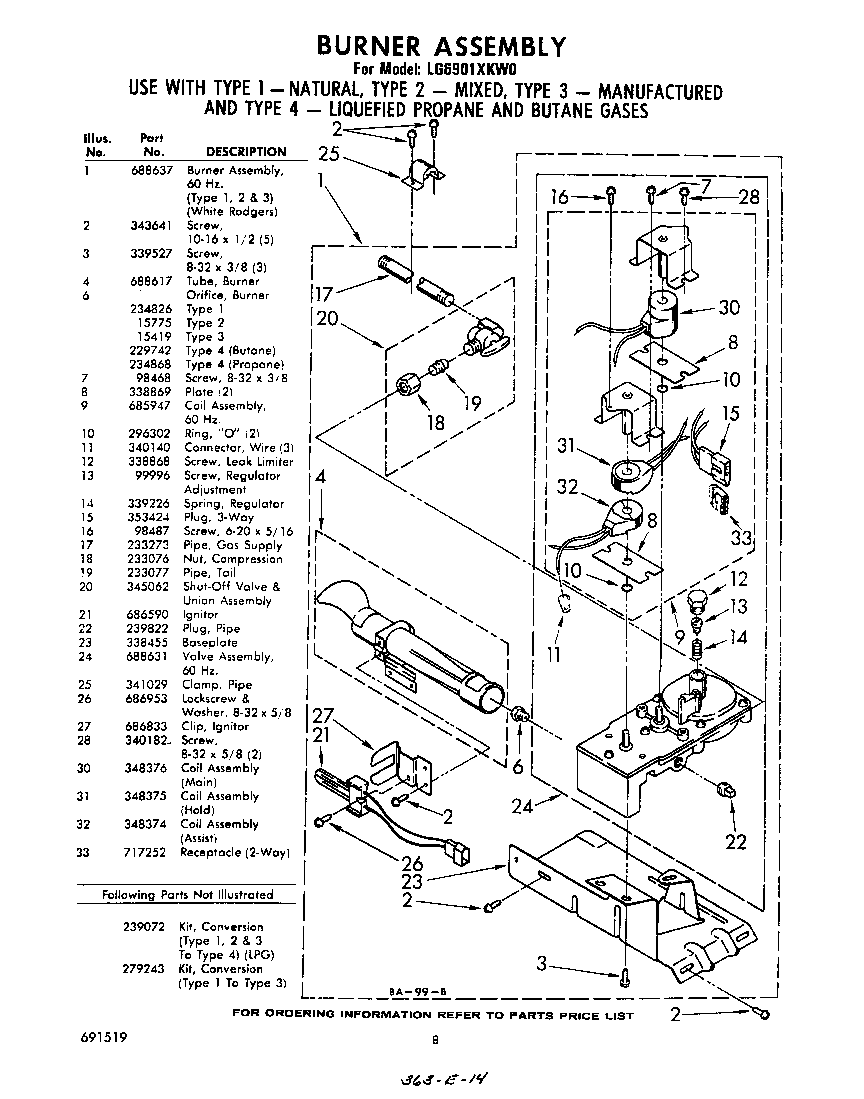

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 198 parts

    Dryer Drum Belt

    #56

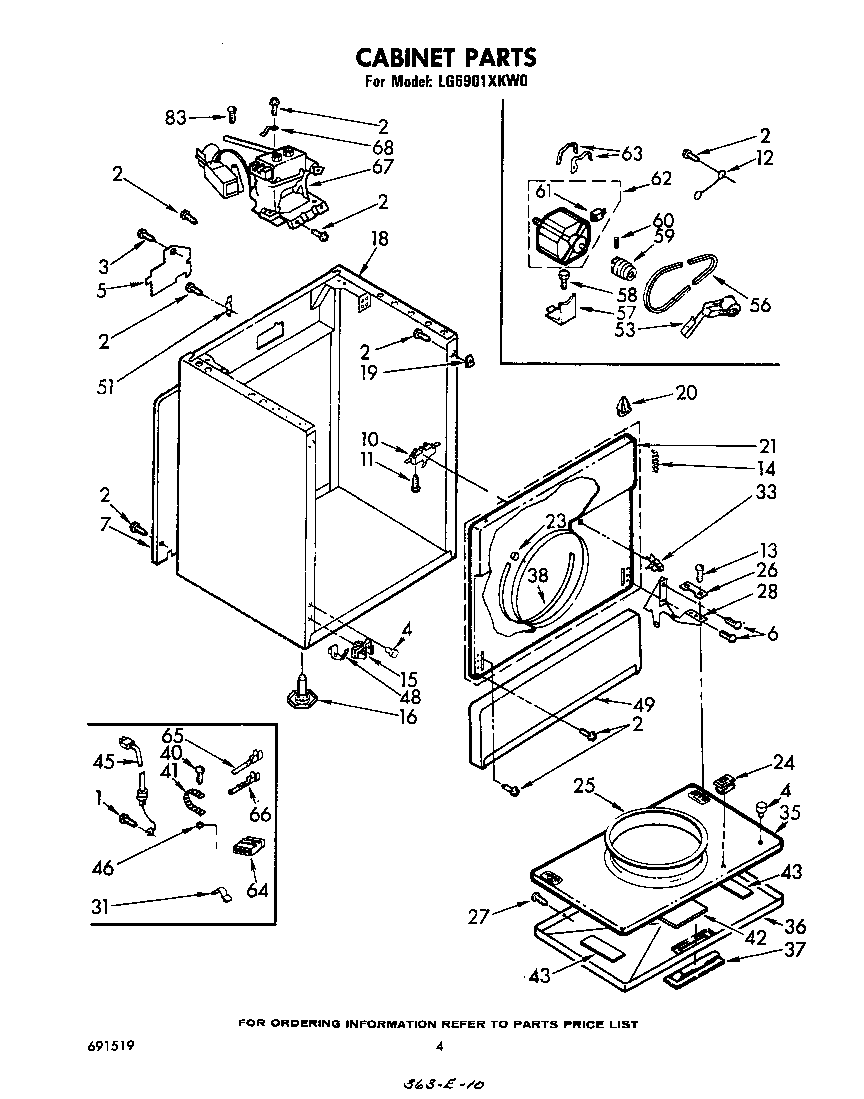

    Cabinet Diagram

    Dryer drum belt

    Part #341241
    $23.99

    In Stock

    Appliance Spray Paint (White)

    #NI

    All parts Diagram

    $15.99

    In Stock

    Appliance Touch-Up Paint, 0.6-oz (Golden Harvest)

    #NI

    All parts Diagram

    $8.49

    In Stock

    Appliance Spray Paint (Almond)

    #NI

    All parts Diagram

    $16.99

    In Stock

    Refrigerator Capacitor Screw

    #13

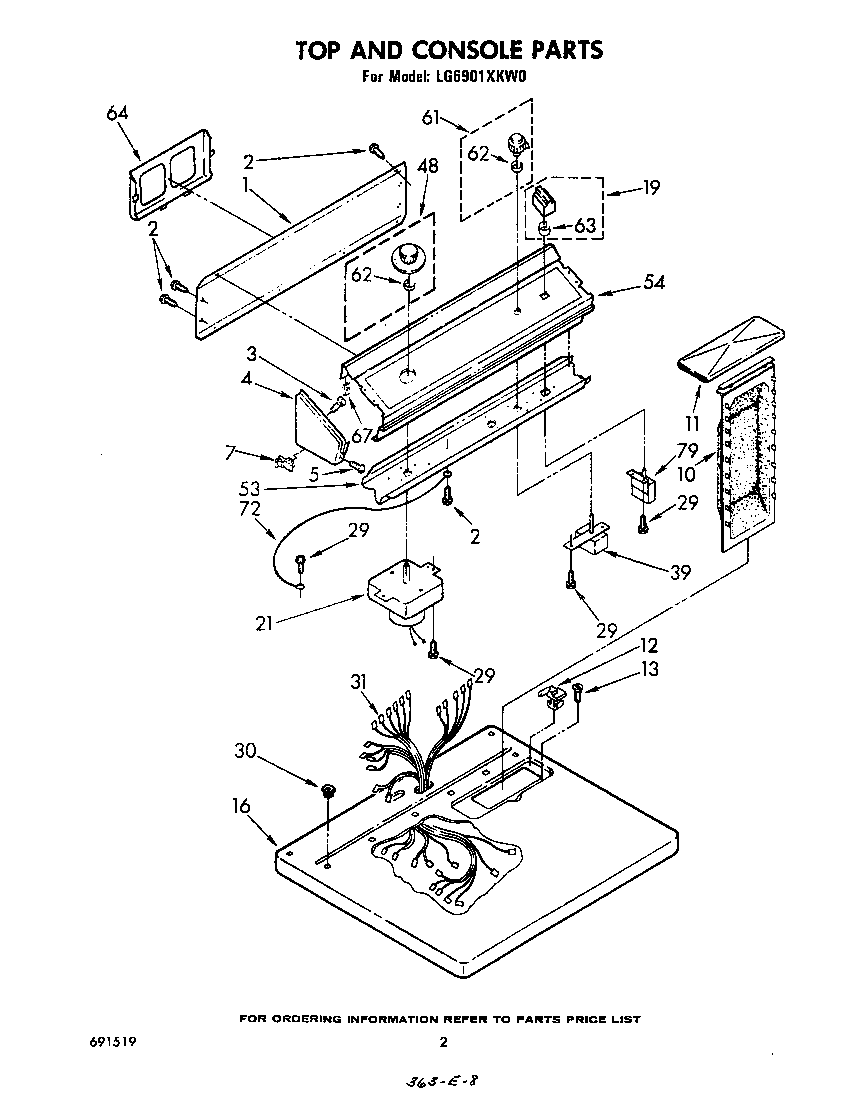

    Top and console Diagram

    Refrigerator capacitor screw

    Part #WP487240
    This item is not returnable
    $4.56

    In Stock

    Washer Lid Bumper

    #4

    Cabinet Diagram

    Washer lid bumper

    Part #238614
    $29.06 |
    43% OFF MSRP:$51.00

    In Stock

    Wire

    #12

    Cabinet Diagram

    Wire

    Part #690236
    $7.82 |
    81% OFF MSRP:$40.15

    In Stock

    Appliance Spray Paint (Gray Primer)

    #NI

    All parts Diagram

    $23.99

    In Stock

    Washer Terminal Connector

    #64A

    Cabinet Diagram

    $13.99

    In Stock

    Appliance Touch-Up Paint, 0.6-oz (White)

    #NI

    All parts Diagram

    Appliance touch-up paint, 0.6-oz (white)

    Part #72017
    This item is not returnable
    $6.89 |
    8% OFF MSRP:$7.50

    In Stock

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
