Model #GDF610PGJ2BB GE dishwasher

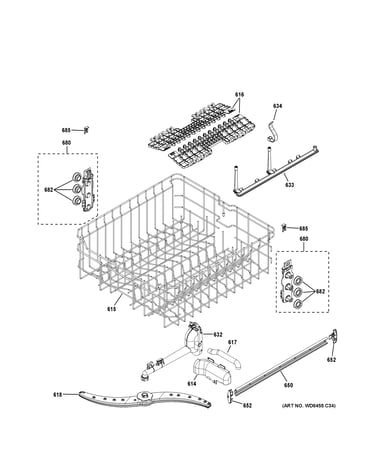

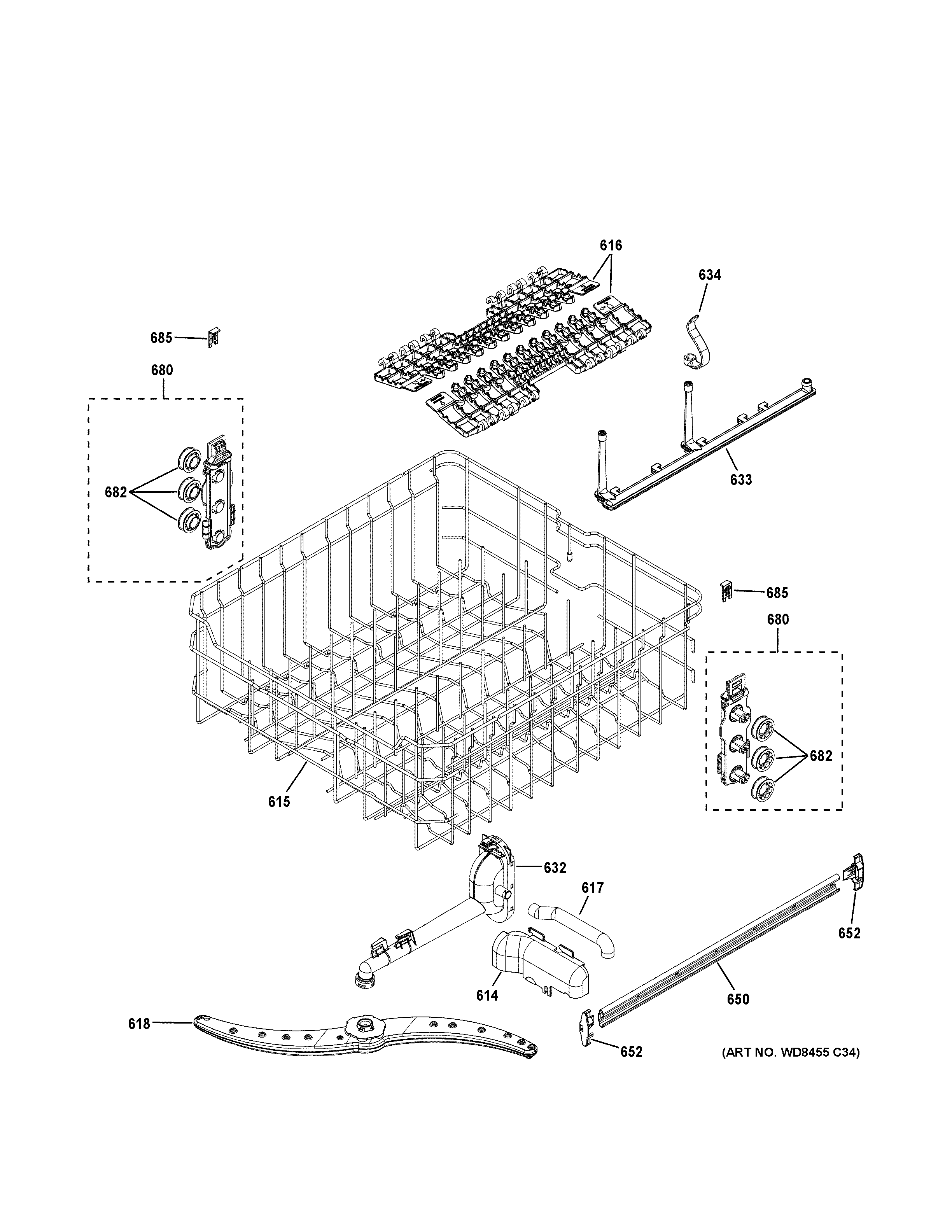

Here are the diagrams and repair parts for GE GDF610PGJ2BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 129 parts

    Dishwasher Lower Dishrack Roller#704

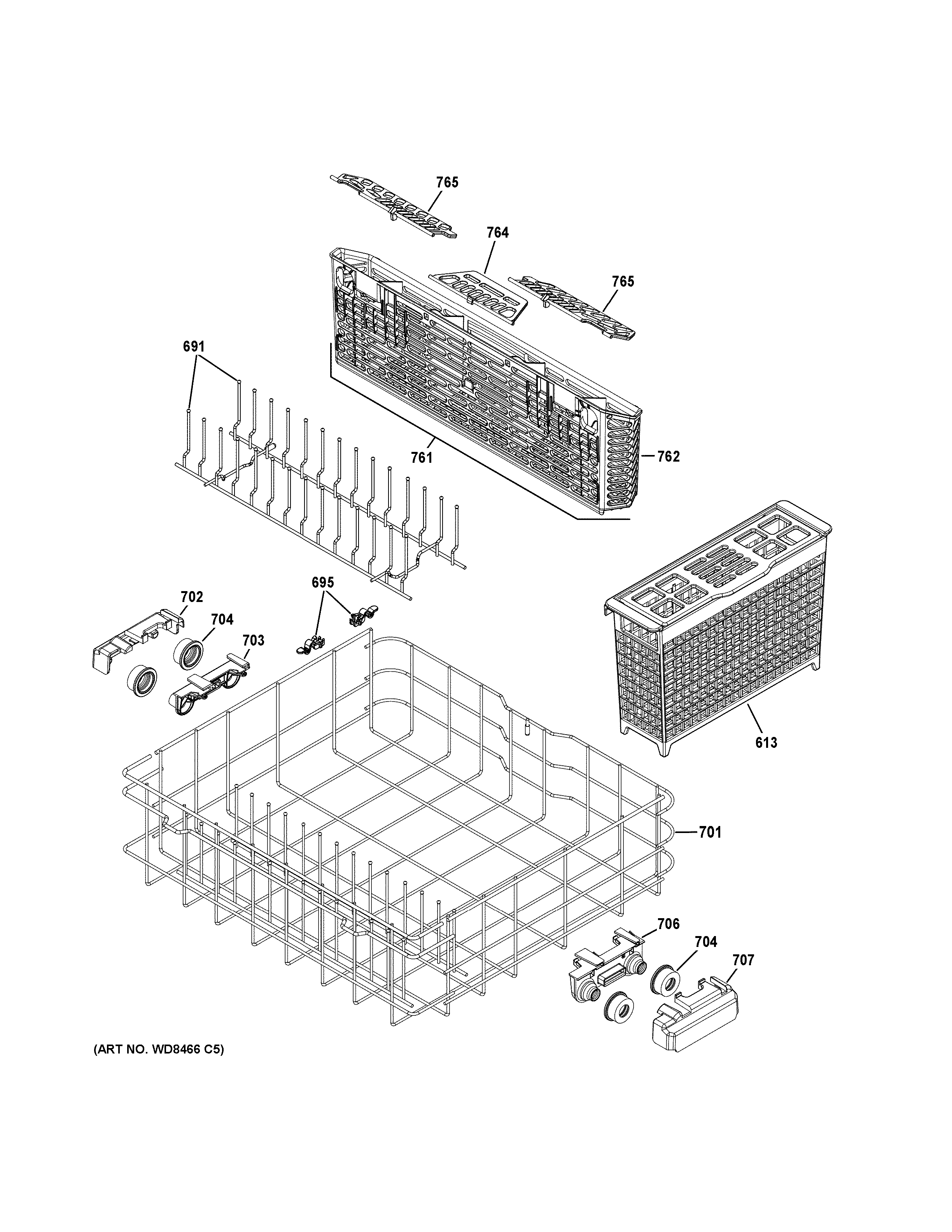

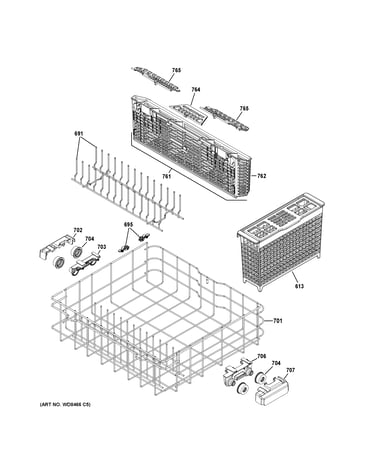

    Lower rack assembly Diagram

    Dishwasher lower dishrack roller

    Part #WD12X10435
    Replaced by #WD12X26146
    ?
    Manufacturer substitution
    This part replaces WD12X10435. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.00
    Dishwasher Door Latch Lock#803

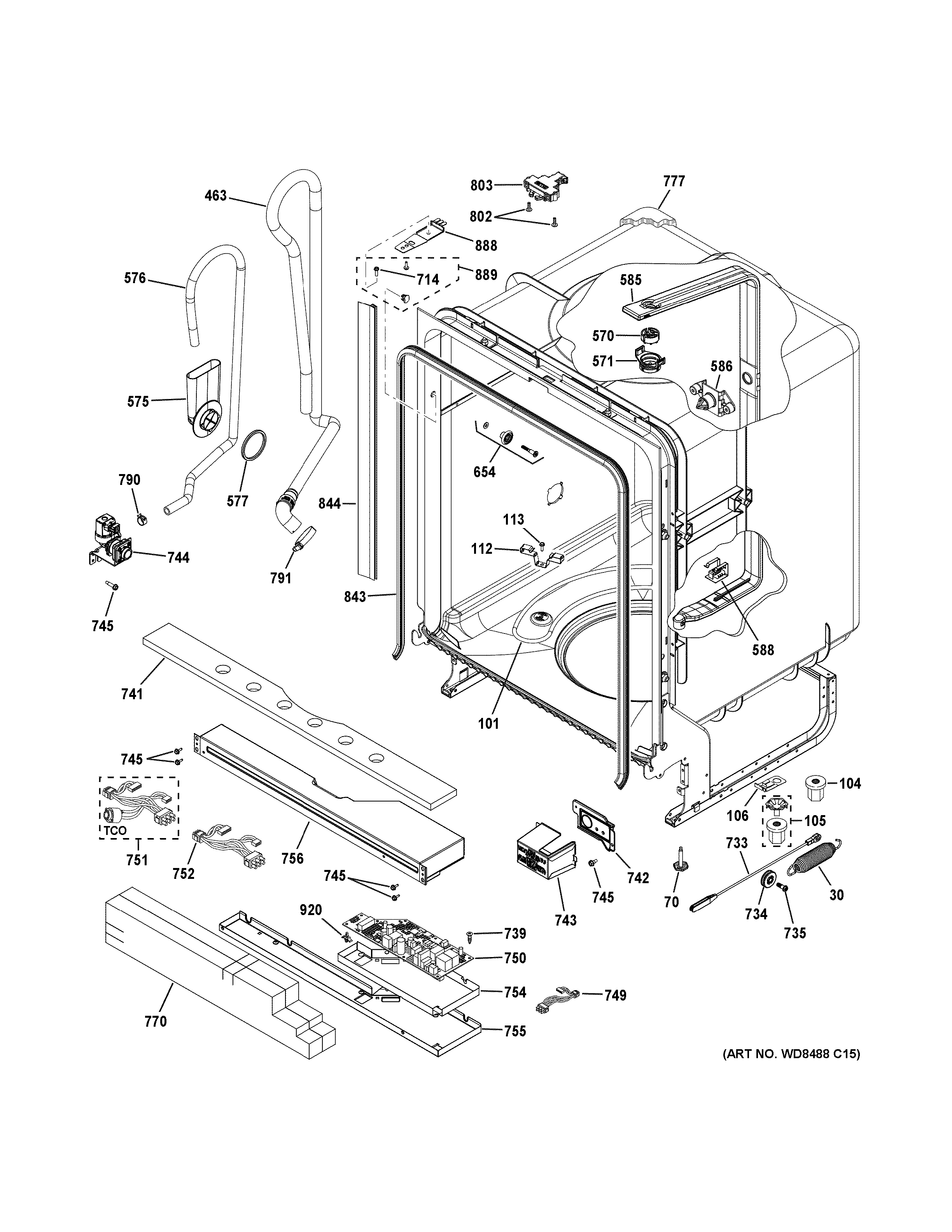

    Body parts Diagram

    Dishwasher door latch lock

    Part #WD21X10490
    BEST SELLER
    In Stock
    $34.49
    Dishwasher Heating Element#101

    Body parts Diagram

    Dishwasher heating element

    Part #WD05X21716
    Replaced by #WD05X24776
    ?
    Manufacturer substitution
    This part replaces WD05X21716. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $49.19
    Dishwasher User Interface#903

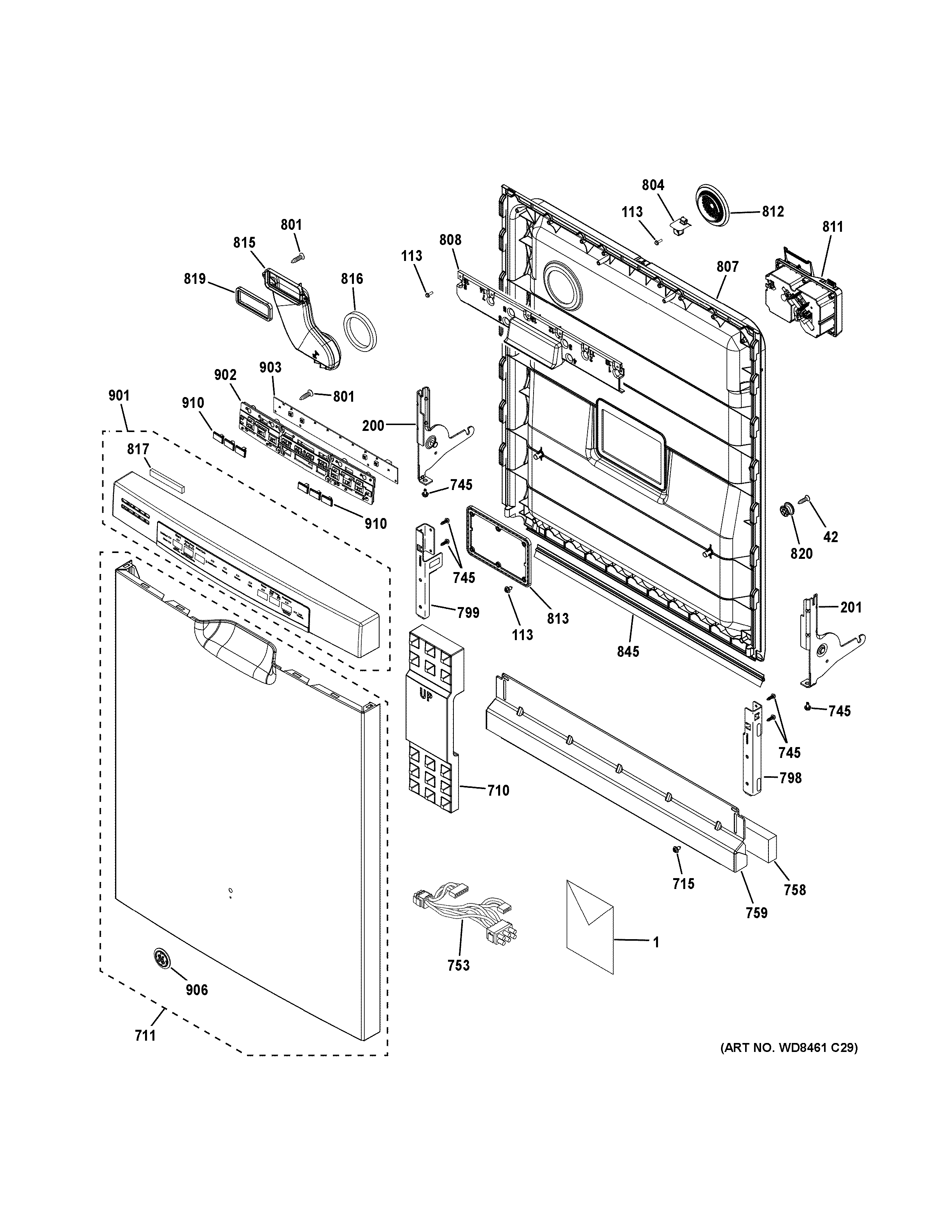

    Escutcheon & door assembly Diagram

    Kit svc ui t

    Part #WD21X22955
    Replaced by #WD21X23462
    ?
    Manufacturer substitution
    This part replaces WD21X22955. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $122.29
    Dishwasher Installation Bracket#888

    Body parts Diagram

    Dishwasher installation bracket

    Part #WD01X21740
    BEST SELLER
    This item is not returnable
    In Stock
    $5.00
    Dishwasher Electronic Control Board#750

    Body parts Diagram

    Kit svc mc l

    Part #WD21X23096
    Replaced by #WD21X23717
    ?
    Manufacturer substitution
    This part replaces WD21X23096. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $92.99
    Dishwasher Spray Arm, Lower#501

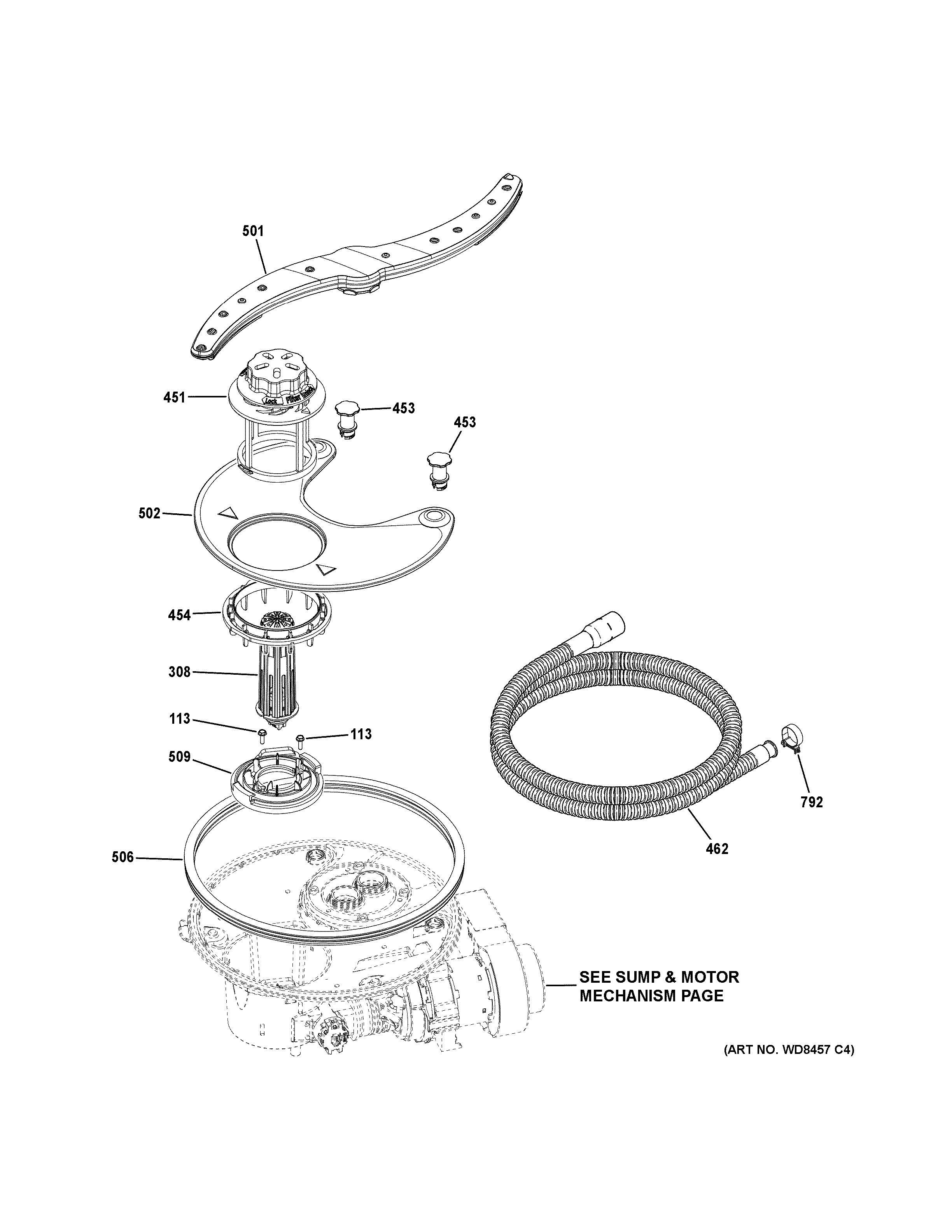

    Sump & filter assembly Diagram

    Dishwasher spray arm, lower

    Part #WD22X10091
    Replaced by #WD22X26621
    ?
    Manufacturer substitution
    This part replaces WD22X10091. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $31.11
    Dishwasher Tub Corner Baffle#845

    Escutcheon & door assembly Diagram

    Dishwasher tub corner baffle

    Part #WD08X21894
    BEST SELLER
    In Stock
    $7.89
    Dishwasher Diverter Assembly#504

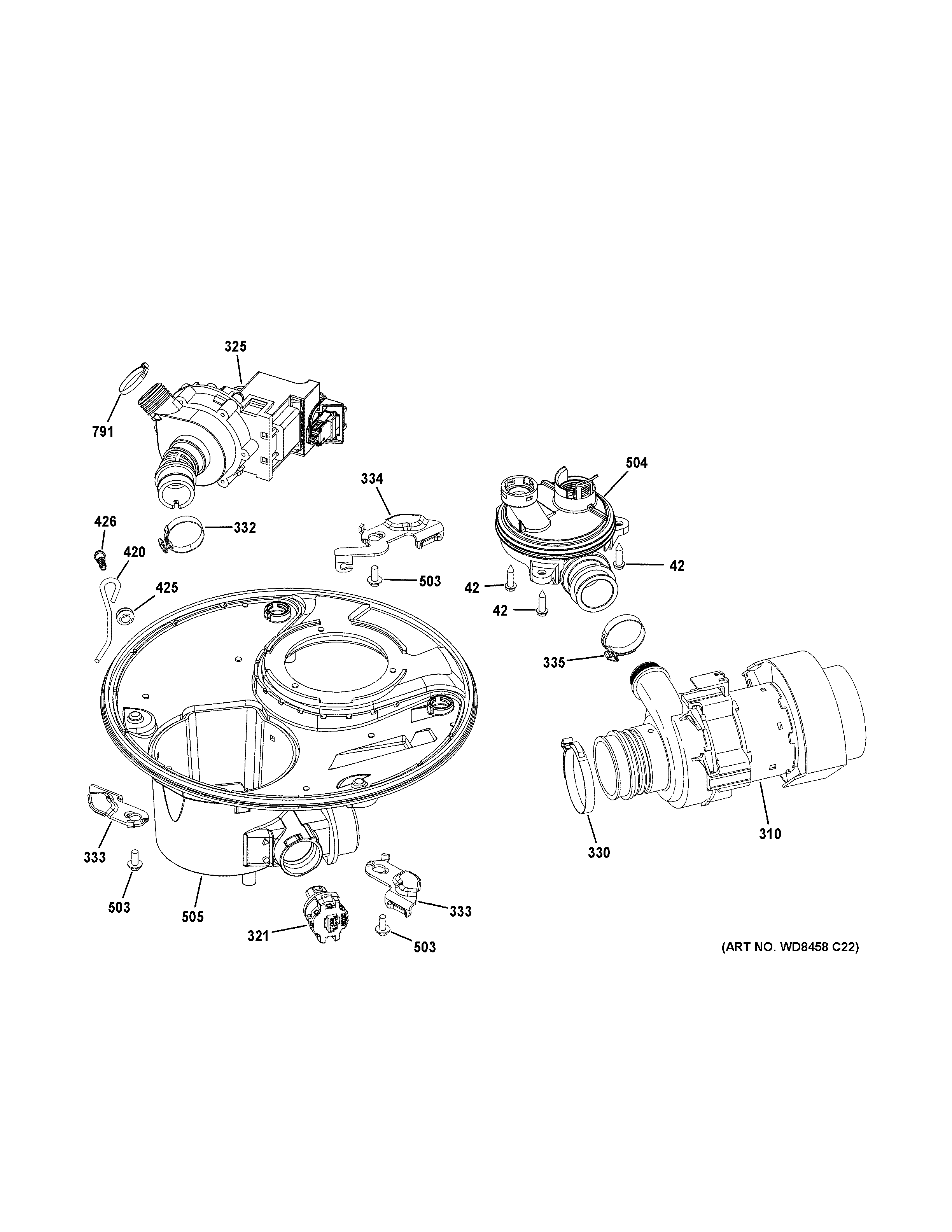

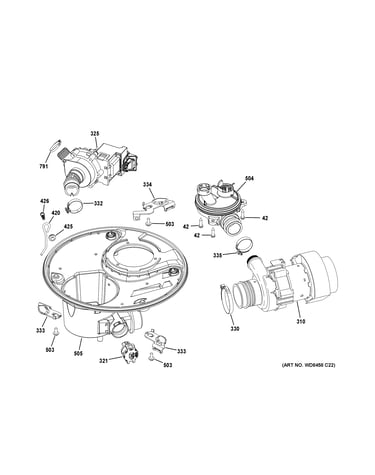

    Sump & motor mechanism Diagram

    Diverter

    Part #WD18X21678
    Replaced by #WD19X25278
    ?
    Manufacturer substitution
    This part replaces WD18X21678. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $79.49
    Dishwasher Dishrack Roller Cover#707

    Lower rack assembly Diagram

    Dishwasher dishrack roller cover

    Part #WD12X10438
    BEST SELLER
    This item is not returnable
    In Stock
    $7.79

    Symptoms common to all dishwashers

    Choose a symptom to see related dishwasher repairs.

    Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
    Main cause: damaged rack height adjuster
    Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
    Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
    Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
    Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
    Main causes: broken door spring, damaged or broken door hinge
    Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan failure
    Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem

    Repair guides common to all dishwashers

    These step-by-step repair guides will help you safely fix what’s broken on your dishwasher.

    October 1, 2016
    By Lyle Weischwill
    How to replace a dishwasher door latch assembly

    If the dishwasher door doesn't click shut, a broken door latch is a likely cause. Follow these instructions to replace it yourself.

    Repair difficulty
    Time required
     30 minutes or less
    How to replace a dishwasher user interface control

    The user interface control houses the selection buttons and display. If it fails, you can't select the cycle and settings. Follow these instructions to replace it yourself.

    Repair difficulty
    Time required
     30 minutes or less
    April 1, 2014
    By Lyle Weischwill
    How to replace a dishwasher thermal fuse

    A completely dead control panel often indicates that the thermal fuse on the electronic control board is blown; follow these steps to replace a blown thermal fuse in your dishwasher.

    Repair difficulty
    Time required
     15 minutes or less

    Articles and videos common to all dishwashers

    Use the advice and tips in these articles and videos to get the most out of your dishwasher.

    December 23, 2021

    How to reset a Whirlpool dishwasher

    By Lyle Weischwill

    Learn how to reset a Whirlpool dishwasher when its control freezes up.

    April 10, 2020

    Cleaning your appliances after a drinking water advisory

    By Julie Riebe

    Find out how to clean and flush household appliances once a boil water advisory is lifted.

    August 30, 2016

    Dishwasher has power but won't run? Could be demo mode

    By Sears PartsDirect staff

    This list shows how to disable the demo mode on a variety of dishwashers.
