Model #WTB86200UC/02 Official Bosch dryer
Here are the diagrams and repair parts for Bosch WTB86200UC-02 dryer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

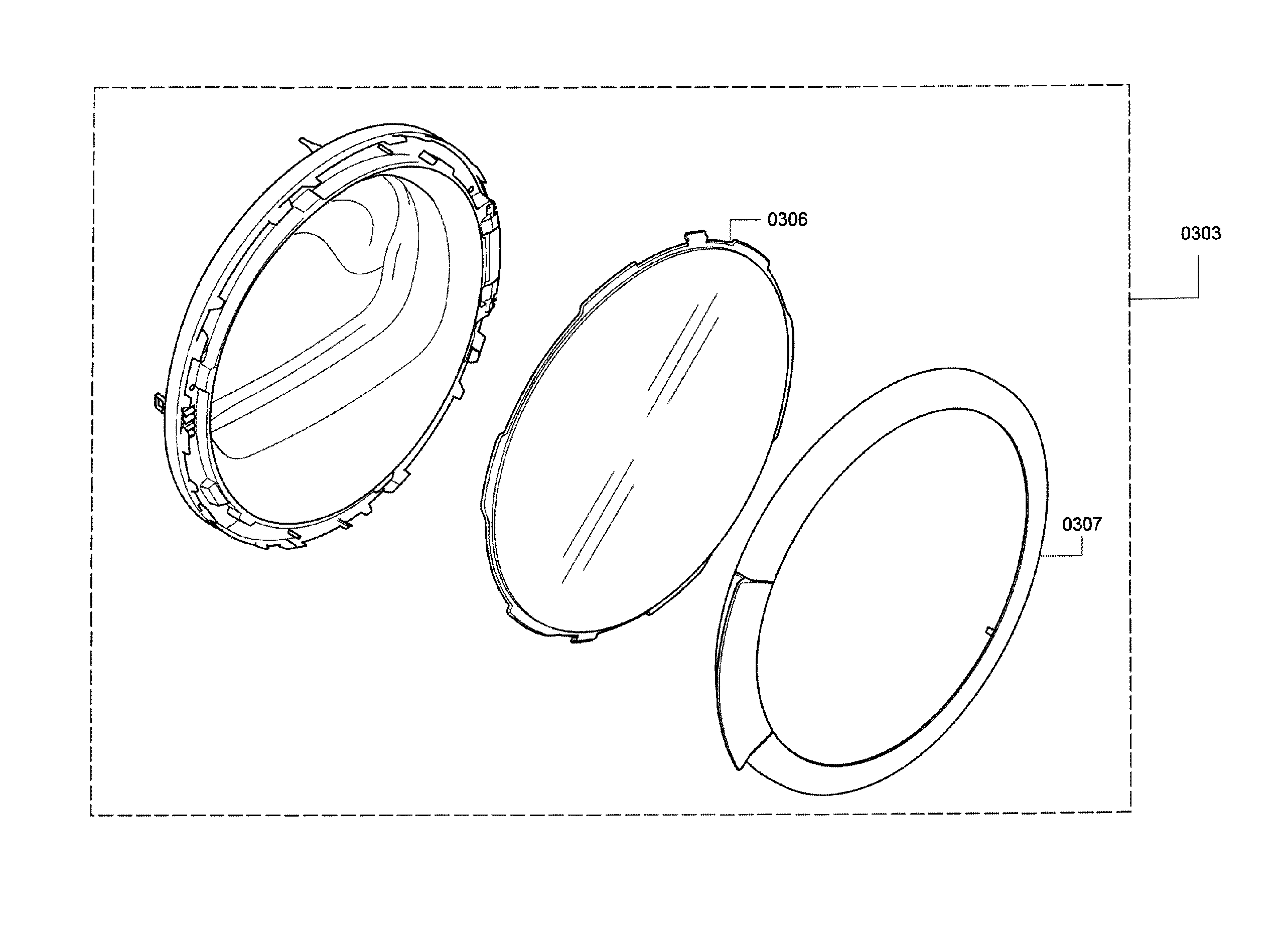

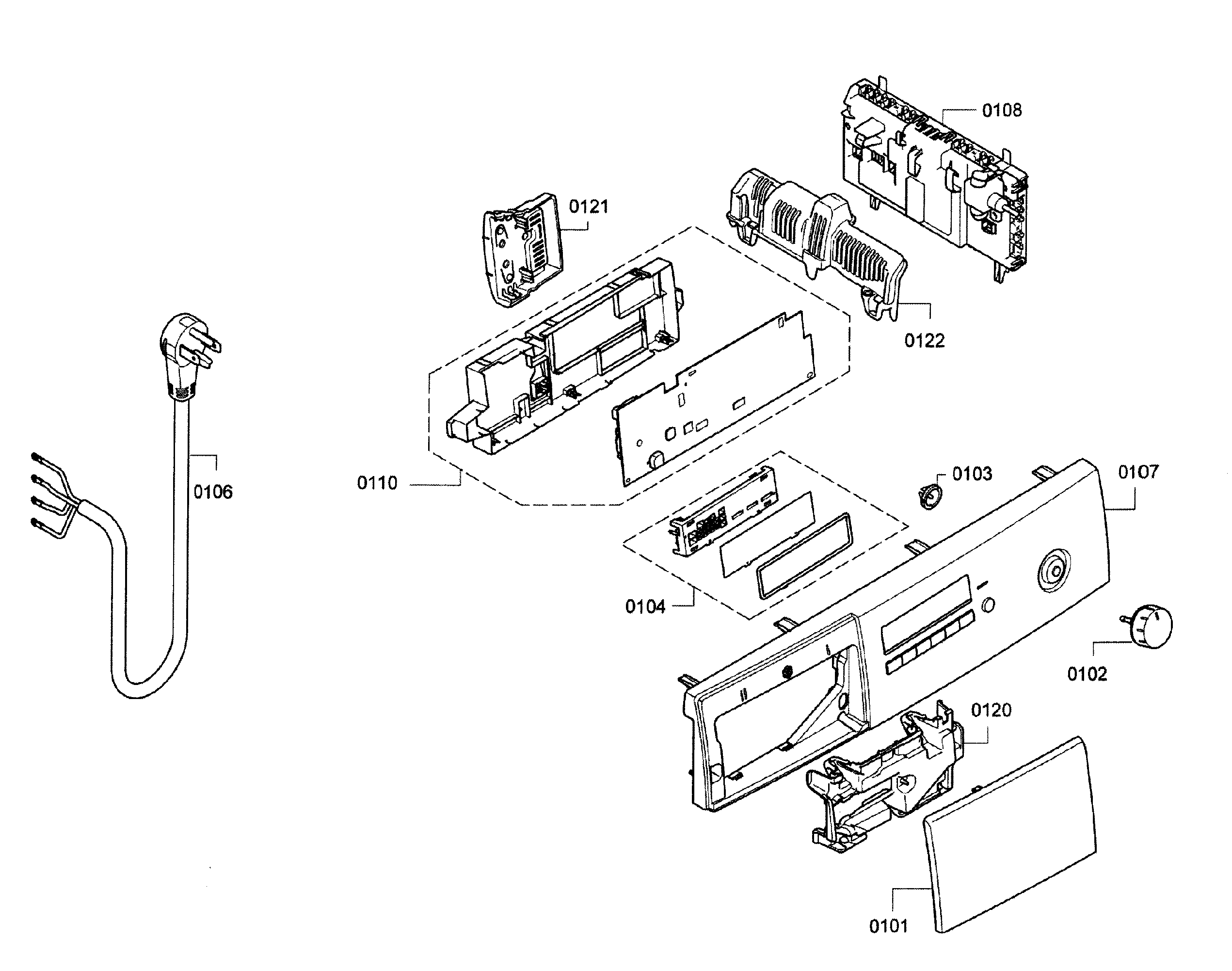

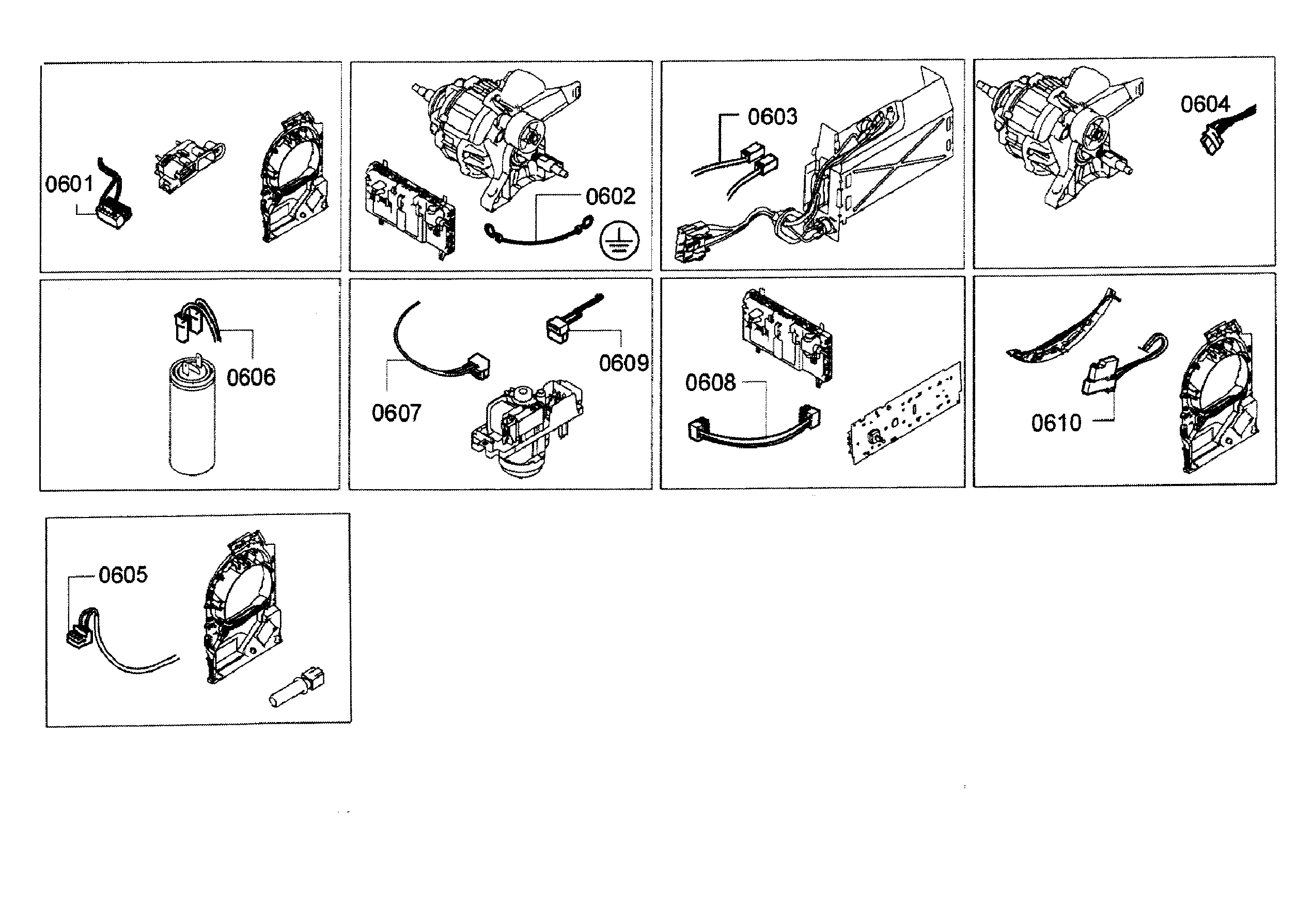

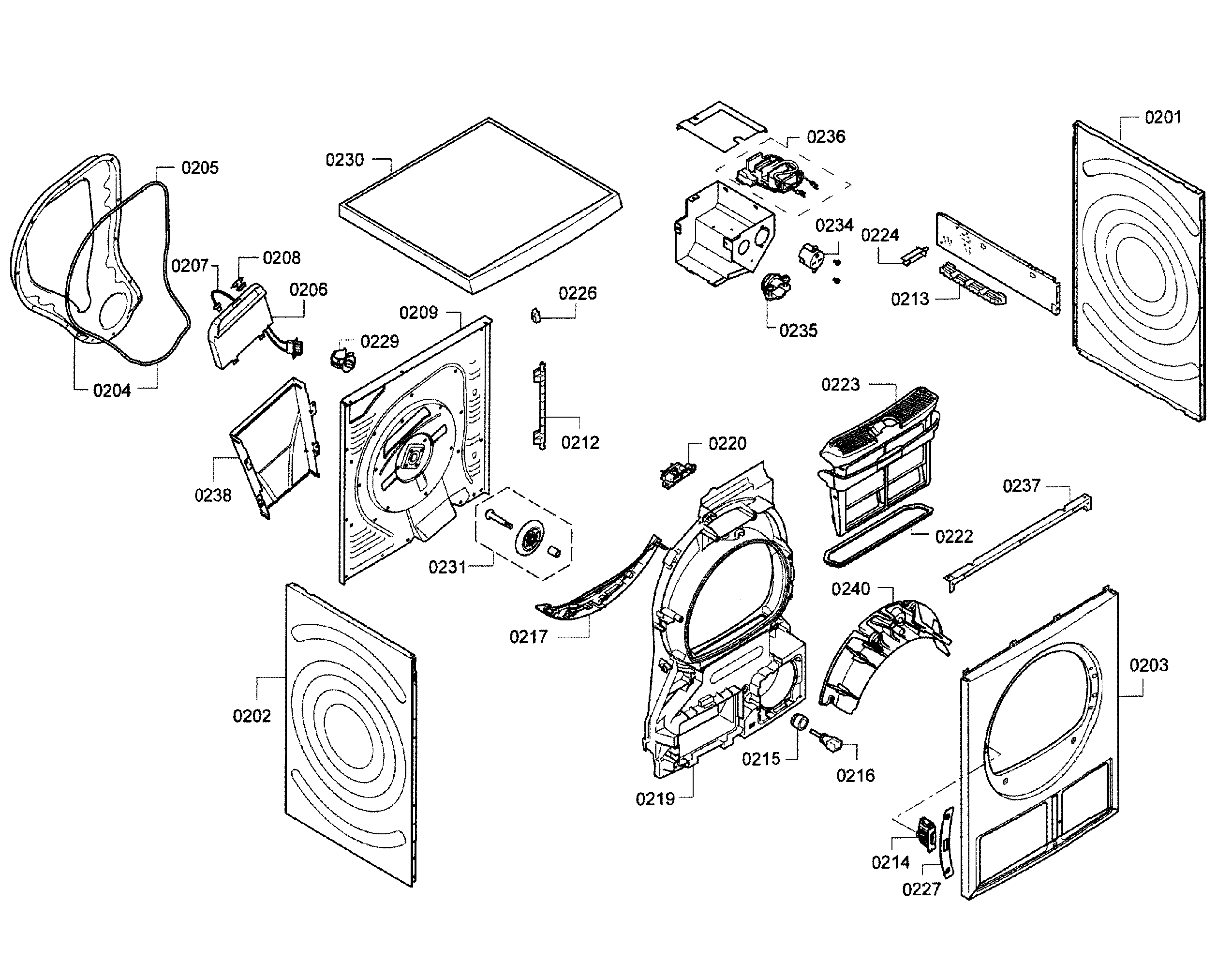

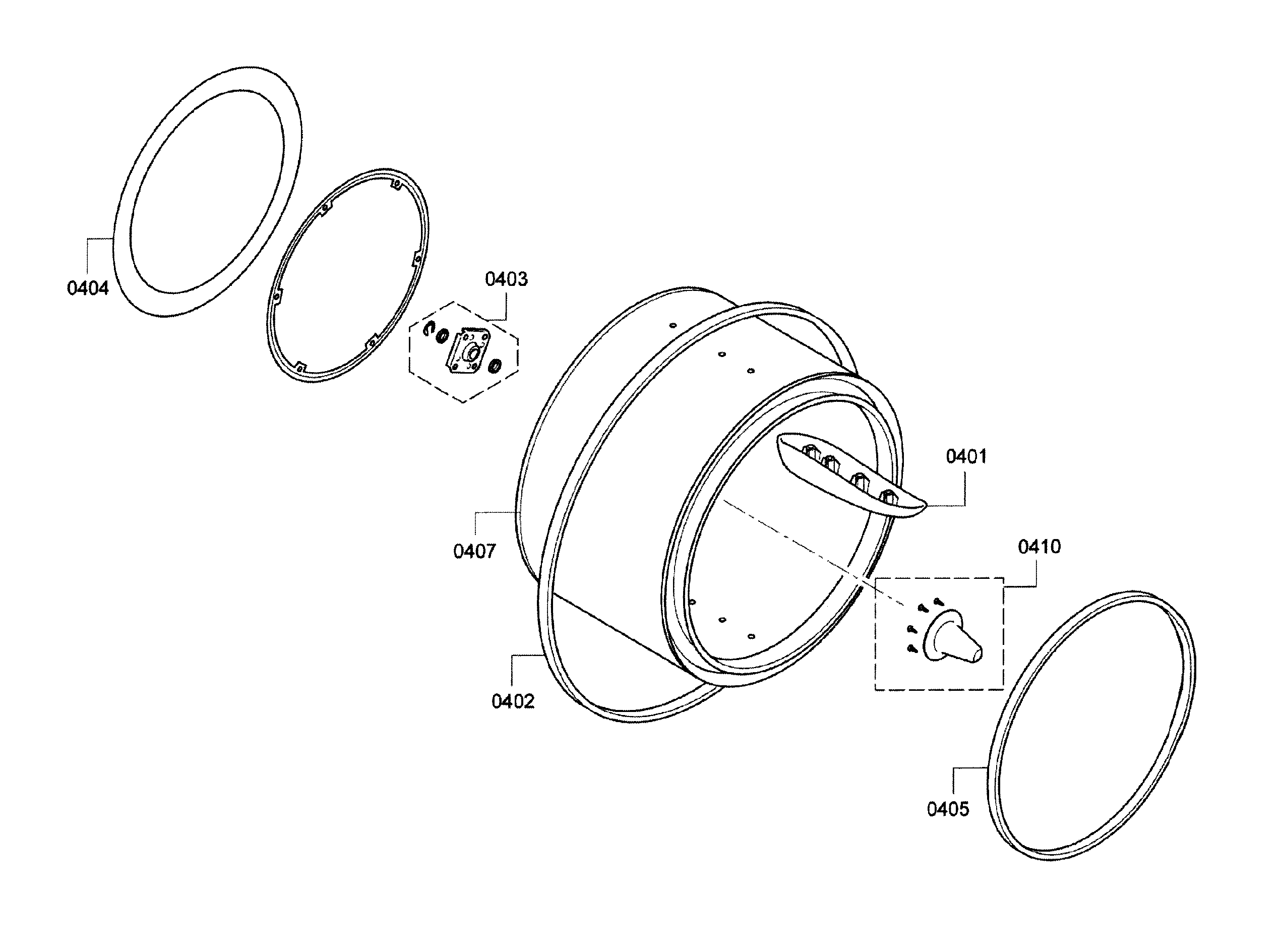

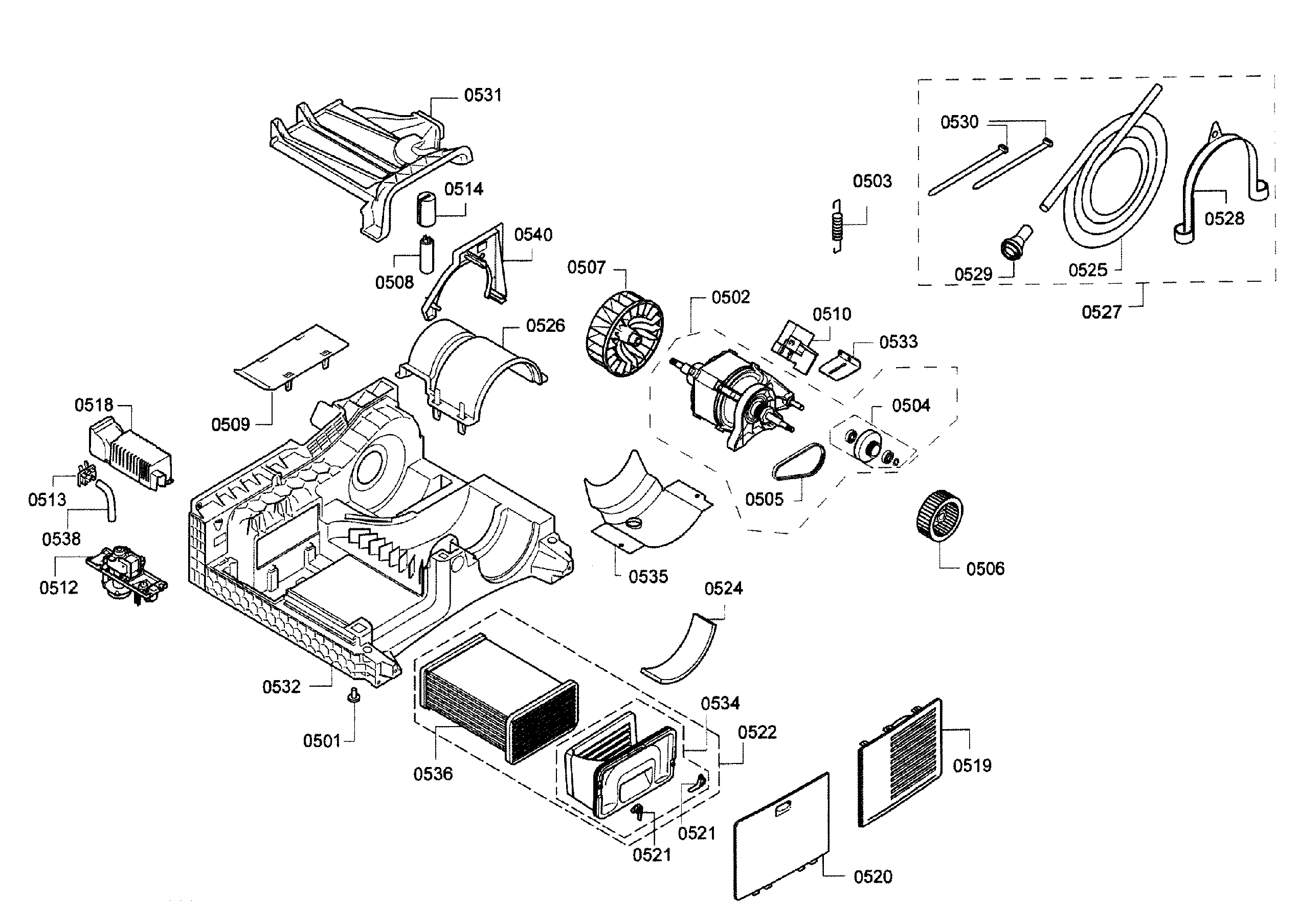

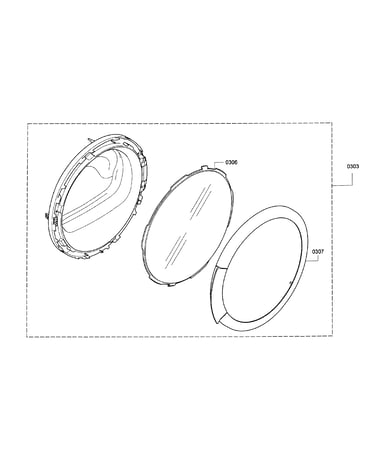

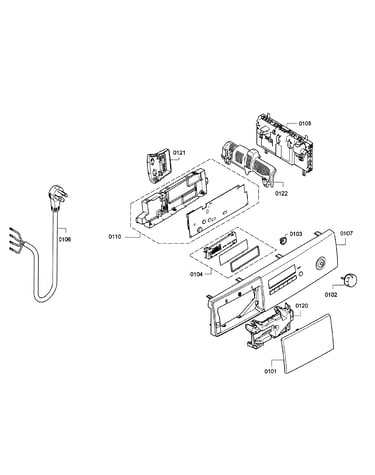

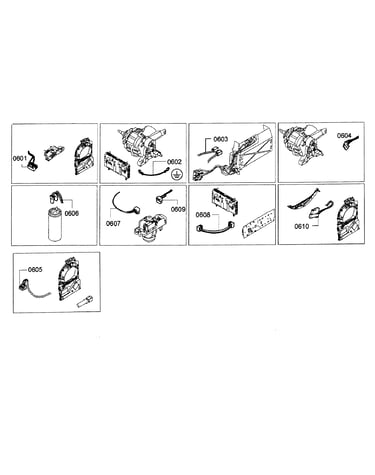

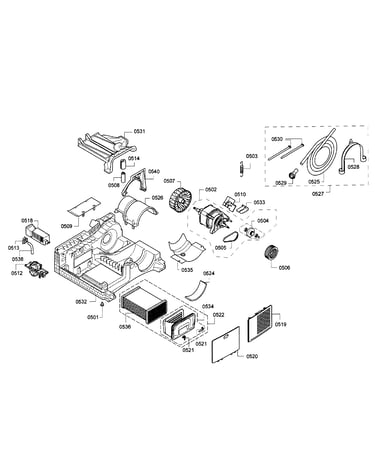

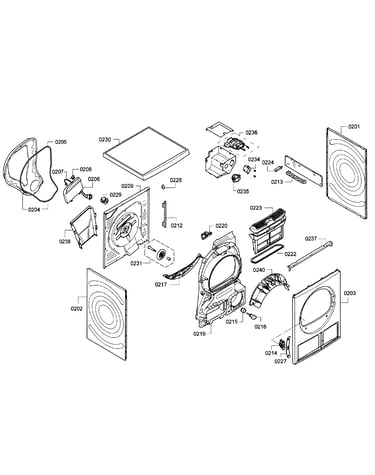

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 95 parts
Dryer door latch cover
Dryer cover
Dryer temperature sensor
Dryer door switch (replaces 623850)
Dryer blower belt
Insert plate
Dryer water pump (replaces 145623)
Symptoms common to all dryers
Repair guides common to all dryers
If your dryer thumps or squeals, replace the drum support roller to restore quiet to your home.
The thermistor senses the air temperature in the dryer. If your dryer overheats or doesn't heat at all, the thermistor could be the problem.
The idler pulley exerts pressure keeps the drive belt tight so it can rotate the drum. A worn idler pulley squeals or squeaks when the dryer is running. Follow these instructions to replace it.
Articles and videos common to all dryers
Get advice on simple DIY fixes for appliances that you can safely do on your own.
Learn how to replace a Maytag dryer heating element
Learn how to decipher symbols so you can buy the right part for your problem.
