KitchenAid YKSEB900ESS0 electric range Parts
Here are the diagrams and repair parts for KitchenAid YKSEB900ESS0 electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM

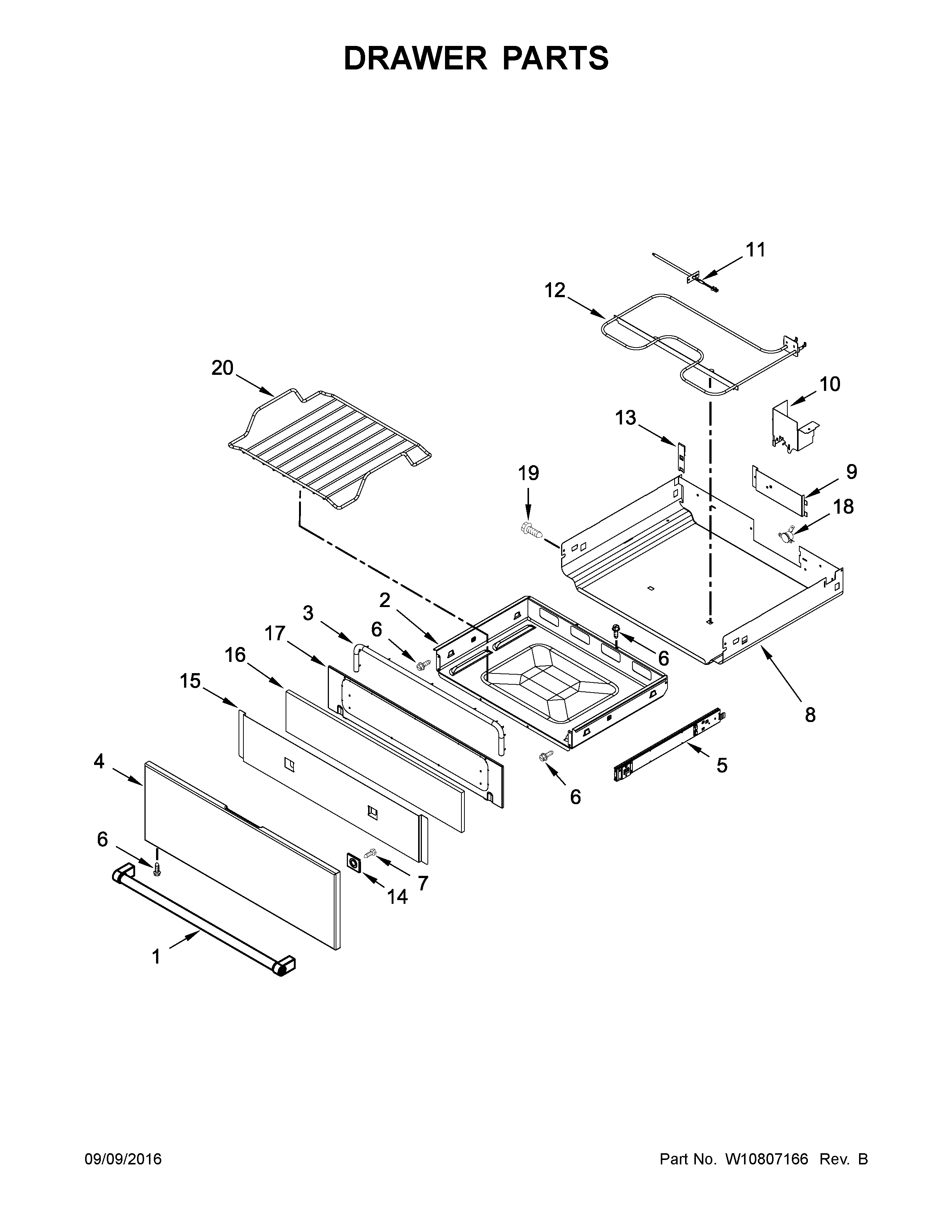

Browse Parts for YKSEB900ESS0 Ranges

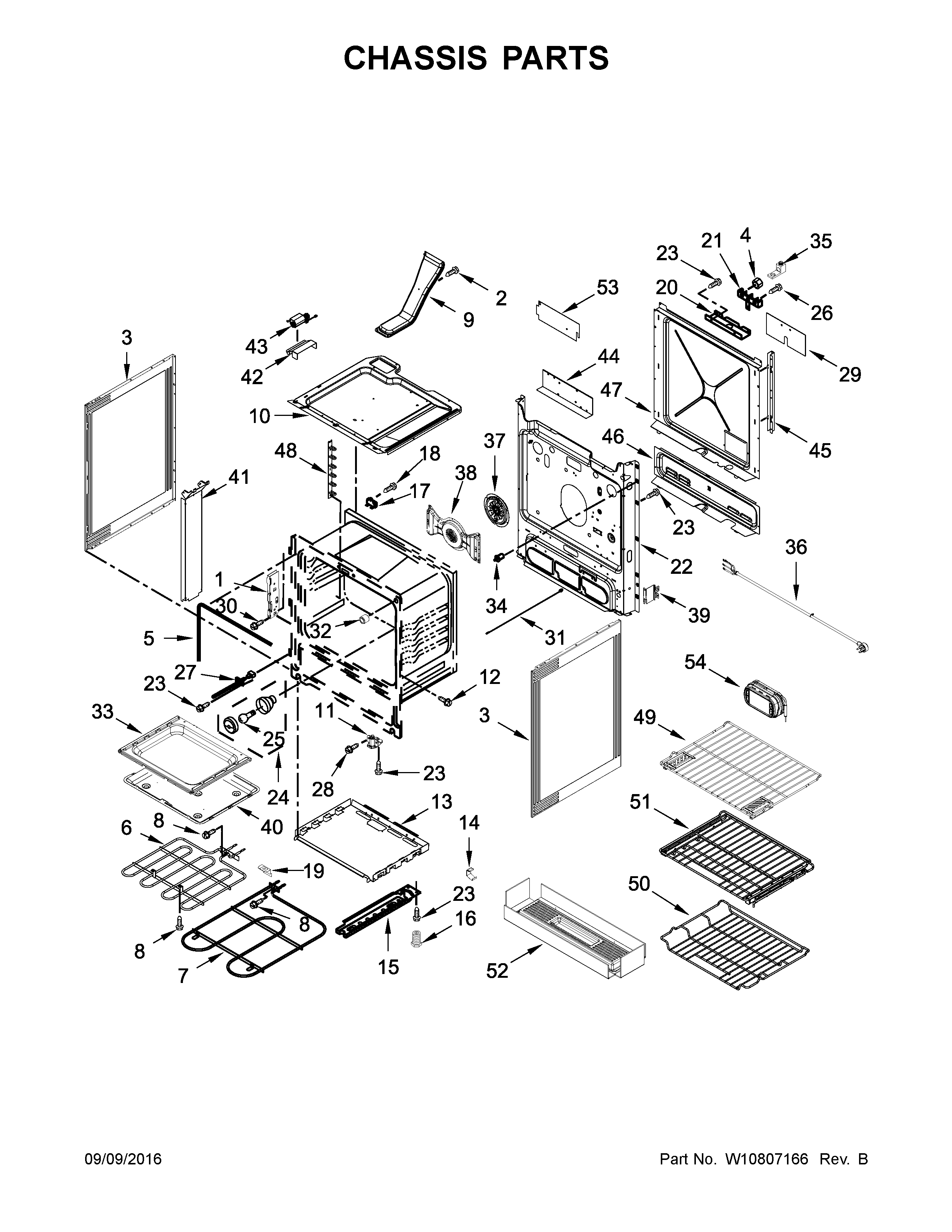

Chassis parts diagram
Bake Element
Part #W10774342Replaced by #W10779716
Manufacturer substitutionThis part replaces W10774342. Substitute parts can look different from the original.In Stock$54.6210% OFF Phone Price : $60.62
Qty
Chassis parts diagram
Asm-cooling,
Part #W10162259Replaced by #W11107275
Manufacturer substitutionThis part replaces W10162259. Substitute parts can look different from the original.In Stock$97.3311% OFF Phone Price : $109.33QtyChassis parts diagram
Range Terminal Block
Part #W10245259Replaced by #WPW10245259

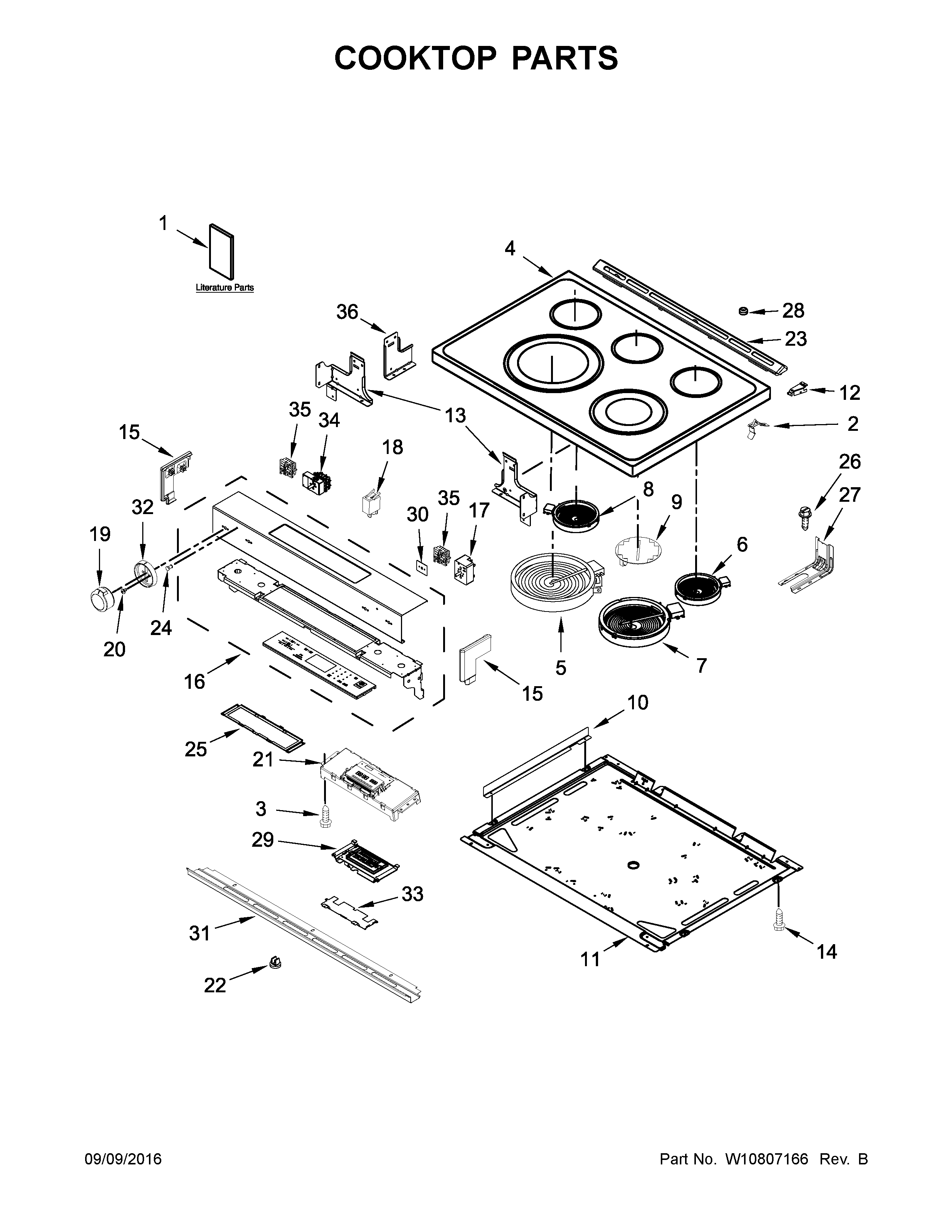

Manufacturer substitutionThis part replaces W10245259. Substitute parts can look different from the original.In Stock$27.9118% OFF Phone Price : $33.91QtyCooktop parts diagram
Light Lens
Part #3196068Replaced by #WP3196068

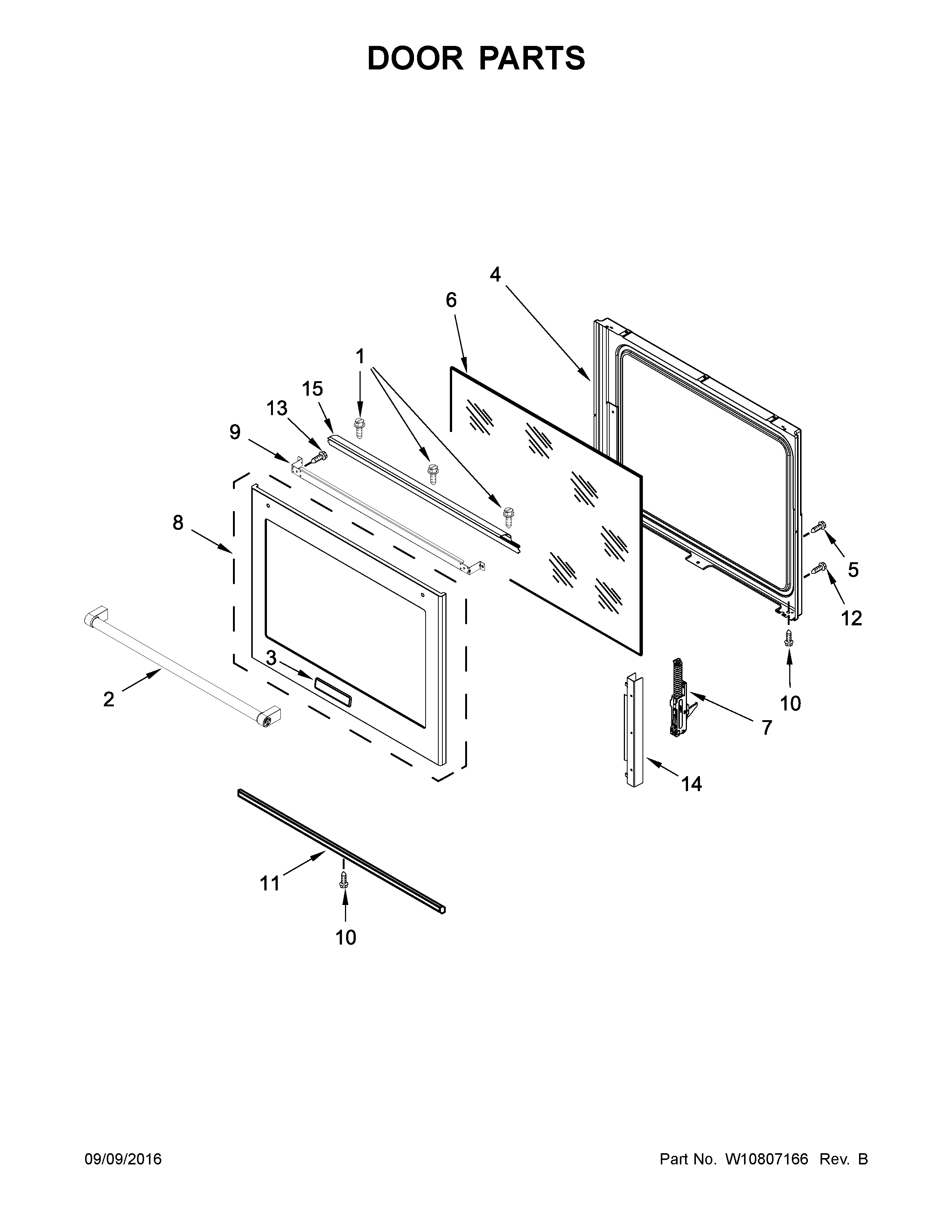

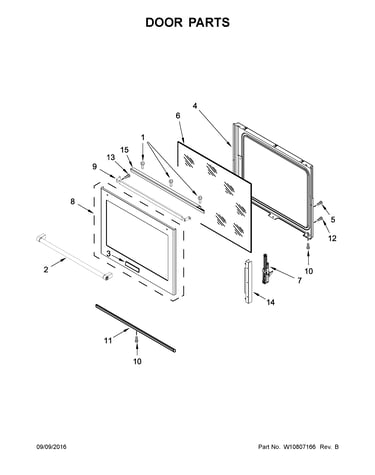

Manufacturer substitutionThis part replaces 3196068. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0814% OFF Phone Price : $7.08QtyDoor parts diagram
Range Oven Door Outer Panel (stainless)
Part #W10634271Replaced by #WPW10634271
Manufacturer substitutionThis part replaces W10634271. Substitute parts can look different from the original.In Stock$304.70$12.00 OFF Phone Price : $316.70QtyOptional parts (not included) diagram
Cooktop Scraper
In Stock$7.41QtyCooktop parts diagram
Range Surface Element, Right Front
Part #W10251108Replaced by #WPW10251108
Manufacturer substitutionThis part replaces W10251108. Substitute parts can look different from the original.In Stock$168.897% OFF Phone Price : $180.89QtyCooktop parts diagram
Keypad
Part #W10575120Replaced by #W11025616
Manufacturer substitutionThis part replaces W10575120. Substitute parts can look different from the original.In Stock$43.8012% OFF Phone Price : $49.80QtyChassis parts diagram
Convection A
Part #W10563084Replaced by #W11414552
Manufacturer substitutionThis part replaces W10563084. Substitute parts can look different from the original.In Stock$111.1127% OFF Was : $152.91QtyDoor parts diagram
Range Screw
Part #W10031790Replaced by #WPW10031790
Manufacturer substitutionThis part replaces W10031790. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91Qty
