Does the coil have to match the condenser?
Yes. For an Icp EDD4X36FA2 cased coil, the indoor coil should be properly matched to the outdoor condenser (and refrigerant type) so the system can deliver correct capacity, efficiency, and reliability. A mismatch commonly leads to higher energy use, poor comfort, and compressor stress.
What “match” means for this coil
A correct match is more than physical size; it is also refrigerant and metering compatibility.
- Refrigerant must match: EDD4-series coils use a factory-installed hard shut-off TXV designed for R-410A systems.
- Capacity should be aligned: The coil tonnage should match the outdoor unit’s rated capacity (or the approved match range).
- Airflow must be set correctly: Target about 400 CFM per ton (typical acceptable range is 350 to 450 CFM per ton).
- Application rules matter: Coil placement changes depending on whether you have a heat pump, electric heat, or a gas/oil furnace.
Quick compatibility checklist
| What to check | What you want | Why it matters |
|---|---|---|
| Refrigerant | Outdoor unit designed for R-410A | The TXV in this coil is designed for R-410A operation |
| Capacity (tons) | Coil and condenser in the same ton class | Prevents underperformance and high head pressure issues |
| Airflow | 350 to 450 CFM per ton (nominal 400) | Protects efficiency and helps prevent coil icing |
| Coil position | Correct upstream/downstream placement | Prevents pressure problems and condensate issues |
Installation details that affect matching
Even with the right condenser, incorrect installation can behave like a “mismatch.”
- Heat pump with electric heat: Install the coil upstream of the electric heater to prevent electric heat from driving up refrigeration pressure in heating.
- Gas or oil furnace: Install the coil downstream of the furnace heat exchanger to reduce condensate formation in the heat exchanger during cooling.
- Downflow gas/oil on a combustible floor: A sub-base accessory is required between the coil and the floor.
For diagrams and placement rules, use the installation guide.
Why it matters
A properly matched coil and condenser helps your system hit its rated SEER performance, keeps refrigerant pressures in a safe range, and reduces the chance of nuisance problems like coil freeze-ups, poor dehumidification, and premature compressor failure.
Last updated: February 2026
What are the most essential AC spare parts?

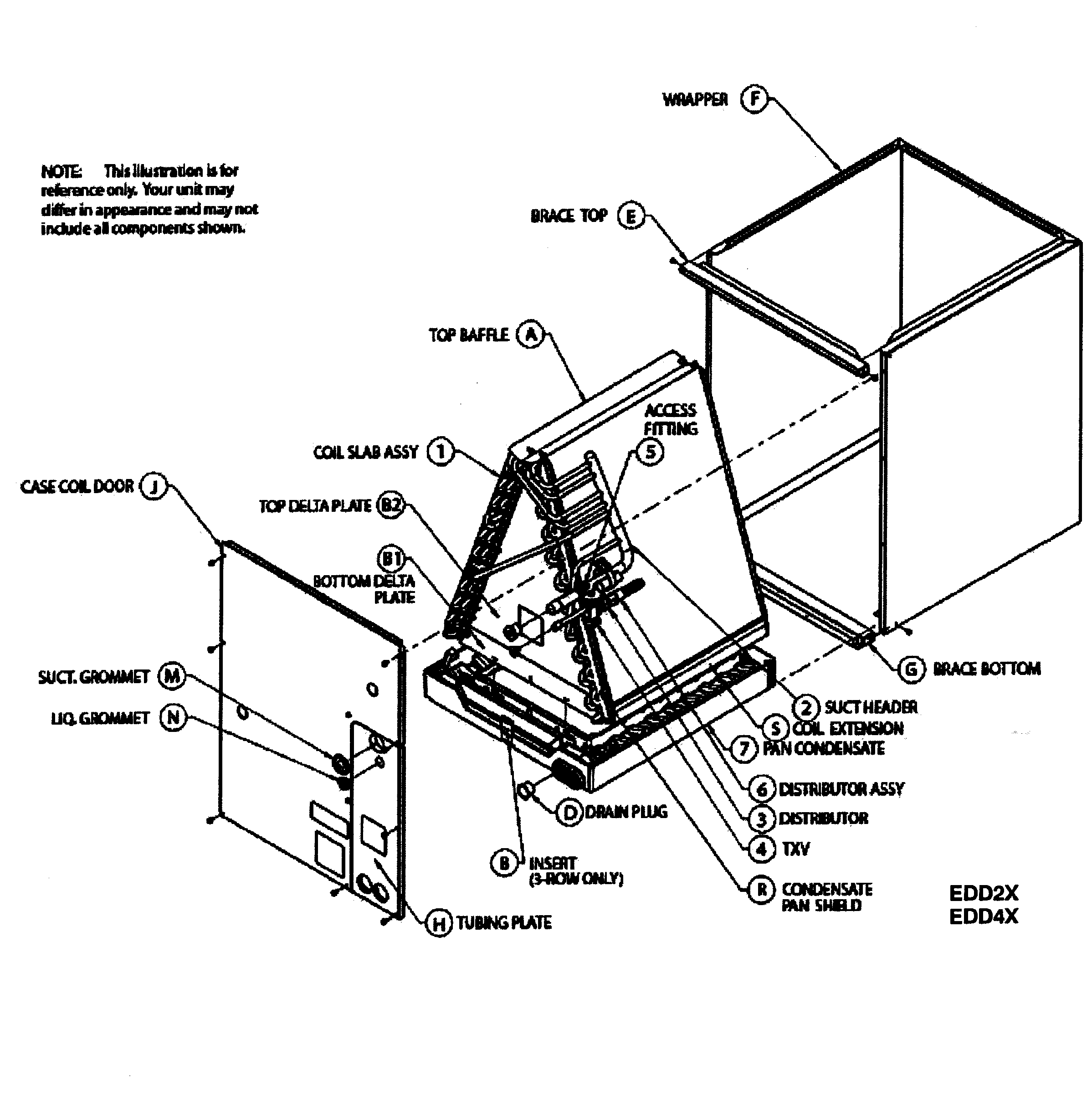

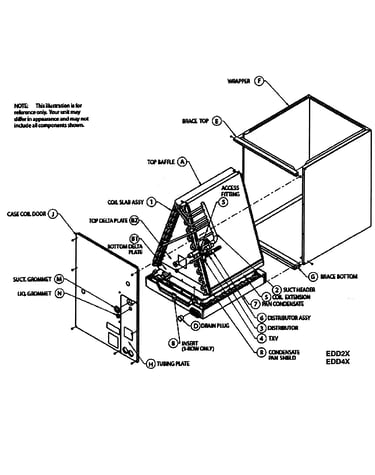

For the Icp EDD4X36FA2 upflow and downflow TXV cased coil, the most essential spares are the components that most often stop cooling or cause freeze-ups: the indoor coil metering parts (TXV-related), airflow items (filter and blower setup), and common outdoor electrical starters (capacitor and contactor). Use the installation guide for model-specific requirements.
Essential parts and components to prioritize
These are the items we see tied to the most common no-cool and poor-cool complaints:
- Air filter: the first “spare” to keep on hand; restricted airflow leads to icing and weak cooling.
- TXV (thermostatic expansion valve): meters refrigerant into the coil; this coil uses a factory-installed hard shut-off TXV.
- Strainer screen (in the liquid tube stub/TXV tube): catches debris; it is factory installed and stays in place during installation.
- Refrigerant line connection materials: brazing alloy and nitrogen purge practices help prevent contamination and leaks.
- Outdoor unit capacitor and contactor: common wear items that prevent the compressor or condenser fan from starting.
- Hard start kit (when required): used on some matched systems with single-phase reciprocating compressors.
What matters specifically for EDD4X36FA2
The installation instructions call out refrigerant compatibility and airflow targets that directly affect performance.
| Item to match | Target | Why it matters |
|---|---|---|
| Refrigerant and TXV application | EDD4 models are designed for R-410A systems | Mismatching refrigerant and metering device causes poor cooling and damage. |
| Airflow across the coil | 400 CFM per ton (range 350 to 450 CFM per ton) | Low airflow can freeze the coil; high airflow can reduce dehumidification. |
Quick checks before buying parts
- Confirm the filter is clean and all registers are open.
- Look for ice on the coil or suction line (often airflow-related).
- Verify the blower is on the correct cooling speed before airflow checks.
Why it matters
On a TXV cased coil, correct refrigerant compatibility and correct airflow prevent repeat failures and help you avoid replacing the wrong component.
Last updated: February 2026
What is the most likely result of insufficient air flow across the evaporator coil?
Insufficient airflow across the evaporator coil in your Icp EDD4X36FA2 cased coil most often causes the coil to get too cold and freeze over, which reduces cooling and can lead to water leaks when the ice melts. Restoring proper CFM across the coil prevents repeat freeze-ups.
What you will usually notice
- Weak airflow from supply registers
- Longer run times with poor cooling
- Ice or frost on the refrigerant lines or coil cabinet
- Water dripping or overflow at the condensate drain after thawing
- The outdoor unit may run while indoor airflow feels low
Why low airflow freezes the coil
When airflow is restricted, the coil cannot absorb enough heat from the air stream. Coil temperature drops below freezing, moisture turns to ice, and the ice further blocks airflow. This snowball effect is why a small airflow problem can quickly become a full freeze-up.
Airflow targets and a quick check
The installation guidance for this coil family uses a nominal airflow target of about 400 CFM per ton (typical acceptable range 350 to 450 CFM per ton). A common way to confirm airflow is measuring static pressure drop across a clean, dry coil with a manometer while running the blower on cooling speed (with the outdoor unit off during the airflow check). See the installation guide for the full procedure and the pressure-drop-to-CFM chart.
| System size (tons) | Nominal airflow (CFM) | Typical acceptable range (CFM) |
|---|---|---|
| 2.0 | 800 | 700 to 900 |
| 2.5 | 1000 | 875 to 1125 |
| 3.0 | 1200 | 1050 to 1350 |
Fix the most common airflow restrictions
- Replace or clean the return air filter; confirm it is the correct size and not collapsed
- Open and unblock supply and return registers
- Check for a dirty blower wheel, failing blower motor, or incorrect blower speed tap
- Inspect ductwork for crushed flex duct, closed dampers, or heavy debris buildup
- Make sure the coil is properly matched and installed; adapters and spacing matter for even airflow distribution
Why it matters
A frozen coil can cause comfort problems, nuisance shutdowns, and condensate overflow. Correct airflow also protects the system by keeping coil temperature in the proper operating range and supporting correct refrigerant performance.
Last updated: February 2026
What is the typical temperature drop across the evaporator coil?
For an Icp EDD4X36FA2 upflow and downflow TXV cased coil, a typical cooling temperature drop (Delta T) across the evaporator coil is about 16 to 22°F when airflow and refrigerant charge are correct. Many properly set up systems land near 18 to 20°F.
What “temperature drop” means (and where to measure)
We’re talking about the difference between return-air temperature entering the coil and supply-air temperature leaving the coil.
- Measure return air at the return grille or just before the coil
- Measure supply air a few feet downstream of the coil (not right at the coil face)
- Let the system run 10 to 15 minutes before taking readings
- Use a reliable thermometer; avoid infrared readings on shiny surfaces
What should be checked first on the EDD4X36FA2
On this coil, airflow is the first thing to confirm because it directly drives Delta T. The installation guidance calls out a nominal 400 CFM per ton (typical range 350 to 450 CFM per ton) and provides a method to verify airflow using static pressure drop across the coil. See the installation guide.
- Confirm the air filter is clean and installed
- Make sure all supply registers are open
- Verify blower is set to cooling speed
- Measure static pressure drop across the coil (dry coil for airflow check)
- Adjust blower speed to bring CFM into range
Quick interpretation guide
| What you see | Common meaning | What to do next |
|---|---|---|
| 16 to 22°F | Normal range | Verify comfort and humidity control |
| Under 16°F | Often high airflow, low charge, or warm return air | Check airflow first, then refrigerant diagnostics |
| Over 22°F | Often low airflow (dirty filter/coil, duct restriction) | Correct airflow and recheck |
Why it matters
Delta T is a fast way to spot whether the evaporator coil is being fed the right airflow (CFM) and whether the system is operating in a normal cooling window. On a TXV-equipped coil like the EDD4X36FA2, airflow problems are a frequent cause of abnormal readings.
Last updated: February 2026
