Hotpoint RB747G*D1 electric range Parts
Here are the diagrams and repair parts for Hotpoint RB747G*D1 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for RB747G*D1 Ranges

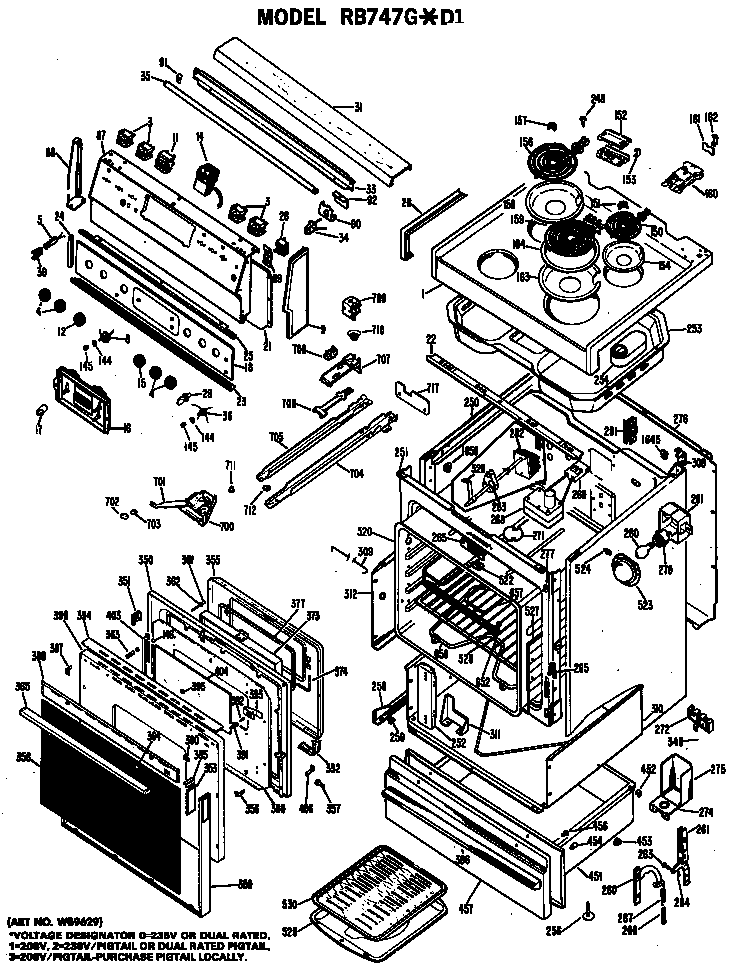

Oven assembly diagram
Screw
Part #WB1X558Replaced by #WB1X558D
Manufacturer substitutionThis part replaces WB1X558. Substitute parts can look different from the original.In Stock$24.5220% OFF Phone Price : $30.52
Qty
Oven assembly diagram
Surface Knob
Part #WB3X5482Replaced by #WB3X5479
Manufacturer substitutionThis part replaces WB3X5482. Substitute parts can look different from the original.In Stock$84.157% OFF Phone Price : $90.15QtyOven assembly diagram
Extension Unit
Part #WB44X186
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Brack.lat
Part #WB2X6911
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Deflector
Part #WB7X6775
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Toggle
Part #WB2X3052
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Clip Screw & Cap
Part #WZ4X209
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Knockout
Part #WB2X6191
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Cover
Part #WB2X6229
The manufacturer no longer makes this part, and there's no substitute part
Oven assembly diagram
Temperature Limit Switch
Part #WB24X5138
The manufacturer no longer makes this part, and there's no substitute part
