Magic Chef YE224LVC washer/dryer Parts
Here are the diagrams and repair parts for Magic Chef YE224LVC washer/dryer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

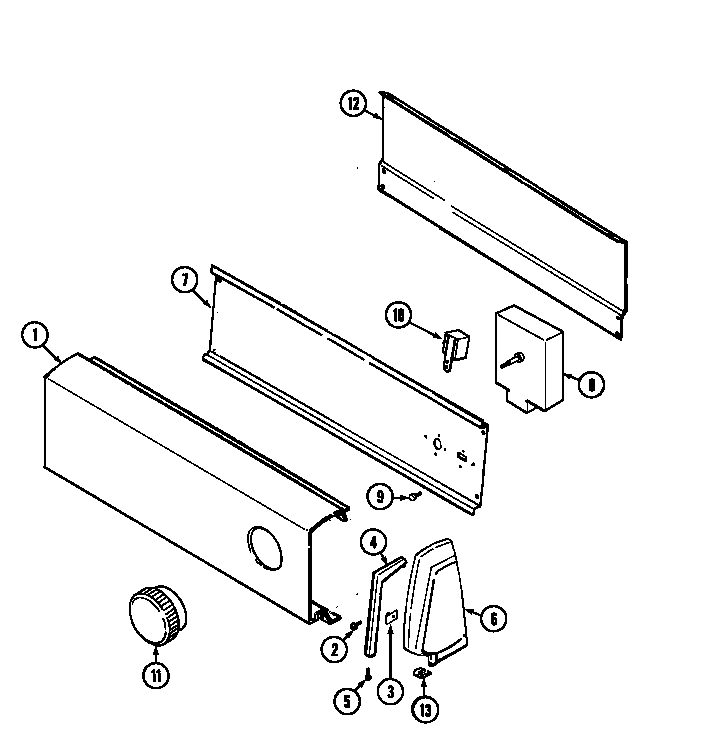

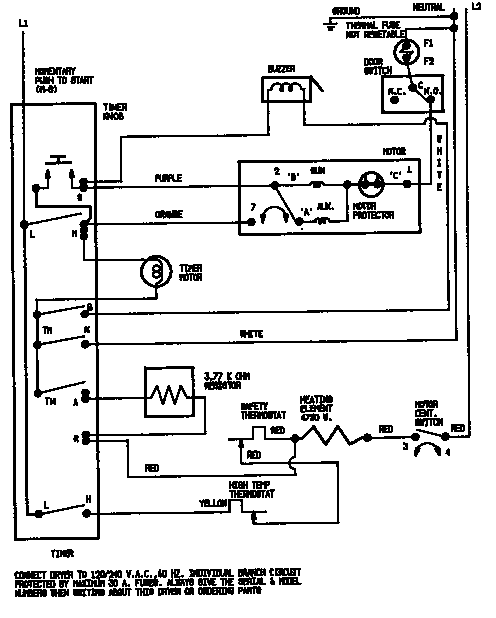

SELECT DIAGRAM
Browse Parts for YE224LVC Washer/Dryer

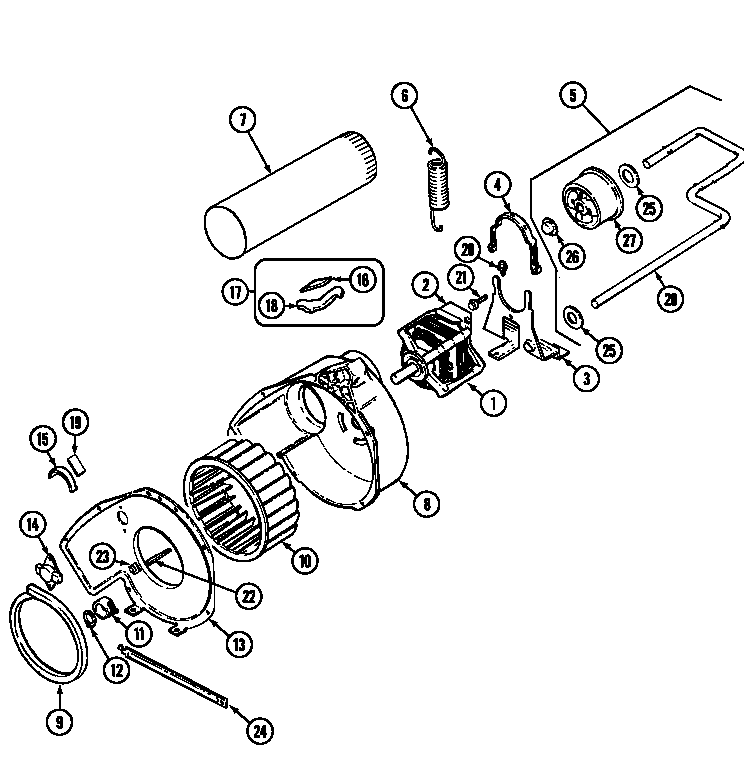

Motor & drive diagram
Screw
Part #25-7732Replaced by #WP681414
Manufacturer substitutionThis part replaces 25-7732. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91
Qty

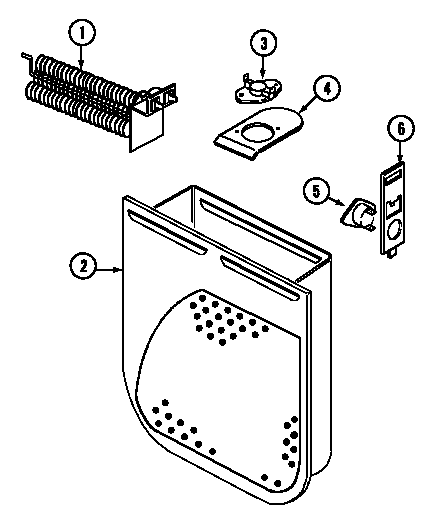

Heater diagram
Element, Hea
Part #53-1641Replaced by #LA-1044

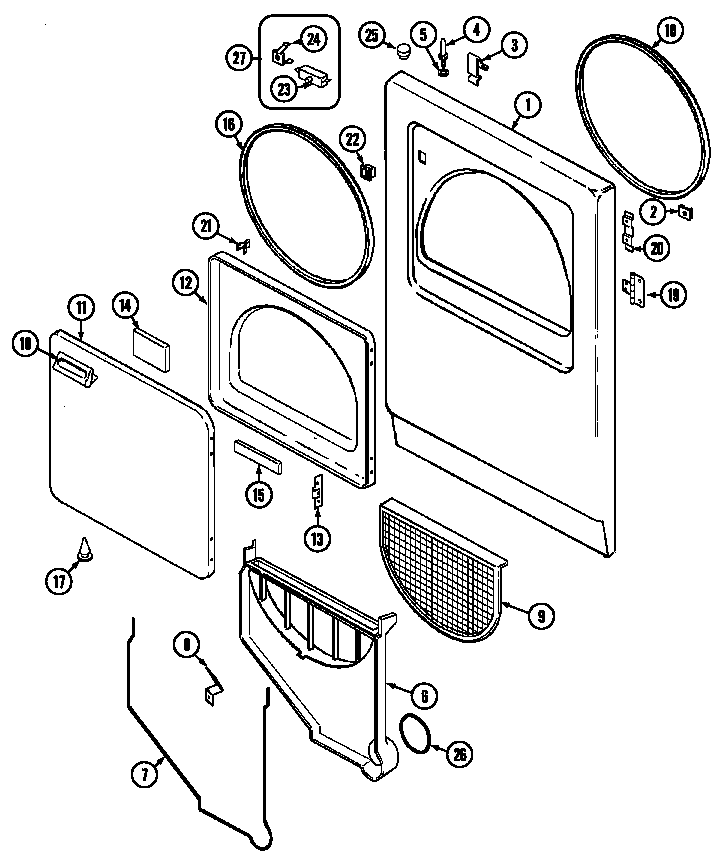

Manufacturer substitutionThis part replaces 53-1641. Substitute parts can look different from the original.In Stock$108.36QtyDoor diagram
Screw
Part #25-7820Replaced by #WP489478
Manufacturer substitutionThis part replaces 25-7820. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0617% OFF Phone Price : $6.06QtyDoor diagram
Amana Dryer Door Catch
Part #LA-1003This item is not returnableIn Stock$24.5420% OFF Phone Price : $30.54QtyDoor diagram
Door Catch
Part #53-0187Replaced by #LA-1003
Manufacturer substitutionThis part replaces 53-0187. Substitute parts can look different from the original.This item is not returnableIn Stock$24.5420% OFF Phone Price : $30.54QtyDoor diagram
Door Strike
Part #53-2364Replaced by #LA-1003
Manufacturer substitutionThis part replaces 53-2364. Substitute parts can look different from the original.This item is not returnableIn Stock$24.5420% OFF Phone Price : $30.54QtyTumbler diagram
Nut (#10-32)
Part #25-0027Replaced by #WP112432
Manufacturer substitutionThis part replaces 25-0027. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyMotor & drive diagram
Idler Assembly
Part #53-2287Replaced by #WP53-2287
Manufacturer substitutionThis part replaces 53-2287. Substitute parts can look different from the original.In Stock$100.4711% OFF Phone Price : $112.47QtyMotor & drive diagram
Idler Arm
Part #53-2250Replaced by #WP53-2287
Manufacturer substitutionThis part replaces 53-2250. Substitute parts can look different from the original.In Stock$100.4711% OFF Phone Price : $112.47QtyMotor & drive diagram
Rh Gld Cushi
Part #53-0724Replaced by #WP31001356
Manufacturer substitutionThis part replaces 53-0724. Substitute parts can look different from the original.In Stock$45.8712% OFF Phone Price : $51.87Qty
