Whirlpool
Side-By-Side Refrigerator

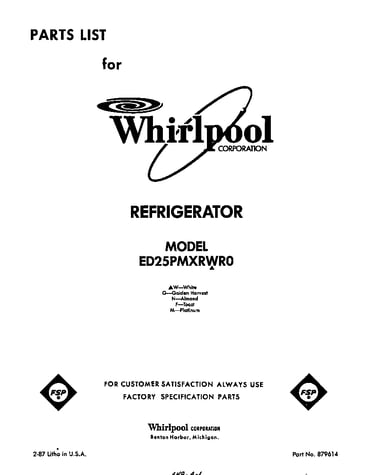

Model #ED25PMXRWR0 Whirlpool side-by-side refrigerator

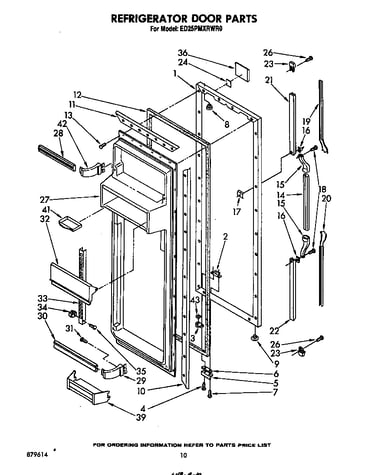

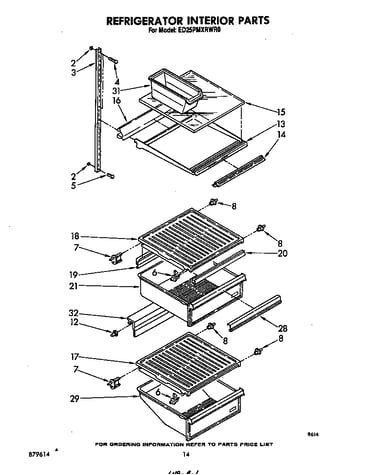

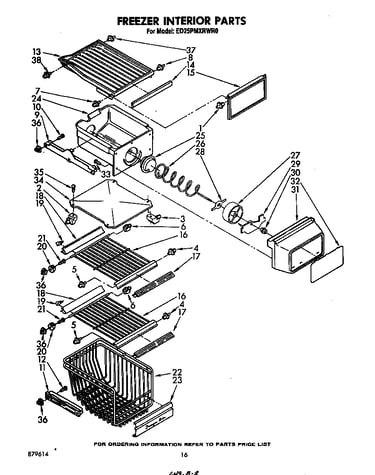

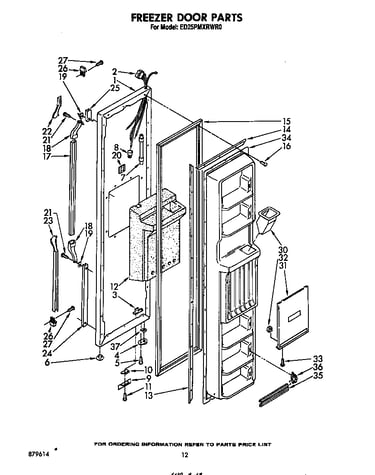

Here are the diagrams and repair parts for Whirlpool ED25PMXRWR0 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 482 parts

    Appliance Light Bulb, 40-watt

    See All Related Diagrams

    Light bulb

    Part #527949
    Replaced by #40A15
    ?
    Manufacturer substitution
    This part replaces 527949. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.50
    Refrigerator Door Closer Cam#13

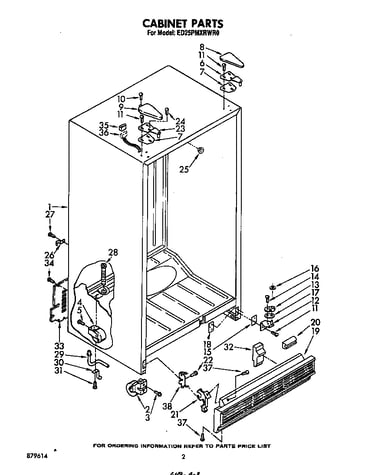

    Cabinet Diagram

    Closure (white)

    Part #986759
    Replaced by #WPW10329686
    ?
    Manufacturer substitution
    This part replaces 986759. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.69
    Refrigeration Appliance Run Capacitor#69

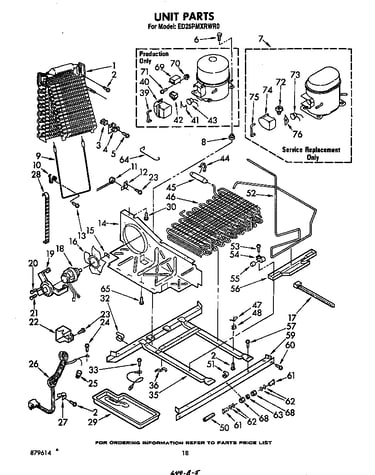

    Unit Diagram

    Run capacitor

    Part #1114291
    Replaced by #WPW10662129
    ?
    Manufacturer substitution
    This part replaces 1114291. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $50.09
    Refrigerator Door Switch#39

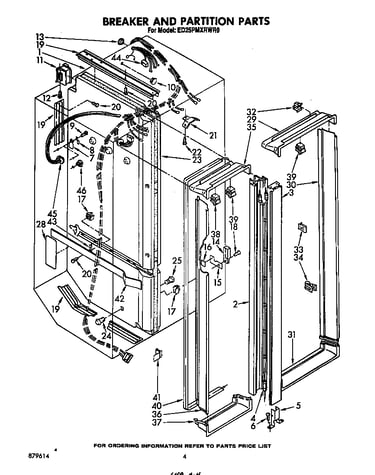

    Breaker and partition Diagram

    Light switch

    Part #549702
    Replaced by #W11384469
    ?
    Manufacturer substitution
    This part replaces 549702. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $20.29
    Appliance Touch-Up Paint, 0.6-oz (White)

    #NI

    All parts Diagram

    Appliance touch-up paint, 0.6-oz (white)

    Part #72017
    BEST SELLER
    This item is not returnable
    Back Order
    $8.29
    Refrigerator Water Tubing#5

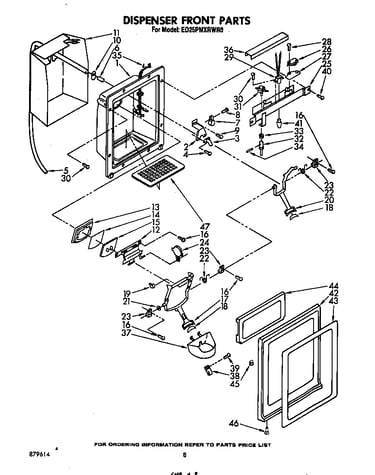

    Dispenser front Diagram

    Refrigerator tube

    Part #987053
    Replaced by #W10823511
    ?
    Manufacturer substitution
    This part replaces 987053. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.19
    Refrigerator Water Tubing#7

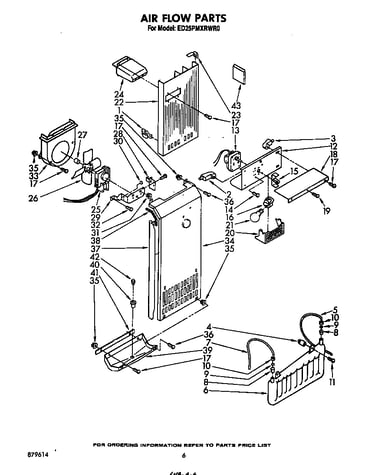

    Airflow Diagram

    Refrigerator tubing

    Part #939010
    Replaced by #W10823511
    ?
    Manufacturer substitution
    This part replaces 939010. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.19
    Refrigerator Defrost Timer#15

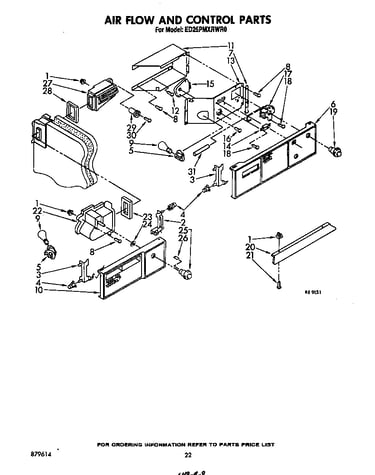

    Airflow and control Diagram

    Timer

    Part #943435
    Replaced by #W10822278
    ?
    Manufacturer substitution
    This part replaces 943435. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $32.59
    Refrigerator Water Tubing#59

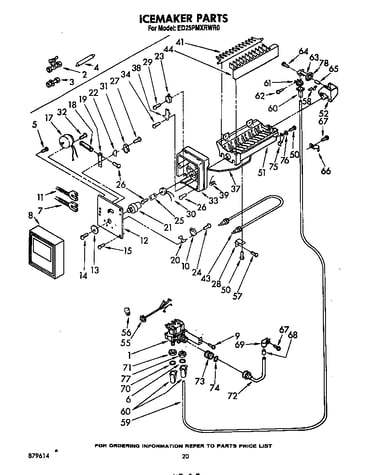

    Ice maker Diagram

    Tubing

    Part #937669
    Replaced by #W10823511
    ?
    Manufacturer substitution
    This part replaces 937669. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.19
    Refrigerator Water Tubing#5

    Airflow Diagram

    Refrigerator tubing

    Part #944681
    Replaced by #W10823511
    ?
    Manufacturer substitution
    This part replaces 944681. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.19

    Symptoms common to all refrigerators

    Choose a symptom to see related refrigerator repairs.

    Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
    Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
    Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
    Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
    Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
    Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
    Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
    Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
