White-Westinghouse SM115LXD2 laundry center - lw31789010 Parts
Here are the diagrams and repair parts for White-Westinghouse SM115LXD2 laundry center - lw31789010, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

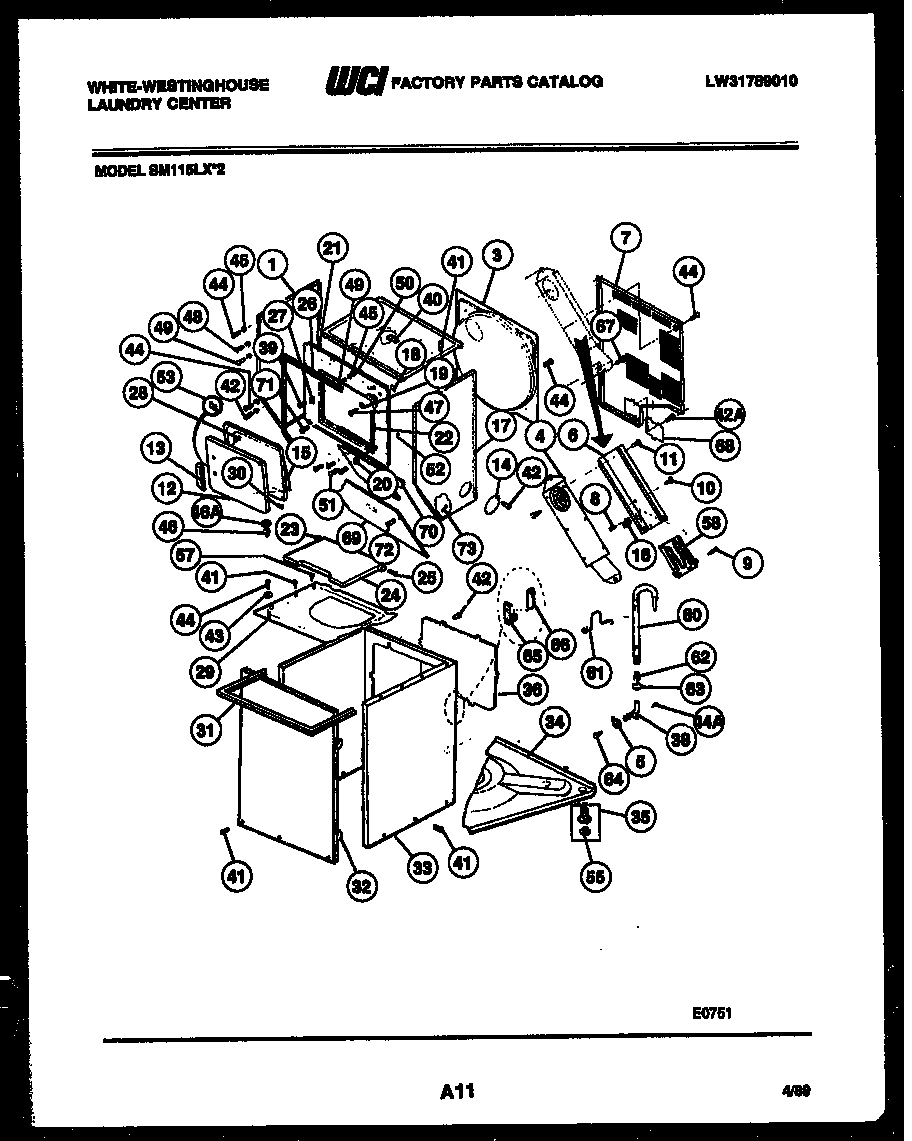

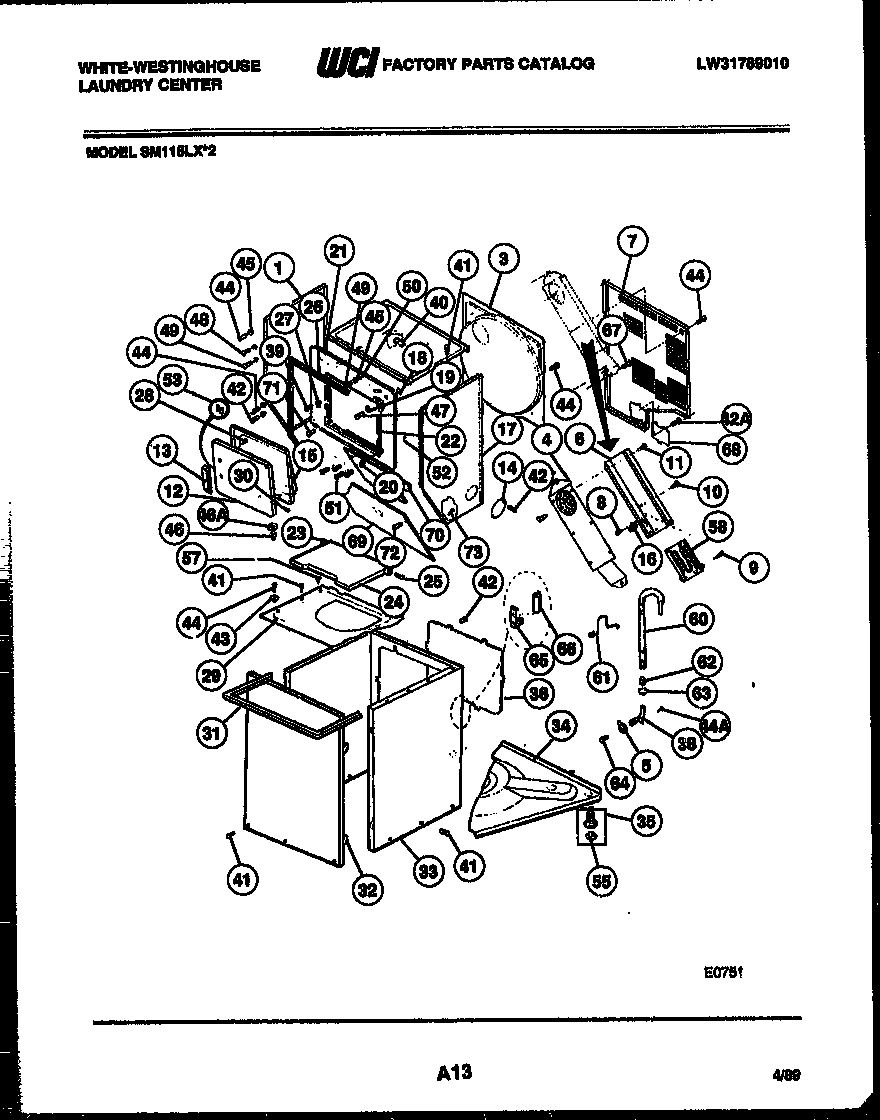

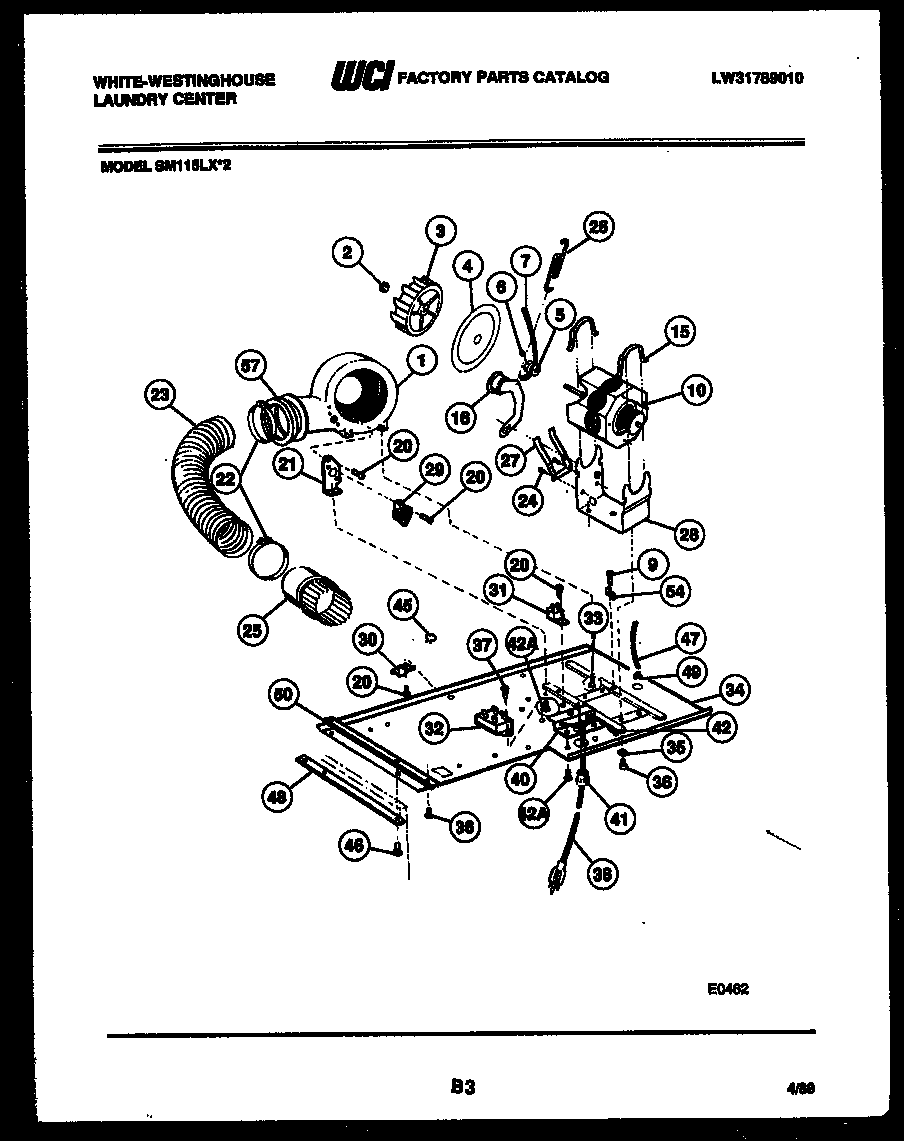

Browse Parts for SM115LXD2 Laundry Center - LW31789010

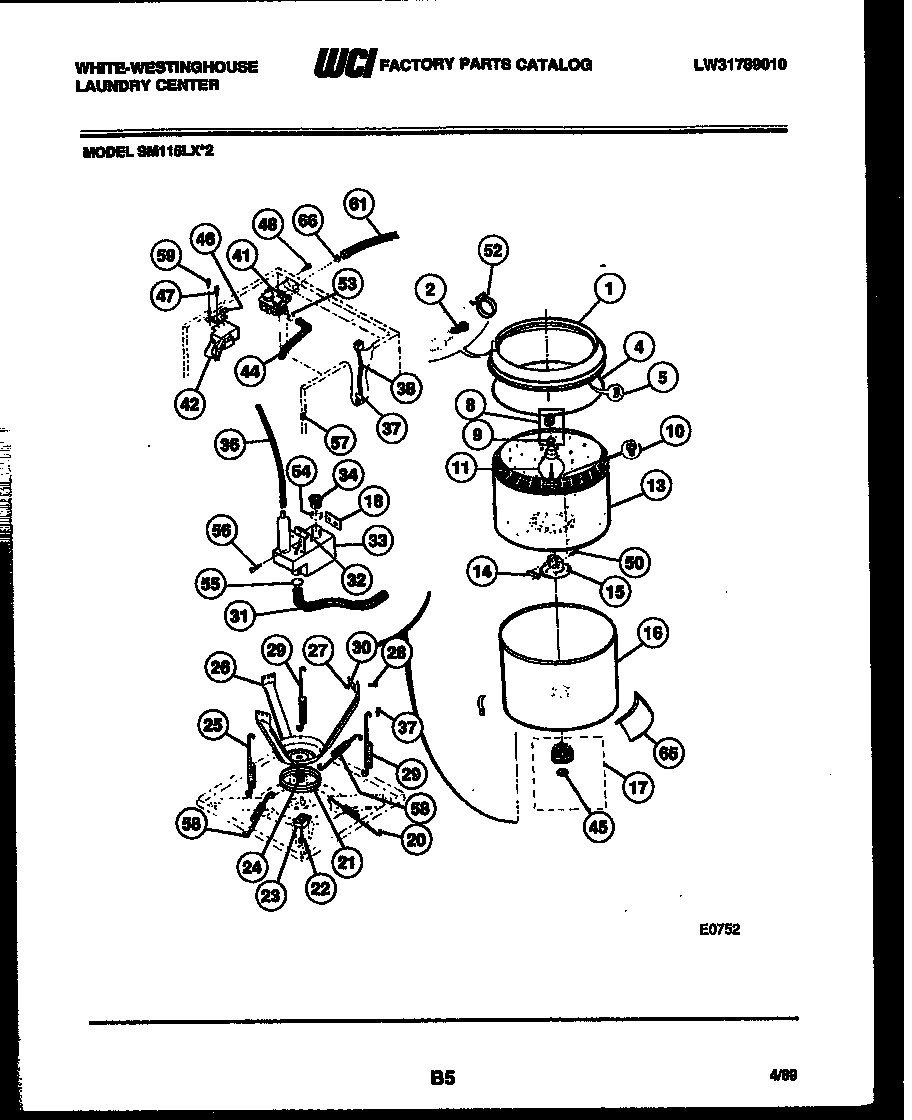

Tubs, water valve and lid switch diagram
Water Valve
Part #F141174000Replaced by #134190200
Manufacturer substitutionThis part replaces F141174000. Substitute parts can look different from the original.In Stock$130.598% OFF Phone Price : $142.59
Qty
Tubs, water valve and lid switch diagram
Screw-lockpl
Part #F142056000Replaced by #137539500
Manufacturer substitutionThis part replaces F142056000. Substitute parts can look different from the original.In Stock$19.779% OFF Phone Price : $21.77QtyTubs, water valve and lid switch diagram
Lock Plate
Part #F140603000Replaced by #137107000
Manufacturer substitutionThis part replaces F140603000. Substitute parts can look different from the original.In Stock$26.5318% OFF Phone Price : $32.53QtyTubs, water valve and lid switch diagram
Washer
Part #F132835000Replaced by #5308002401

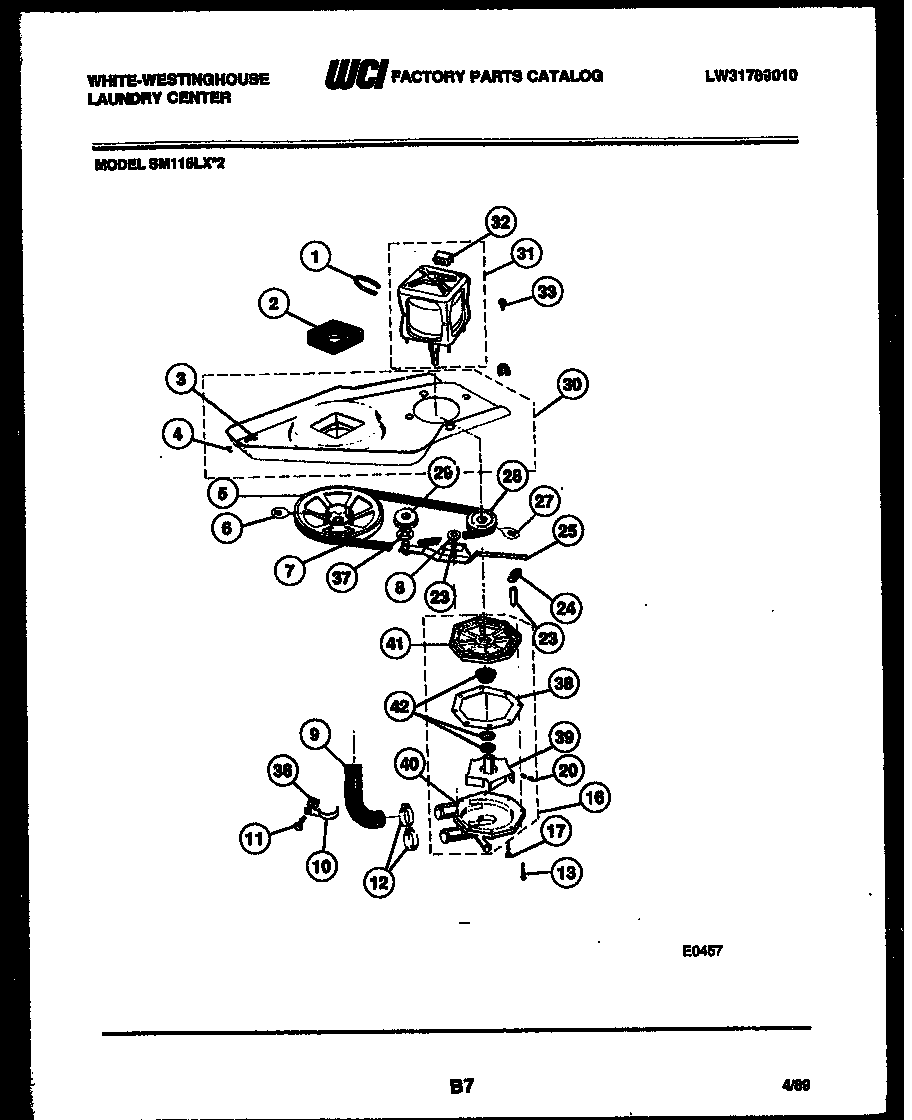

Manufacturer substitutionThis part replaces F132835000. Substitute parts can look different from the original.In Stock$9.1154% OFF Was : $20.02QtyWasher drive system and pump diagram
Screw
Part #F073653000
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #F137858000Replaced by #131205100
Manufacturer substitutionThis part replaces F137858000. Substitute parts can look different from the original.In Stock$17.1610% OFF Phone Price : $19.16QtyScrew
Part #F136468000Replaced by #131205100
Manufacturer substitutionThis part replaces F136468000. Substitute parts can look different from the original.In Stock$17.1610% OFF Phone Price : $19.16QtyScrew
Part #F137749000Replaced by #218359202

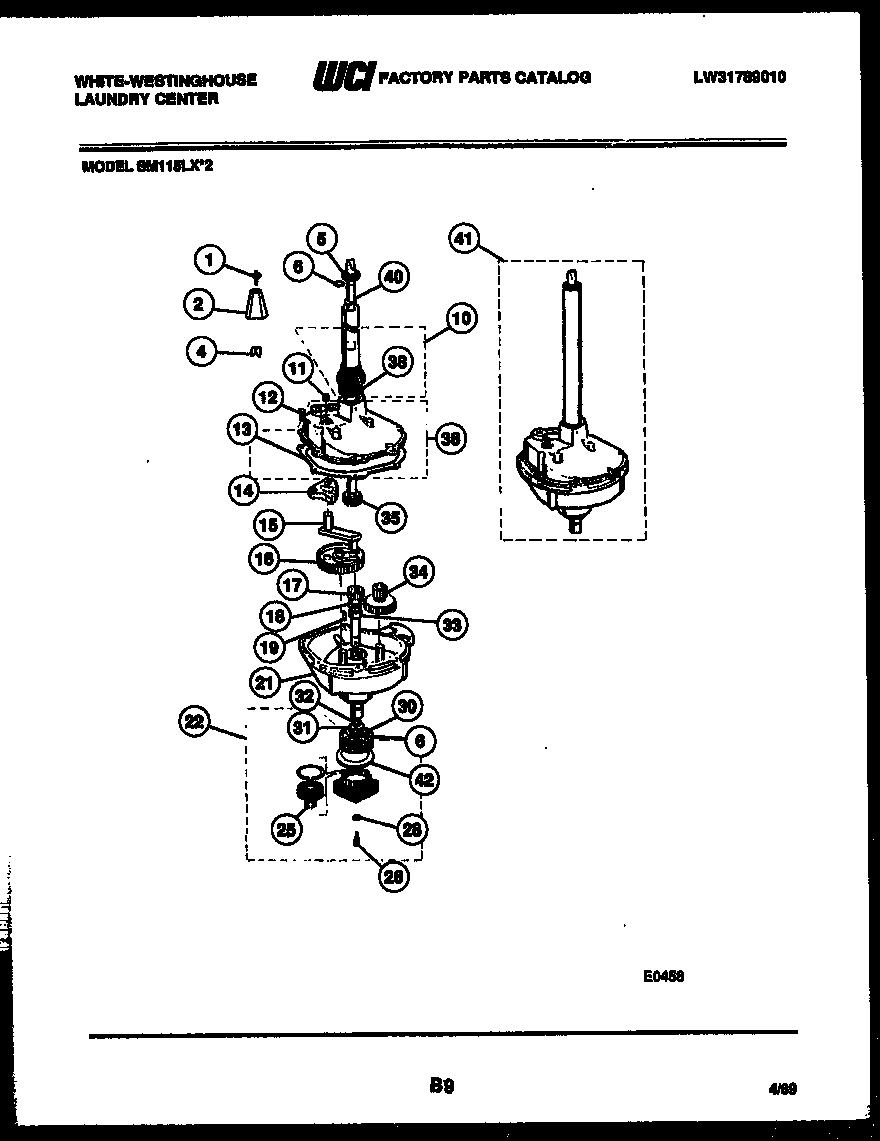

Manufacturer substitutionThis part replaces F137749000. Substitute parts can look different from the original.In Stock$39.67QtyTransmission parts diagram
Seal-upper L
Part #F130866000Replaced by #5303161307

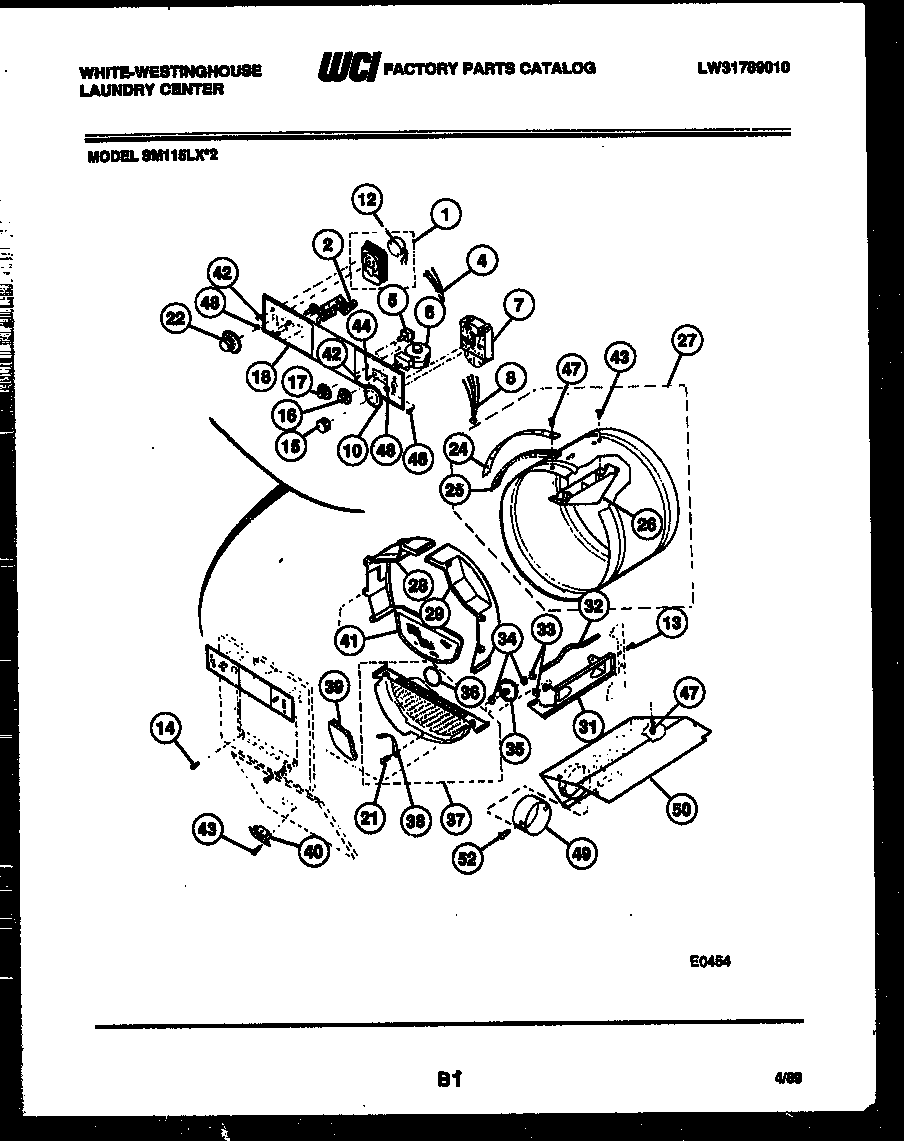

Manufacturer substitutionThis part replaces F130866000. Substitute parts can look different from the original.In Stock$21.1422% OFF Phone Price : $27.14QtyConsole, control and drum diagram
Shield
In Stock$57.48Qty
