Model # 11319600 Official Craftsman 1/3-hp capacitor start electric motor

Here are the diagrams and repair parts for Official Craftsman 11319600 1/3-hp capacitor start electric motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

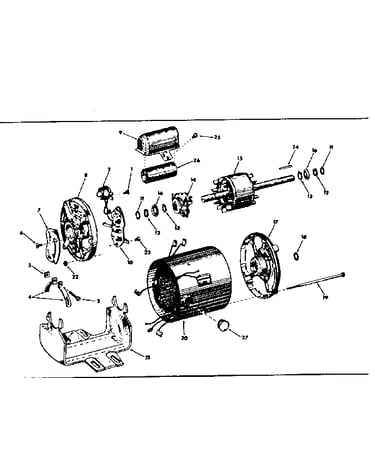

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |

Retaining Ring 30783
#13

Unit diagram

Retaining ring

Part #30783

The manufacturer no longer makes this part, and there's no substitute part

Cap Cover 37222
#9

Unit diagram

Cap cover

Part #37222

The manufacturer no longer makes this part, and there's no substitute part

Screw S-1409
#1

Unit diagram

Screw

Part #S-1409

The manufacturer no longer makes this part, and there's no substitute part

Spindle Supp 37230
#19

Unit diagram

Spindle supp

Part #37230

The manufacturer no longer makes this part, and there's no substitute part

Screw S-1396
#3

Unit diagram

Screw

Part #S-1396

The manufacturer no longer makes this part, and there's no substitute part

Parts List 37233

#NI

All parts diagram

Parts list

Part #37233

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 37199
#10

Unit diagram

Switch assembly

Part #37199

The manufacturer no longer makes this part, and there's no substitute part

Conduit Plug 37189
#27

Unit diagram

Conduit plug

Part #37189

The manufacturer no longer makes this part, and there's no substitute part

Term Cover 37197
#7

Unit diagram

Term cover

Part #37197

The manufacturer no longer makes this part, and there's no substitute part

Washer-plstc 30766
#11

Unit diagram

Washer-plstc

Part #30766

The manufacturer no longer makes this part, and there's no substitute part
