Model # WSZ57L18DM00 Official Whirlpool upright freezer
Here are the diagrams and repair parts for Official Whirlpool WSZ57L18DM00 upright freezer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

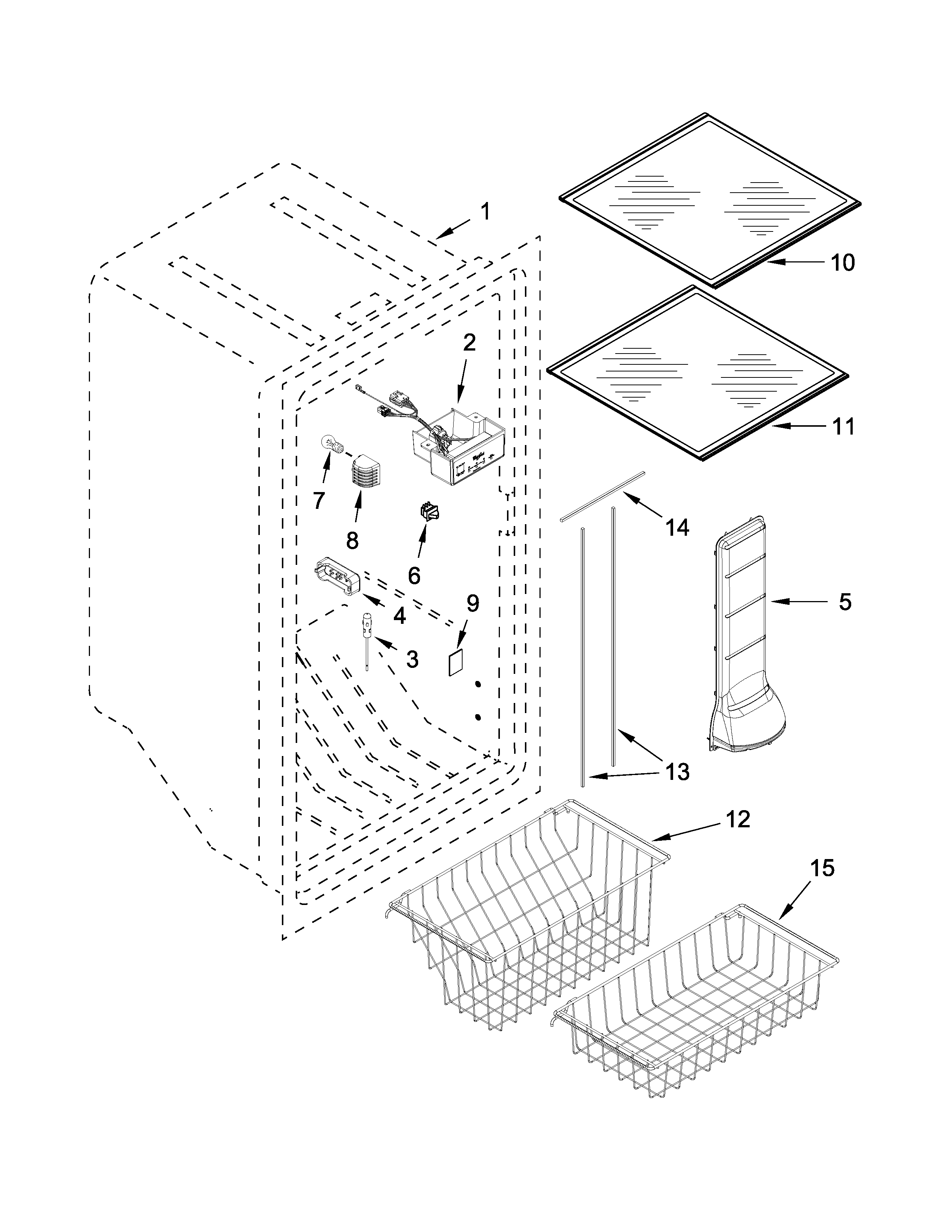

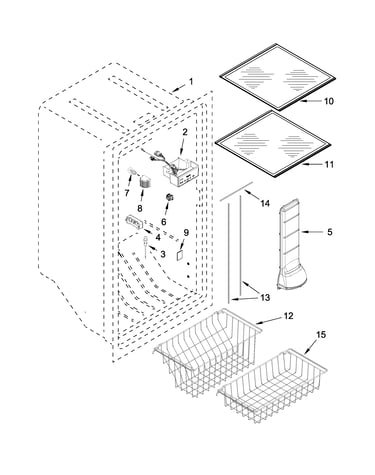

SELECT DIAGRAM
Browse Parts for
WSZ57L18DM00 Freestanding Freezers
#16

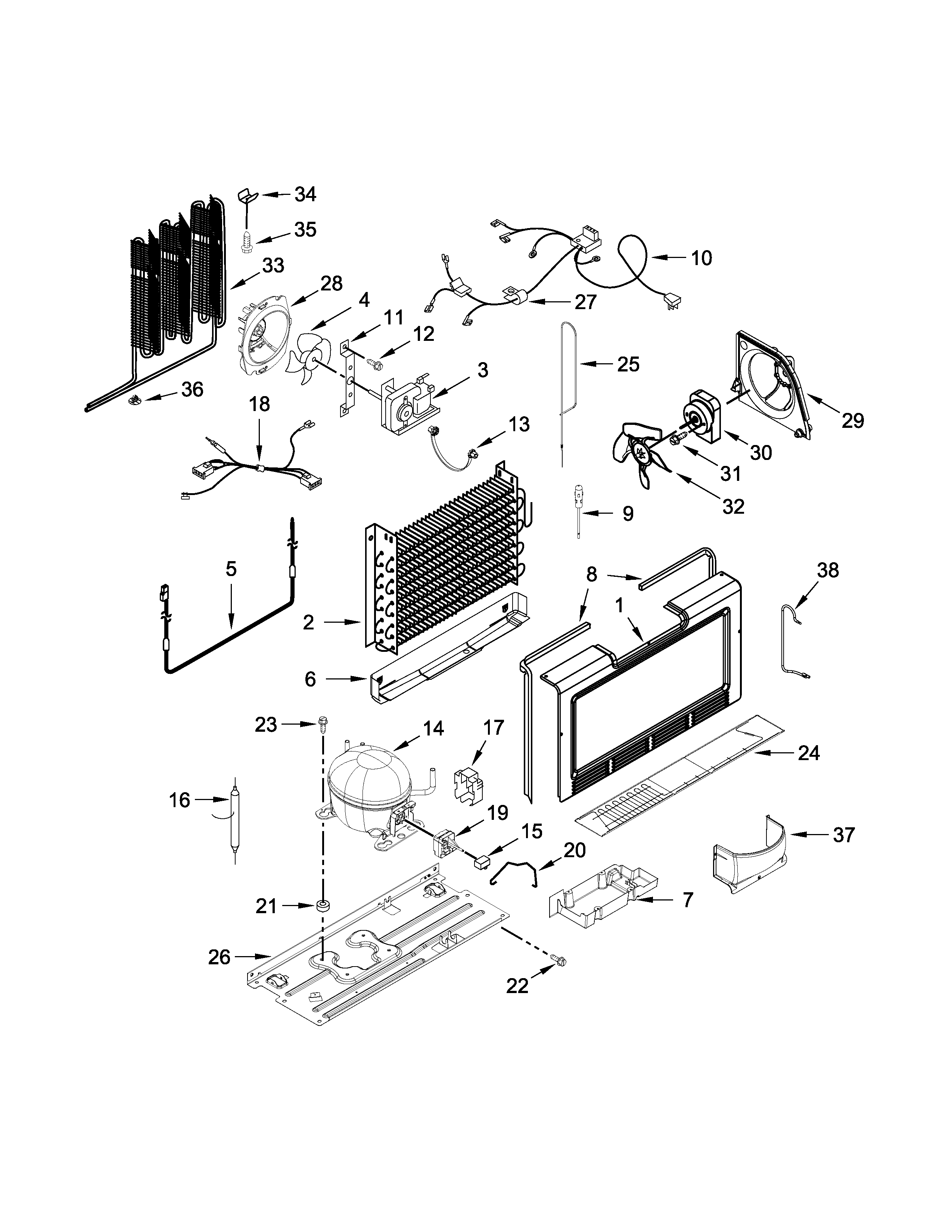

Unit parts diagram
Drier assembly
Part #W10709968
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces W10709968. Substitute parts can look different from the original.
$20.87 |
22% OFF Phone Price : $26.87
In Stock
#9
Unit parts diagram
Refrigerator thermistor
Part #W10383615
Replaced by #WPW10383615
?
Manufacturer substitution
This part replaces W10383615. Substitute parts can look different from the original.
$31.37 |
16% OFF Phone Price : $37.37
In Stock
#15
Unit parts diagram
Refrigerator run capacitor
Part #W10350564
Replaced by #WPW10350564
?
Manufacturer substitution
This part replaces W10350564. Substitute parts can look different from the original.
$42.70 |
12% OFF Phone Price : $48.70
In Stock
#5
Unit parts diagram
Refrigerator defrost heater
Part #W10316428
Replaced by #WPW10316428
?
Manufacturer substitution
This part replaces W10316428. Substitute parts can look different from the original.
$117.45 |
9% OFF Phone Price : $129.45
In Stock
#NI
Optional parts (not included) diagram
Spray paint (white)
Part #350930
Replaced by #350930
?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
#NI
Optional parts (not included) diagram
Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)
Part #72032
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
#2
Unit parts diagram
Freezer evaporator
Part #W10574283
Replaced by #W11507067
?
Manufacturer substitution
This part replaces W10574283. Substitute parts can look different from the original.
$100.96 |
11% OFF Phone Price : $112.96
In Stock
#16

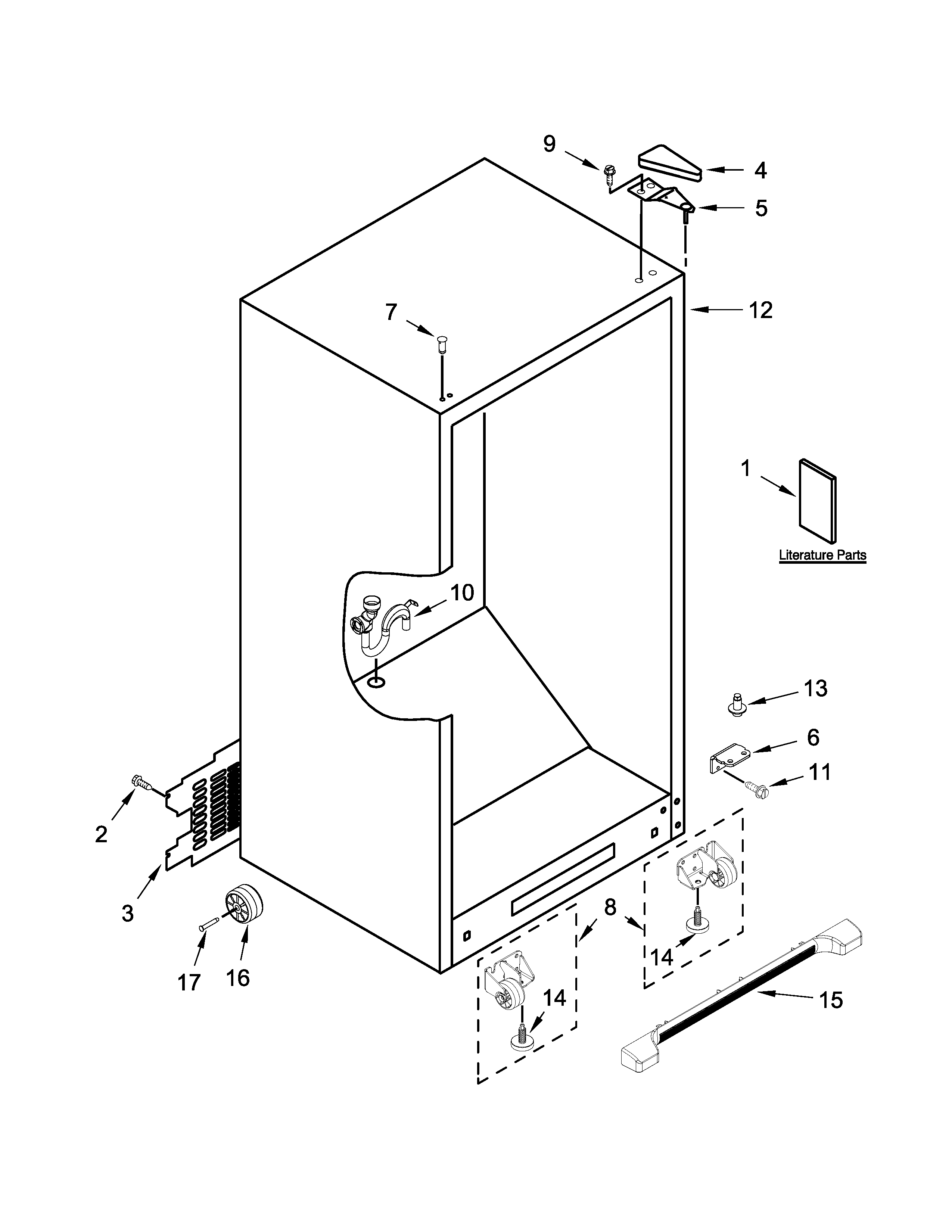

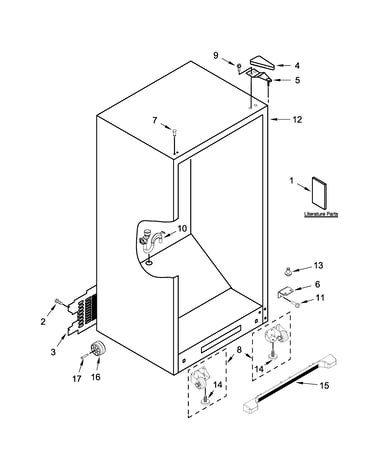

Cabinet parts diagram
Cabinet roller
Part #2150304
Replaced by #WPW10475495
?
Manufacturer substitution
This part replaces 2150304. Substitute parts can look different from the original.
This item is not returnable
$20.51 |
23% OFF Phone Price : $26.51
In Stock
#7

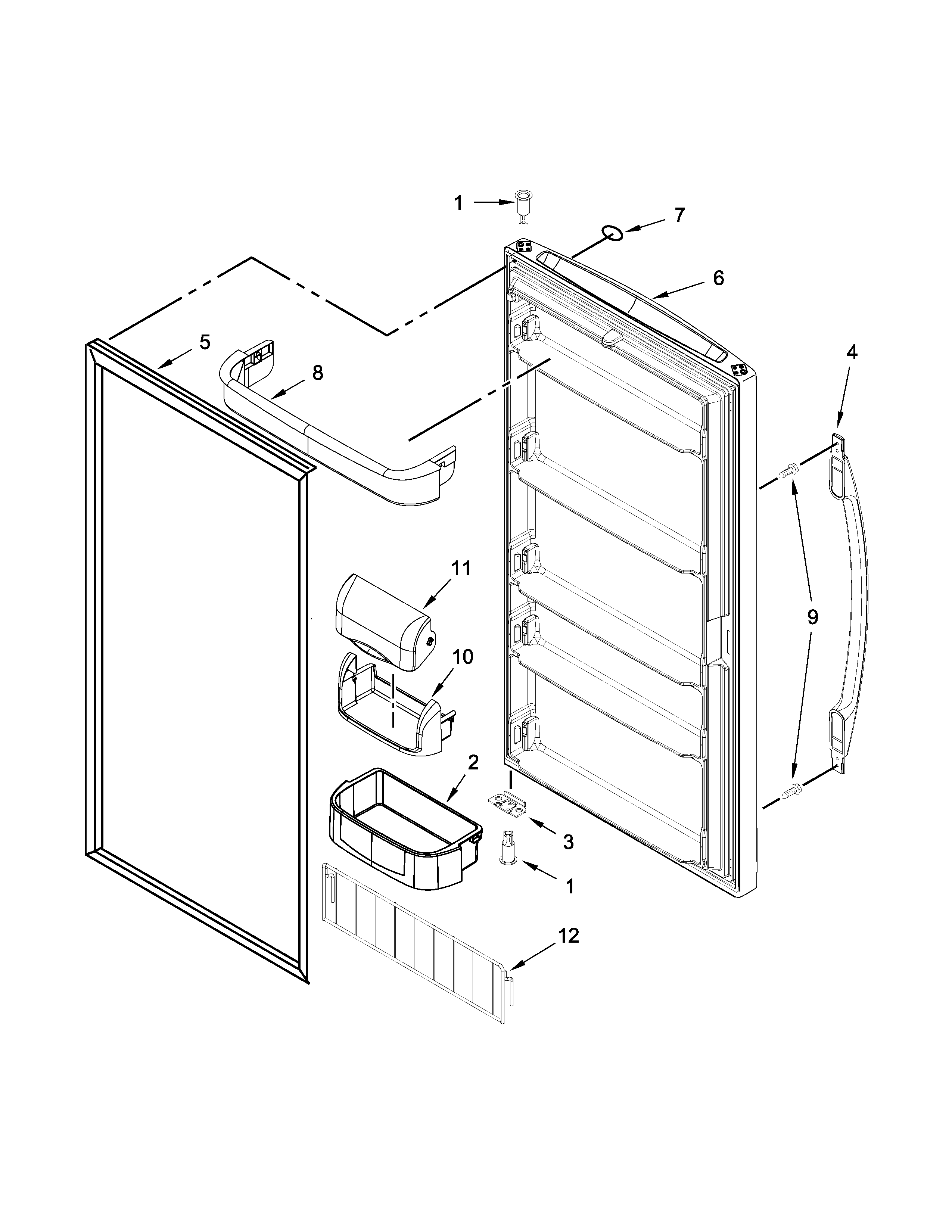

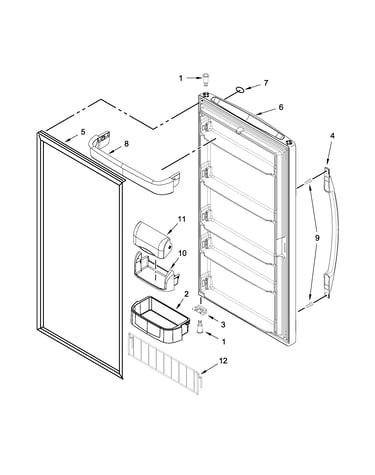

Door parts diagram
Nameplate
Part #W10481434
Replaced by #W11178521
?
Manufacturer substitution
This part replaces W10481434. Substitute parts can look different from the original.
$30.36 |
17% OFF Phone Price : $36.36
In Stock
#7A
Door parts diagram
Nameplate
Part #W10481433
Replaced by #W11178521
?
Manufacturer substitution
This part replaces W10481433. Substitute parts can look different from the original.
$30.36 |
17% OFF Phone Price : $36.36
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $9.02 |10% OFF Phone Price : $10.02
- $45.08 |12% OFF Phone Price : $51.08
- $31.49
- $109.53 |10% OFF Phone Price : $121.53
- $8.29 |11% OFF Phone Price : $9.29
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Repair guides for upright freezers
How to replace a freezer electronic control board
The electronic control board manages the compressor to control freezer temperature. Replace the control board using the…
Repair difficulty
Time required
45 minutes or less
How to replace a freezer thermistor
When the thermistor can’t sense the freezer temperature, the freezer is colder or warmer than the set temperature. Follo…
Repair difficulty
Time required
45 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn how to repair broken, frayed or damaged wires in your appliances.…
