What water filter fits my Kenmore fridge?
For Kenmore Elite refrigerator model 79574024410, the correct replacement water filter is the Refrigerator water filter 9690 (part number ADQ36006102). You can confirm the filter location and replacement basics in the 79574024410 owner's manual.
We match filters by the full model number and the filter style used in that design. For this model, the compatible filter is already identified.
- Verify the model number on the model and serial label inside the fresh food compartment
- Match the filter by part number (ADQ36006102) rather than the “9690” label alone
- Replace the filter if water flow slows, ice cubes get smaller, or water tastes or smells off
- After installing a new filter, flush the system to clear air and loose carbon
Your manual recommends flushing 2.5 gallons after a filter change to remove trapped air and contaminants.
- Dispense in cycles: 30 seconds ON, 60 seconds OFF
- Keep going until you reach about 2.5 gallons total
- If the dispenser is locked, press and hold Lock for 3 seconds to unlock
| Step | What to do | Why it helps |
|---|---|---|
| Install | Seat the filter fully and lock it in place | Prevents leaks and low flow |
| Flush | 2.5 gallons in timed cycles | Clears air and carbon fines |
| Check | Inspect for drips for 1 to 2 minutes | Catches a loose filter early |
- Use the model-matched filter: genuine Kenmore refrigerator water filter 9690 AGF80300801
Using the correct filter for model 79574024410 protects the water valve and dispenser from restriction, keeps ice production steady, and helps maintain water taste and clarity.
Last updated: January 2026
Why is my Kenmore Elite refrigerator leaking water from the back?
Water leaking from the back of your Kenmore Elite refrigerator model 79574024410 is usually caused by a clogged or frozen defrost drain, a shifted or cracked drain pan, or a water line connection that is seeping after the refrigerator was moved. We focus first on the drain system and the water supply connections.
- Unplug the refrigerator before inspecting behind panels or near wiring.
- Look for a sheet of ice or standing water under the rear interior panel; that points to a frozen defrost drain.
- Inspect the drain pan underneath for cracks, overflow, or a pan that is not centered.
- Check the 1/4-inch water line and fittings at the rear water valve for slow drips.
- Confirm the cabinet is level so defrost water flows to the drain pan instead of spilling.
| Likely cause | What you typically see | What to do next |
|---|---|---|
| Defrost drain clogged or frozen | Water under crisper area, then leaks to the back/bottom | Flush the drain with warm water; clear debris with a flexible cleaner |
| Drain pan out of place or cracked | Water only appears underneath/back | Re-seat the pan; replace if cracked |
| Water line connection seeping | Drips at the rear valve or tubing | Tighten compression nut slightly; re-check for leaks |
| Refrigerator not level | Water tracks to one side/back | Adjust leveling legs until stable |

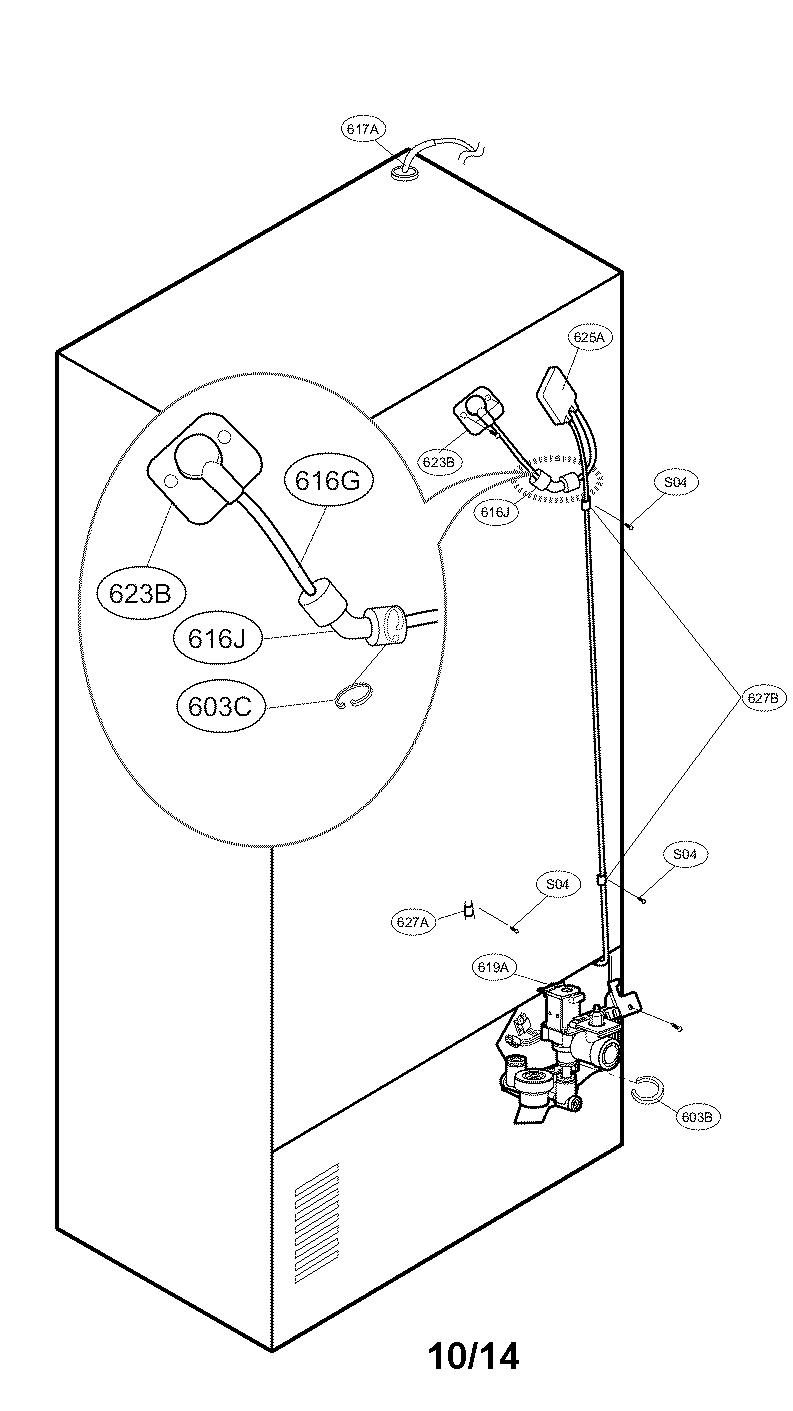

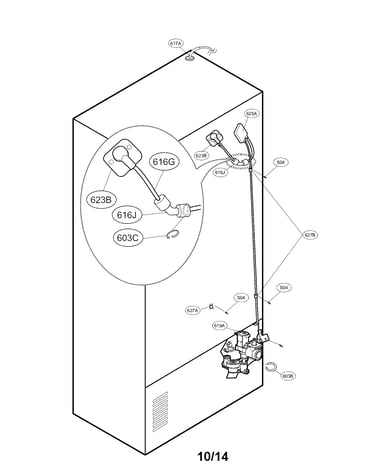

The manual’s water line section calls out checking for leaks at the water line connections and routing the tubing so it does not vibrate against the back of the refrigerator or wall. Use these best practices:
- Inspect for moisture at the compression nut and ferrule (sleeve).
- Tighten fittings in small increments; overtightening can deform the ferrule.
- Reposition the tubing coil so it cannot rub or vibrate.
For model-specific diagrams and the exact connection points, use the 79574024410 owner’s manual.
A rear leak can lead to floor damage and can also create ice buildup that restricts airflow, which can cause warm temperatures in the fresh food section or freezer.
Last updated: January 2026
What does code er if mean on Kenmore Elite fridge?
On Kenmore Elite refrigerator model 79574024410, the ER IF error code points to an ice fan problem in the freezer area. That fan pushes cold air through ducts to keep the ice maker and ice room cold; when airflow drops, the control detects it and triggers ER IF. See the troubleshooting section in the 79574024410 owner's manual.
- Power reset: unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
- Make sure the freezer door closes fully and the door gasket seals all the way around.
- Check for frost or ice buildup around the rear freezer panel (restricted airflow can trigger ER IF).
- Confirm freezer temperature is set correctly (most units run best near 0°F).
- Listen for the ice fan: a working fan usually makes a steady, low whir when the freezer is running.
| What you notice | Likely cause | What to do next |
|---|---|---|
| Loud grinding or squealing from freezer | Ice fan hitting ice or failing motor | Defrost any ice buildup; if noise returns, plan a fan repair |
| Frost blanket on rear freezer panel | Defrost system issue (airflow blocked) | Check for heavy frost; inspect defrost components |
| Ice maker warm, ice production slow | Poor airflow to ice room | Clear vents, reduce overpacking, check fan operation |
| Error returns quickly after reset | Fan circuit or control issue | Move to electrical diagnosis or service |

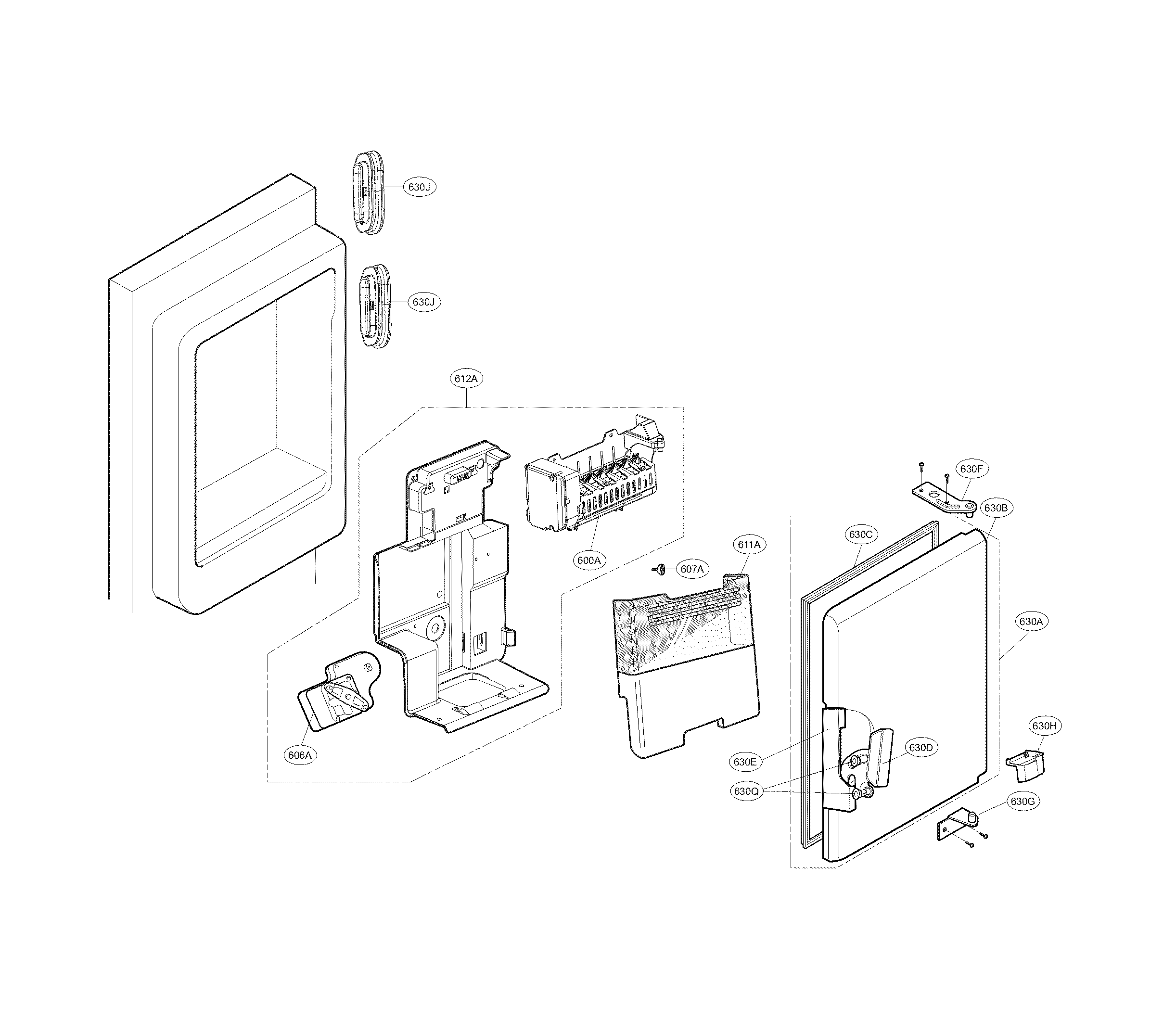

If troubleshooting points to the ice maker area (warm ice room, no airflow, repeated ER IF), these model-matched parts are commonly checked during repair:
- Lg refrigerator ice maker AEQ73130004 (ice production issues that can be mistaken for airflow problems)
- Refrigerator defrost sensor assembly 6615JB2005R (helps the unit manage defrost and prevent heavy frost)
The ice fan is what keeps the ice maker compartment cold. When airflow is blocked by frost or the fan is weak, the ice maker warms up, ice production drops, and the refrigerator can struggle to maintain stable freezer temperatures.
Last updated: January 2026
