Thermador
Gas Range

Model # PRG364GDH/01 Official Thermador gas range

Here are the diagrams and repair parts for Official Thermador PRG364GDH-01 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

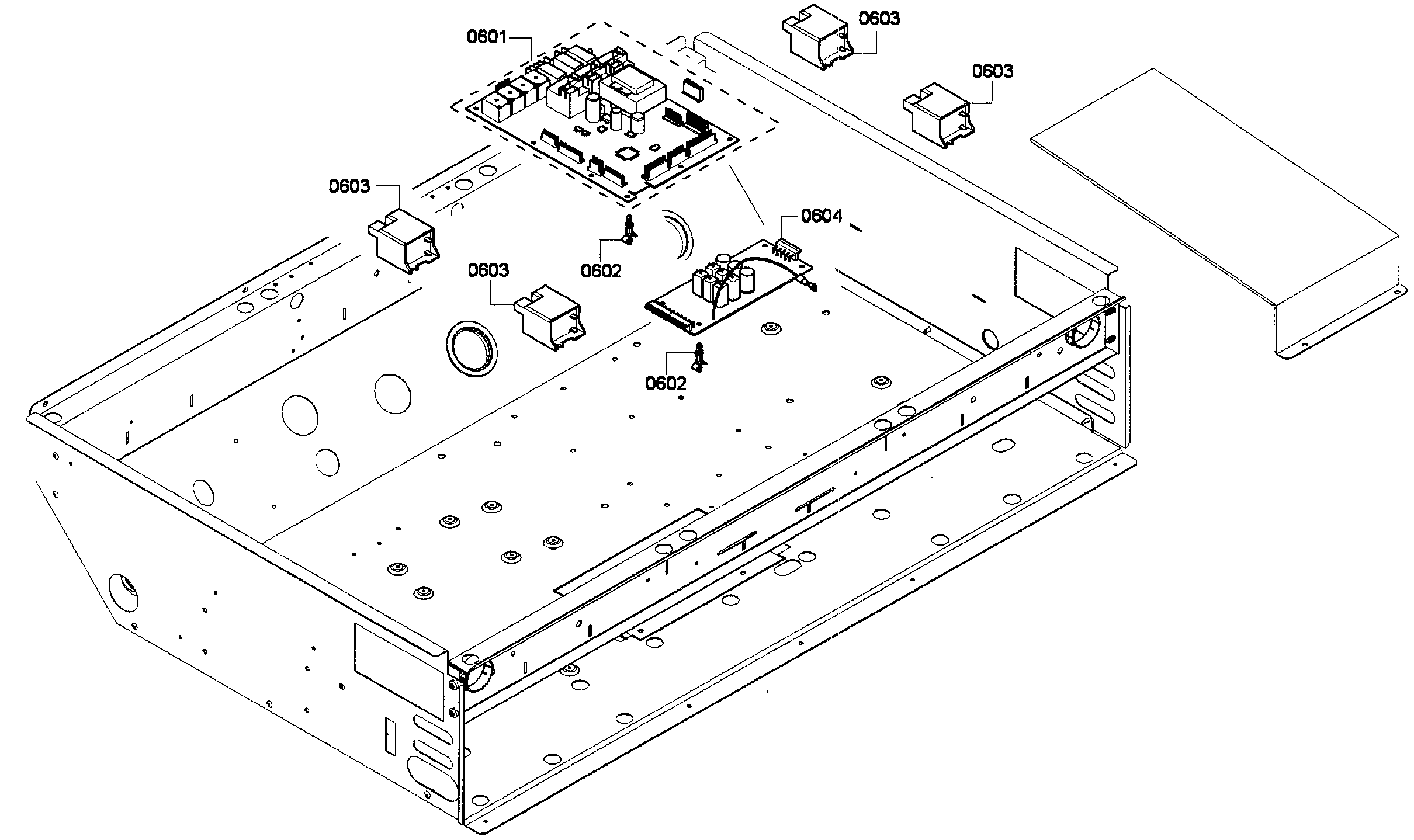

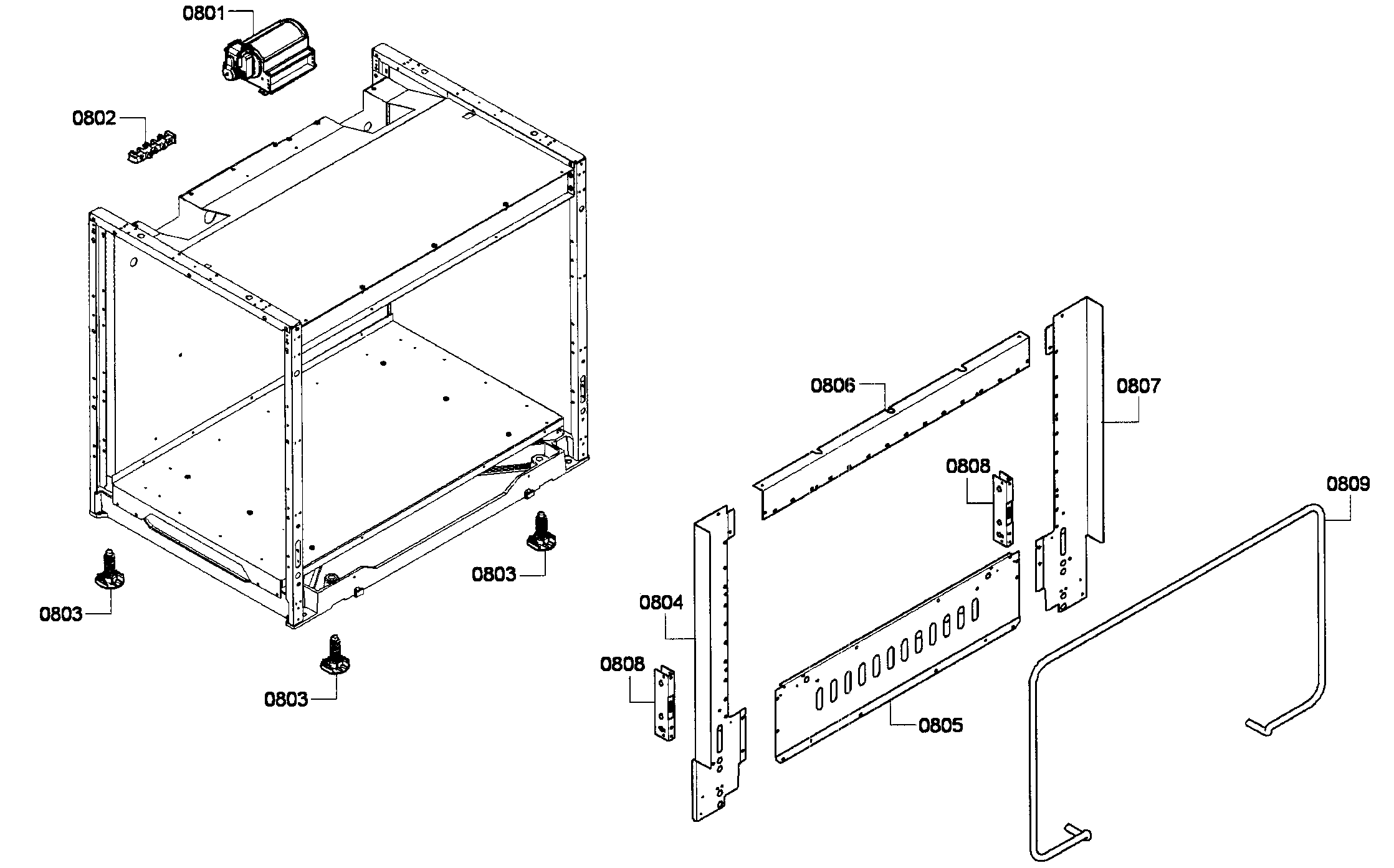

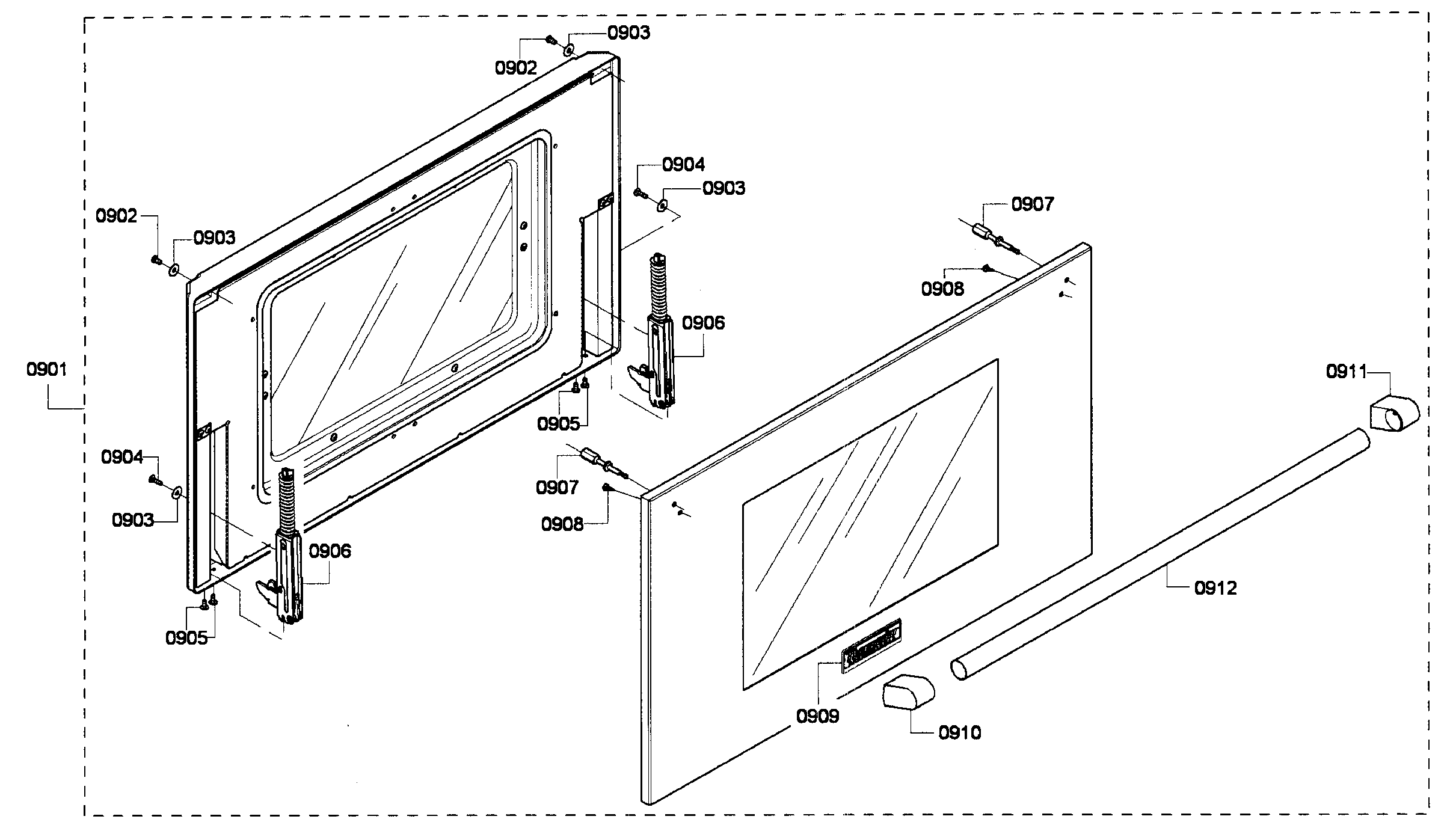

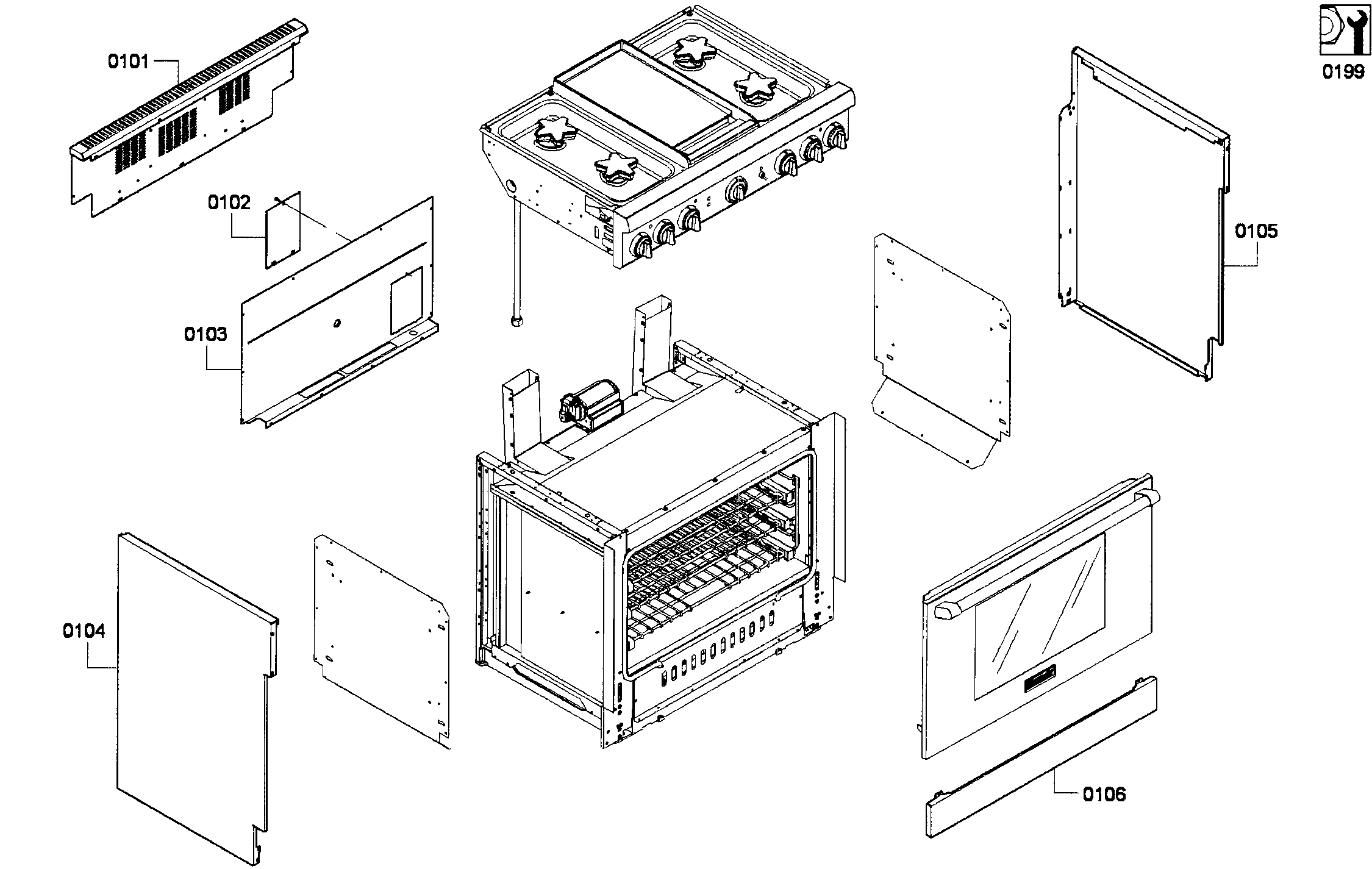

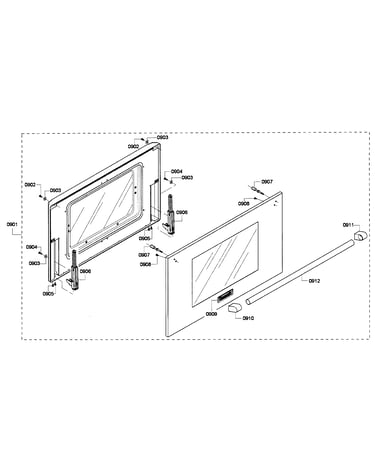

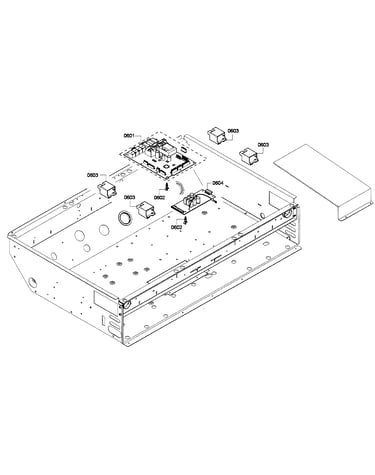

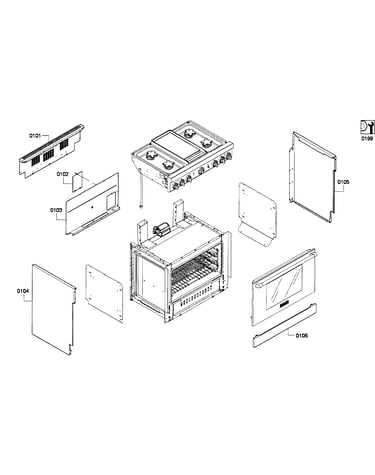

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Igniter 492431
#707

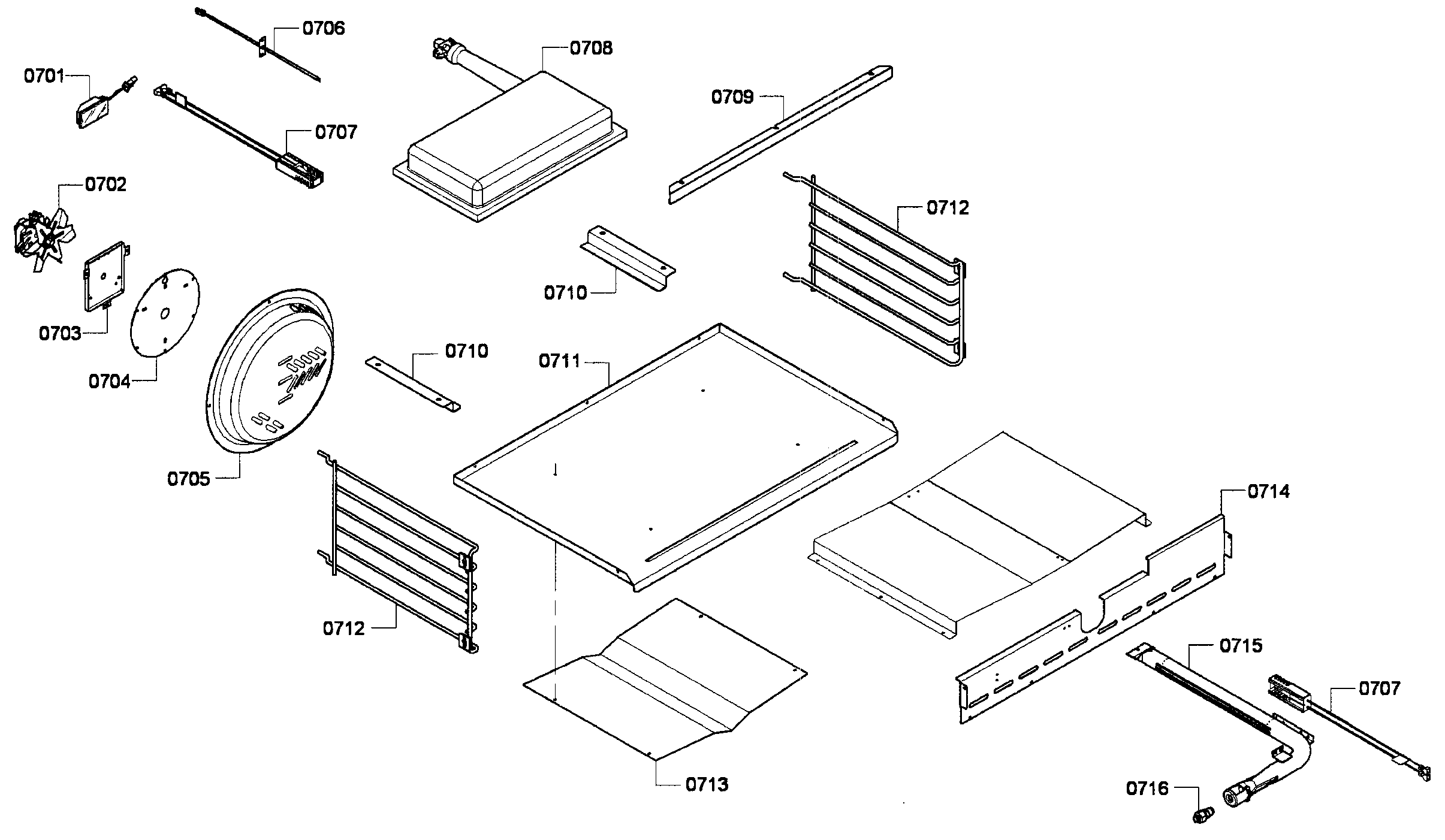

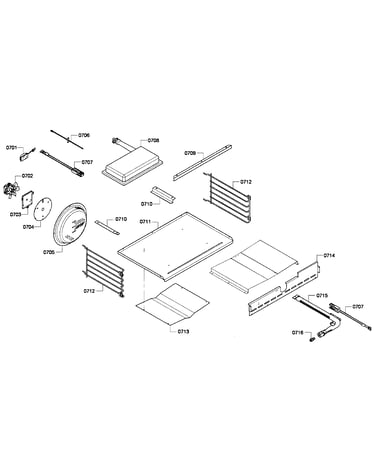

Oven parts diagram

Igniter

Part #492431

Replaced by #00492431

?
Manufacturer substitution
This part replaces 492431. Substitute parts can look different from the original.
$118.04 |
9% OFF Phone Price : $130.04
In Stock
Plate 677035
#501

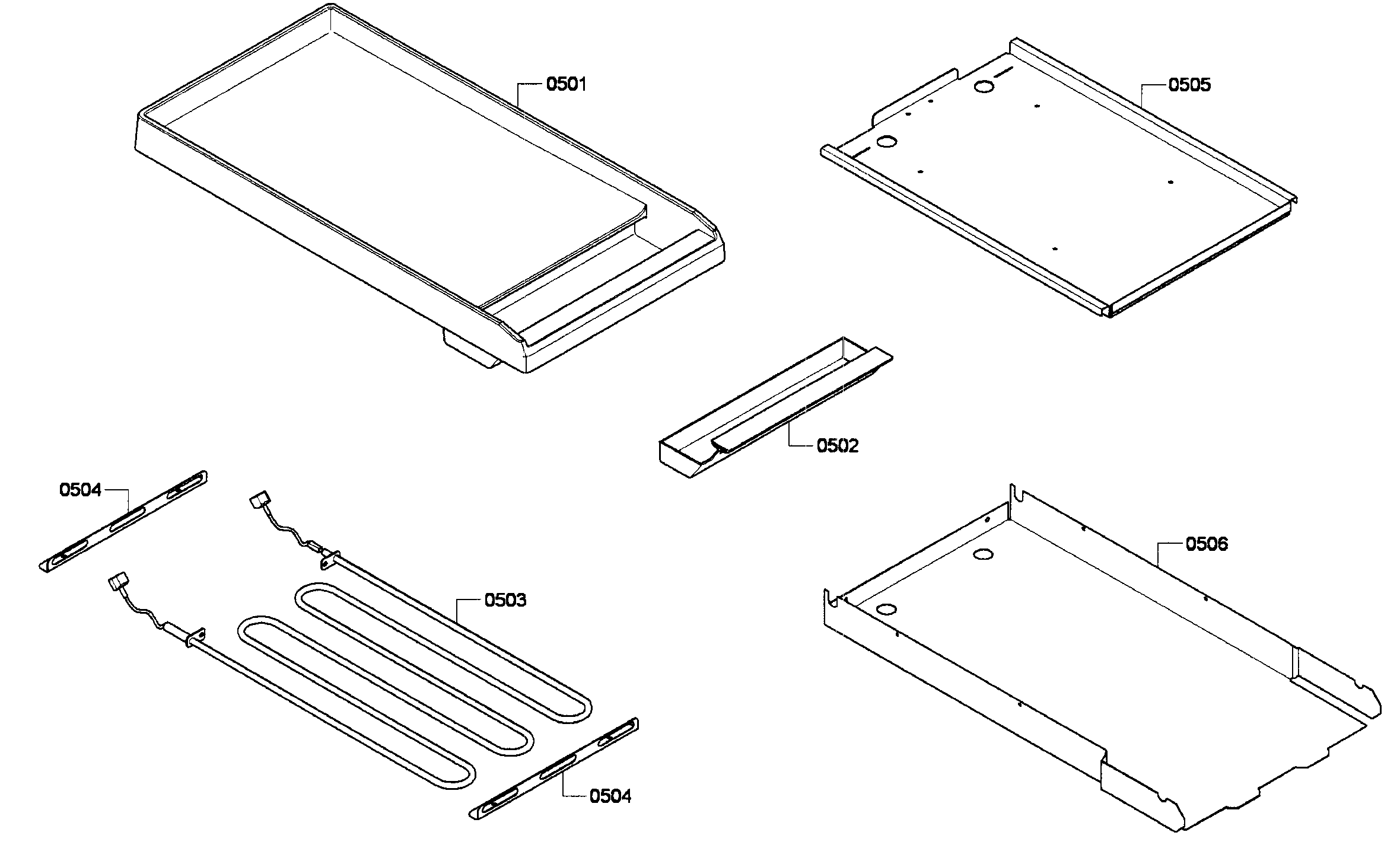

Griddle assy diagram

Plate

Part #677035

Replaced by #11003854

?
Manufacturer substitution
This part replaces 677035. Substitute parts can look different from the original.
$404.86 |
$12.00 OFF Phone Price : $416.86
In Stock
Electrode 617161
#303

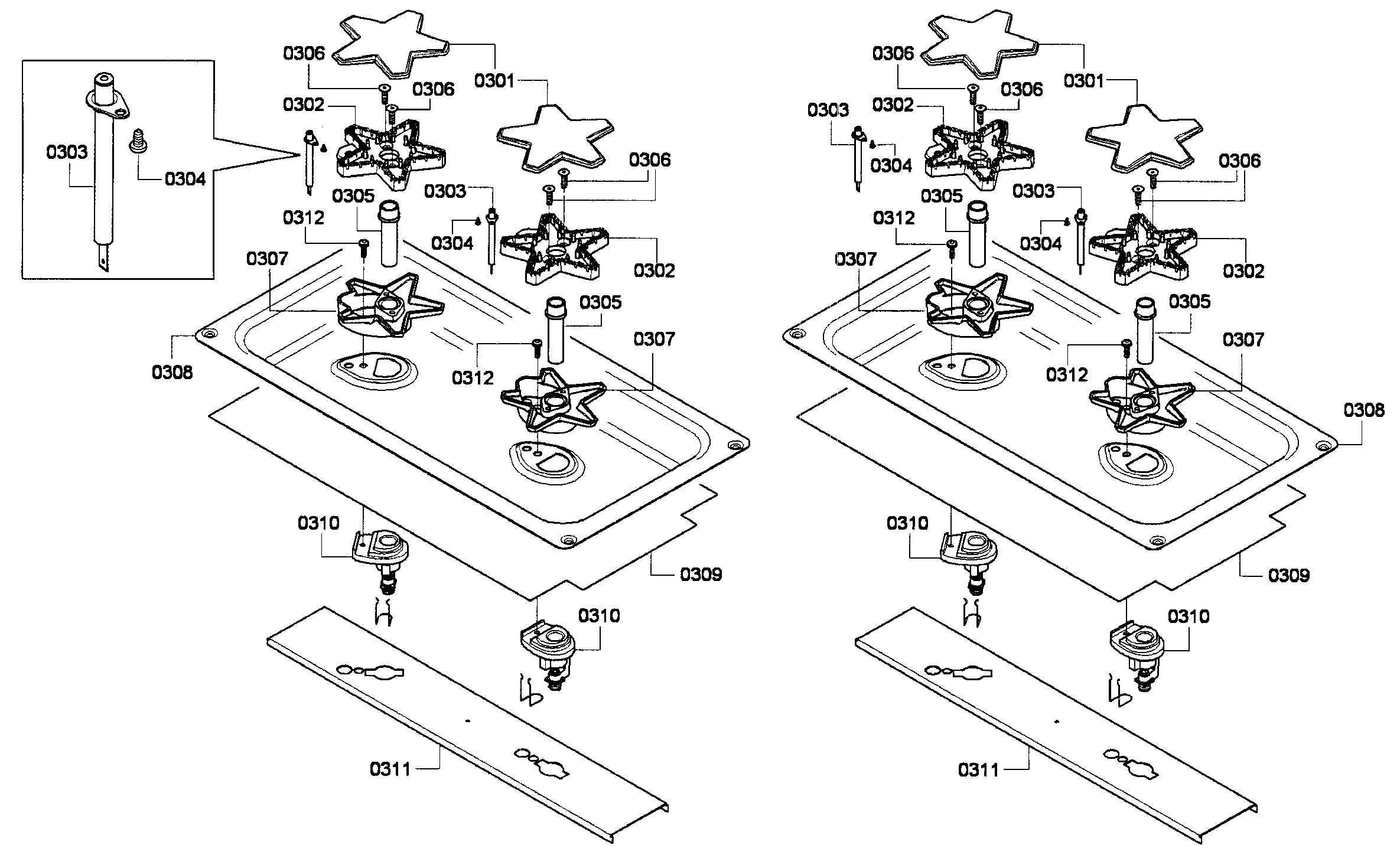

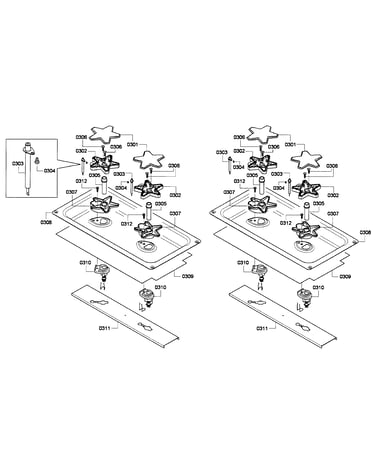

Burners assy diagram

Electrode

Part #617161

Replaced by #00617161

?
Manufacturer substitution
This part replaces 617161. Substitute parts can look different from the original.
This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Tray 649362
#502

Griddle assy diagram

Tray

Part #649362

Replaced by #11006314

?
Manufacturer substitution
This part replaces 649362. Substitute parts can look different from the original.
$130.09 |
8% OFF Phone Price : $142.09
In Stock
Potentiometer 611346
#422

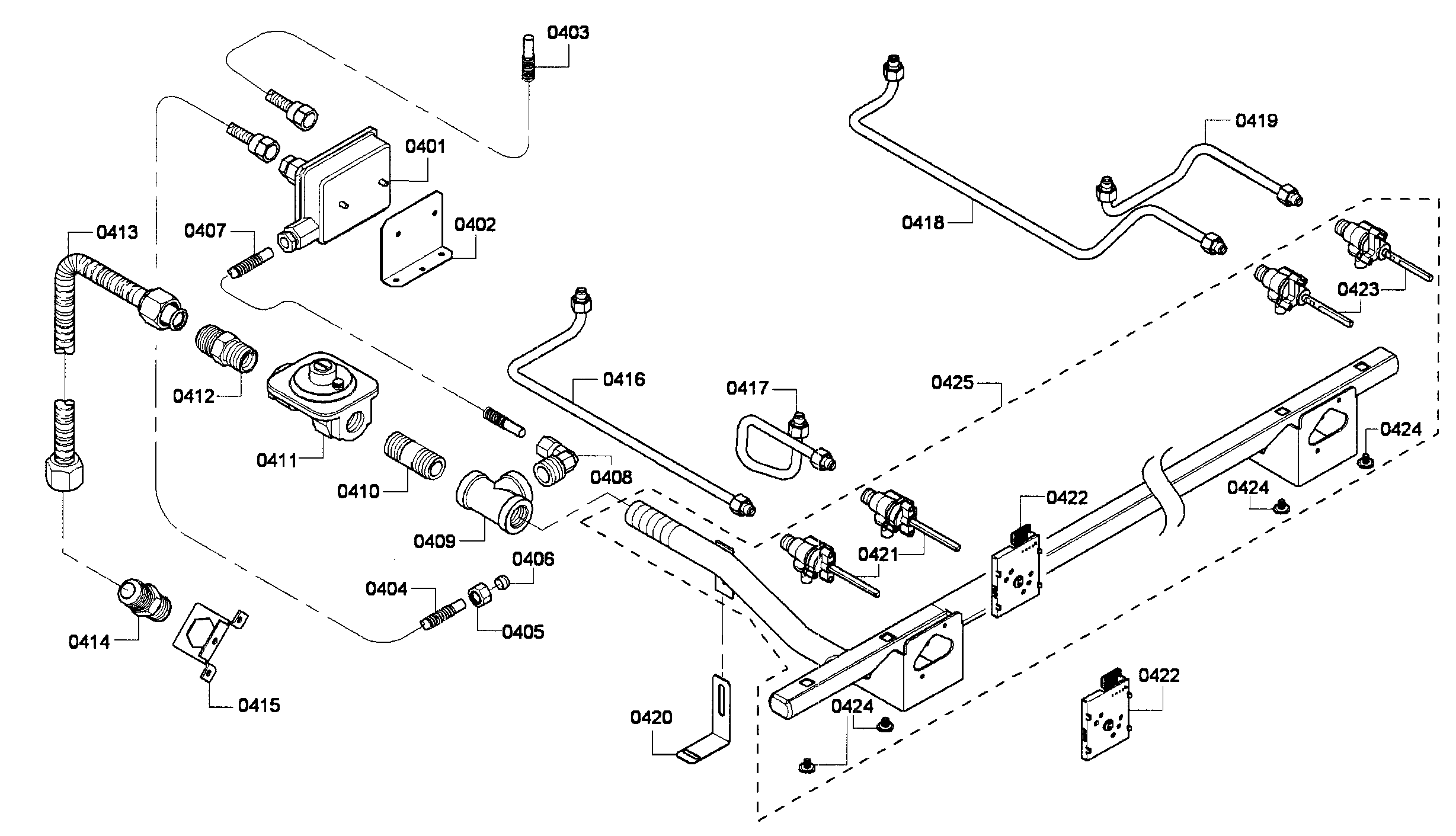

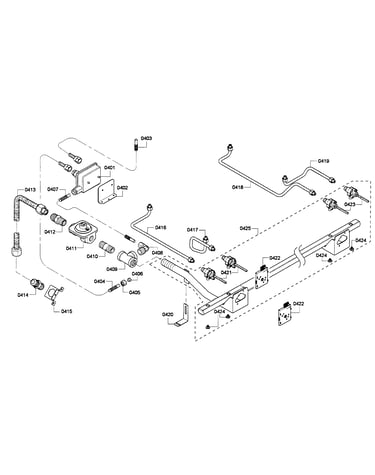

Gas supplay diagram

Potentiometer

Part #611346

Replaced by #00629722

?
Manufacturer substitution
This part replaces 611346. Substitute parts can look different from the original.
$50.89 |
11% OFF Phone Price : $56.89
In Stock
Shelf 684433
#1003

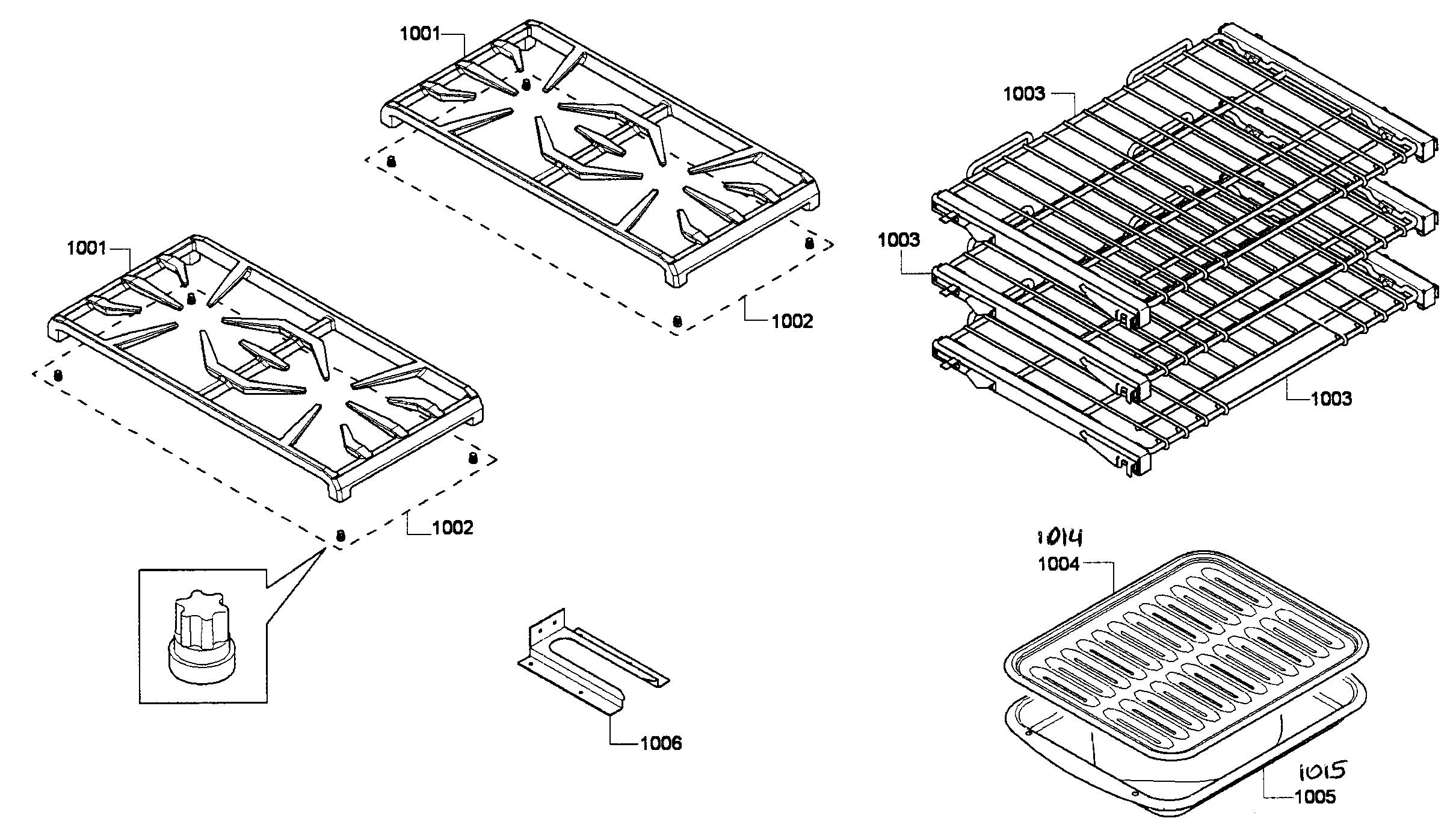

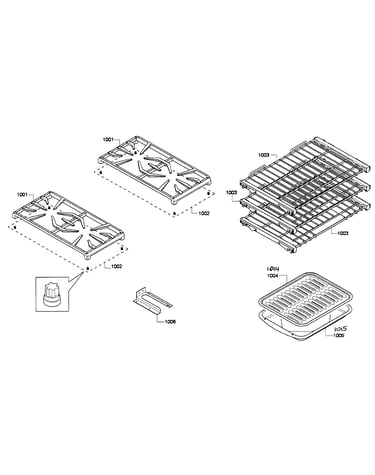

Racks/shelfs diagram

Shelf

Part #684433

Replaced by #00774614

?
Manufacturer substitution
This part replaces 684433. Substitute parts can look different from the original.
$190.20
In Stock
Tube 617160
#305

Burners assy diagram

Tube

Part #617160

Replaced by #00617160

?
Manufacturer substitution
This part replaces 617160. Substitute parts can look different from the original.
$42.78 |
12% OFF Phone Price : $48.78
In Stock
Screw 617173
#304

Burners assy diagram

Screw

Part #617173

Replaced by #00617173

?
Manufacturer substitution
This part replaces 617173. Substitute parts can look different from the original.
This item is not returnable
$3.34
In Stock
Temperature Knob 617885
#214

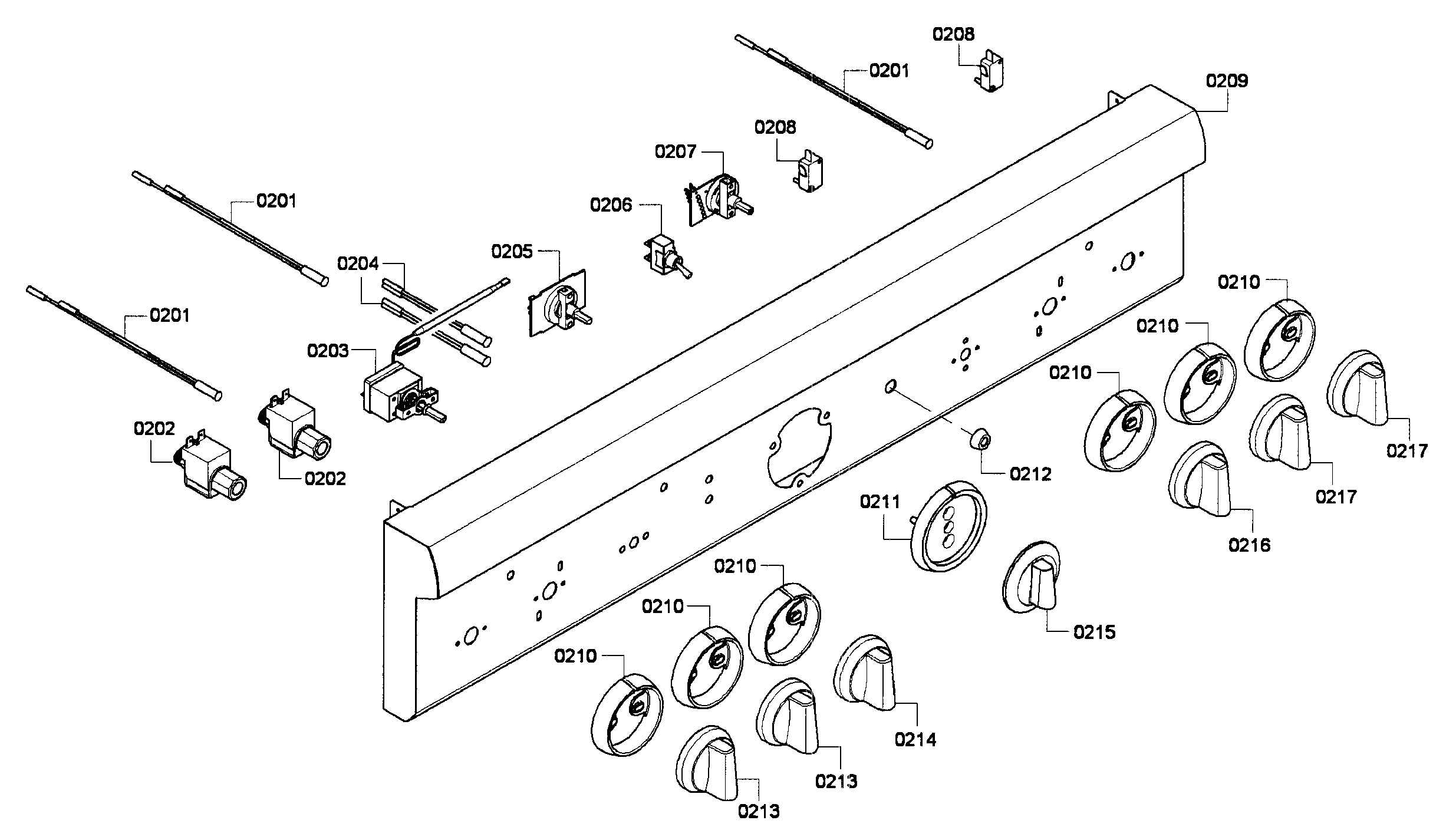

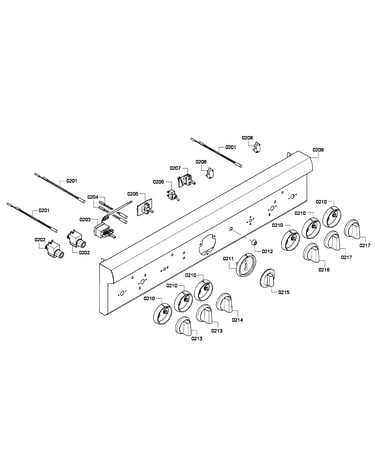

Control panel diagram

Temperature knob

Part #617885

Replaced by #00617885

?
Manufacturer substitution
This part replaces 617885. Substitute parts can look different from the original.
$107.29 |
10% OFF Phone Price : $119.29
In Stock
Sensor 418121
#706

Oven parts diagram

Sensor

Part #418121

Replaced by #00627375

?
Manufacturer substitution
This part replaces 418121. Substitute parts can look different from the original.
$104.41 |
10% OFF Phone Price : $116.41
In Stock
