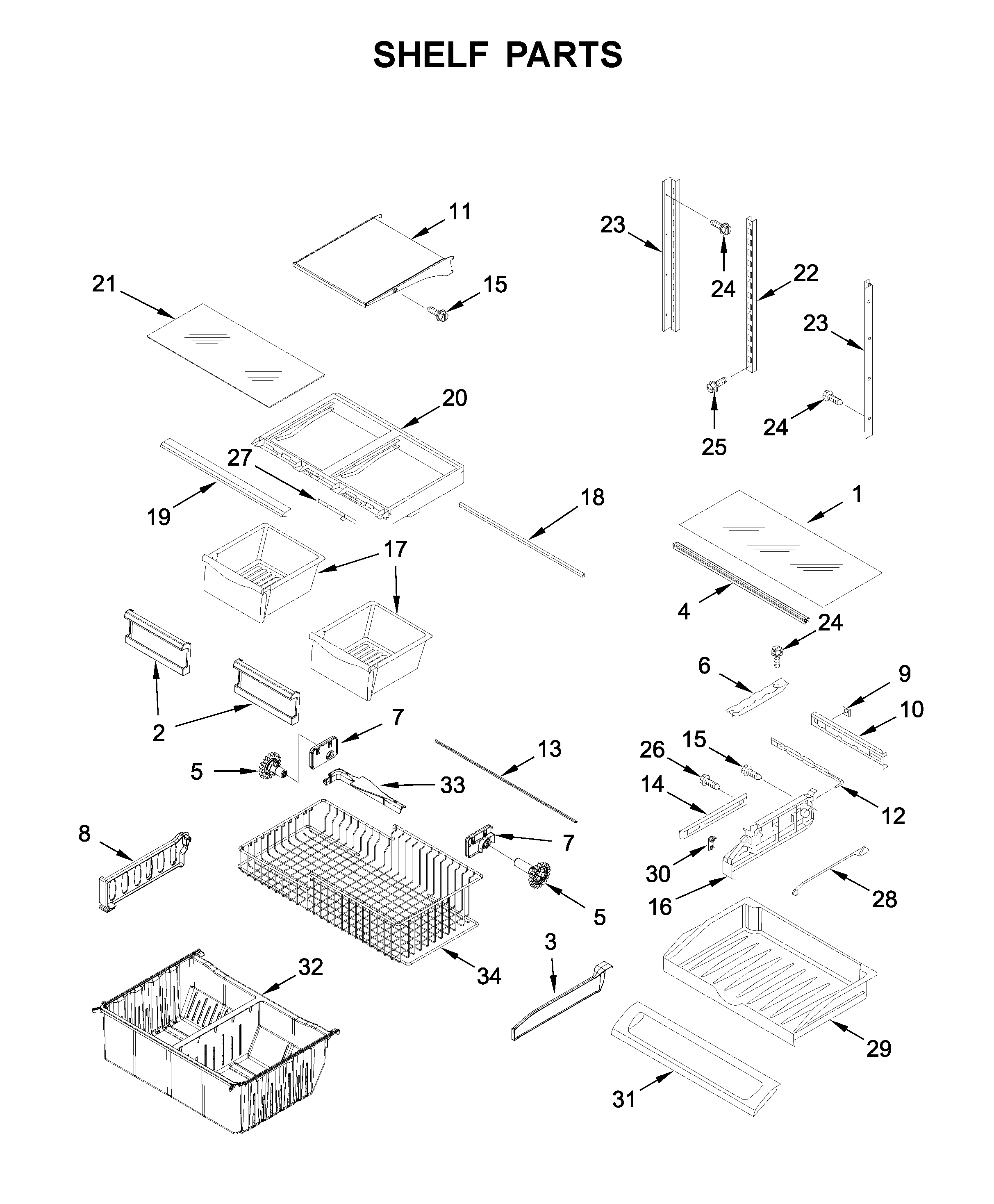

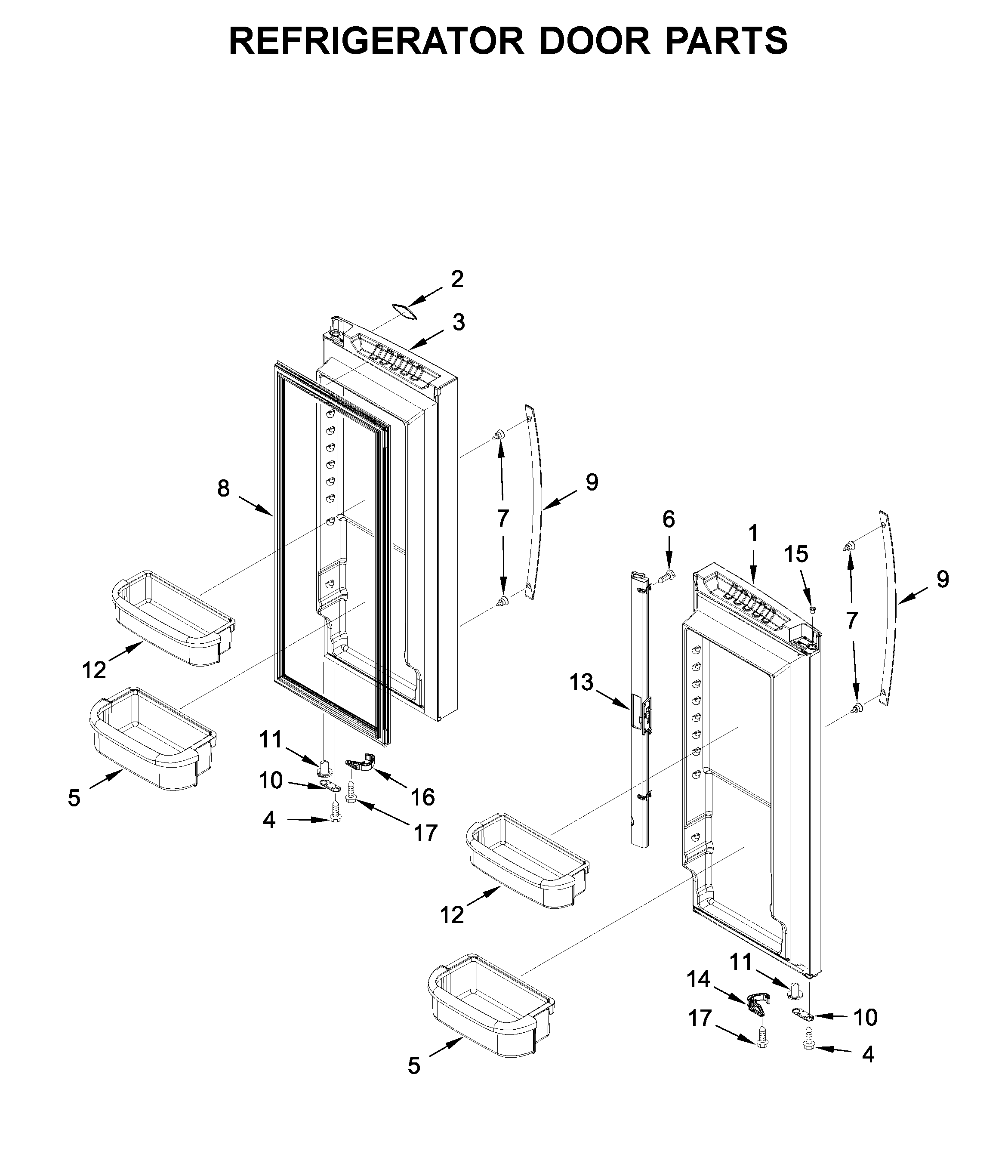

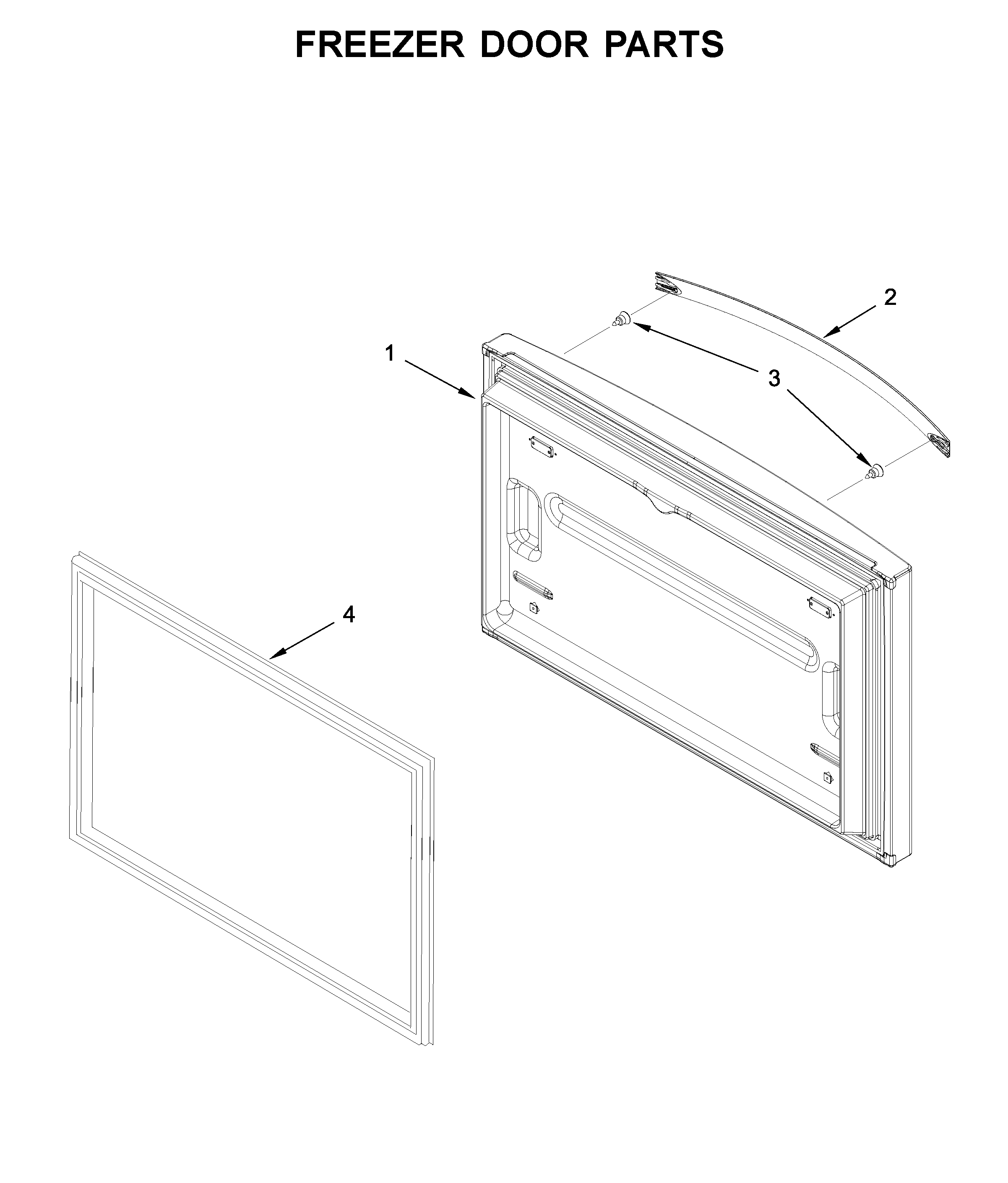

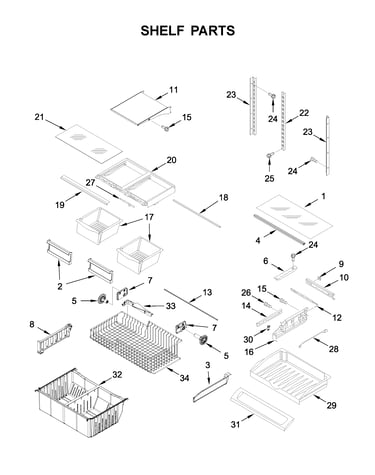

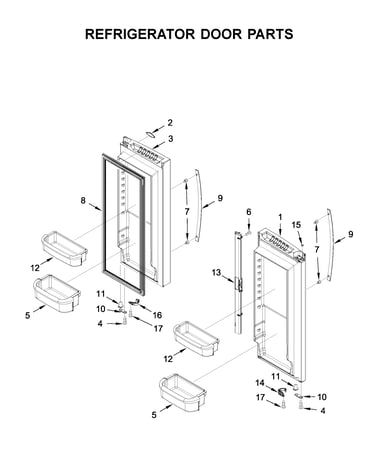

Whirlpool WRF540CWHZ02 bottom-mount refrigerator Parts

No. On a Whirlpool WRF540CWHZ02 bottom-mount refrigerator, the cardboard panel at the bottom rear is a protective cover for the machine compartment and airflow path; it should stay in place during normal use.

What that cardboard piece does

That bottom cover is there for practical reasons:

• Helps direct airflow across the condenser area for proper cooling
• Protects wiring and components from bumps, dust, and debris
• Reduces the chance of accidental contact with moving or hot parts
• Helps keep pets and small objects out of the machine compartment

When you should remove it (and when you should not)

Only remove the cover when you need access for a specific service task, then reinstall it.

Situation	Remove the cardboard cover?	What to do
Normal operation	No	Leave it installed
Cleaning under/behind the fridge	No	Vacuum around vents and floor area without removing the cover
Diagnosing a cooling problem	Sometimes	Unplug first; remove only if you must access the condenser/fan area
Replacing a component in the rear base	Yes	Reinstall after the repair to restore airflow and protection

Quick checks if you are unsure what you are seeing

Use these checks to confirm it is the correct panel and not packing material:

• It is fastened with screws or clips (not loose or taped on)
• It sits at the bottom rear, near the compressor area
• It looks like a formed panel, not random shipping cardboard
• It is not inside the fresh food or freezer compartments

Why it matters

Removing that cover can disrupt airflow and protection around the condenser and compressor area, which can lead to warmer temperatures, longer run times, and more dust buildup.

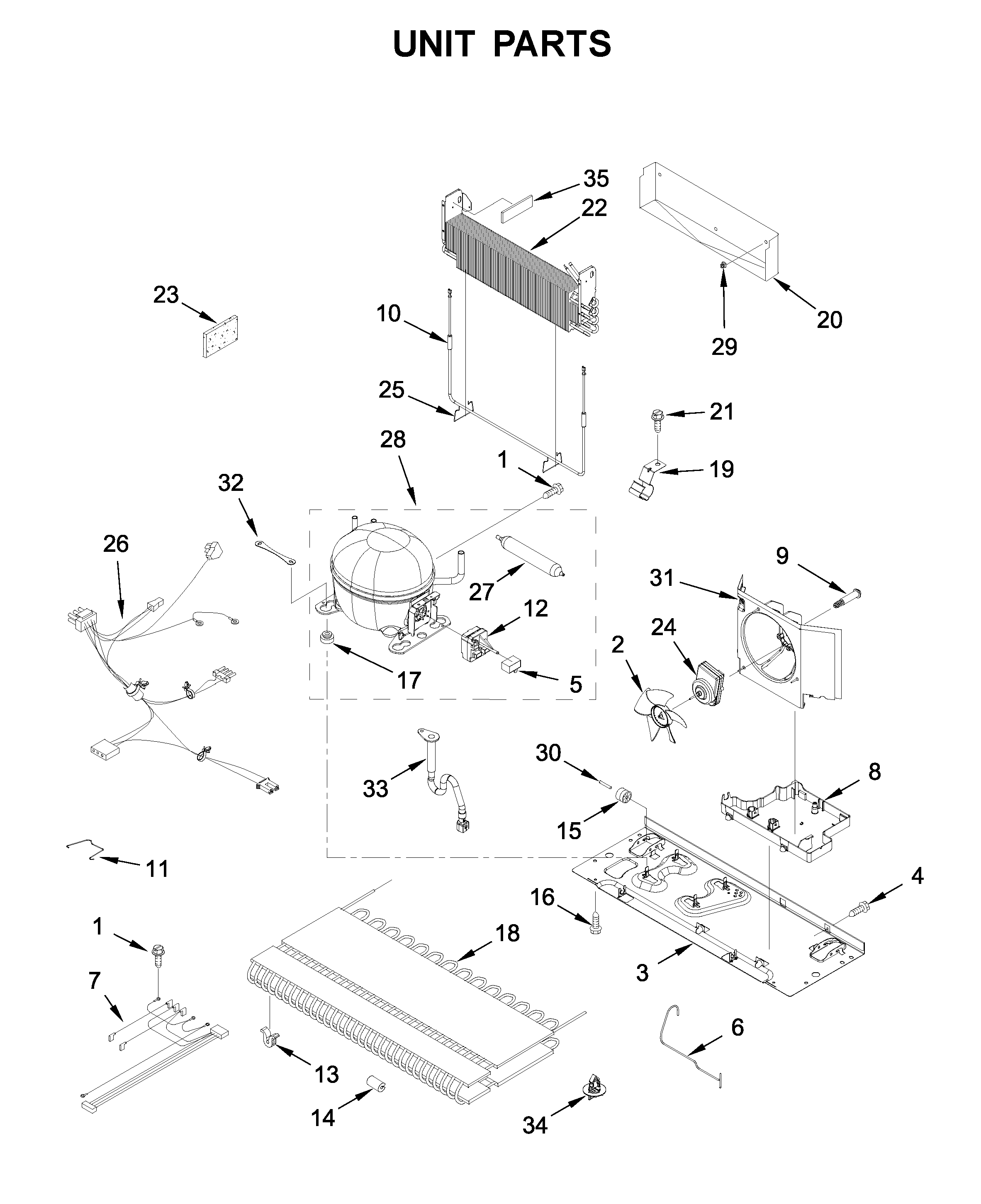

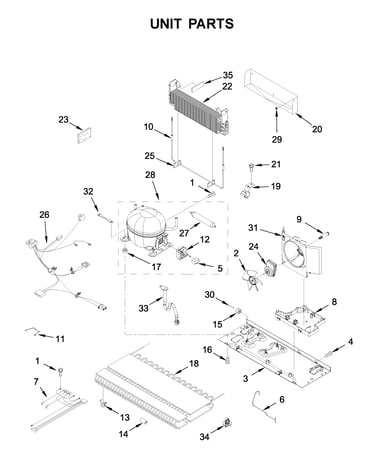

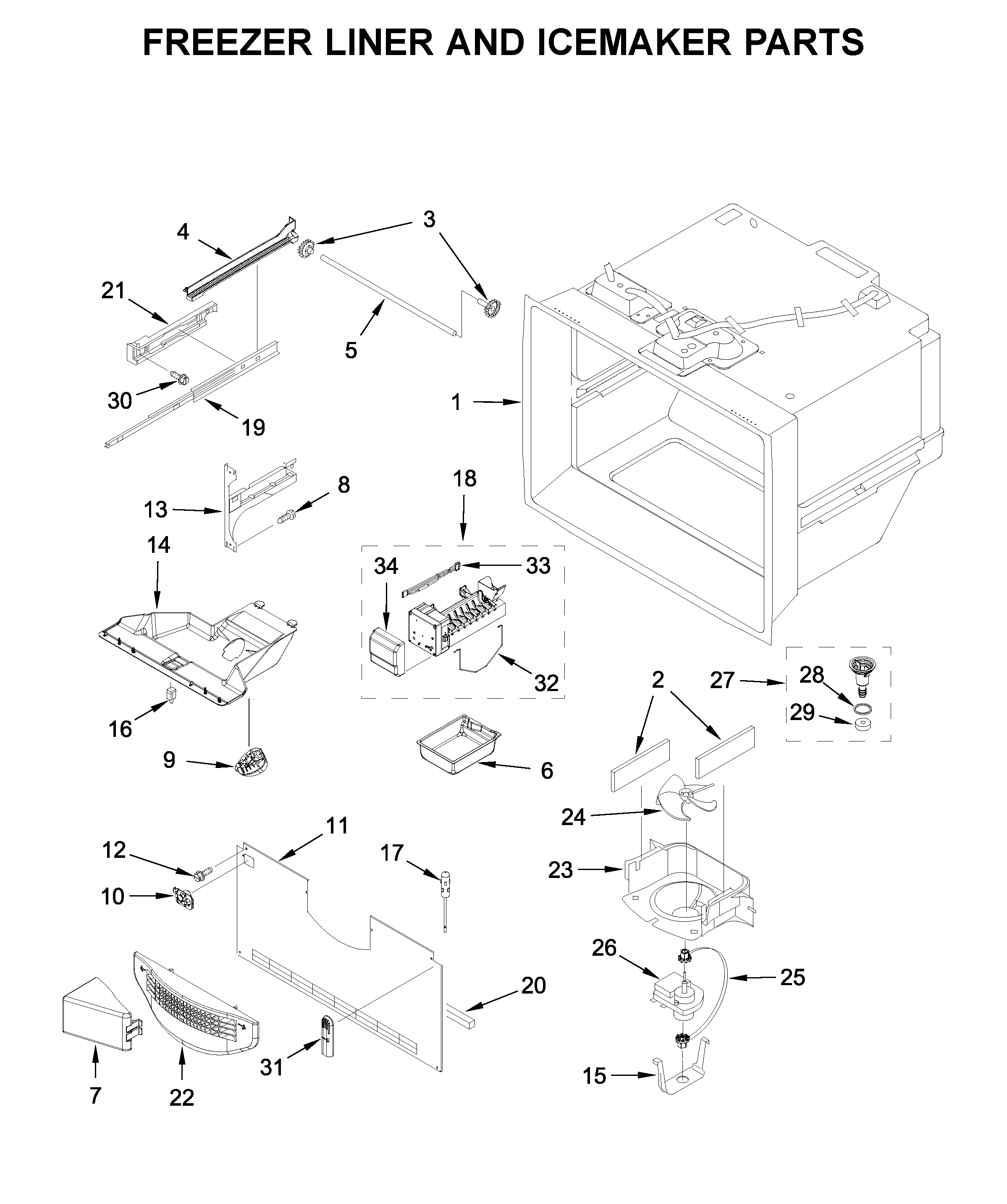

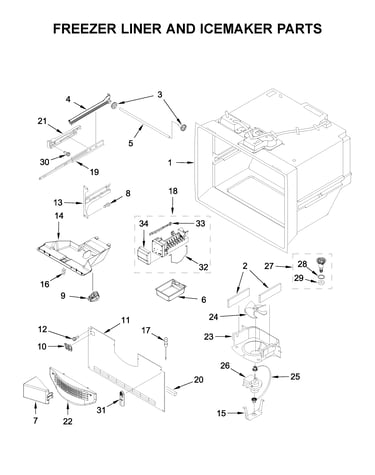

Parts that are commonly involved in airflow and cooling (if you are troubleshooting)

If you are chasing a cooling or airflow issue, these model-matched parts are often involved:

• Refrigerator condenser WPW10346415
• Refrigerator evaporator motor W11024089
• Refrigerator evaporator fan blade WP2169142

For additional parts lookups by model number, we list WRF540CWHZ02 parts on this page and you can also search by model at Sears PartsDirect.

Last updated: February 2026

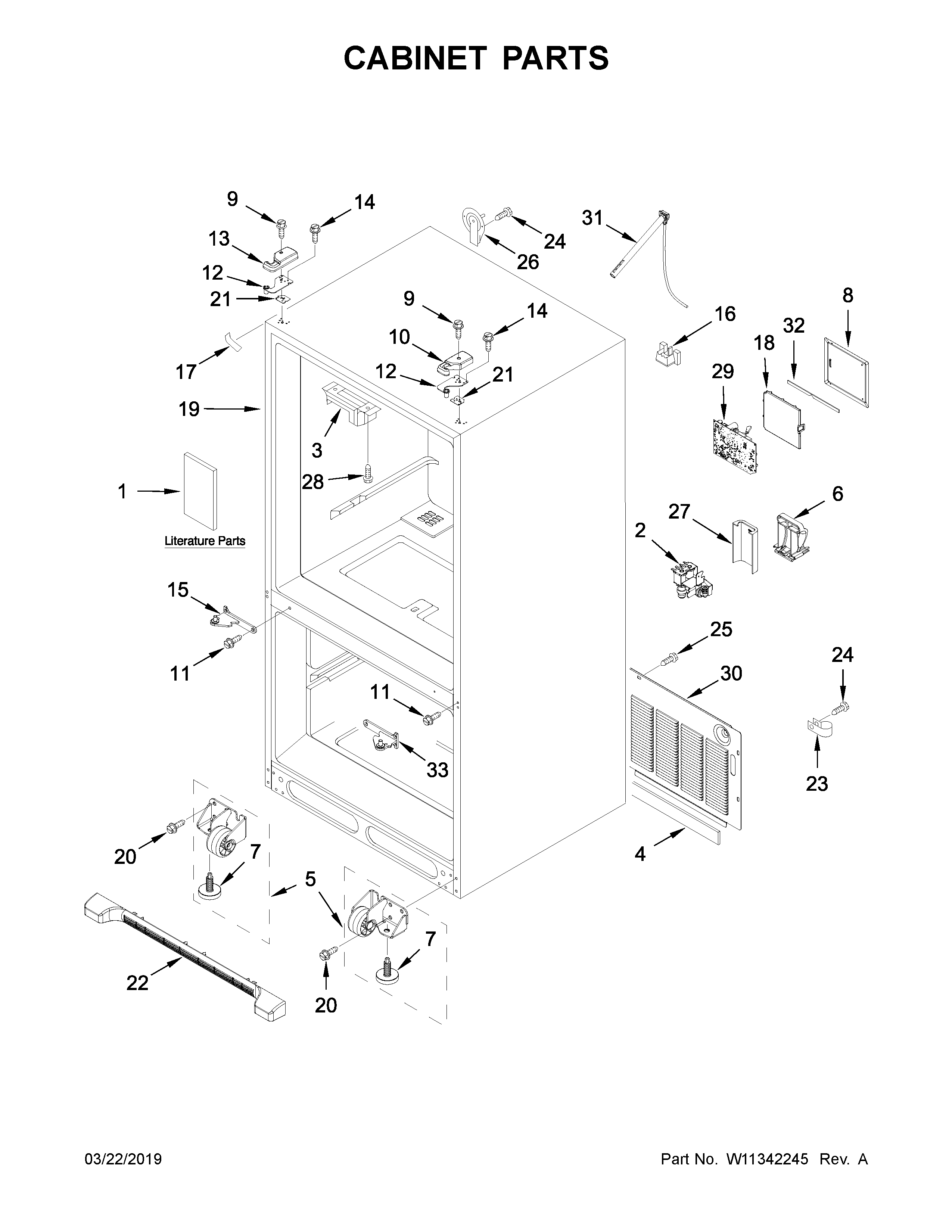

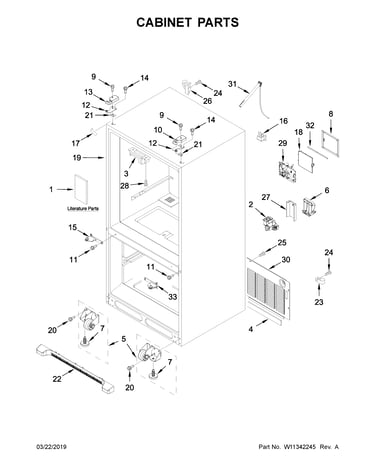

On your Whirlpool WRF540CWHZ02 bottom-mount refrigerator, the base grille (toe grille) typically pulls straight off from the front. Grip the grille near both ends, pull forward to release the retaining clips, then lift it away; reinstall by aligning and snapping it back into place.

Steps to remove the base grille

• Unplug the refrigerator or switch off power at the breaker if you will be working near wiring.
• Open both refrigerator doors for better access.
• Grip the base grille near the left and right ends (not the center).
• Pull the grille straight toward you to pop it off the clips.
• If the grille has screws on your unit, remove the screws first, then pull forward.
• Set the grille aside where it will not get stepped on or warped.

Reinstall tips (so it fits flush)

• Line up the grille ends with the lower front frame and leveling leg areas.
• Press firmly at both ends until you feel it snap into place.
• Confirm the grille is not rubbing the floor and is not bowed outward.

Quick troubleshooting if it will not come off

What you notice	Most likely cause	What to do
Grille will not budge	Hidden screws or tight clips	Look along the top edge for screws; remove, then pull forward at both ends
One side releases, other side stuck	Clip still engaged	Re-seat the loose side, then pull evenly with both hands
Grille pops off but will not sit flat	Misalignment at leveling legs	Adjust alignment and press at both ends until fully snapped

Why it matters

Removing the base grille gives you access for cleaning and inspection around the lower front area, which helps airflow and can prevent cooling performance issues over time.

If your grille is cracked or the mounting tabs are broken, we recommend replacing it with the correct part for WRF540CWHZ02 from the parts list on this page, or searching by model on Sears PartsDirect.

Last updated: February 2026

Yes. The Whirlpool WRF540CWHZ02 bottom-mount refrigerator uses a replaceable water filter for its water system; if your unit is connected to a water line, keeping the filter current helps protect water taste and flow.

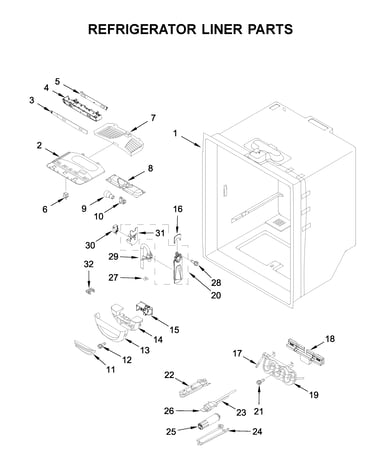

How to confirm you have the filter installed

• Look for a twist-in or push-in filter cartridge location inside the fresh food compartment.
• Check whether your refrigerator has a water line connected at the back.
• If you have a water dispenser or ice maker, a filter is typically part of the system.
• If water flow is slow or tastes off, a clogged filter is a common cause.
• If a bypass plug is installed instead of a filter, filtration is not active.

Replacement part that fits this model

For this model, the compatible replacement is the filter, water EDR4RXD1. Replace it about every 6 months, or sooner if water flow drops.

What you notice	Most likely cause	What we recommend
Slow dispenser flow or small ice cubes	Filter restricted	Replace the water filter
Odd taste or odor in water/ice	Filter overdue or water quality issue	Replace the filter and flush the system
No water/ice after filter change	Air in the line	Purge air by dispensing several gallons

After you replace the filter

• Dispense and discard several gallons of water to flush carbon fines and air.
• If your model has a filter status light, reset it after installation.
• Check for leaks around the filter housing after the first few minutes of use.

Why it matters

A fresh water filter helps maintain water flow to the inlet valve and ice maker, improves taste, and reduces sediment that can contribute to clogs over time.

For step-by-step help, use our DIY guide: how to replace the water filter in a Whirlpool refrigerator. You can also order the correct filter for WRF540CWHZ02 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

A bottom leak on your Whirlpool WRF540CWHZ02 bottom-mount refrigerator is typically caused by a clogged or frozen defrost drain, an overflowing or cracked drain pan, or a slow seep at the water supply, filter housing, or inlet valve that runs down to the base.

Quick checks we recommend first

• Unplug the refrigerator or turn off power at the breaker.
• Check for water under the crisper area (often points to a defrost drain backup).
• Look underneath for a drain pan that is out of position, cracked, or overflowing.
• Inspect the rear water line and fittings for slow drips.
• If the leak started after a filter change, reseat the filter and check the filter head area.

Common symptoms and what they usually mean

What you notice	Most likely source	What to do next
Water inside the fresh-food section, then leaking out the front	Defrost drain clogged or iced	Melt ice, clear the drain opening, flush with hot water
Water mainly at the back/bottom	Water line or inlet valve seepage	Dry everything, then watch for fresh drips at fittings/valve
Leak right after filter replacement	Filter not seated or filter head leaking	Reinstall filter firmly; inspect housing for cracks
Intermittent puddles, worse in humid weather	Condensation or door not sealing	Confirm doors close fully; check gasket contact all around

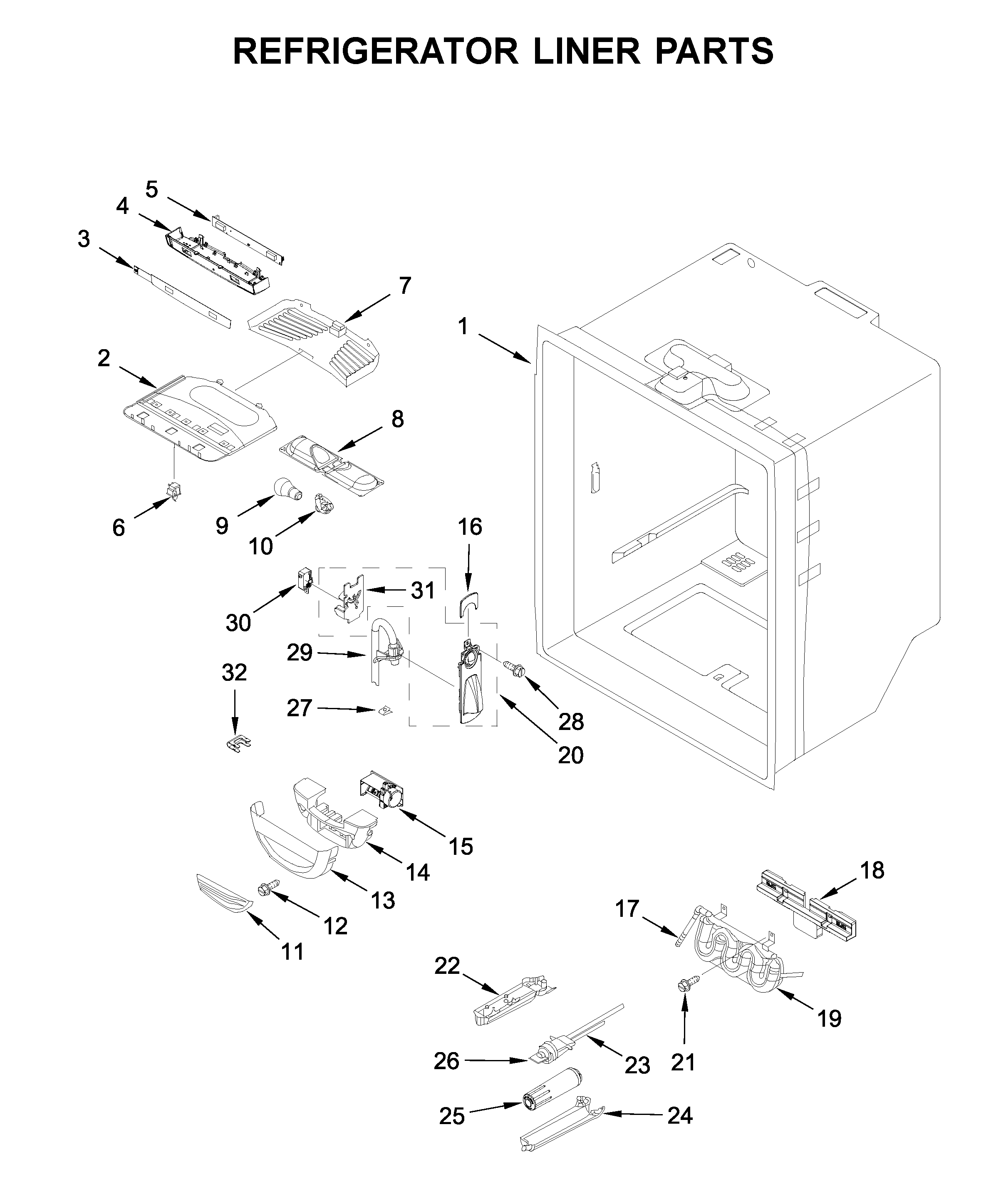

Parts that commonly relate to bottom leaks

If you confirm the leak is from the water system, these model-matched parts are common fixes:

• Refrigerator water inlet valve assembly WPW10420083
• Head, water filter (includes bypass cartridge) W11346623
• Filter, water EDR4RXD1
• Refrigerator water supply tube union, 5/16 x 5/16-in WP2300868

Why it matters

Bottom leaks can damage flooring and lead to recurring ice buildup and odors if the defrost drain keeps backing up. Fixing the source early helps prevent repeat puddles and protects electrical components.

Helpful DIY guidance

• How to get rid of refrigerator puddles
• How to replace the water filter in a Whirlpool refrigerator

You can order replacement parts for your WRF540CWHZ02 from the parts list for this model, or search by model number on Sears PartsDirect.
