KitchenAid KDTM704ESS3 dishwasher Parts

A KitchenAid dishwasher typically lasts 10 to 12 years. With normal household use, good water quality, and basic upkeep (cleaning filters and seals), many units reach the upper end of that range before major repairs become more common.

What affects lifespan most

• Water hardness and scale buildup (hard water shortens pump, valve, and heater life)
• How often you run it (multiple loads daily adds wear)
• Loading habits (overloading strains racks, spray, and circulation)
• Cleaning and maintenance (filters, spray arms, and seals)
• Small leaks left uncorrected (can damage components over time)

Maintenance that helps your KitchenAid KDTM704ESS3 last longer

• Clean the filter area and remove debris regularly.
• Run a dishwasher cleaner cycle periodically to reduce grease and mineral buildup.
• Inspect the door sealing surfaces and wipe them clean.
• Fix leaks early; a worn seal is a common cause.
• Make sure the unit drains fully after each cycle.

If you are seeing leaking around the door, replacing the tub gasket W11177741 is a common first step on this model.

Quick “repair vs. replace” guide

What you notice	Most likely next step	Why it matters
Minor leak at the door	Replace a seal or gasket	Prevents water damage and corrosion
Not draining well	Clear blockage, check hose routing	Standing water stresses the pump
Poor drying	Check heater performance and rinse aid use	Longer run times and rewashes add wear
Frequent error codes	Diagnose the specific code	Prevents repeat failures

For code-based troubleshooting, use our KitchenAid microclean he dishwasher error codes.

Why it matters

Dishwashers often run fine for years, then wear accelerates quickly once leaks, draining problems, or heating issues start. Catching those early usually extends the service life and reduces the chance of a major pump or motor repair.

Last updated: February 2026

The most common issues we see on KitchenAid dishwashers like model KDTM704ESS3 are poor cleaning results, not draining, leaks at the door, and “won’t start” symptoms. In many cases, the fix is basic maintenance (filters, spray arms, loading) or replacing a common wear part such as a seal or inlet valve.

Most common symptoms and what usually causes them

• Not cleaning well: clogged filter or spray arms, overloading, low water temperature, detergent issues
• Not draining: kinked/clogged drain path, blocked hose, pump obstruction
• Leaking from the door/front: worn or mis-seated door seals, debris on sealing surfaces
• Won’t start or stops mid-cycle: door not latching fully, control lock, float/overfill protection triggered
• Not drying: rinse aid low, heater circuit issue, cycle selection (eco cycles dry slower)

Quick checks you can do first (no parts)

1. Remove and rinse the filter area; clear any food debris.
2. Spin spray arms by hand; clear blocked holes.
3. Confirm the door closes firmly and nothing is preventing a full latch.
4. Run hot water at the sink for 30 to 60 seconds before starting a cycle.
5. Check the drain hose routing for kinks and make sure the sink/disposer connection is clear.

Parts that commonly solve these problems on KDTM704ESS3

If cleaning and basic checks do not fix it, these are frequent replacements for the symptoms above:

Symptom	Common part to check/replace	What it affects

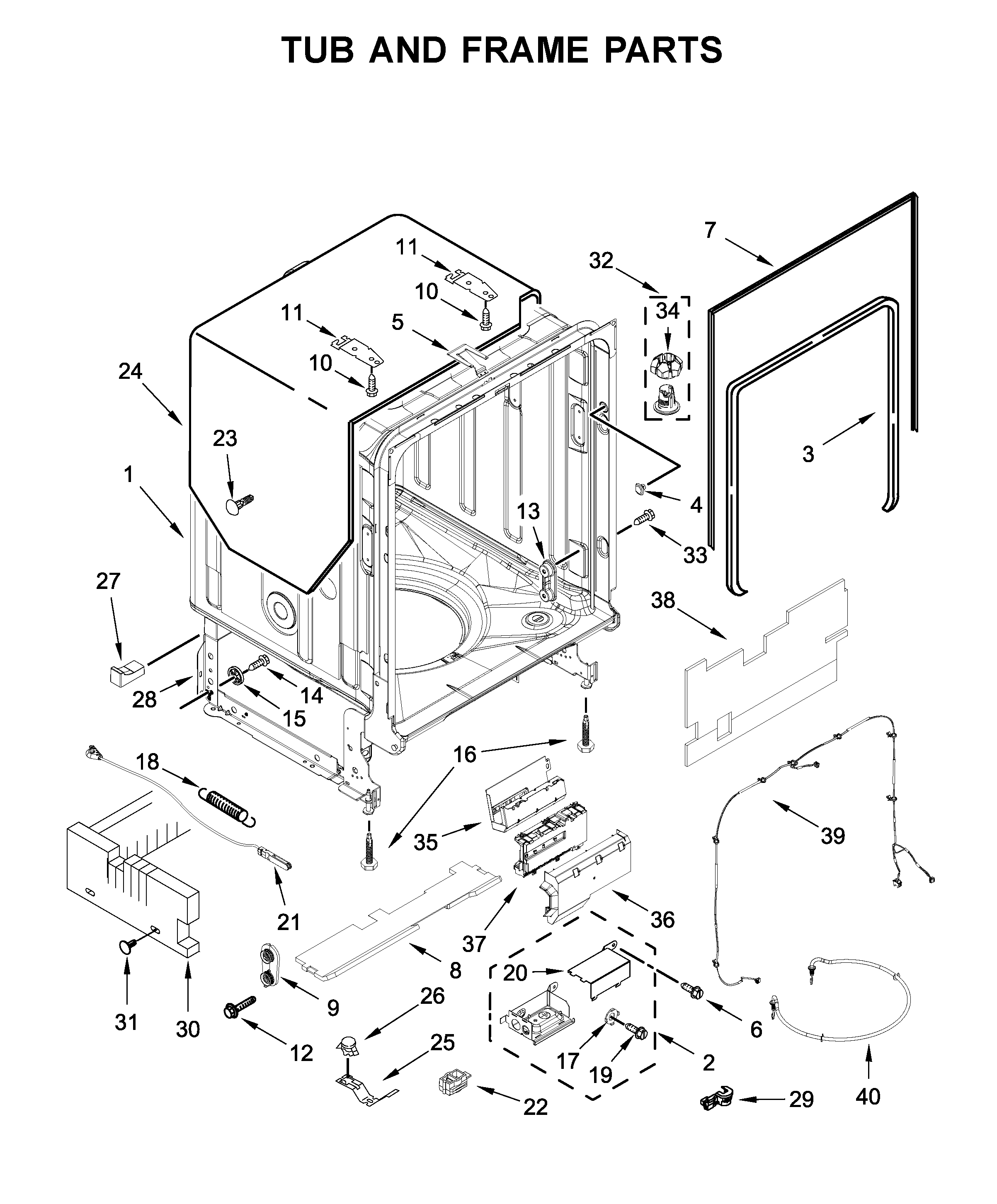

Leaks at door	Tub gasket W11177741	Seals the door opening to prevent water escaping
Leaks at bottom/front	Dishwasher door seal, lower W10909089	Seals the lower edge where splashing is heaviest
Not filling or fills slowly	Dishwasher water inlet valve W11175771	Controls water entering the dishwasher
Not heating or poor drying	Element assembly W10703867	Heats water and supports drying performance
Not draining	Dishwasher drain hose 8269144A	Carries drain water to the sink/disposer

Error codes can speed up the diagnosis

If your KDTM704ESS3 is flashing a code or beeping pattern, match it to the failure area before replacing parts. Use our KitchenAid microclean he dishwasher error codes guide to narrow it down.

Why it matters

Most “big” dishwasher complaints trace back to water flow, sealing, or heating. Fixing the root cause improves cleaning, prevents cabinet damage from leaks, and helps the dishwasher run quieter and more efficiently.

Last updated: February 2026

On the KitchenAid KDTM704ESS3 dishwasher, you can run built-in diagnostics by using a quick button sequence on the console (using non-Start buttons) to enter Service Diagnostics mode; the dishwasher then runs a short test routine and stores or displays fault codes that point to the problem area.

Before you start (important)

• Close the door fully and make sure it latches.
• Use any 3 keys that are not START/RESUME (and avoid CANCEL/DRAIN if your console has it).
• Press the keys quickly and consistently; timing matters.
• If the dishwasher is mid-cycle, press CANCEL/DRAIN once and wait for it to stop.
• If the control panel is unresponsive, restore power at the breaker for 1 minute, then try again.

How to enter Service Diagnostics mode

1. Pick three buttons (for example: 1-2-3 from left to right) that are not START/RESUME.
2. Press the sequence 1-2-3, 1-2-3, 1-2-3.
3. Complete all 9 presses within about 8 seconds.
4. Close the door (if it is open) and wait; the diagnostic cycle should begin.

What you should see

What happens	What it usually means
Diagnostic cycle starts running	You successfully entered diagnostics
Lights blink in a repeating pattern	A stored fault code is being shown
Nothing happens	Sequence was too slow, wrong keys, or door not latched

What to do with the results

Diagnostics helps you narrow the failure to a system (drain, fill, heating, wash motor, door switch). Use these next steps based on symptoms:

• Won’t fill or fills slowly: check the water supply valve is open; a failing dishwasher water inlet valve W11175771 is a common cause.
• Not draining: check the sink/disposal connection and the high loop/air gap; inspect the dishwasher drain hose 8269144A for kinks or clogs.
• Not drying or water stays cool: heating issues often point to the element assembly W10703867.

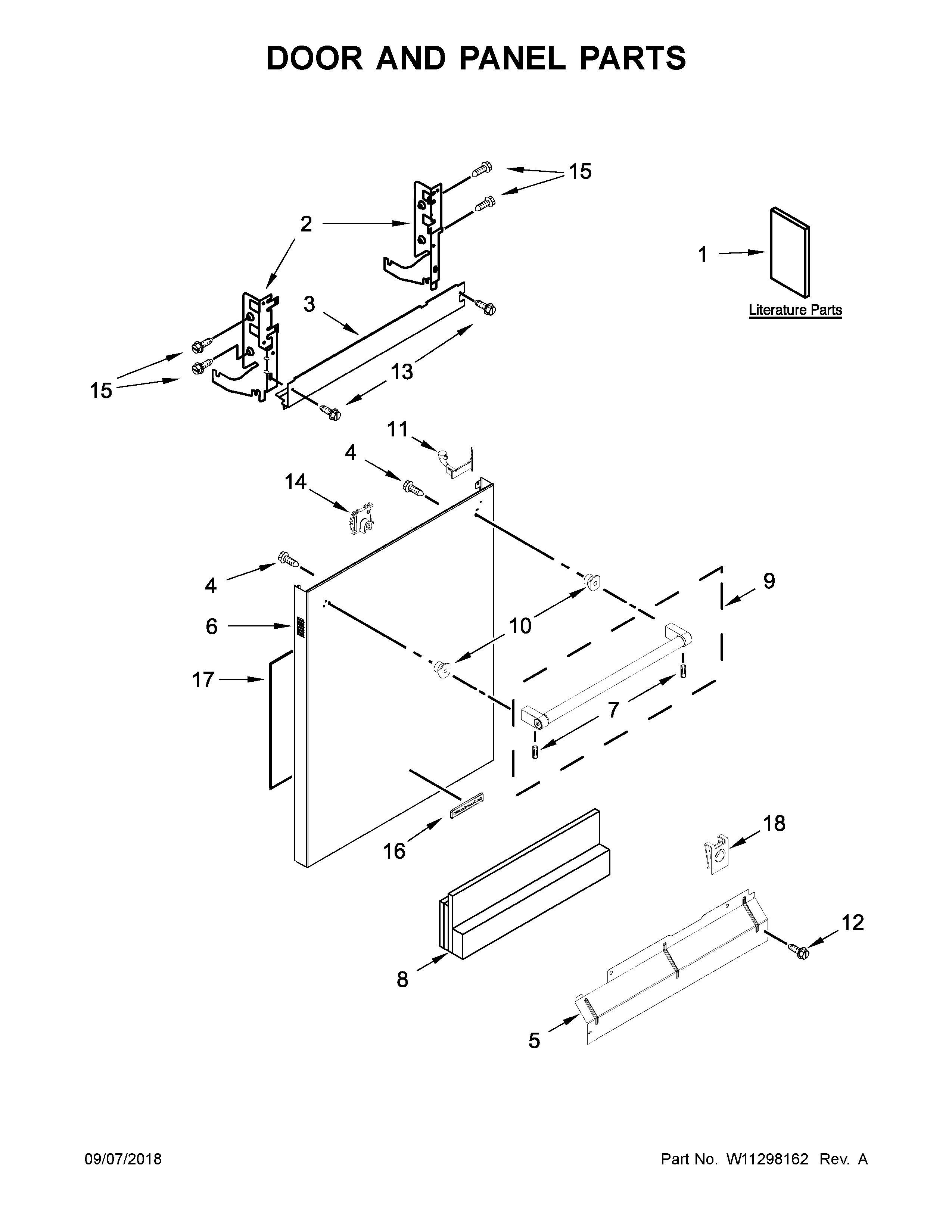

• Door drops fast or won’t stay open: inspect the dishwasher door spring WP8270020 and the dishwasher door balance link 8194001.

Why it matters

Running diagnostics on the KDTM704ESS3 prevents guesswork. It helps us focus on the right circuit and part group first (fill, drain, heat, or motor), which saves time and avoids replacing good parts.

For code lookups and what each code means, use our KitchenAid microclean he dishwasher error codes.

Last updated: February 2026
