GE GIE18ISHCRSS refrigerator Parts

To find the correct GE refrigerator part number for model GIE18ISHCRSS, start by locating the model and serial label inside the fresh food compartment, then use that exact model number to match the right diagram and part listing in the GIE18ISHCRSS owner's manual.

For GE GIE18ISHCRSS top-mount refrigerators, the model and serial numbers are printed on a label on the left side, near the middle of the refrigerator compartment.

• Open the refrigerator (fresh food) door
• Look on the left interior wall, around mid-height
• Write down the model number and serial number exactly as shown
• Keep the numbers handy before ordering parts or scheduling service

Once you have the model number, match parts by section (ice maker, doors, fans, lighting, etc.). This prevents ordering a look-alike part that does not fit your exact configuration.

Common examples for this model include:

• Ice maker components such as the GE refrigerator ice maker kit WR30X10093
• Lighting such as the GE appliance light bulb, 40-watt 40A15
• Cooling airflow parts such as the refrigerator evaporator fan motor WR60X10240

• Model number: GIE18ISHCRSS (must match exactly)
• Part description: confirm you are in the correct section (freezer vs fresh food)
• Part ID/part number: use the exact identifier shown on the part listing
• Symptom: confirm the part matches what is failing (no ice, warm fridge, noisy fan)
• Revision differences: if multiple versions appear, match by model/serial range when shown

GE often uses similar-looking parts across multiple refrigerator series. Using the exact model number from the inside label is the fastest way to get the correct part number the first time and avoid returns or fit issues.

Last updated: February 2026

To order parts for your GE GIE18ISHCRSS top-mount refrigerator, start by using the complete model number and serial number; then order the exact replacement by matching the part number and description in the GIE18ISHCRSS owner's manual. If you need extra help choosing the right part or locating it in the diagrams, contact Sears PartsDirect support.

Having the right details prevents wrong-part returns and delays.

• Complete model number: GIE18ISHCRSS
• Serial number (found on a label inside the fresh food compartment, left side near the middle)
• Part name and part number (example: ice maker kit)
• A quick symptom description (for troubleshooting-based part selection)
• Photos of the part and how it mounts (helpful for look-alikes)

1. Confirm the model and serial number location in the GIE18ISHCRSS owner's manual.
2. Identify the failed part by function (cooling, lighting, ice maker, door seal).
3. Match the replacement using the exact part number and description.
4. If you are adding an ice maker, confirm your refrigerator has a cold water line available and a shutoff valve.

GE often uses similar-looking parts across multiple top-freezer models. Using the exact GIE18ISHCRSS model and serial number helps ensure the part fits, the connectors match, and the repair solves the right problem the first time.

Last updated: March 2026

GE Monogram refrigerators typically last 15 to 20 years. This GE GIE18ISHCRSS is a standard top-freezer refrigerator (not a Monogram unit); most refrigerators in this class run 10 to 15 years with normal use and routine care outlined in the GIE18ISHCRSS owner's manual.

Use this as a practical benchmark when planning repairs or replacement.

These items have the biggest impact on compressor run time and cooling efficiency:

• Condenser cleanliness; dust buildup makes the system run hotter and longer
• Door sealing; air leaks cause longer run times and frost issues
• Airflow through vents; blocked vents reduce circulation and create warm spots
• Stable temperatures; frequent door openings and overloading increase cycling
• Fast fixes for cooling problems; fan, defrost, and water leak issues accelerate wear

Follow these high-impact steps for the GE GIE18ISHCRSS and most GE refrigerators:

• Vacuum dust from the condenser area and surrounding vents on a regular schedule
• Verify doors close fully and the gasket seals all the way around; replace a torn gasket such as the refrigerator door gasket WR24X23008 when needed
• Keep freezer and fresh-food vents clear of packages and containers
• Watch for new noises (rattling, squealing) that can point to fan or airflow problems
• Address puddles or ice buildup quickly to prevent corrosion and restricted airflow

A refrigerator that leaks air or cannot shed heat runs longer to hold temperature. That extra run time increases energy use and shortens the service life of major components like the compressor and fans.

Last updated: February 2026

The most common problem we see on a GE refrigerator like model GIE18ISHCRSS is a cooling complaint: the fresh food section gets warm, temperatures swing, or the freezer is not cold enough. In many cases, the root cause is restricted airflow (blocked vents or overpacked shelves) or a fan or defrost issue.

• Make sure air vents in the freezer and fresh food sections are not blocked by food packages.
• Avoid overstuffing; tight packing reduces circulation and creates warm spots.
• Keep food covered; uncovered containers add moisture that can increase frost buildup.
• Confirm the freezer is set cold enough for normal operation (ice maker performance depends on cold freezer temps).
• If you have an ice maker, verify it is OFF until the water line is connected and water is turned on.

If airflow or defrost problems point to a failed component, these model-matched parts are often involved:

• Refrigerator evaporator fan motor WR60X10240 (circulates cold air through the compartments)
• Refrigerator defrost heater WR09X21107 (melts frost off the evaporator during defrost)
• Refrigerator water inlet valve WR57X39965 (controls water flow to the ice maker, on water-connected setups)

Cooling problems usually get worse fast: restricted airflow and frost buildup reduce heat transfer, drive longer run times, and can lead to food spoilage. Addressing vent blockage and early fan or defrost symptoms helps restore stable temperatures.

For model-specific operating tips, temperature guidance, and troubleshooting charts, follow the GIE18ISHCRSS owner's manual.

Last updated: February 2026

On the GE GIE18ISHCRSS top-mount refrigerator, the top section is the freezer compartment. It’s the coldest area of the appliance, designed to keep food frozen and, on some setups, support an automatic ice maker.

The freezer compartment is built to maintain below-freezing temperatures for long-term storage.

• Freezes and stores foods safely for extended periods
• Helps keep ice cream and frozen items at consistent texture
• Often houses the ice maker area (if equipped)
• Works with airflow from the evaporator system to cool both sections
• Can be affected by door sealing and door alignment issues

For feature details and compartment use, follow the guidance in the GIE18ISHCRSS owner's manual.

People use different names for the same area. Here’s a quick reference.

Knowing the correct compartment name helps when you’re ordering GE refrigerator parts, reading troubleshooting steps, or following installation and clearance guidance for proper air circulation.

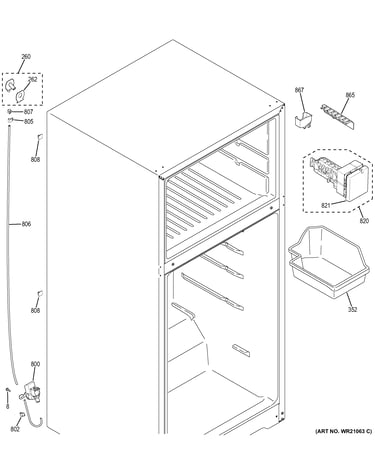

If you’re adding or servicing ice production in the top compartment, the GE refrigerator ice maker kit WR30X10093 is the model-matched ice maker kit listed for this refrigerator.

Last updated: February 2026
