Whirlpool
Washer

Model # LSQ9659PW3 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool LSQ9659PW3 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

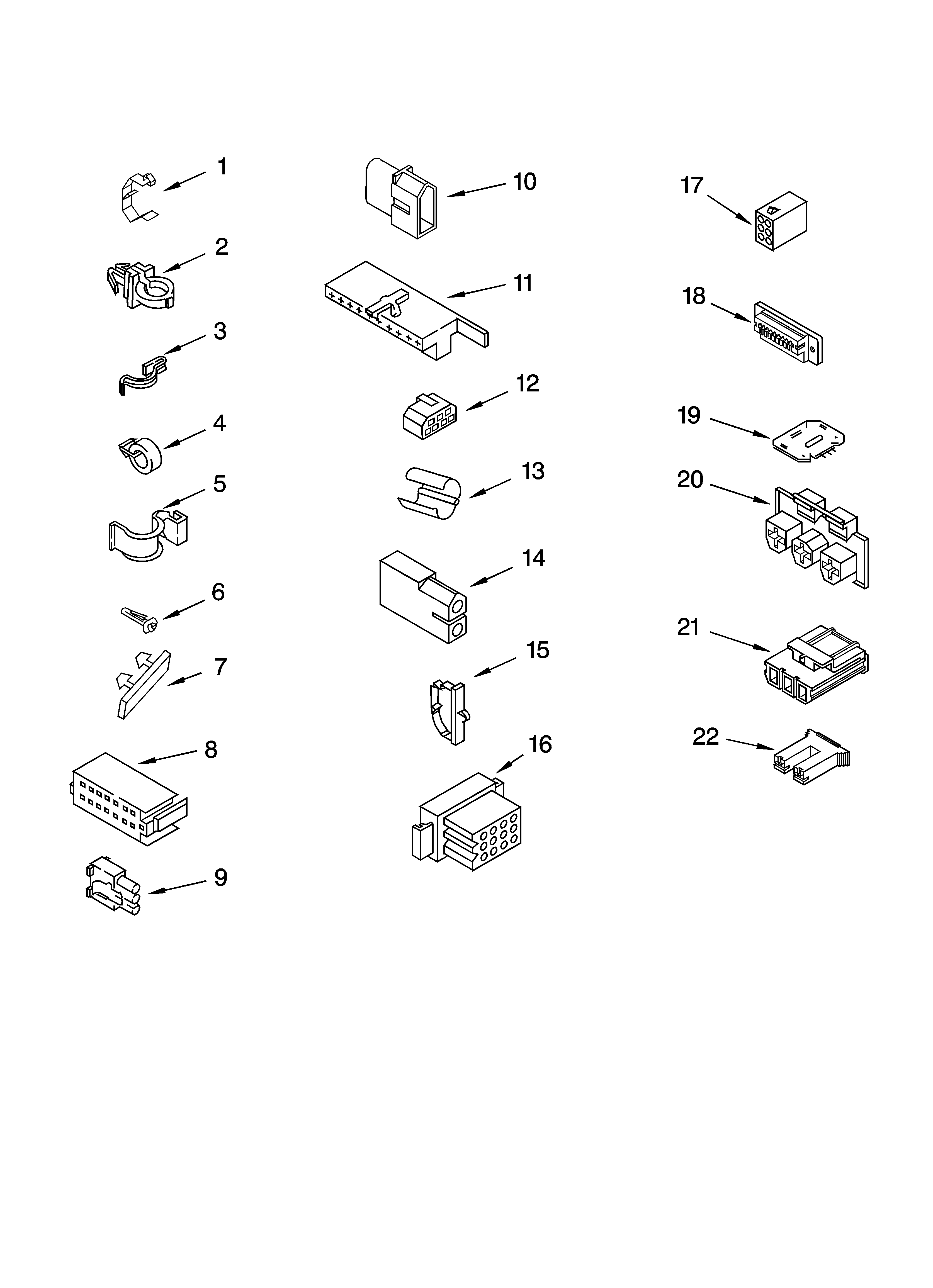

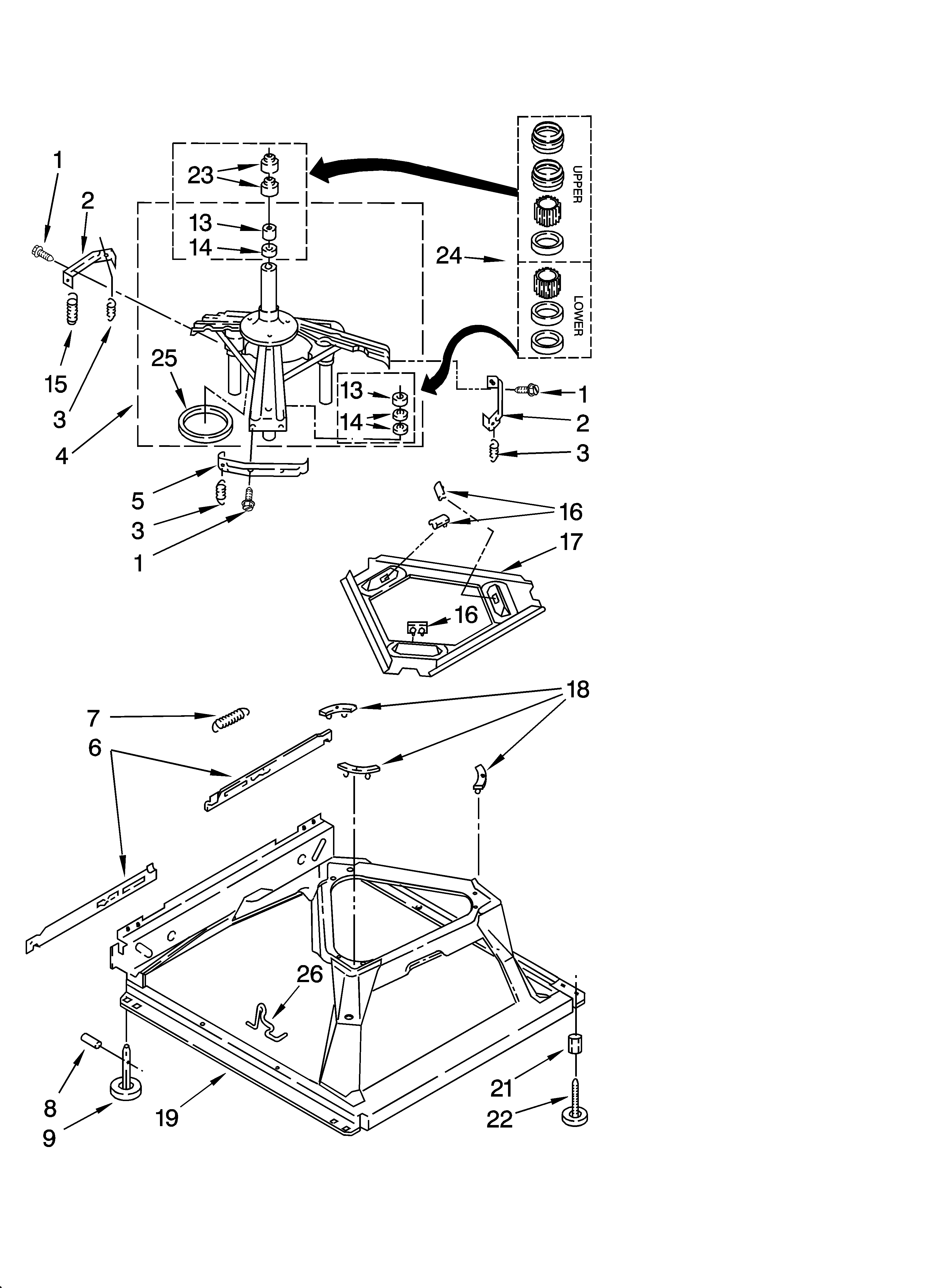

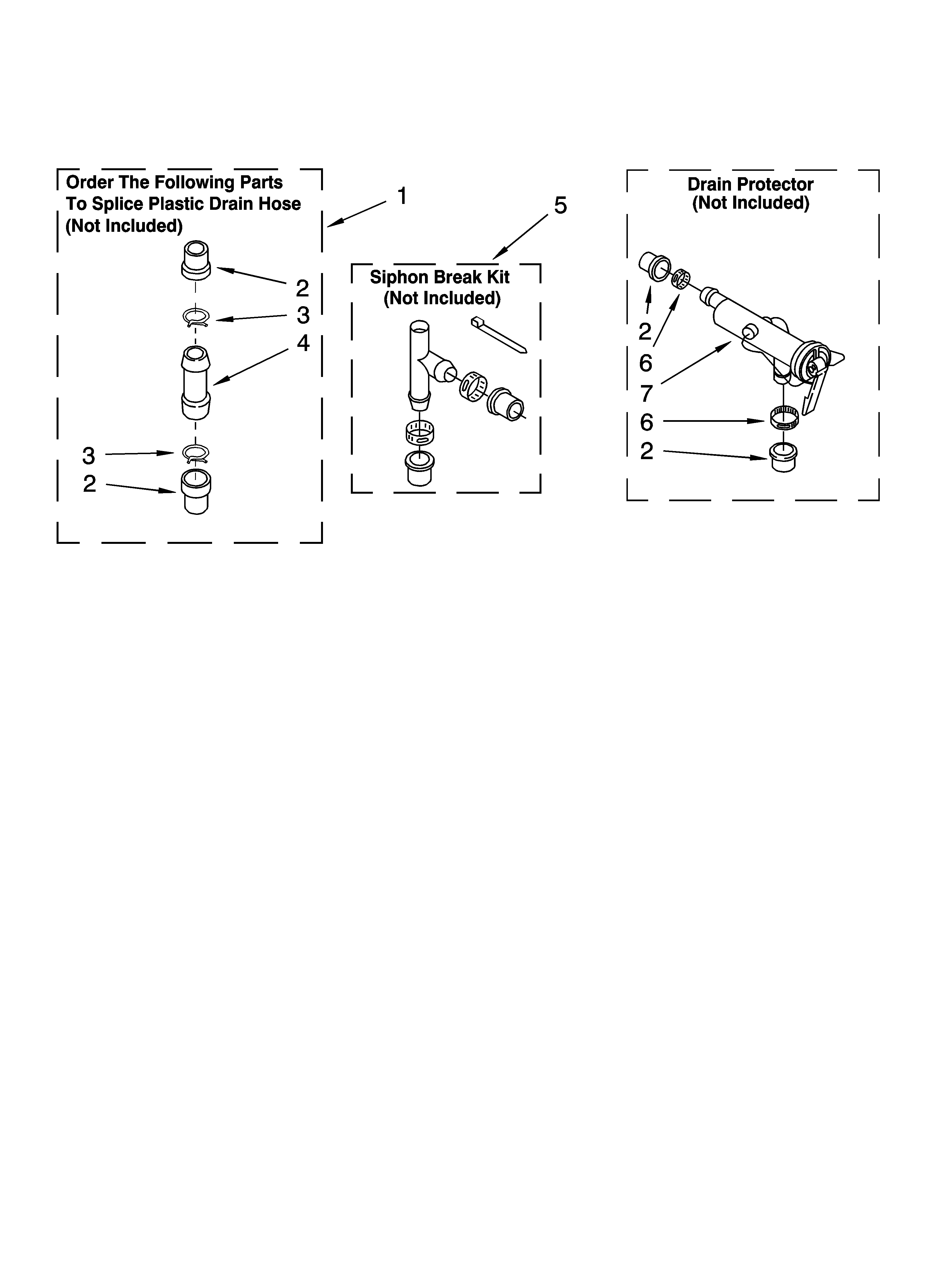

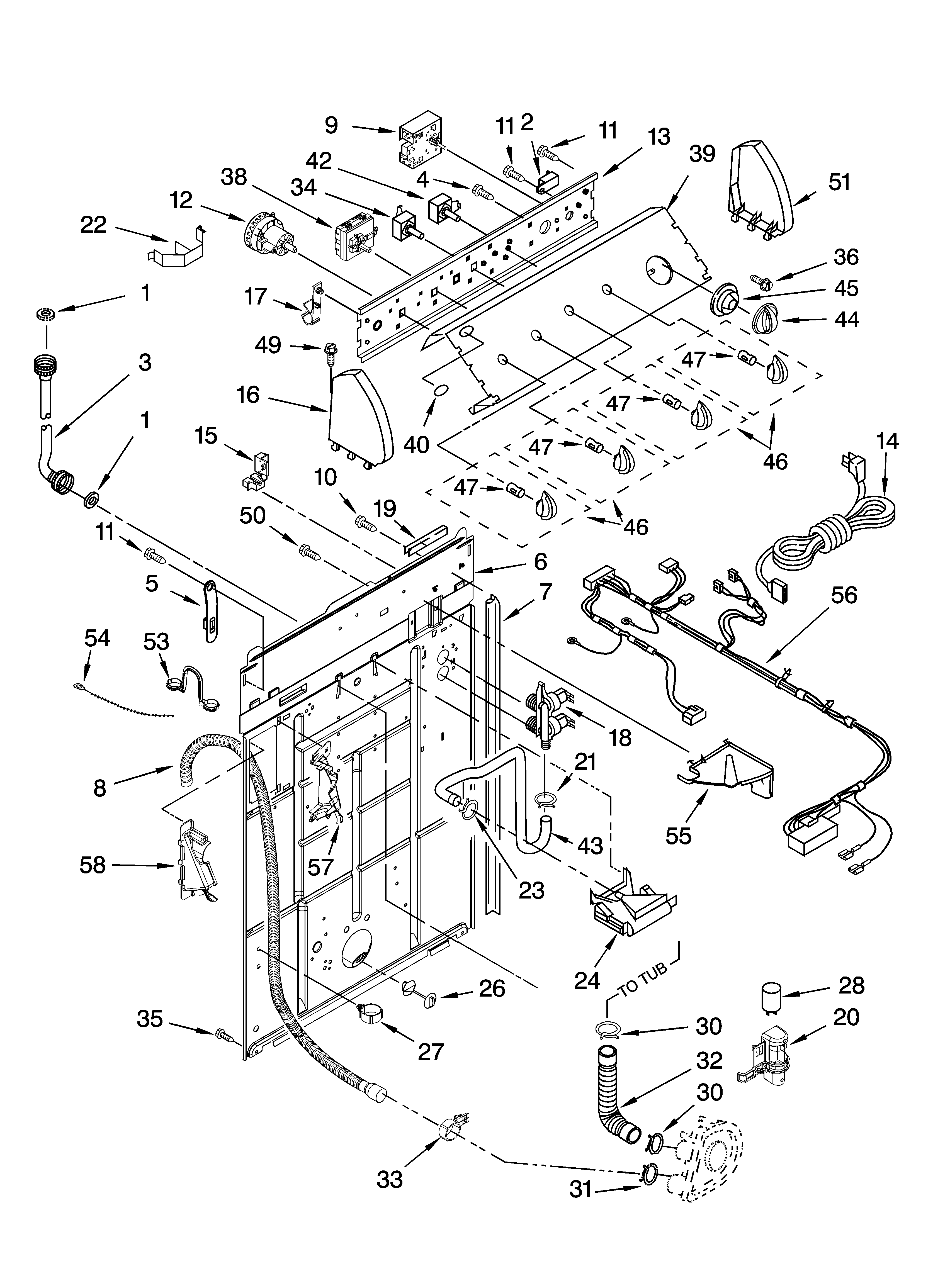

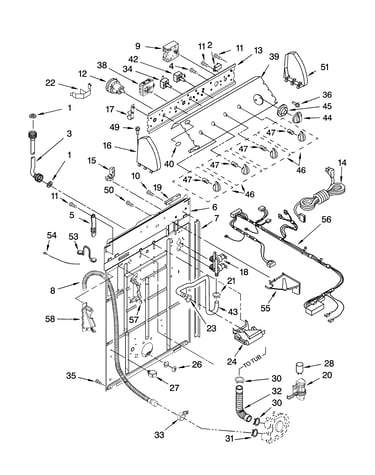

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |

Agitator Dog 3366877
#10

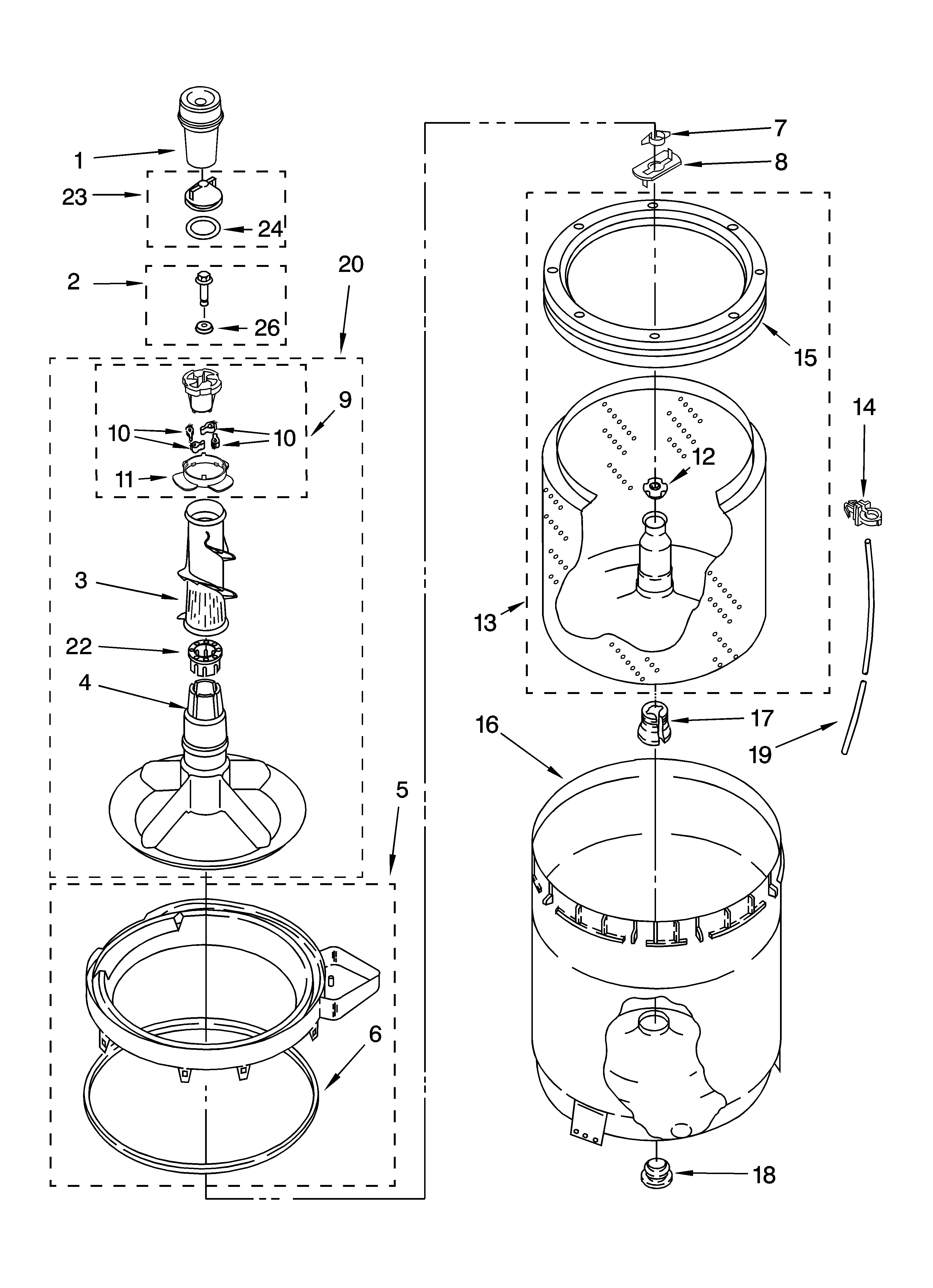

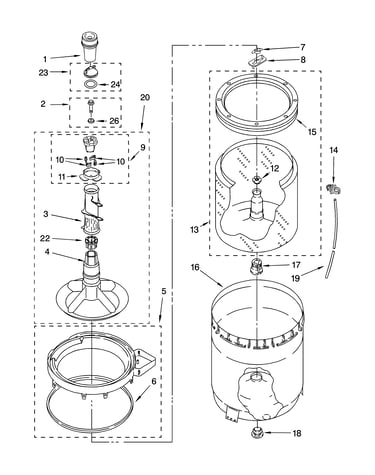

Agitator, basket and tub parts diagram

Agitator dog

Part #3366877

Replaced by #80040

?
Manufacturer substitution
This part replaces 3366877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.22
19% OFF MSRP : $5.20
In Stock
Washer Motor Coupling 285753
#13

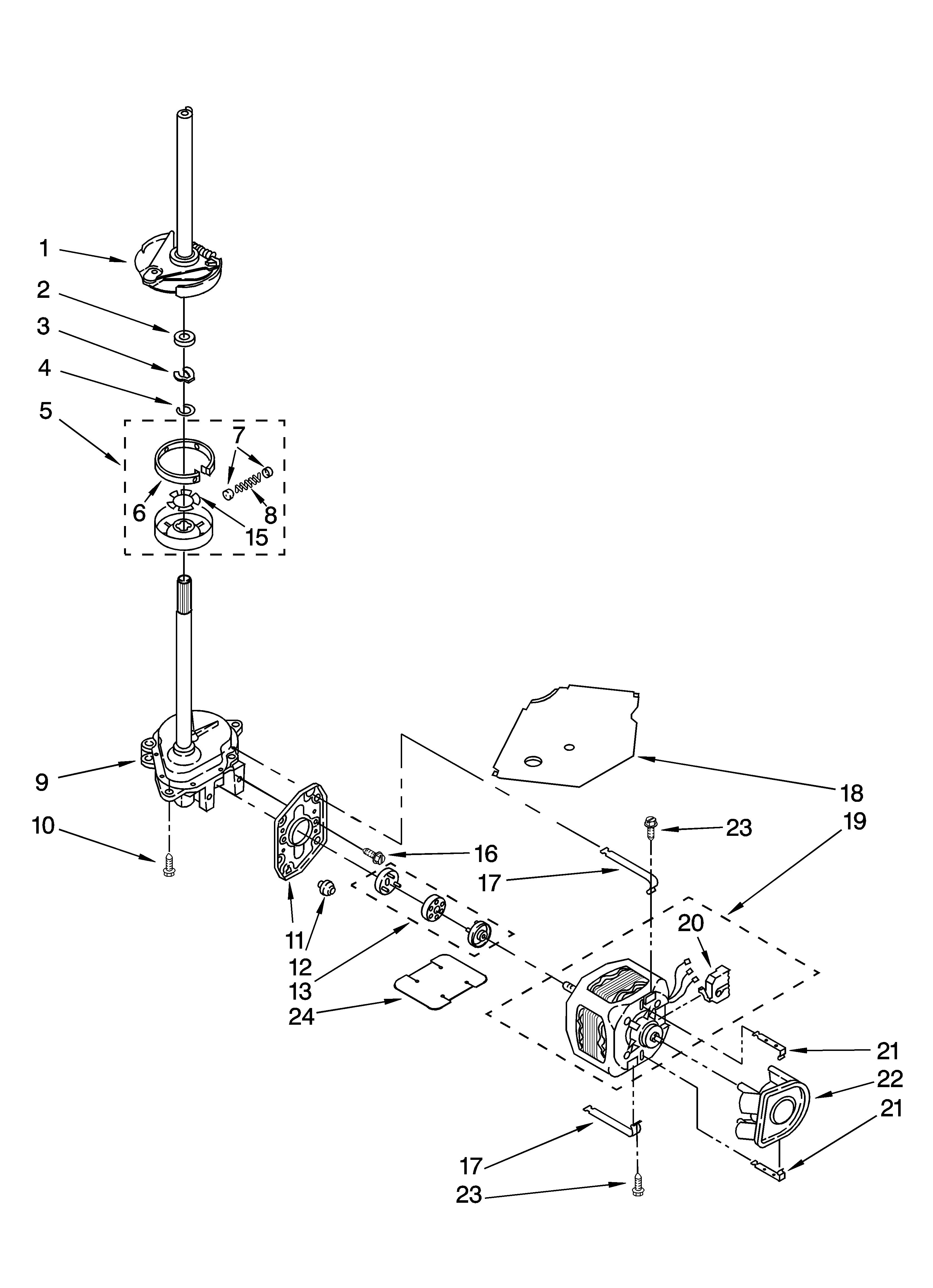

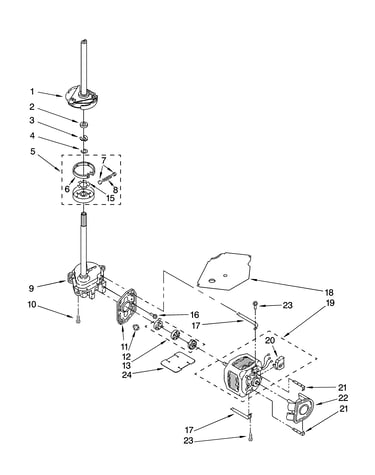

Brake, clutch, gearcase, motor and pump parts diagram

Washer motor coupling

Part #285753

Replaced by #285753A

?
Manufacturer substitution
This part replaces 285753. Substitute parts can look different from the original.
BEST SELLER
$25.02
17% OFF Phone Price : $30.02
In Stock
Gear 62570
#25

Gearcase parts diagram

Gear

Part #62570

Replaced by #3360629

?
Manufacturer substitution
This part replaces 62570. Substitute parts can look different from the original.
BEST SELLER
$233.41
$10.00 OFF Phone Price : $243.41
In Stock
Gear Case 3360630
Gear case

Part #3360630

Replaced by #3360629

?
Manufacturer substitution
This part replaces 3360630. Substitute parts can look different from the original.
BEST SELLER
$233.41
$10.00 OFF Phone Price : $243.41
In Stock
Clutch 3951311
#5

Brake, clutch, gearcase, motor and pump parts diagram

Clutch

Part #3951311

Replaced by #285785

?
Manufacturer substitution
This part replaces 3951311. Substitute parts can look different from the original.
BEST SELLER
$33.14
13% OFF Phone Price : $38.14
In Stock
Washer Drain Pump 3363394
#22

Brake, clutch, gearcase, motor and pump parts diagram

Washer drain pump

Part #3363394

Replaced by #WP3363394

?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
BEST SELLER
$36.00
23% OFF MSRP : $46.50
In Stock
Drive Basket 388952
Drive basket

Part #388952

Replaced by #W10820043

?
Manufacturer substitution
This part replaces 388952. Substitute parts can look different from the original.
BEST SELLER
$133.32
7% OFF Phone Price : $143.32
In Stock
Washer Drive Block 389140
#17

Agitator, basket and tub parts diagram

Washer drive block

Part #389140

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
BEST SELLER
$26.02
16% OFF Phone Price : $31.02
In Stock
Washer Lid Switch Assembly 8318084
#11

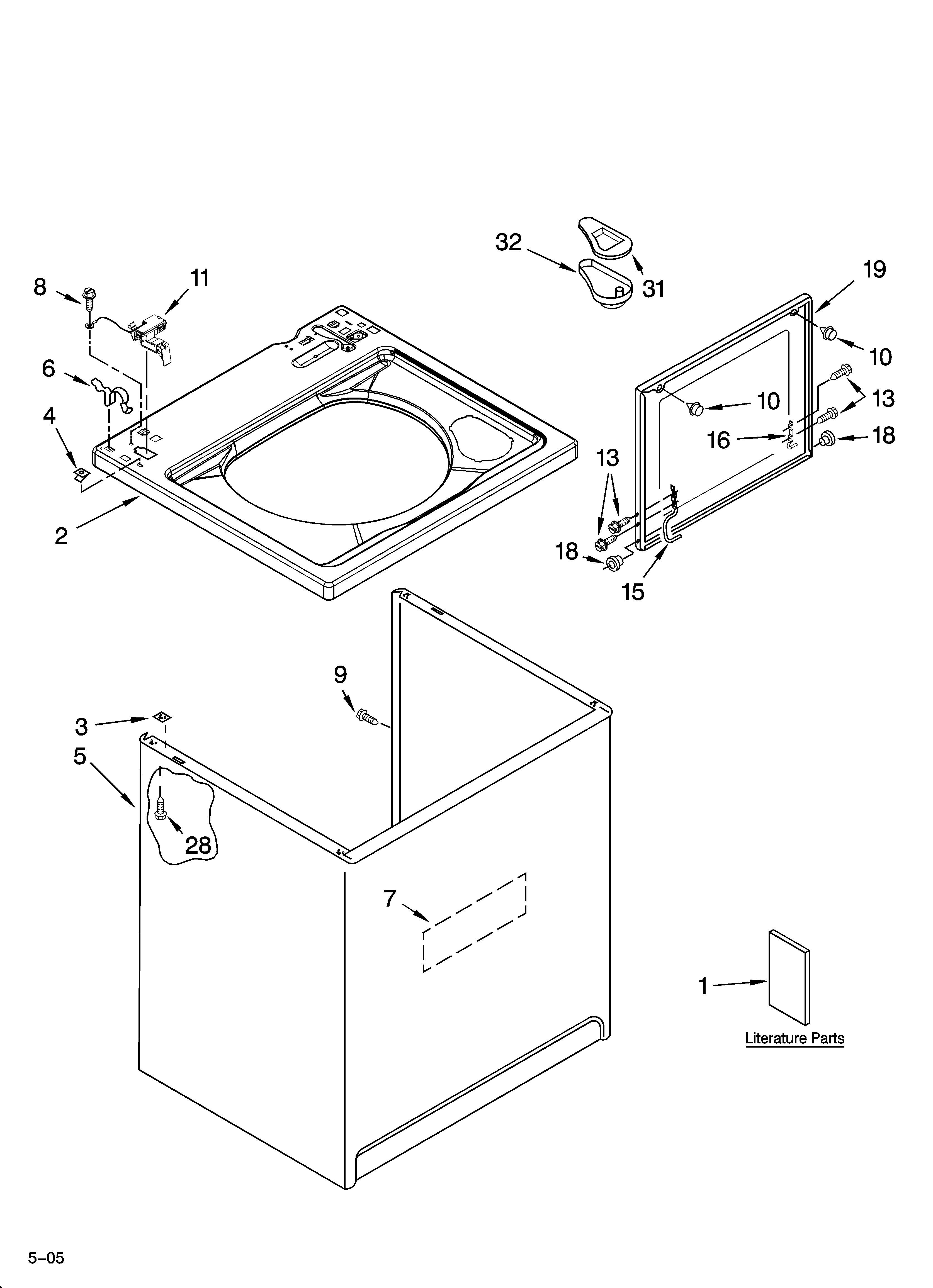

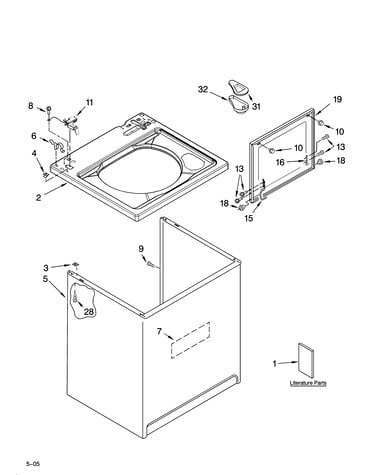

Top and cabinet parts diagram

Washer lid switch assembly

Part #8318084

Replaced by #WP8318084

?
Manufacturer substitution
This part replaces 8318084. Substitute parts can look different from the original.
BEST SELLER
$43.34
10% OFF Phone Price : $48.34
In Stock
Washer Agitator Bolt 358237
#2

Agitator, basket and tub parts diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.58
60% OFF MSRP : $14.00
In Stock
