Murray
Gas Snowblower

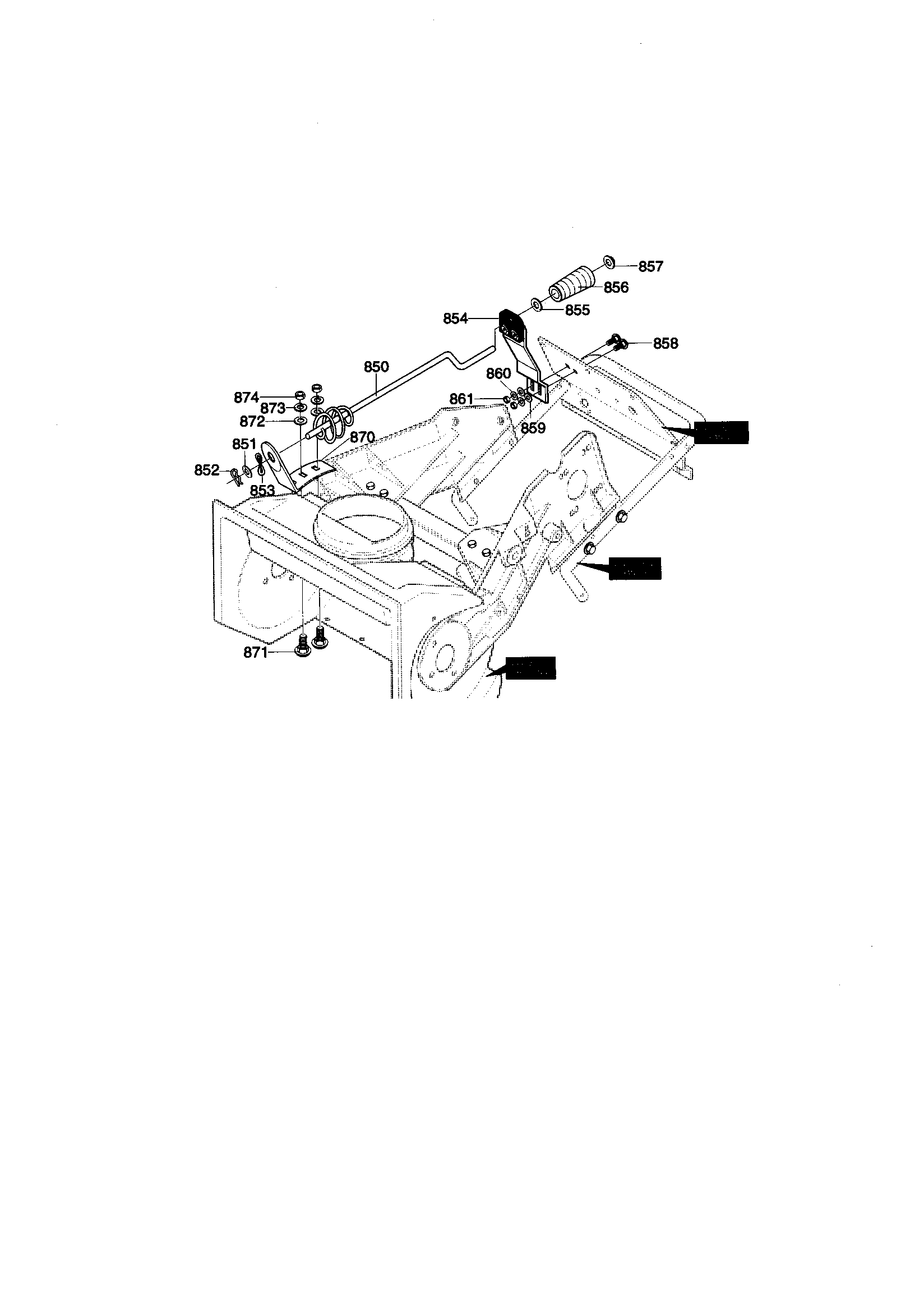

Model #621450X4B Murray snow thrower

Here are the diagrams and repair parts for Murray 621450X4B snow thrower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 133 parts

Lawn & Garden Equipment Engine Fuel Filter

#117

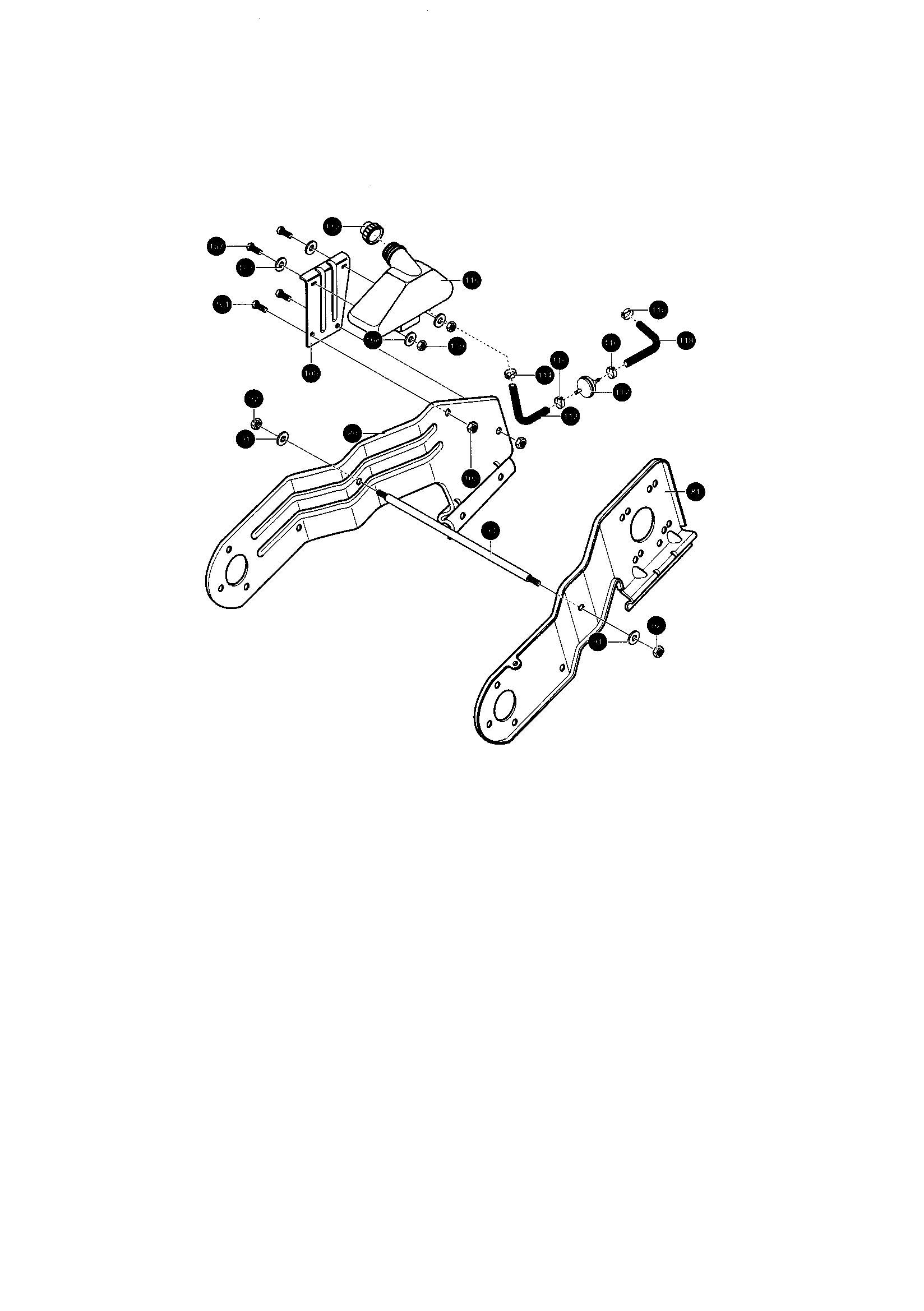

Frame components Diagram

Lawn & garden equipment engine fuel filter

Part #394358S
?
Manufacturer substitution
This part replaces 56679. Substitute parts can look different from the original.
This part replaces 56679
This item is not returnable
$4.60

In Stock

Snowblower Wing Bolt

#604

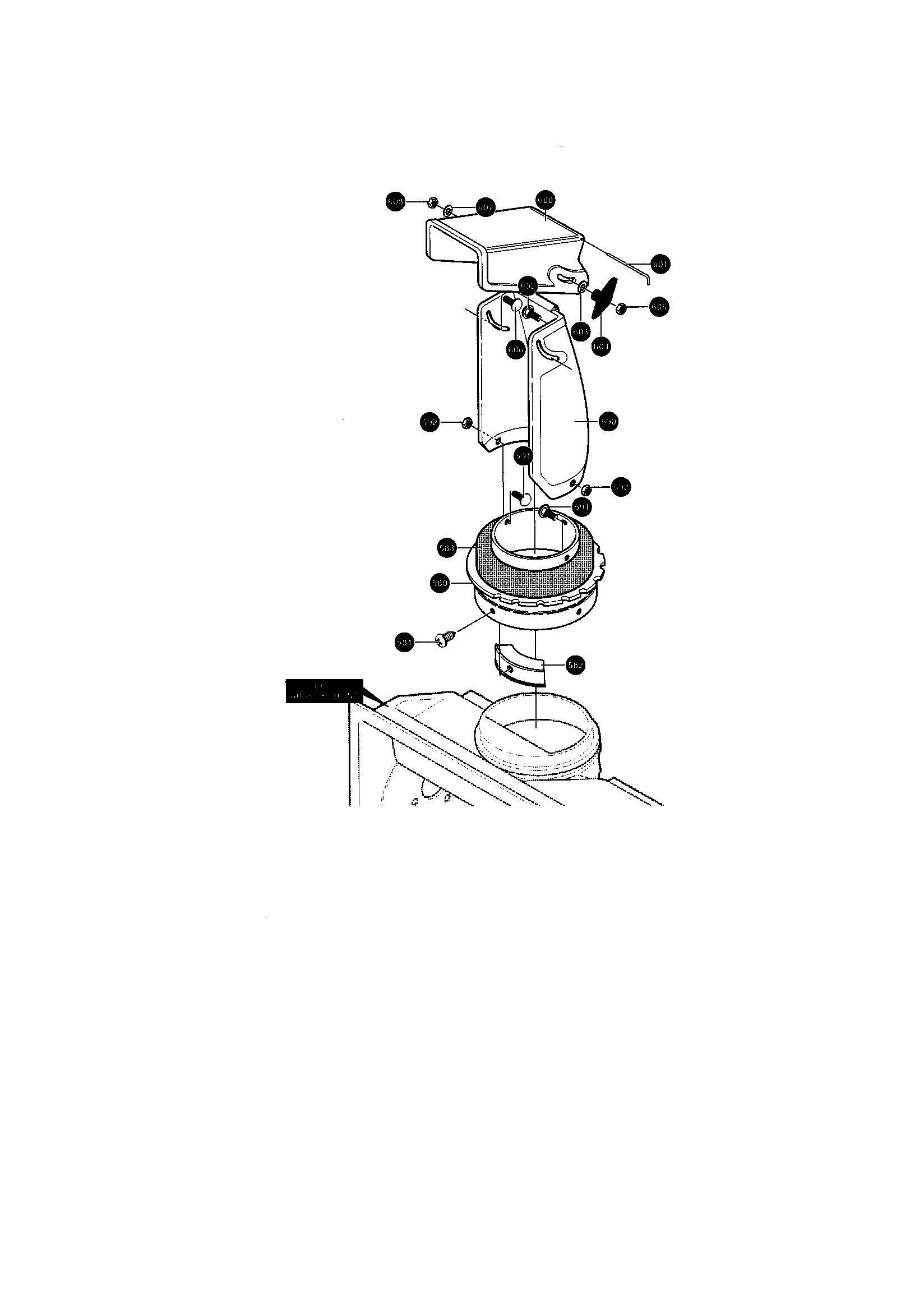

Chute assembly Diagram

Snowblower wing bolt

Part #1501260MA
?
Manufacturer substitution
This part replaces 57171. Substitute parts can look different from the original.
This part replaces 57171
$8.70

In Stock

Snowblower Flange Bearing

#510

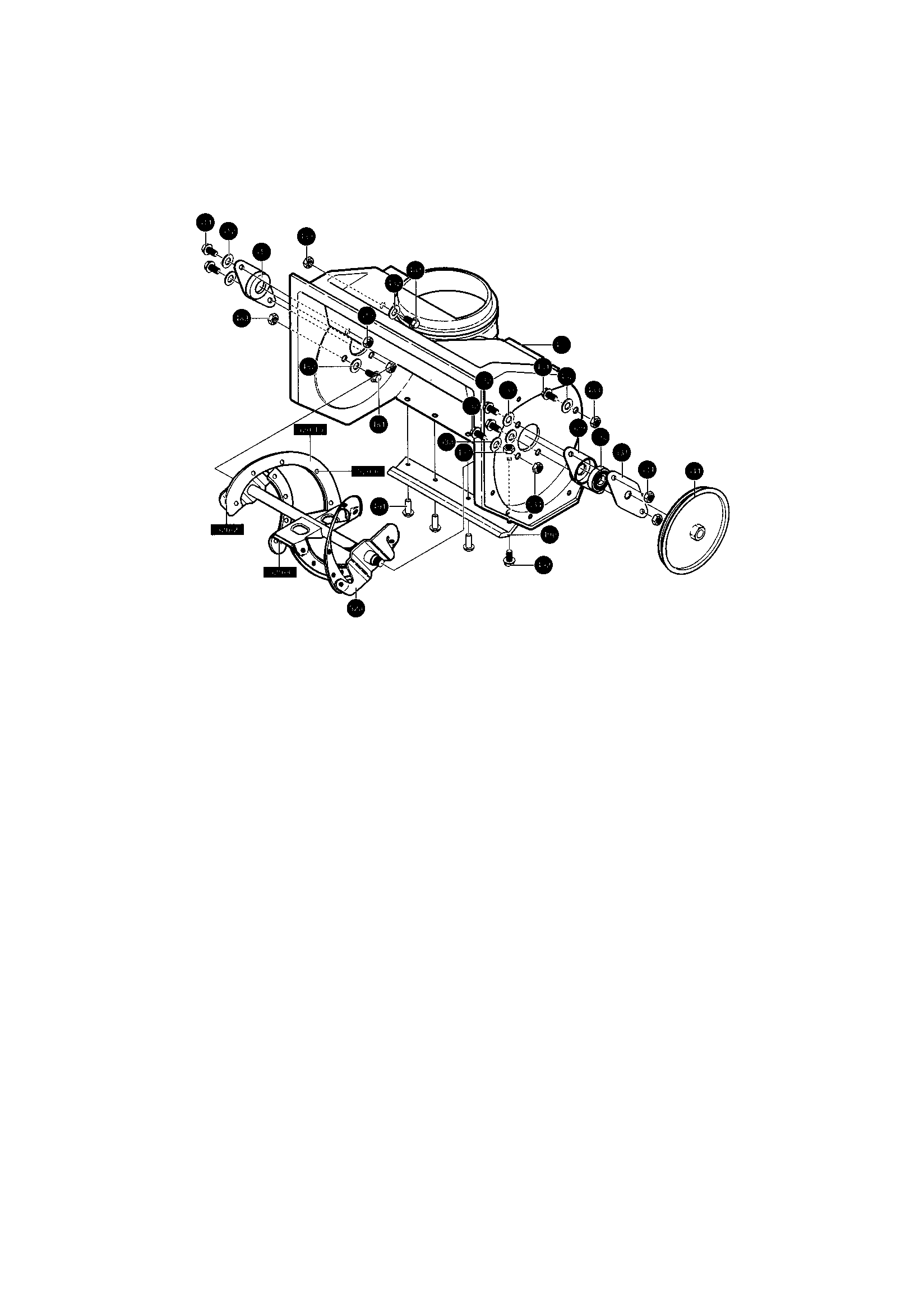

Auger housing assembly Diagram

Snowblower flange bearing

Part #577023MA
?
Manufacturer substitution
This part replaces 577023. Substitute parts can look different from the original.
This part replaces 577023
This item is not returnable
$3.93 |
24% OFF MSRP:$5.20

In Stock

Snowblower Flat Washer

#651

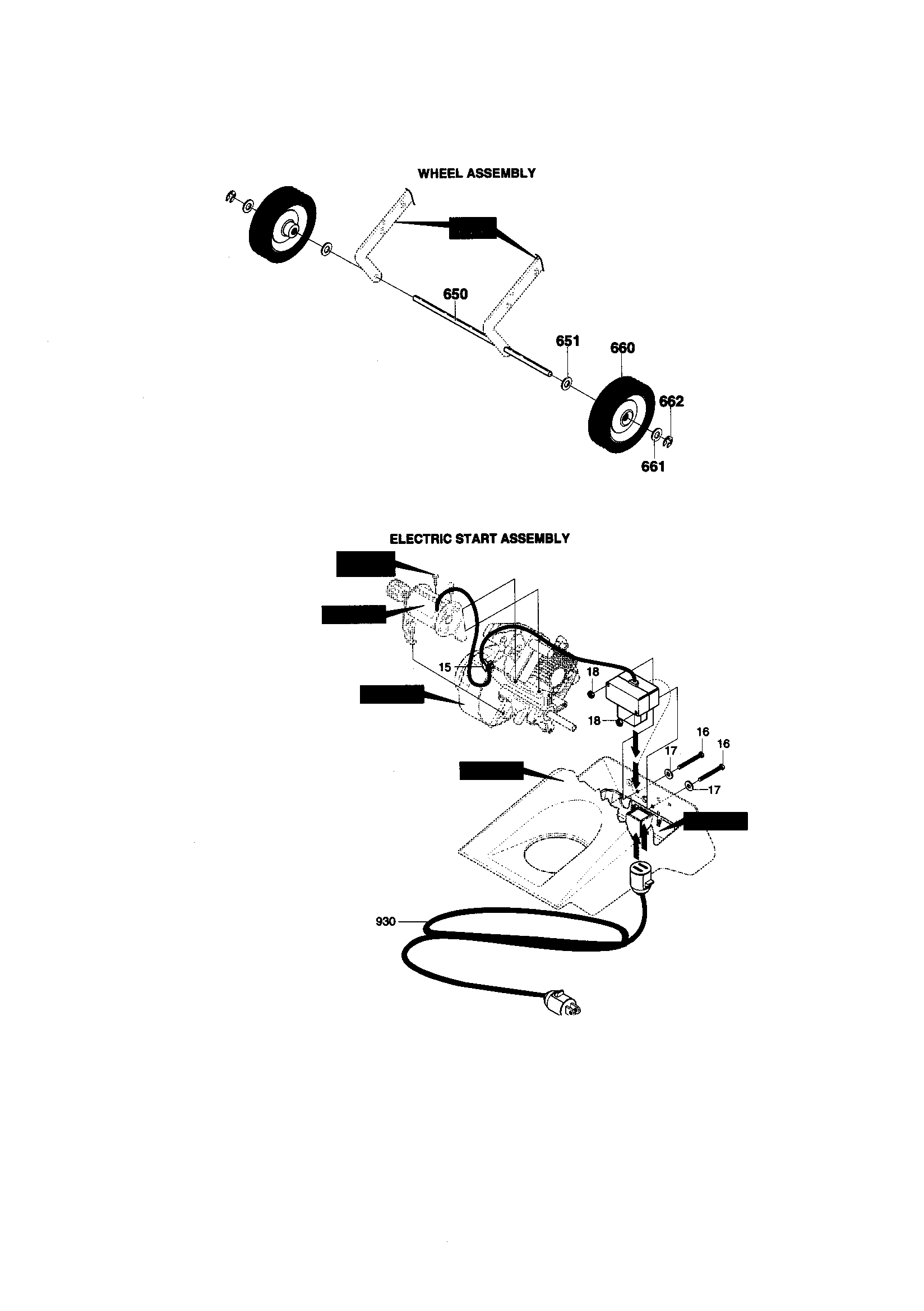

Wheel assembly Diagram

Snowblower flat washer

Part #583409MA
?
Manufacturer substitution
This part replaces 583409. Substitute parts can look different from the original.
This part replaces 583409
This item is not returnable
$2.73 |
37% OFF MSRP:$4.30

In Stock

Lawn & Garden Equipment Lock Nut

#47

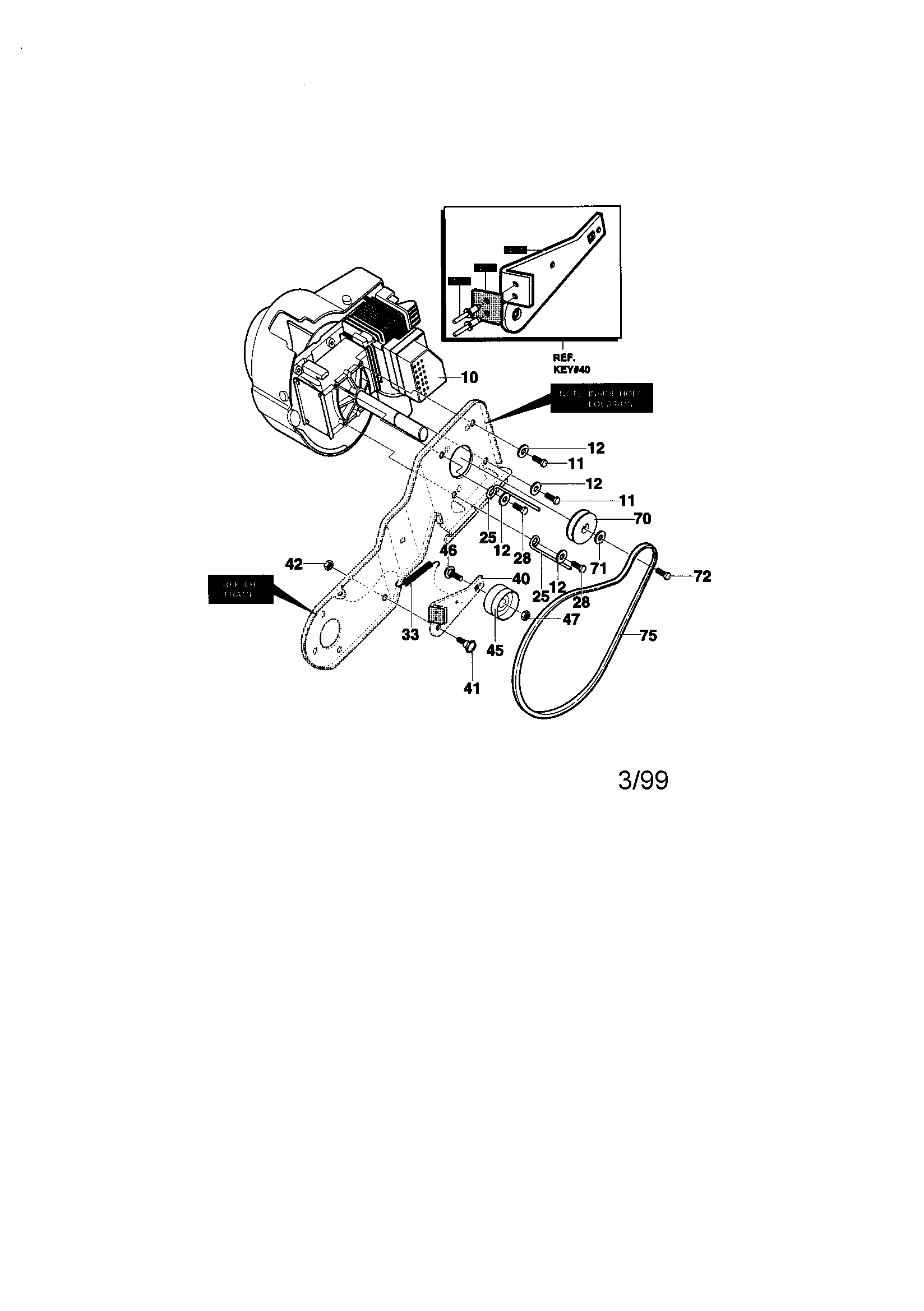

Engine assembly Diagram

Lawn & garden equipment lock nut

Part #41529MA
?
Manufacturer substitution
This part replaces 590. Substitute parts can look different from the original.
This part replaces 590
This item is not returnable
$2.85 |
25% OFF MSRP:$3.80

In Stock

Warning Hex Decal

#826

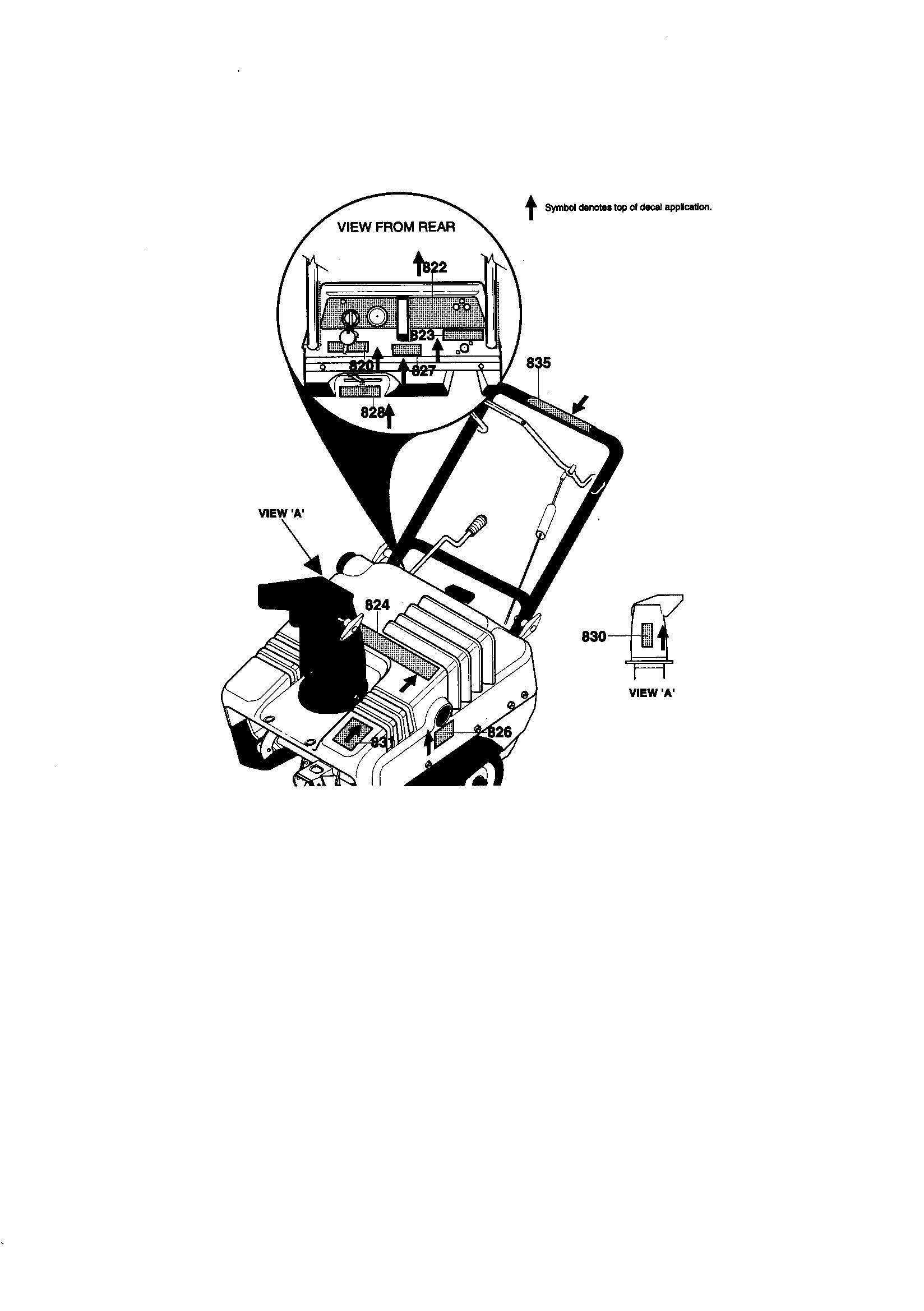

Decal assembly Diagram

Warning hex decal

Part #69880MA
?
Manufacturer substitution
This part replaces 69880. Substitute parts can look different from the original.
This part replaces 69880
$14.95

In Stock

Snowblower Auger

#520-2

Auger housing assembly Diagram

Snowblower auger

Part #302565MA
?
Manufacturer substitution
This part replaces 302565. Substitute parts can look different from the original.
This part replaces 302565
$21.46 |
21% OFF MSRP:$27.00

In Stock

Snowblower Auger Clutch Cable Spring

#744

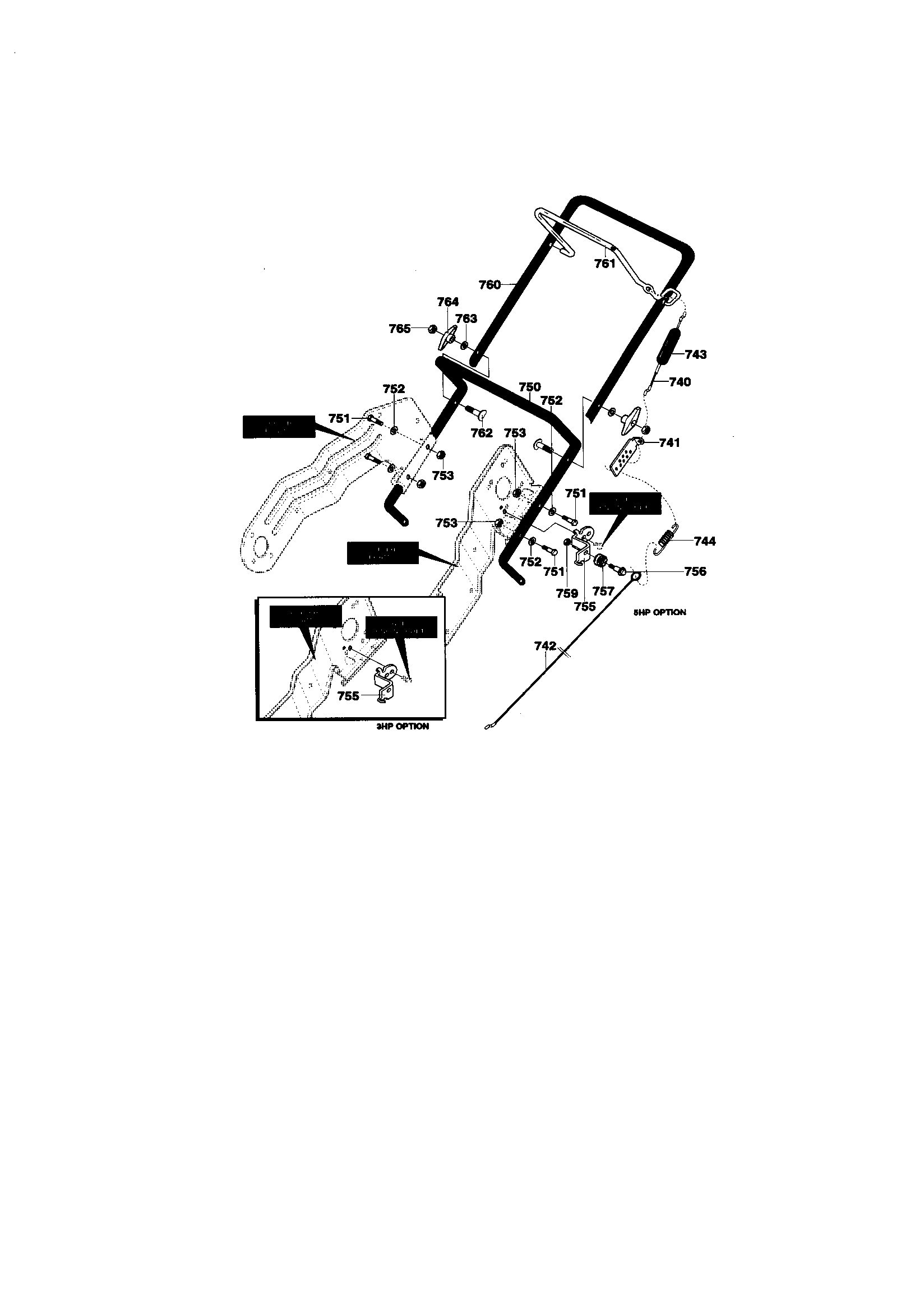

Handle assembly Diagram

Snowblower auger clutch cable spring

Part #313471MA
?
Manufacturer substitution
This part replaces 313471. Substitute parts can look different from the original.
This part replaces 313471
This item is not returnable
$3.33 |
23% OFF MSRP:$4.30

In Stock

Snowblower Wheel Axle

#650

Wheel assembly Diagram

Snowblower wheel axle

Part #313678MA
?
Manufacturer substitution
This part replaces 313678. Substitute parts can look different from the original.
This part replaces 313678
$20.02 |
13% OFF MSRP:$23.00

In Stock

Hex Lock Nut, 1-pack

#147

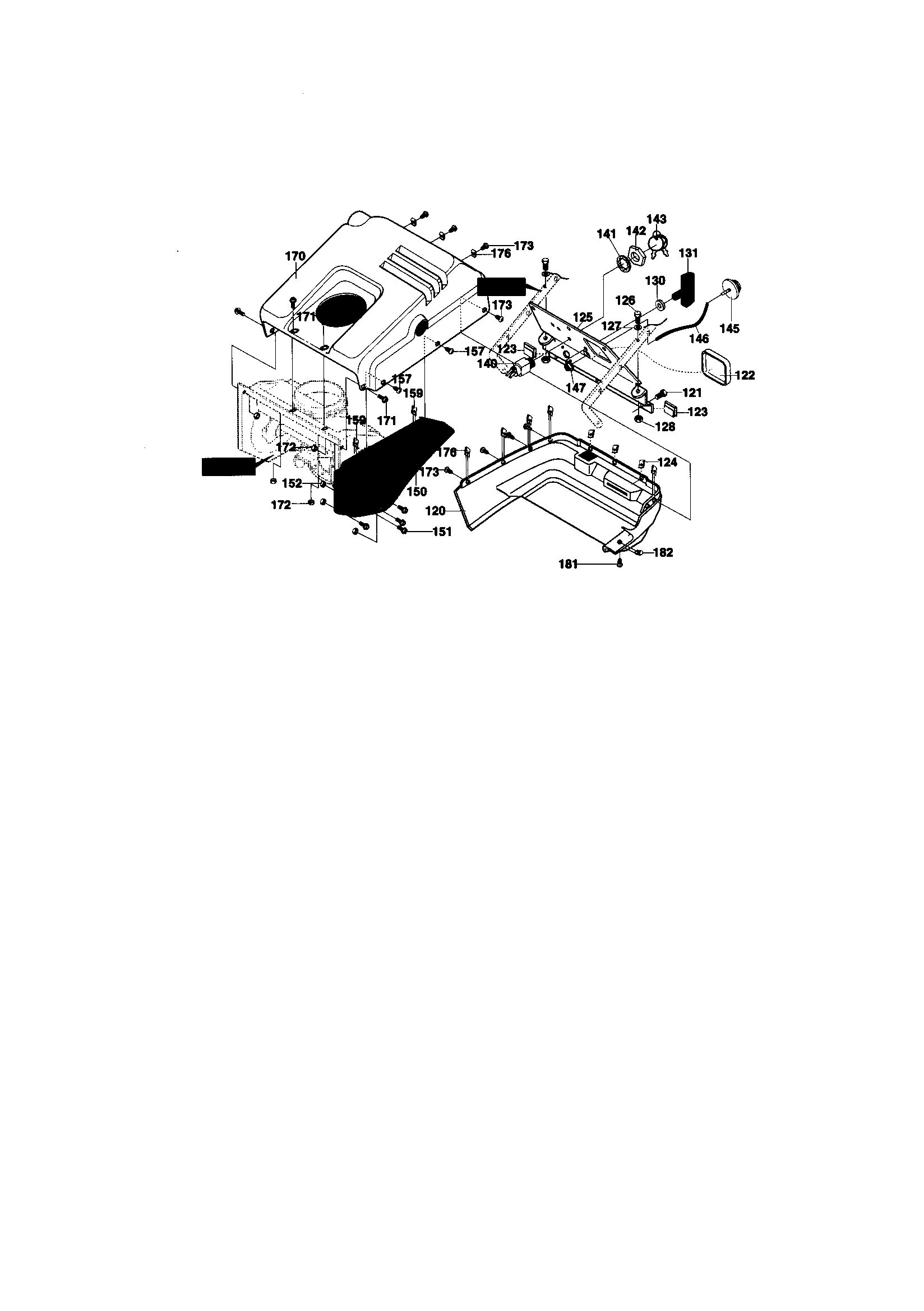

Top cover assembly Diagram

Hex lock nut, 1-pack

Part #STD541425
?
Manufacturer substitution
This part replaces 271172. Substitute parts can look different from the original.
This part replaces 271172
This item is not returnable
$2.15

Back Order
