Model # ZBD4800X Official GE dishwasher

Here are the diagrams and repair parts for Official GE ZBD4800X dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

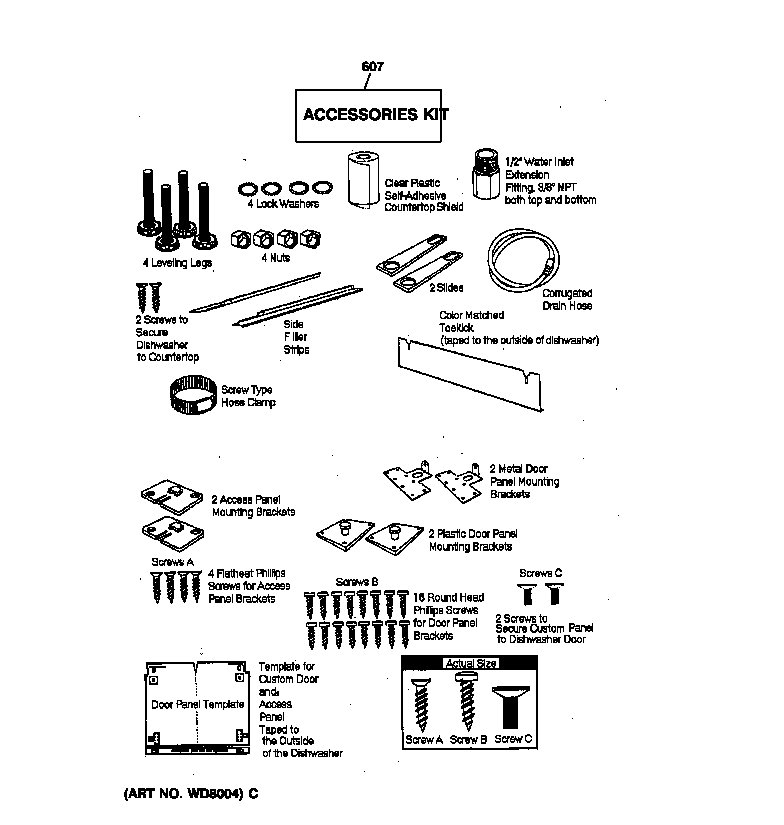

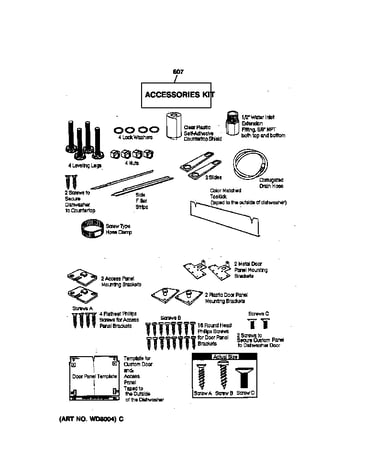

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Out Hose WD38X106
#9712

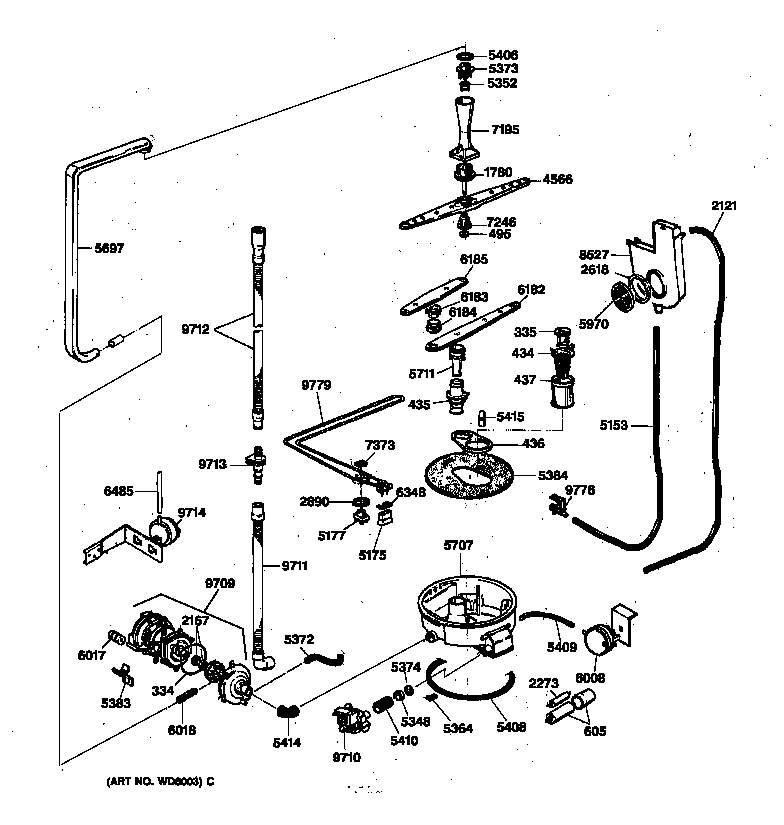

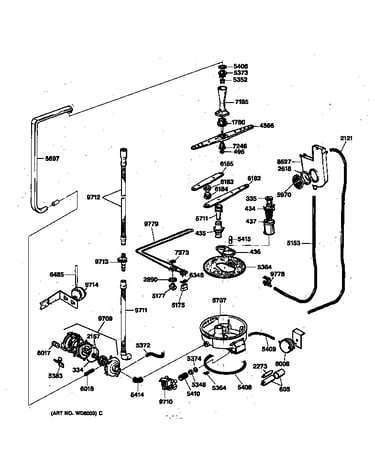

Motor-pump mechanism diagram

Out hose

Part #WD38X106

Replaced by #WD24X10014

?
Manufacturer substitution
This part replaces WD38X106. Substitute parts can look different from the original.
BEST SELLER
$30.06 |
14% OFF Phone Price : $35.06
In Stock
Technical Sheet 31-4196
#1A

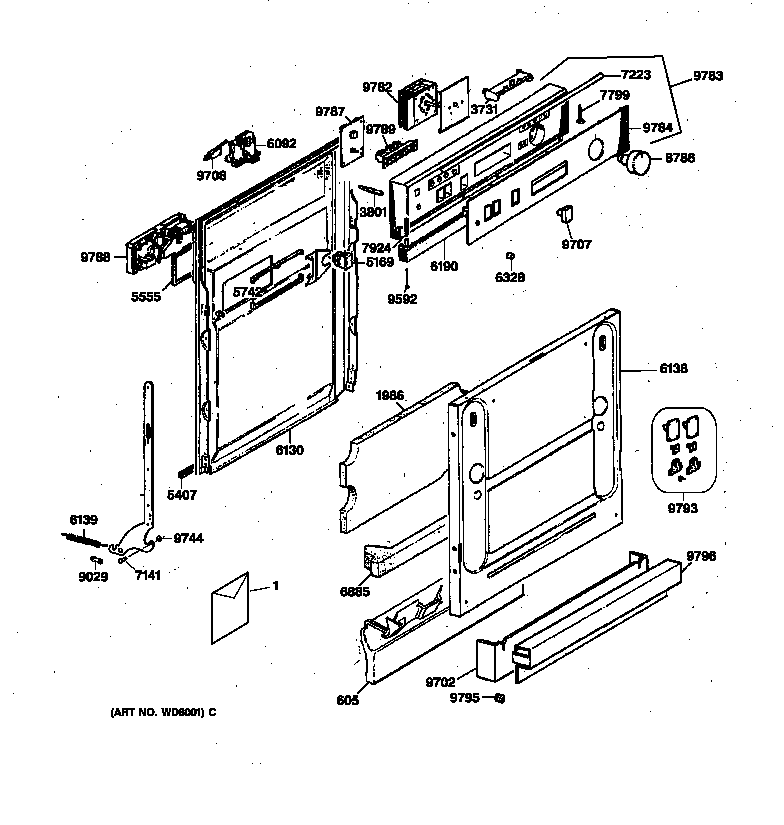

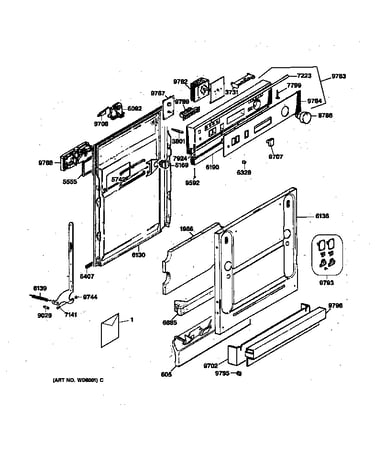

Escutcheon & door assembly diagram

Technical sheet

Part #31-4196

$21.99
In Stock
Gasket WD38X60
#5405

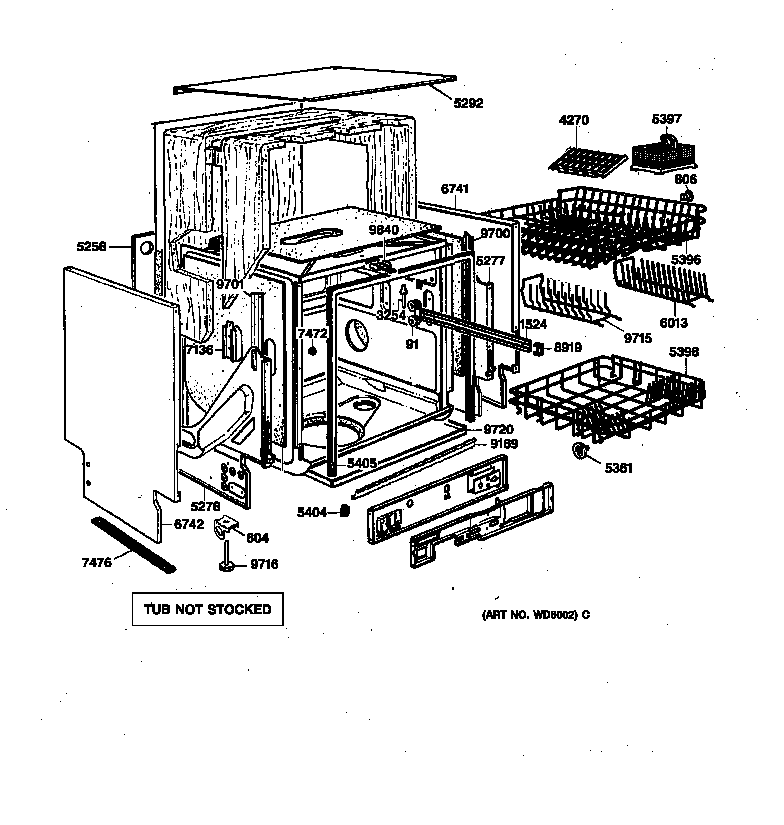

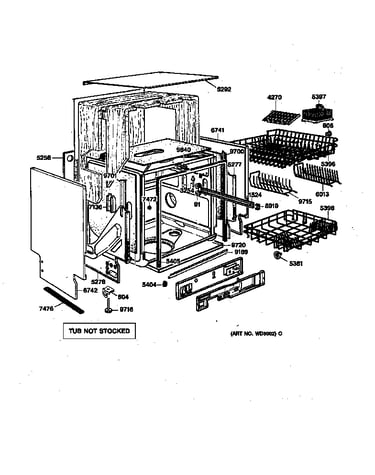

Body parts diagram

Gasket

Part #WD38X60

Replaced by #WD38X10010

?
Manufacturer substitution
This part replaces WD38X60. Substitute parts can look different from the original.
$30.11
In Stock
Zbd4700 4800 49-5714
#1B

Escutcheon & door assembly diagram

Zbd4700 4800

Part #49-5714

Replaced by #49-5771

?
Manufacturer substitution
This part replaces 49-5714. Substitute parts can look different from the original.
$8.49
In Stock
Hinge Pin WD38X06
#7141

Escutcheon & door assembly diagram

Hinge pin

Part #WD38X06

The manufacturer no longer makes this part, and there's no substitute part

Thermostat WD38X24
#5177

Motor-pump mechanism diagram

Thermostat

Part #WD38X24

The manufacturer no longer makes this part, and there's no substitute part

Panel Acc WD38X99
#9702B

Escutcheon & door assembly diagram

Panel acc

Part #WD38X99

The manufacturer no longer makes this part, and there's no substitute part

Bracket WD38X50
#5364

Motor-pump mechanism diagram

Bracket

Part #WD38X50

The manufacturer no longer makes this part, and there's no substitute part

Nozzle WD38X52
#5373

Motor-pump mechanism diagram

Nozzle

Part #WD38X52

The manufacturer no longer makes this part, and there's no substitute part

Electrova WD38X138
#9776

Motor-pump mechanism diagram

Electrova

Part #WD38X138

The manufacturer no longer makes this part, and there's no substitute part
