Model # AHD40SSS1 Official GE dehumidifier

Here are the diagrams and repair parts for Official GE AHD40SSS1 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Ahd25ss Ahd4 49-7280

#9999

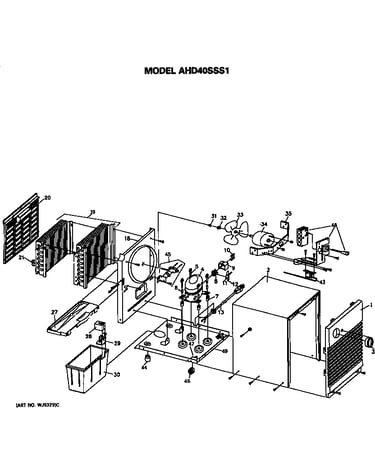

All parts diagram

Ahd25ss ahd4

Part #49-7280

$8.49
In Stock
Mini Package Rack 31-8815

#9999

All parts diagram

Mini package rack

Part #31-8815

Replaced by #31-8818

?
Manufacturer substitution
This part replaces 31-8815. Substitute parts can look different from the original.
$39.49
In Stock
Sensor Bracket WK66X26

#21

All parts diagram

Sensor bracket

Part #WK66X26

The manufacturer no longer makes this part, and there's no substitute part

Water Retainer WR2X7601

#39

All parts diagram

Water retainer

Part #WR2X7601

The manufacturer no longer makes this part, and there's no substitute part

Overload WK23X31

#20

All parts diagram

Overload

Part #WK23X31

The manufacturer no longer makes this part, and there's no substitute part

Wheel WK33X27

#46

All parts diagram

Wheel

Part #WK33X27

The manufacturer no longer makes this part, and there's no substitute part

Fan WJ73X176

#22

All parts diagram

Fan

Part #WJ73X176

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor WK94X44

#25

All parts diagram

Fan motor

Part #WK94X44

The manufacturer no longer makes this part, and there's no substitute part

Shaft Whe WK1X72

#47

All parts diagram

Shaft whe

Part #WK1X72

The manufacturer no longer makes this part, and there's no substitute part

Humidistat WK26X26

#48

All parts diagram

Humidistat

Part #WK26X26

The manufacturer no longer makes this part, and there's no substitute part
