Maytag PAV5000AWW washer/dryer Parts

Here are the diagrams and repair parts for Maytag PAV5000AWW washer/dryer, as well as links to manuals and error code tables, if available.

Maytag PAV5000AWW washer/dryer
By Schematic
By Part

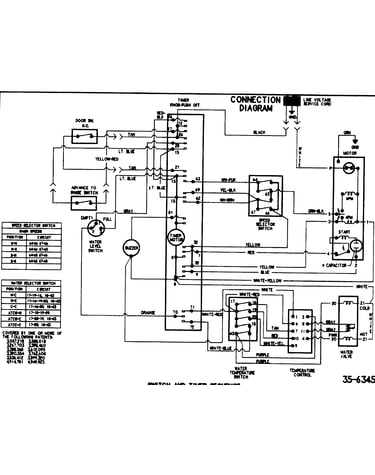

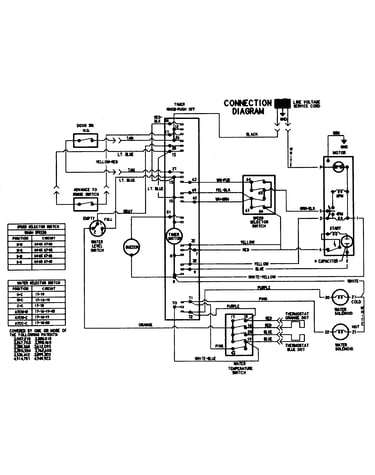

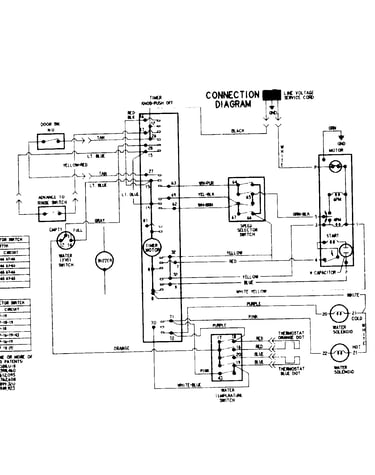

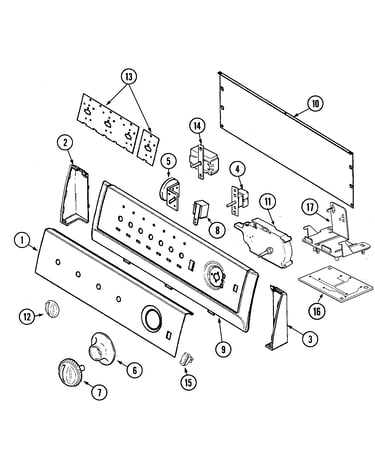

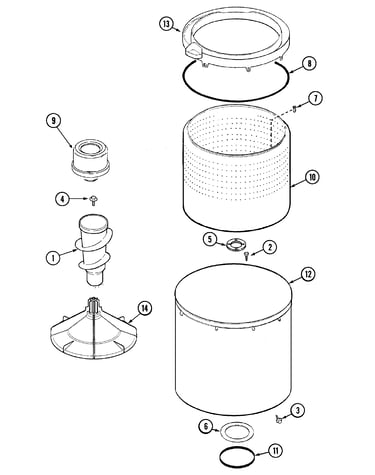

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for PAV5000AWW Washer/Dryer

  • Washer Hose Clamp for Maytag PAV5000AWW - Part WP285655

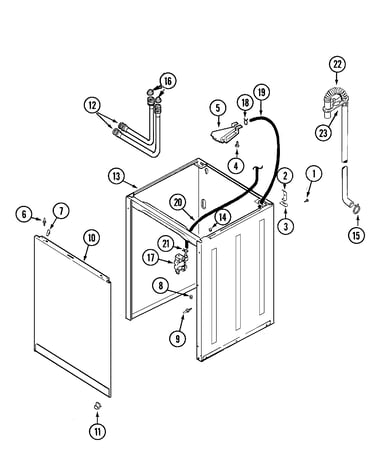

    Cabinet (series 16) diagram

    Hose Clamp

    Part #21001875

    Replaced by #WP285655

    Info Icon
    Manufacturer substitution
    This part replaces 21001875. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.21
    12% OFF Phone Price : $8.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Hose Clamp for Maytag PAV5000AWW - Part WP285655

    Hose Clamp

    Part #25-6068

    Replaced by #WP285655

    Info Icon
    Manufacturer substitution
    This part replaces 25-6068. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.21
    12% OFF Phone Price : $8.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Hose Clamp for Maytag PAV5000AWW - Part WP285655

    Cabinet diagram

    Discharge Clamp

    Part #25-7080

    Replaced by #WP285655

    Info Icon
    Manufacturer substitution
    This part replaces 25-7080. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.21
    12% OFF Phone Price : $8.21Info Icon
    Minus Item
    Qty
    Plus Item

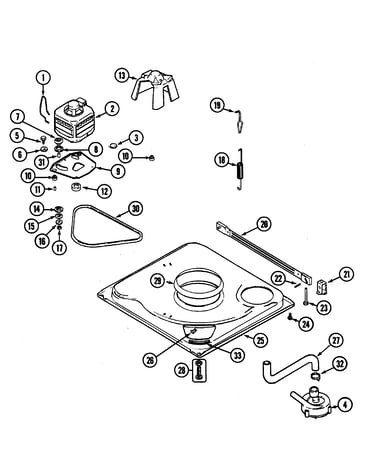

  • Washer Drive Belt for Maytag PAV5000AWW - Part WP21352320

    Washer Drive Belt

    Part #21352320

    Replaced by #WP21352320

    Info Icon
    Manufacturer substitution
    This part replaces 21352320. Substitute parts can look different from the original.
    In Stock
    $16.29
    11% OFF Phone Price : $18.29Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Pulley And Thrust Bearing Kit for Maytag PAV5000AWW - Part 12002213

    Cam Replacem

    Part #LA-2007

    Replaced by #12002213

    Info Icon
    Manufacturer substitution
    This part replaces LA-2007. Substitute parts can look different from the original.
    In Stock
    $48.93
    11% OFF Phone Price : $54.93Info Icon
    Minus Item
    Qty
    Plus Item

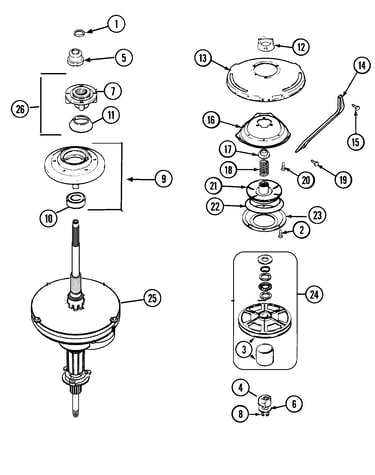

  • Washer Pulley And Thrust Bearing Kit for Maytag PAV5000AWW - Part 12002213

    Thrust Brg K

    Part #12500036

    Replaced by #12002213

    Info Icon
    Manufacturer substitution
    This part replaces 12500036. Substitute parts can look different from the original.
    In Stock
    $48.93
    11% OFF Phone Price : $54.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Pulley And Thrust Bearing Kit for Maytag PAV5000AWW - Part 12002213

    Pulley

    Part #12001797

    Replaced by #12002213

    Info Icon
    Manufacturer substitution
    This part replaces 12001797. Substitute parts can look different from the original.
    In Stock
    $48.93
    11% OFF Phone Price : $54.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Drain Pump for Maytag PAV5000AWW - Part WP35-6780

    Pump

    Part #21001873

    Replaced by #WP35-6780

    Info Icon
    Manufacturer substitution
    This part replaces 21001873. Substitute parts can look different from the original.
    In Stock
    $113.72
    10% OFF Phone Price : $125.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Nut for Maytag PAV5000AWW - Part WP3400029

    Locator Nut

    Part #25-0224

    Replaced by #WP3400029

    Info Icon
    Manufacturer substitution
    This part replaces 25-0224. Substitute parts can look different from the original.
    In Stock
    $7.21
    12% OFF Phone Price : $8.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Lid Hinge for Maytag PAV5000AWW - Part WP35-2044

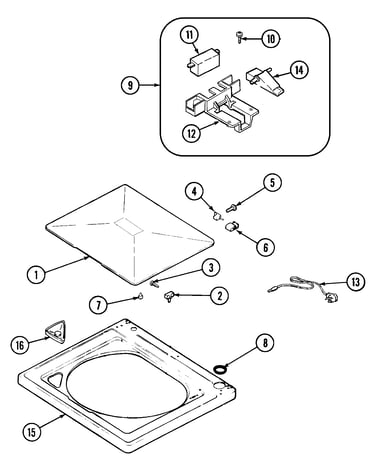

    Top diagram

    Washer Lid Hinge

    Part #35-2044

    Replaced by #WP35-2044

    Info Icon
    Manufacturer substitution
    This part replaces 35-2044. Substitute parts can look different from the original.
    In Stock
    $11.55
    15% OFF Phone Price : $13.55Info Icon
    Minus Item
    Qty
    Plus Item
