On Kenmore model 10659502990, a bad compressor usually shows up as poor or no cooling even though the refrigerator keeps trying to run, often with repeated clicking or unusual running sounds. Before condemning the compressor, we check airflow and maintenance items that commonly mimic sealed-system problems; see the 10659502990 owner's manual.

Quick symptoms that point to a compressor problem

• Refrigerator and freezer temperatures stay warm or slowly rise
• Compressor tries to start, then clicks off (repeats every few minutes)
• Unit runs almost constantly but never reaches set temperature
• Compressor shell feels very hot after running attempts
• You hear a high-pitched or pulsating run sound that is new or excessive (some new sounds can be normal)

Rule out common look-alikes first (fast checks)

Many “bad compressor” calls are actually airflow, defrost, or heat-transfer issues.

• Clean the condenser coils (dirty coils make the motor work harder and reduce cooling)
• Confirm both doors close and seal; warm air leaks can cause nonstop running
• Listen for the evaporator fan circulating air in the compartments
• Make sure the base grille area is not blocked and the refrigerator is level
• If you have an ice maker, remember the water valve can buzz during fills (normal)

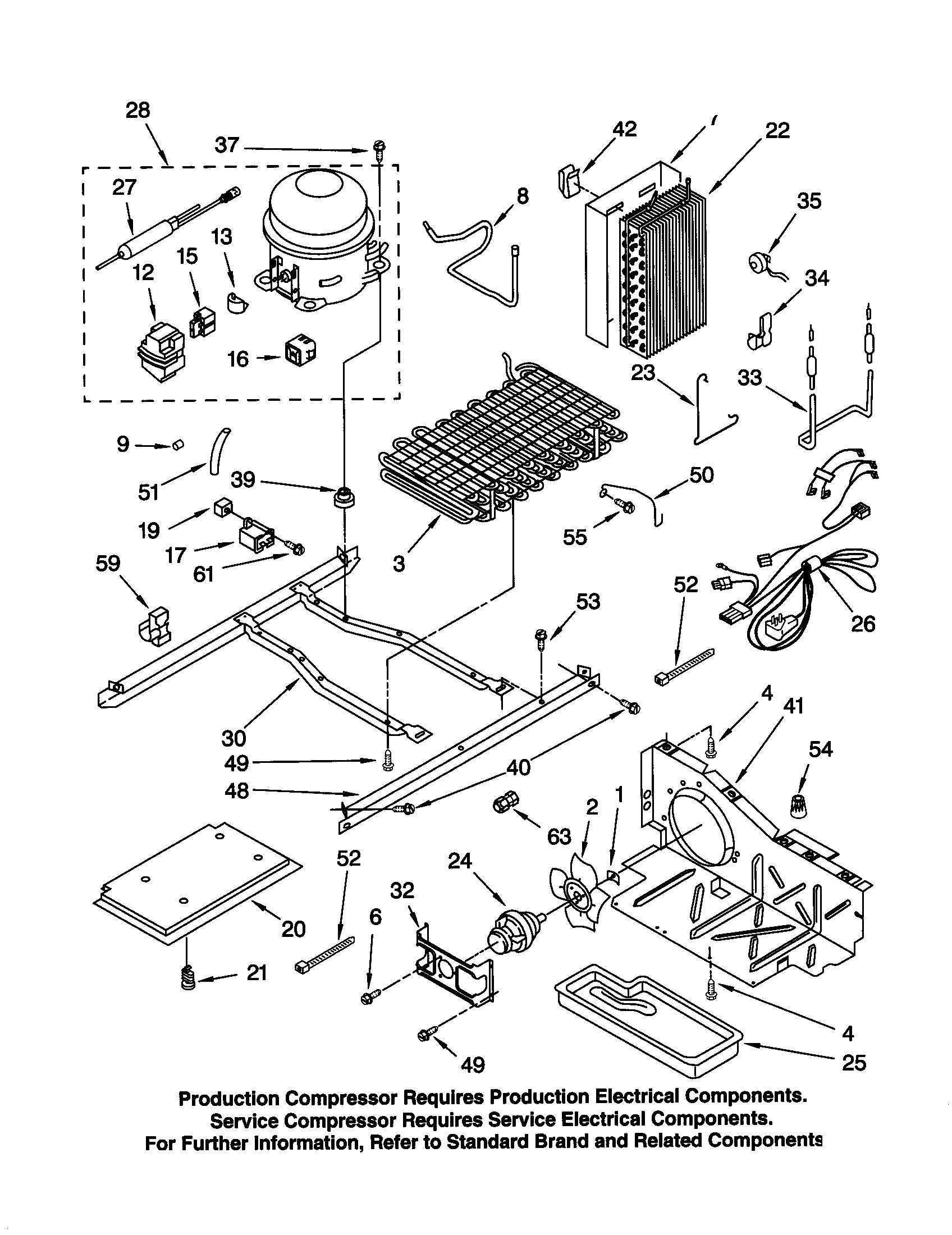

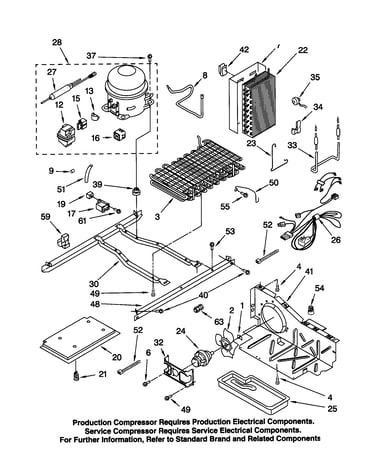

What a technician tests to confirm

A compressor diagnosis is confirmed with electrical and sealed-system checks.

Test/check	What it tells us	Typical outcome if compressor is bad
Start attempt behavior	Can it start and stay running?	Clicks off on overload or won’t start
Amp draw at startup/running	Is it pulling abnormal current?	Very high locked-rotor amps or unstable draw
Windings continuity	Are windings intact?	Open winding or abnormal readings
Cooling performance	Is the sealed system moving heat?	Poor cooling even with fans running

Why it matters

The compressor is part of the sealed refrigeration system. Misdiagnosing it can lead to unnecessary high-cost repairs, so we always eliminate coil, door seal, and airflow issues first.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10659502990 are cooling issues, water leaks, ice maker and dispenser troubles, and unusual noises. These usually trace back to airflow restrictions (dirty coils or a failed fan), defrost system faults, or worn water and door-seal components; the 10659502990 owner's manual troubleshooting section helps narrow it down fast.

Most common symptoms and what typically causes them

• Not cooling or weak cooling: dirty condenser coils, evaporator fan problems, frost buildup from a defrost failure
• Water leaking or puddles: clogged defrost drain, loose water line, leaking valve, filter housing seepage
• Ice maker not making ice: low water pressure, frozen fill tube, failed ice maker module
• Water dispenser dripping: air in water lines after filter install, filter not seated, dispenser technique
• Noises (buzzing, clicking, rattling): fan blade hitting ice, failing motor, compressor start issues

Quick checks we recommend first (fast, no parts guessing)

1. Confirm temperatures: set fresh food to about 37°F and freezer to about 0°F.
2. Clean condenser coils: dirty coils are a top cause of warm temps and long run times.
3. Listen for fans: evaporator fan noise changes often point to airflow problems.
4. Check door sealing: gaps or torn gaskets cause frost, sweating, and poor cooling.
5. For dispenser drips: hold the glass under the dispenser 2 to 3 seconds after releasing; the manual notes water can continue briefly.

Common part-related fixes for this model

Problem area	Part that often solves it	When it’s a good match
No ice or intermittent ice	Ice maker assembly 4317943	Ice maker won’t cycle or won’t fill reliably
No water to dispenser/ice maker	Refrigerator inlet valve W10408179	Weak flow, no fill, or valve seepage
Frost buildup, warm fridge	Refrigerator defrost bi-metal WPW10225581	Heavy frost on evaporator cover, airflow blocked
Defrost not melting ice	Refrigerator heater WP2323198	Frost returns quickly after manual defrost

Why it matters

Cooling, ice, and leak complaints usually share the same root causes: airflow and water control. Fixing the underlying issue (coils, fans, defrost, valve, or seals) prevents repeat failures and protects food temperatures.

Helpful DIY reference

For model-family troubleshooting steps, we use the Kenmore 106 model refrigerator error codes guide alongside the manual.

Last updated: February 2026

A Kenmore side-by-side refrigerator model 10659502990 usually stops cooling because airflow is blocked, the temperature controls are set incorrectly, or a cooling/defrost component is failing. Start with vents, door sealing, and control settings, then move to fans, defrost, and sealed-system checks using the 10659502990 owner's manual.

Quick checks we recommend first (no tools)

• Confirm the unit has power and the interior lights come on.
• Make sure food packages are not blocking the freezer and fresh food vents (blocked vents prevent proper airflow between sections).
• Set both controls near the mid-setting; then wait 24 hours between adjustments.
• Limit door openings; frequent openings and warm food loads can raise temperatures for hours.
• Check doors close fully and gaskets seal all the way around.

Most common causes (from easiest to more involved)

What you notice	Likely cause	What to do next
Freezer cold but fridge warm	Airflow/vent blockage	Clear vents; reorganize shelves
Both sections warm	Control setting, fan, or compressor issue	Verify settings; listen for fans/compressor
Frost/ice buildup, then warming	Defrost problem	Inspect defrost system parts
Ice maker or dispenser issues plus warm temps	Water/ice issue is separate from cooling	Troubleshoot cooling first

Parts that commonly affect cooling on this model

If basic checks do not restore cooling, these model-matched parts are often involved:

• Refrigerator defrost bi-metal WPW10225581 (defrost thermostat; can stop defrosting if failed)
• Refrigerator heater WP2323198 (defrost heater; helps clear frost from the evaporator)
• Refrigerator defrost timer 4388932 (adaptive defrost control; manages defrost cycles)
• Refrigerator evaporator fan blade WP2169142 (air movement across the evaporator)

Why it matters

This refrigerator relies on steady airflow between the freezer and refrigerator sections. When vents are blocked or defrosting fails, cold air cannot circulate correctly, so temperatures rise even if the compressor is running.

Last updated: February 2026

On Kenmore model 10659502990, the SY EF code indicates a freezer system fault tied to evaporator fan feedback/airflow or the freezer temperature sensing circuit. The refrigerator may not be moving cold air correctly, so temperatures can rise until the underlying fan, wiring, or defrost issue is corrected.

What to do first (safe, quick checks)

• Reset power: unplug the refrigerator or turn off the breaker for 5 minutes, then restore power.
• Confirm airflow: hold the freezer door switch closed and listen for the evaporator fan.
• Check for frost: heavy frost on the freezer back wall points to a defrost problem restricting airflow.
• Make sure vents are clear: don’t block return or supply vents with food packages.
• Verify settings: most side-by-side refrigerators run best near 0°F freezer and 37°F fresh food.

Likely causes and what we recommend

Symptom you see	Most likely cause	What we recommend
No airflow in freezer, fan silent	Evaporator fan motor circuit issue (motor, wiring, connector)	Inspect wiring/connectors; replace failed fan motor if needed
Fan runs but airflow is weak	Frost/ice restricting the evaporator	Check defrost heater and defrost thermostat; clear ice after repair
Code returns after reset, temps fluctuate	Intermittent sensor or harness connection	Reseat connectors; inspect for pinched/broken wires
Ice maker and dispenser act up with warm freezer	Freezer not staying cold enough	Fix airflow/defrost first; ice production depends on freezer temp

Parts that commonly relate to airflow and defrost

• Refrigerator defrost bi-metal WPW10225581 (opens/closes the defrost circuit based on temperature)
• Refrigerator heater WP2323198 (melts frost off the evaporator)

Why it matters

When SY EF is active, the freezer can warm up and the fresh food section can follow because cold air is shared. Fixing the airflow or sensing problem protects food quality and restores normal ice production.

Where to find model-specific operating details

Use the 10659502990 owner's manual for normal temperature settings, control features, and access instructions for service areas (like the freezer rear panel). For code definitions across Kenmore 106-series refrigerators, use Kenmore 106 model refrigerator error codes.

Last updated: February 2026

The cubic-foot capacity for Kenmore side-by-side refrigerator model 10659502990 is listed in the product specifications section of the 10659502990 owner's manual. Capacity is the rated interior volume (fresh food plus freezer); your usable space will be slightly less once shelves, bins, and the ice maker are installed.

Where to find the exact capacity

In the 10659502990 owner's manual, check the sections typically labeled “Product specifications,” “Features,” or “Refrigerator information.” Capacity is usually shown as total cubic feet and may also be broken out by compartment.

• Look for “Capacity” or “Total capacity” in the specs pages
• Check for separate “Refrigerator” and “Freezer” volume listings
• Use the exact model number 10659502990 when comparing specs online
• If you have the model/serial tag, match it to the manual to avoid close model-number mix-ups

Typical capacity range for this style (helpful for comparisons)

Most Kenmore 106-series side-by-side refrigerators are in a mid-size range; use this only as a shopping comparison until you confirm the exact spec in the manual.

Refrigerator type	Typical total capacity range	Notes
Side-by-side (Kenmore 106 style)	20 to 26 cu. ft.	In-door ice and water can reduce usable shelf space

Why it matters

Knowing the rated cubic feet helps you compare replacement refrigerators accurately and choose storage accessories that fit your layout; it also helps prevent overpacking, which can block airflow and cause uneven cooling.

Last updated: February 2026

Most Kenmore refrigerators last 10 to 15 years on average. For a Kenmore side-by-side refrigerator like model 10659502990, consistent care (cleaning, good door sealing, and quick fixes when problems start) is what most often determines whether you land closer to 10 years or push well beyond it; see the 10659502990 owner's manual for the care steps recommended for this unit.

Typical lifespan ranges (what we see most often)

• Average expected life: 10 to 15 years
• Often achievable with good maintenance: 15 to 20 years
• Shortened lifespan is common when: condenser coils stay dirty, doors do not seal, or the unit runs hot in a tight space

Condition	What to expect	What to do
Regular cleaning and stable temps	Longer service life	Follow the cleaning schedule in the manual
Warm kitchen, dusty home, pets	More wear on cooling system	Clean coils more often
Door seal leaks or doors misaligned	Longer run times, more strain	Inspect gaskets and door closing
Repeated ice or water issues	Extra cycling and service calls	Maintain filter and water supply

Maintenance that extends refrigerator life

We recommend focusing on the items that reduce compressor run time and prevent moisture problems:

• Clean the condenser area regularly (dust buildup makes the refrigerator work harder).
• Keep door gaskets clean and sealing evenly; replace if torn or warped.
• Set stable temperatures and avoid frequent, long door openings.
• Keep vents inside the fresh food and freezer sections unblocked.
• Address water and ice issues early (slow fill, leaks, or hollow cubes can point to supply or valve problems).

Why it matters

A refrigerator usually fails early because it is forced to run too long and too hot. Simple upkeep (especially cleaning and sealing) reduces strain on the sealed refrigeration system and helps your Kenmore 10659502990 hold temperature with fewer cycles.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10659502990, the model number is printed on the model and serial number label located on the inside wall of the refrigerator (fresh food) compartment. Use the details on that label when ordering parts or scheduling service; see the 10659502990 owner's manual.

Where to look (fast checklist)

• Open the refrigerator (not freezer) door
• Look along the inside side walls near the front edge
• Check near the crisper area and lower side walls
• Look for a sticker/plate that lists Model and Serial
• Write the model number exactly as shown (all digits)

What you should record from the label

The label typically includes both identifiers. Recording both helps ensure you get the correct Kenmore parts (like an ice maker assembly or water inlet valve) for your exact configuration.

Item on label	What it’s used for	Example format
Model number	Matching parts diagrams and replacement parts	10659502990
Serial number	Dating the unit and service identification	Letters plus numbers
Purchase date (your notes)	Warranty and service history	Month/day/year

Why it matters

Kenmore model numbers can look similar across 106-series refrigerators, but small design changes affect fit and compatibility for parts such as the refrigerator inlet valve W10408179 or ice maker assembly 4317943. Using the exact model number from the label prevents ordering the wrong part.

Last updated: February 2026

Kenmore refrigerators made by Whirlpool are typically identified by the first three digits of the model number. If the model number starts with 106 (like Kenmore 10659502990), it indicates a Whirlpool-built Kenmore refrigerator; this matters when matching compatible parts and service information.

How to tell from the model number

Look at the first three digits (the prefix) on the rating label or paperwork:

• 106: Whirlpool-built Kenmore refrigerator (applies to model 10659502990)
• 110: Common Whirlpool-built Kenmore prefix (often laundry, but can appear across Kenmore lines)
• 665: Common Whirlpool-built Kenmore prefix (often dishwashers)
• Use the full model number when ordering parts to avoid fit issues

For model-specific details like control settings, dispenser operation, and filtration information, use the 10659502990 owner's manual.

Quick prefix guide (common Kenmore prefixes)

Kenmore prefix	What it usually indicates	What to do next
106	Whirlpool-built (refrigerators are very common)	Use Whirlpool-style part lookups and diagrams
110	Whirlpool-built (commonly laundry)	Confirm by full model number
665	Whirlpool-built (commonly dishwashers)	Match parts by full model number

Why it matters for parts and troubleshooting

Knowing Whirlpool is the manufacturer helps us narrow down the right style of components and common failure points for this platform, such as:

• Ice maker and ice storage components (example: ice maker assembly - refrigerator ice maker by whirlpool 4317943)
• Water inlet and filtration components (example: refrigerator inlet valve W10408179)
• Defrost system parts (heater, bi-metal, control)
• Door closing and sealing hardware
• Dispenser and control panel components

Helpful tip when ordering parts

Use the complete model number (all digits) and match the part by function and location (ice maker, water valve, defrost heater). Whirlpool-built Kenmore models can have multiple revisions that look similar but use different parts.

Last updated: February 2026
