To reset your Kenmore Elite dishwasher model 63013993012, cancel the current cycle and let the unit drain; this clears most “stuck” conditions after a power glitch or interrupted wash. Use the reset steps in the 63013993012 owner's manual for the exact button sequence for your control panel.

Fast reset steps (most common)

• Press Cancel/Reset once.
• Wait for the dishwasher to pump out; draining often takes 1 to 2 minutes.
• When draining stops, select a new cycle and close the door to start.
• If the controls are unresponsive, turn power off at the breaker for 2 minutes, then restore power and press Cancel/Reset.

If it still will not reset

These checks address the most common reasons a reset does not “take.”

• Make sure the door is fully latched; a door switch issue can prevent canceling or starting.
• Confirm the water supply valve under the sink is open.
• Run hot water at the sink until it is hot; incoming water should be about 120°F for normal operation.
• Check the kitchen breaker/fuse and reset if tripped.
• If the dishwasher will not drain during reset, check for a kinked or clogged drain hose; a failing drain pump can also stop draining.

Parts that commonly relate to reset and drain problems

Symptom during reset	What it usually points to	Example part for this model
Hums but will not drain	Drain restriction or weak drain pump	Drain pump 00611332
Stops mid-cycle, odd behavior	Sensor or control reacting to soil/water conditions	Sensor 00611323
Won’t run unless door is pushed	Door latch circuit not proving closed	Sensor 00611312

Why it matters

A proper reset on the 63013993012 is really a controlled cancel and drain. If the dishwasher cannot drain, it may keep the control “stuck” to protect the unit, so solving the drain issue restores normal cycle selection.

For display codes or beeping patterns, use our Kenmore he dishwasher error codes guide to match the code to the right troubleshooting path.

Last updated: February 2026

Common problems we see with the Kenmore Elite dishwasher model 63013993012 include not starting (often a door not fully latched or a power interruption), long run times, poor cleaning, odors, leaks, and draining issues. Your owner's manual troubleshooting table matches these symptoms and lists the first checks to make.

Most common symptoms and what usually causes them

• Dishwasher does not start: door not latched, unit not turned on, cycle not reset, delay start active, blown fuse or power interruption, water supply off
• Console/display not lighting: household power issue (breaker/fuse), power supply problem
• Runs a long time: cycle selection and options can extend run time; heavy soil and water temperature also matter
• Dishes not clean enough: loading issues, filter system needs cleaning, spray path blocked
• Odor or debris in bottom: food particles left in tub, residual water, drain hose obstruction
• Leaks: door seal not seated, condensation vent blocked, installation issues

Quick checks we recommend first (fast, no parts)

• Confirm the door closes and latches firmly, then start the cycle again.
• Make sure Delay Start is off and the previous cycle is canceled or reset.
• Verify the breaker is on and the dishwasher has power.
• Confirm the water supply valve is fully open.
• Pull and clean the filter system, then reinstall it correctly.
• Check the drain hose routing for kinks and confirm a proper high loop (per the installation guide).

Problem-to-part cheat sheet (when a repair is likely)

Symptom	Common part involved	Example part for this model
Won’t drain or leaves water	Drain pump, check valve, sump hose	Drain pump 00611332, valve 00611320, hose 00668104
Leaks at the door	Door seal or door gasket	Door seal 00668079, door gasket 00263096
Won’t start when door closes	Door switch	Sensor 00611312

Why it matters

Catching the root cause early (like a clogged filter, a kinked drain hose, or a door that is not fully latched) prevents repeat cycle failures, standing water, odors, and unnecessary part replacements.

If you need to order parts for Kenmore model 63013993012, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

On your Kenmore Elite dishwasher model 63013993012, the model number is printed on an identification (rating) label inside the dishwasher. Open the door and check the inner edge of the tub opening; that same label typically lists the serial number. See the 63013993012 owner's manual for the model and serial number label note.

Where to look (fast checklist)

• Open the dishwasher door fully.
• Check the inner edge of the tub opening (around the door frame).
• Look for a printed identification or rating label.
• Write down the model number and serial number exactly as shown.
• Take a clear photo of the label before ordering parts.

What to do with the number

Use the model number to match the correct parts diagrams and replacement parts for Kenmore Elite 63013993012. If you are installing or reinstalling the dishwasher, the 63013993012 installation guide is the best reference for cabinet opening and hookup requirements.

Label item	What it helps with	Example use
Model number	Correct part fit	Ordering a pump, gasket, or rack parts
Serial number	Version details	When a part changes by production run

Why it matters

Kenmore Elite dishwashers can look similar across series, but internal components and mounting details vary by model. Using the exact model number prevents wrong-part orders and speeds up troubleshooting.

If you are ordering parts

After you confirm the model number, you can order parts from the list for this model page or search by model number on Sears PartsDirect. A common replacement for drainage problems is the drain pump 00611332.

Last updated: February 2026

On Kenmore Elite dishwasher model 63013993012, a non-responsive START button is usually caused by the door not fully latching, a cancel sequence still running, or Delay start being set. Cancel the current cycle correctly, then close the door firmly and try START again.

Quick checks (fastest fixes)

• Press POWER, select a cycle, then press START.
• Close the door firmly; the dishwasher will not start unless it senses the door is shut.
• Cancel a stuck cycle: open the door slightly, hold START for about 3 seconds, close the door, then wait about 1 minute for the cancel sequence to finish.
• Cancel Delay start: adjust the delay time back to 00, then press START.
• Reset the control: turn off power at the breaker for 5 minutes, restore power, then try again.

If it still will not start

Door switch and latch circuit

If the panel lights up but the unit will not run, the door switch is a top suspect.

• Check for a sagging door or a latch that only catches when you push hard.
• Make sure racks or tall items are not preventing the door from closing.
• If the door switch is faulty, replace the door switch.

Helpful part: sensor 00611312.

Symptom guide

What you see	Most likely cause	What to do
Display shows a delay time	Delay start active	Set delay to 00, press START
Unit seems “busy”	Cancel sequence needed	Hold START ~3 seconds, wait ~1 minute
Starts only when pushing door hard	Latch/door switch issue	Inspect latch alignment, test door switch

Why it matters

The START button often “fails” because the dishwasher is preventing operation with an unlatched door (leak risk) or while a cancel or delay function is active. Using the correct cancel and delay steps avoids unnecessary part replacement.

For the exact button sequences for model 63013993012, use the owner's manual. To find additional parts by model, search on Sears PartsDirect.

Last updated: February 2026

Yes. Repairing a Kenmore Elite dishwasher like model 63013993012 is worth it when the issue is a single, common wear part (drain, leak, rack rollers, door seal) and the total cost stays well below replacement. Multiple major failures point to replacement value.

Quick decision checklist

• Dishwasher is under 10 years old.
• Only one symptom (leak, no drain, rack issue, no-start).
• Repair is a single part, not multiple assemblies.
• You can confirm the cause with basic checks first.
• No repeated flooding or repeated shutdowns after repairs.

Repairs that are usually worth it on model 63013993012

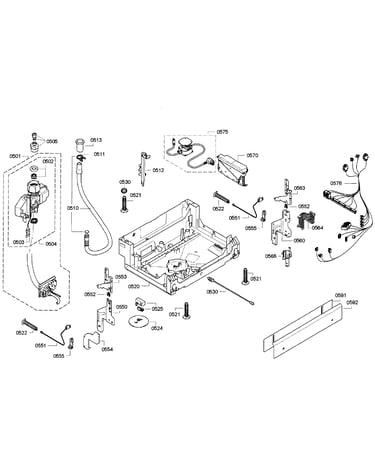

• Not draining or standing water: check for clogs, then consider the drain pump 00611332.
• Backflow or dirty water returning: inspect the check valve 00611320.

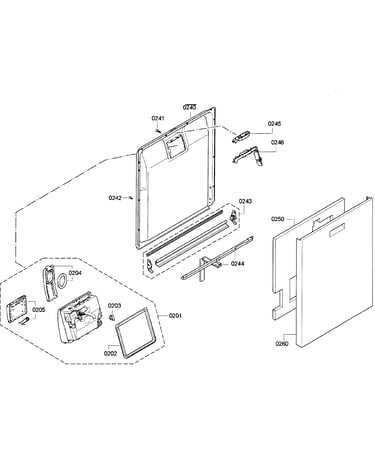

• Door leaks: replace a worn perimeter seal such as the door gasket 00263096 or door seal 00668079.

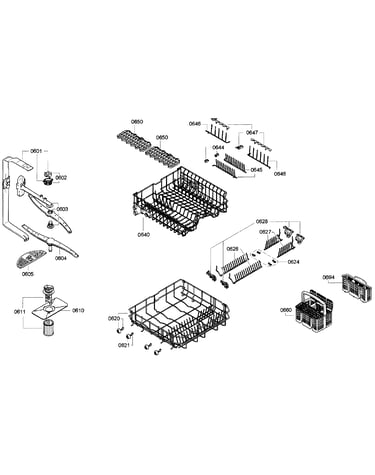

• Rack not rolling smoothly: replace a worn roller like the wheel 00611475.

What to check first (saves money)

Use the troubleshooting section in the owner's manual to confirm basics before buying parts:

• Door fully latched; cycle selected before closing.
• Delay start off.
• Water supply valve on.
• Home breaker or fuse OK.

Cost-to-value guide

Situation	Best value	Why
One clear failure (pump, valve, seal, roller)	Repair	Fast fix, lower cost
Two or more major systems failing	Replace	Costs add up quickly
Leak isolated to door perimeter	Repair	Seals are normal wear items

Why it matters

A targeted repair keeps your Kenmore Elite 63013993012 running for years at a fraction of replacement cost; diagnosing first prevents expensive guesswork.

If you decide to repair, order model-matched parts from the parts list for this dishwasher, or search by model number on Sears PartsDirect.
