Model # LAD504TDL6 Official Frigidaire dehumidifier

Here are the diagrams and repair parts for Official Frigidaire LAD504TDL6 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

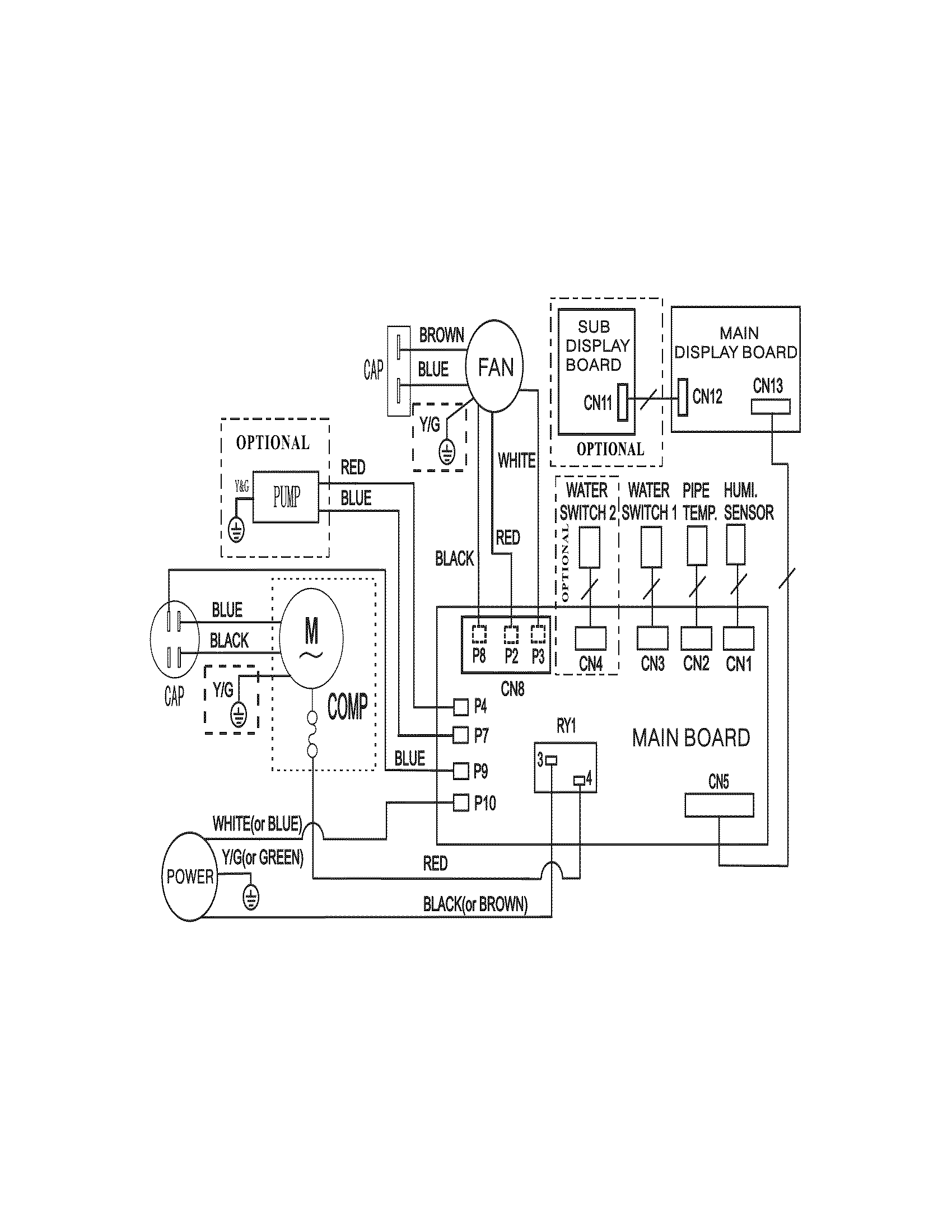

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 3 of 3 parts  |

Dehumidifier Water Bucket 5304478532
#2

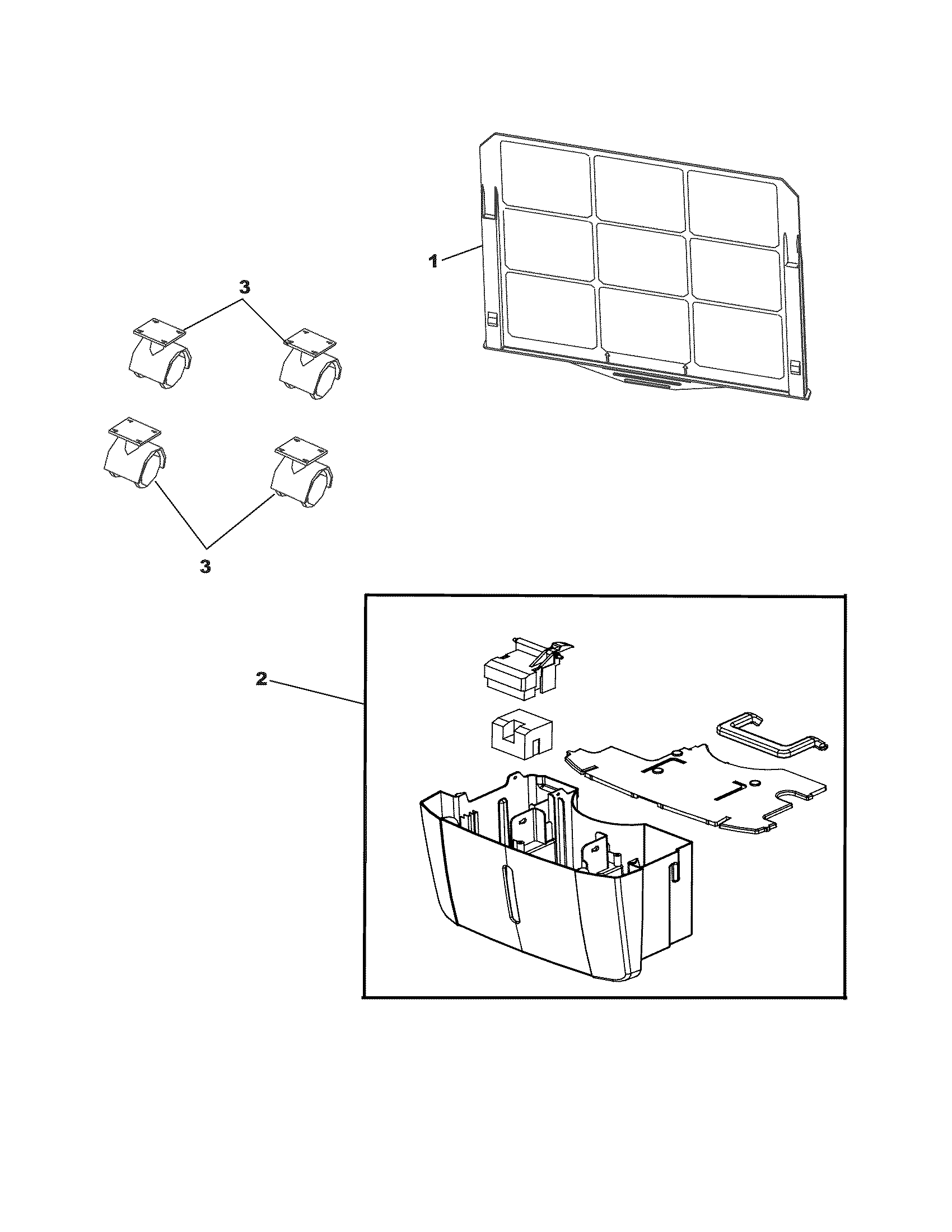

Recommended spare parts diagram

Dehumidifier water bucket

Part #5304478532

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Air Filter 5304471801
#1

Recommended spare parts diagram

Dehumidifier air filter

Part #5304471801

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Caster 5304471800
#3

Recommended spare parts diagram

Dehumidifier caster

Part #5304471800

The manufacturer no longer makes this part, and there's no substitute part
