Frigidaire
Washer

Model # FWT445GES2 Official Frigidaire washer

Here are the diagrams and repair parts for Official Frigidaire FWT445GES2 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

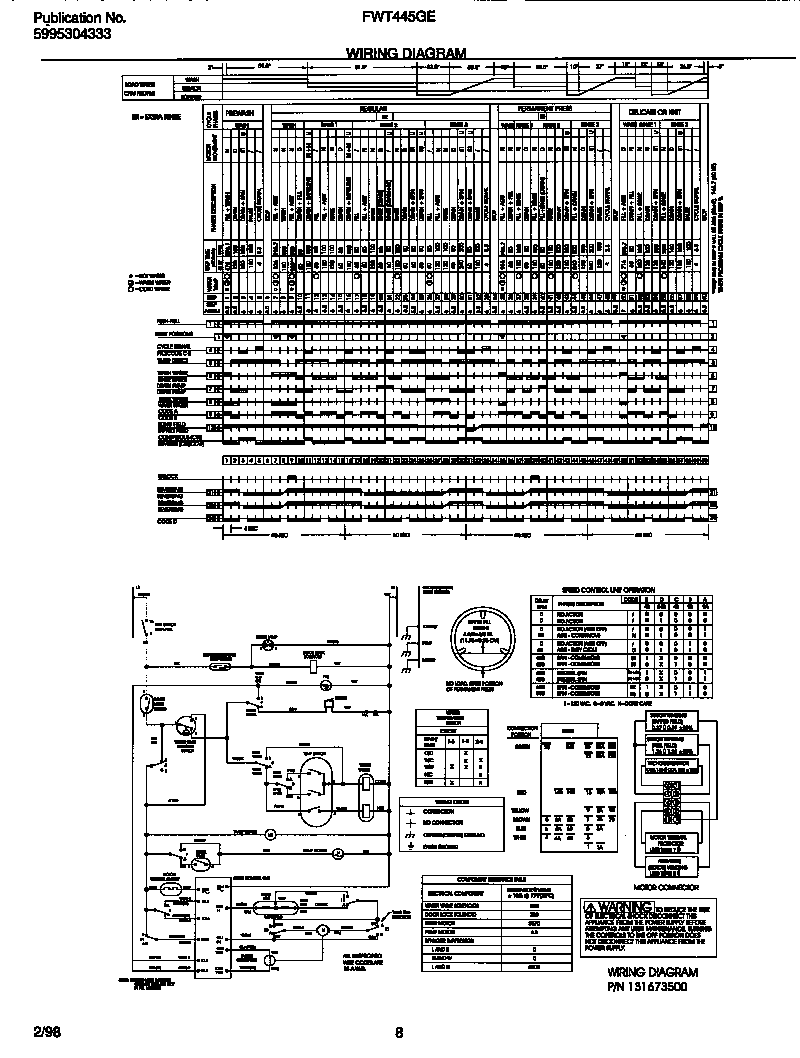

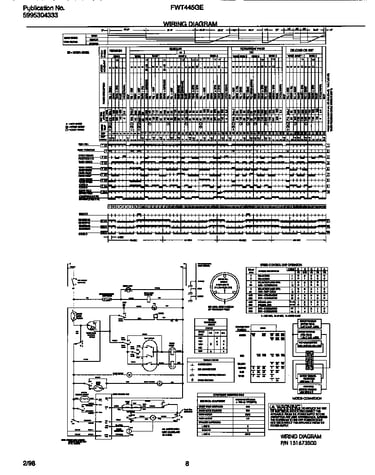

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |

Safety Lock 131269400
#8

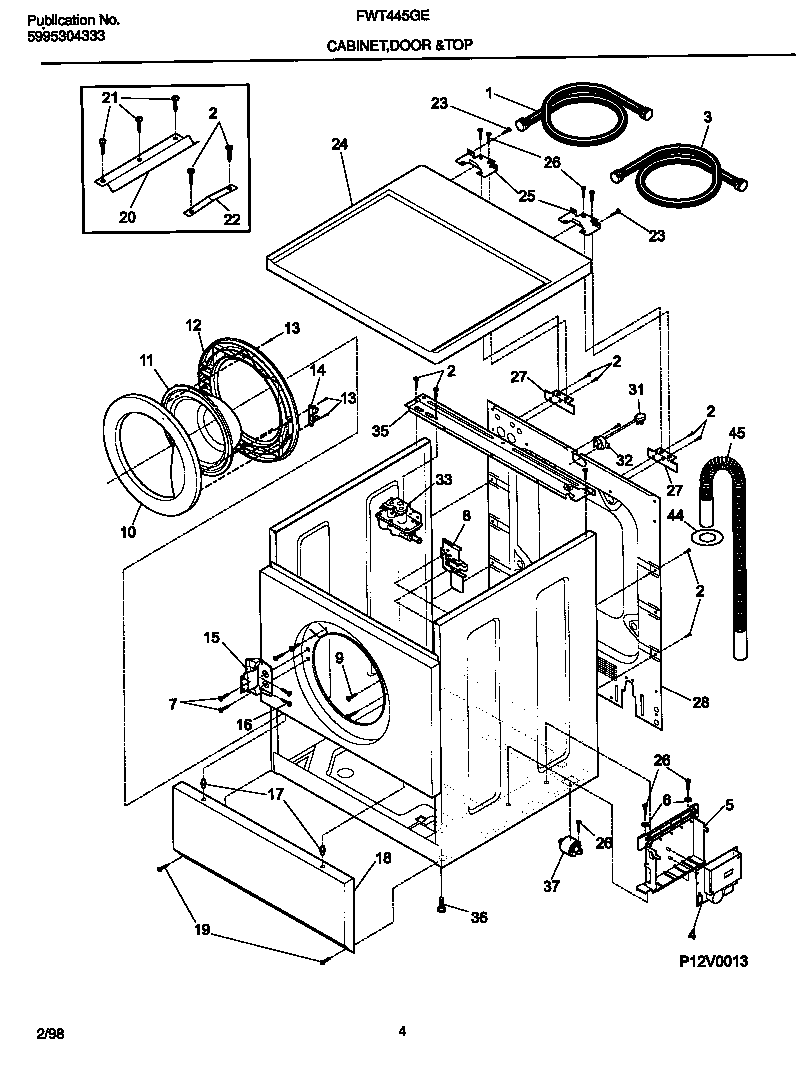

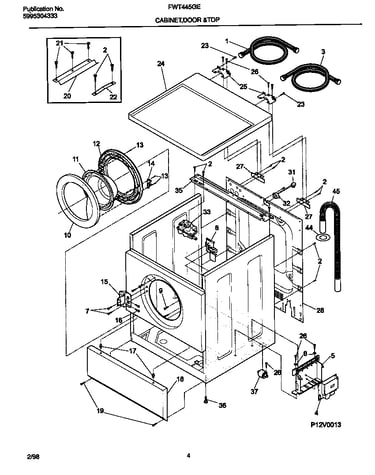

Cabinet,door & top diagram

Safety lock

Part #131269400

Replaced by #131763256

?
Manufacturer substitution
This part replaces 131269400. Substitute parts can look different from the original.
BEST SELLER
$114.08
8% OFF Phone Price : $124.08
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87
36% OFF MSRP : $17.00
In Stock
Washer Shock Absorber Mounting Pin (replaces 7131268300) 131268300
#31

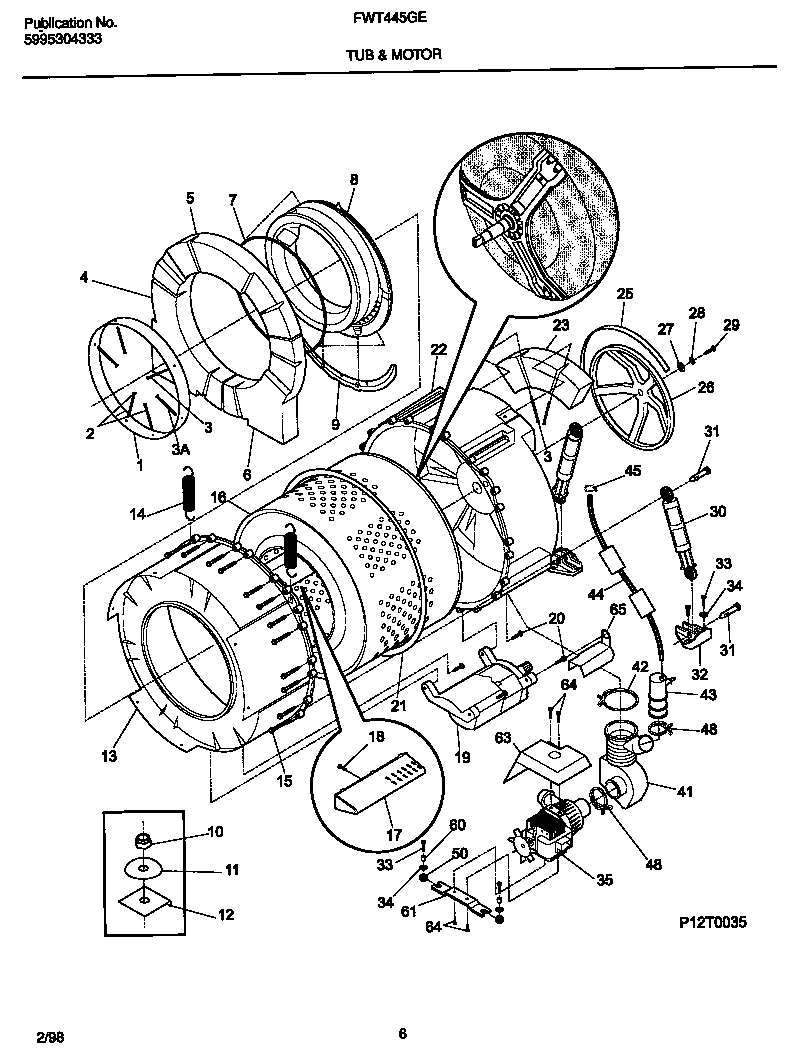

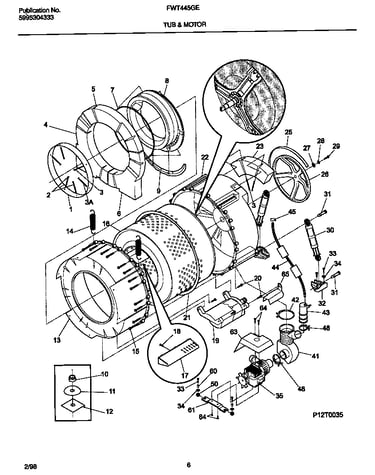

Tub & motor diagram

Washer shock absorber mounting pin (replaces 7131268300)

Part #131268300

BEST SELLER
$17.99
10% OFF Phone Price : $19.99
In Stock
Bearing Shell 131462800
#22

Tub & motor diagram

Bearing shell

Part #131462800

Replaced by #131525500

?
Manufacturer substitution
This part replaces 131462800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$557.67
$10.00 OFF Phone Price : $567.67
In Stock
Washer Baffle Screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300) 131302800
Washer baffle screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300)

Part #131302800

BEST SELLER
$14.09
12% OFF Phone Price : $16.09
In Stock
Bellows 131277100
#8

Tub & motor diagram

Bellows

Part #131277100

Replaced by #5303937187

?
Manufacturer substitution
This part replaces 131277100. Substitute parts can look different from the original.
BEST SELLER
$111.06
8% OFF Phone Price : $121.06
In Stock
Siphon Screw 131303300
#9

Cabinet,door & top diagram

Siphon screw

Part #131303300

Replaced by #131302800

?
Manufacturer substitution
This part replaces 131303300. Substitute parts can look different from the original.
BEST SELLER
$14.09
12% OFF Phone Price : $16.09
In Stock
Tub Gasket 131275900
#21

Tub & motor diagram

Tub gasket

Part #131275900

Replaced by #134146100

?
Manufacturer substitution
This part replaces 131275900. Substitute parts can look different from the original.
$48.10
9% OFF Phone Price : $53.10
In Stock
Spring Sleeve 131663600
#14

Tub & motor diagram

Spring sleeve

Part #131663600

Replaced by #134144700

?
Manufacturer substitution
This part replaces 131663600. Substitute parts can look different from the original.
$43.85
10% OFF Phone Price : $48.85
In Stock
Washer Screw 131205300
#16

Cabinet,door & top diagram

Washer screw

Part #131205300

$15.69
11% OFF Phone Price : $17.69
In Stock
