The most common problem we see with LG dryers like model DLG3788W is poor airflow, which causes long dry times, overheating, and safety shutoffs. Airflow issues usually come from lint buildup in the filter, lint screen housing, or the vent duct; worn drum-drive parts can also cause noise or no-tumble symptoms.

Most common symptoms and what they usually mean

• Takes too long to dry: restricted venting, clogged lint filter, or lint buildup in the housing
• Stops mid-cycle or shuts off early: overheating from poor airflow, sometimes a thermostat issue
• Tumbles but no heat (gas): gas supply shutoff not fully open, ignition or sensor problem
• Tumbles but no heat (electric): one breaker tripped (electric dryers often use two)
• Squealing, thumping, or grinding: belt or idler pulley wear

For model-specific operating and troubleshooting checks, use the DLG3788W owner's manual.

Quick checks we recommend first (fastest wins)

• Clean the lint filter; if needed, wash it in warm soapy water, dry fully, and reinstall.
• Inspect and clear the vent path from the dryer outlet to the outside hood.
• Confirm the dryer has the correct power or gas supply (gas shutoff valves fully open).
• Run a timed dry cycle to compare performance versus sensor cycles.
• Listen for new noises during tumble; they often point to belt or idler wear.

Common parts involved (when symptoms match)

Symptom	Likely area	Example part on this model

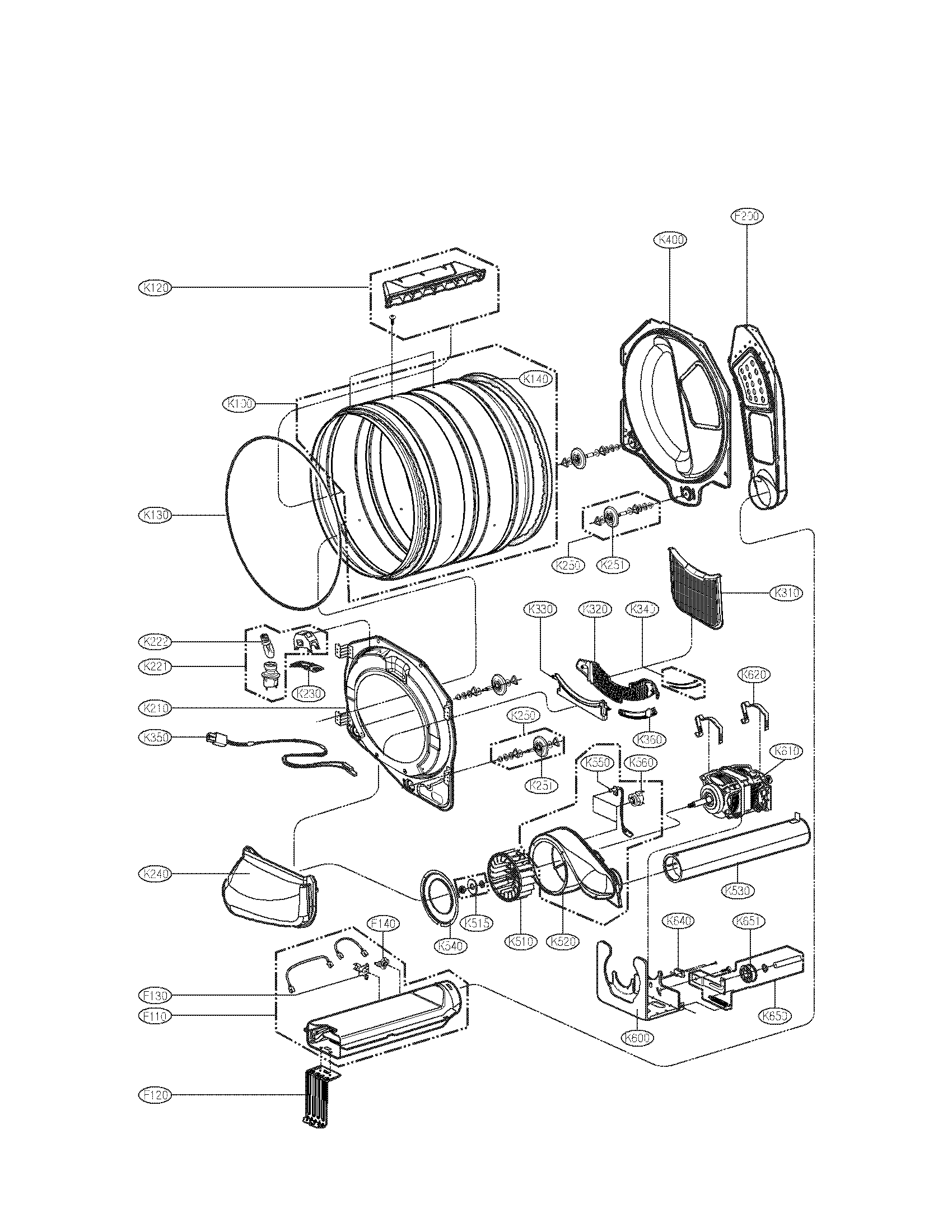

Squeal, drum not turning, burning rubber smell	Drum drive	Dryer drum belt 4400EL2001F
Squeal or intermittent tumble	Belt tension system	Dryer idler pulley 4560EL3001A
Overheating, cycling heat issues	Temperature sensing	Dryer thermistor AGM30045804
Overheating protection trips	Safety thermostat	Dryer high-limit thermostat 6931EL3003C

Why it matters

Airflow problems do more than slow drying; they raise internal temperatures, which can trigger high-limit thermostats and cause repeated shutoffs. Fixing airflow first often prevents repeat failures of heat-related parts.

For LG-specific code and symptom guidance, we also use the LG dryer error codes reference.

If you decide to replace parts, you can order DLG3788W parts from the list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

An LG DLG3788W sensor dry cycle runs long when the dryer cannot move air well, the moisture sensor bars are coated, or the dryer is not heating consistently. Because sensor dry adjusts time based on detected humidity, restricted airflow or bad heat feedback makes the control keep extending the cycle.

What to check first (fast fixes)

• Clean the lint screen before every load; a film from dryer sheets can block airflow.
• Check the exhaust vent for kinks, crushing, lint buildup, or a stuck exterior damper.
• Dry similar fabrics together; mixed loads can confuse sensor dry and extend time.
• Avoid overloading; the manual notes load size is based on space needed, not weight.
• Use the correct cycle and dry level; sensor dry time can jump up or down as humidity is re-checked.

Moisture sensor dry behavior (normal vs. not)

Sensor dry on the DLG3788W measures humidity periodically and automatically adjusts the remaining time. Sudden increases or decreases in the displayed time are normal and not a malfunction. For loads that stay damp, switching to a timed cycle is often the quickest way to finish.

Situation	Most likely cause	Best next step
Clothes still damp, time keeps extending	Airflow restriction	Clean venting and confirm strong airflow outside
Time extends, heat seems weak or inconsistent	Temperature sensing or safety thermostat issue	Check heating system components
Cycle ends but items feel slightly damp	Load type or sensor bars coated	Clean sensor bars, use Time Dry for bulky items

Parts that commonly affect dry time on this model

If airflow is good and cycles still run long, we focus on heat sensing and gas ignition parts that control temperature and cycling:

• Dryer thermistor AGM30045804 (temperature feedback to the control)
• Dryer blower thermostat 6931EL3002M (helps regulate operating temperature)
• Dryer high-limit thermostat 6931EL3003C (safety limit; can cause short heating)
• LG dryer burner igniter 5318EL3001A (ignites the burner on gas models)

Why it matters

Long dry times usually mean poor airflow or weak heating. Both waste energy and can overheat internal components, which leads to more repairs over time.

Helpful reference

• Cycle selection, dry level settings, and sensor dry timing behavior are covered in the DLG3788W owner's manual.

You can also search and order replacement parts by model number on Sears PartsDirect.

Last updated: February 2026

On the LG DLG3788W, the Flow Sense (installation check) is run from the control panel by entering the dryer’s installation check mode and starting the test; it evaluates exhaust airflow and reports whether venting is restricted. Use the exact key sequence shown in the DLG3788W owner's manual.

How to run the Flow Sense (installation check)

Follow the procedure in the manual for your exact control panel layout. In general, the process looks like this:

• Make sure the drum is empty and the door is closed.
• Power the dryer on, then access the installation check or diagnostic mode listed in the manual.
• Start the installation check test from the control panel.
• Let the test complete; record any result code or indicator.
• If a restriction is indicated, correct the venting issue and rerun the test.

What the test is checking

Flow Sense focuses on airflow through the lint path and exhaust duct. Restrictions usually come from venting, not from the motor or burner.

Common restriction points:

• Lint screen buildup (including residue from dryer sheets)
• Blocked or leaking lint screen housing (inspect the dryer lint screen housing 3550EL1006B)
• Crushed, kinked, or excessively long vent hose
• Too many elbows or a clogged exterior wall cap
• Lint accumulation inside the duct run

Quick results guide

Test result trend	What it means	What to do next
Good airflow	Venting is moving air correctly	Keep venting clean and short
Restricted airflow	Exhaust is partially blocked	Clean and shorten ducting, fix kinks
Severe restriction	High risk of long dry times and overheating	Stop using until venting is corrected

Why it matters

Restricted airflow makes the DLG3788W dry slowly, wastes energy, and can cause overheating that trips safety thermostats. Good airflow also helps sensor-dry cycles end at the right time.

If you need replacement parts while correcting airflow issues, order from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

If your LG DLG3788W Sensor Dry cycle runs but clothes stay damp, the cause is almost always restricted airflow, an incorrect Sensor Dry or Dry level selection, or a gas heat problem (ignition or thermostats). Start with airflow and settings, then confirm the burner is heating.

Quick checks (fastest fixes)

• Clean the lint screen before every load; rinse and dry it if fabric softener residue is present.
• Use a Sensor Dry cycle and choose an appropriate Dry level (Very dry, More dry, Normal, Less dry, Damp dry).
• Avoid overloading; load size should be based on space in the drum, not weight.
• Check the outside vent hood for strong, steady airflow.
• Expect time to change during Sensor Dry; the control updates time as it senses humidity.

Airflow problems that stop drying

Poor airflow is the top reason for long dry times and damp loads.

• Inspect the vent hose for kinks, crushing, or long runs.
• Clean lint from the full vent path (dryer outlet to exterior).
• If you see lint inside the cabinet area, the lint path may be leaking.

If the lint path parts are cracked or damaged, these model-matched parts can help:

• Dryer lint screen housing 3550EL1006B
• Dryer blower housing MEK37661701

If airflow is good: check gas heat components

When the drum tumbles but heat is missing or cuts out, ignition and safety controls are the usual suspects.

What you notice	Likely area	Common part to check
No heat at all	Ignition	LG dryer burner igniter 5318EL3001A
Igniter glows, then no flame	Flame sensing	Dryer radiant sensor 6501EL3001A
Heats briefly, then stops	Overheat protection	Dryer high-limit thermostat 6931EL3003C

Why it matters

Sensor Dry depends on steady airflow and consistent heat to remove moisture; restrictions or heat shutdowns make cycles end with damp clothes or take much longer.

For DLG3788W cycle and Dry level details, follow the steps in the DLG3788W owner's manual. You can order model-matched parts from the parts list for this dryer, or search by model on Sears PartsDirect.
