A bad thermal fuse in your Samsung DV431AEW dryer typically shows no electrical continuity when tested with a multimeter. Unplug the dryer, access the fuse, and test across its terminals; a good fuse reads near 0 ohms (or beeps), while a blown fuse reads OL or infinite resistance.

How to test the thermal fuse (quick steps)

• Unplug the dryer (or switch off the breaker) before opening any panels.
• Remove the appropriate panel(s) to reach the fuse location shown in the owner's manual.
• Pull the wire connectors off the fuse terminals (grip the connector, not the wire).
• Set your multimeter to continuity (or the lowest ohms setting).
• Touch one probe to each terminal:
  • Beep or ~0 ohms: fuse is good.
  • No beep or OL/infinite: fuse is blown and needs replacement.

What to do if the fuse is blown

A thermal fuse usually blows because the dryer overheated. Replacing the fuse without fixing the airflow problem often leads to another failure.

• Clean the lint screen and housing.
• Check the vent duct for kinks, crushing, or heavy lint buildup.
• Make sure the outside vent hood opens freely.
• Inspect the blower area for lint clogs.
• If overheating continues, test heat control parts.

Common heat safety parts to consider (DV431AEW)

Part	What it does	When it is suspect
Dryer thermal cut-off fuse, 320-degree f DC47-00015A	Opens if temperature gets dangerously high	No heat, shuts down, or repeatedly blows fuses
Dryer high-limit thermostat DC47-00018A	Limits heater temperature	Overheating, cycling issues, long dry times
Dryer thermistor DC32-00007A	Helps regulate temperature	Erratic temps, poor drying, error symptoms

Why it matters

The thermal fuse is a one-time safety device. When it opens, the dryer may not heat or may not run at all, and the underlying cause is often restricted airflow. Fixing venting and lint buildup helps protect the heating element and prevents repeat failures.

For step-by-step disassembly guidance and wiring locations, use the owner's manual. For parts ordering by model, you can also search on Sears PartsDirect.

Last updated: February 2026

Yes, it’s usually worth replacing the heating element in a Samsung DV431AEW dryer when the drum still tumbles and the dryer is otherwise in good shape. A heating repair is typically far less expensive than replacing the entire dryer, especially when the failure is isolated to the heater circuit.

When replacement makes sense

Replacing the heater is a good value when you see “no heat” symptoms but the dryer still runs normally.

• The dryer tumbles but clothes stay cold or damp
• Cycles finish but loads take much longer than normal
• You’ve already cleaned the lint filter and venting and airflow is strong
• The dryer is not making loud mechanical noises (squeal, thump, grinding)
• The cabinet, drum, and door are in good condition

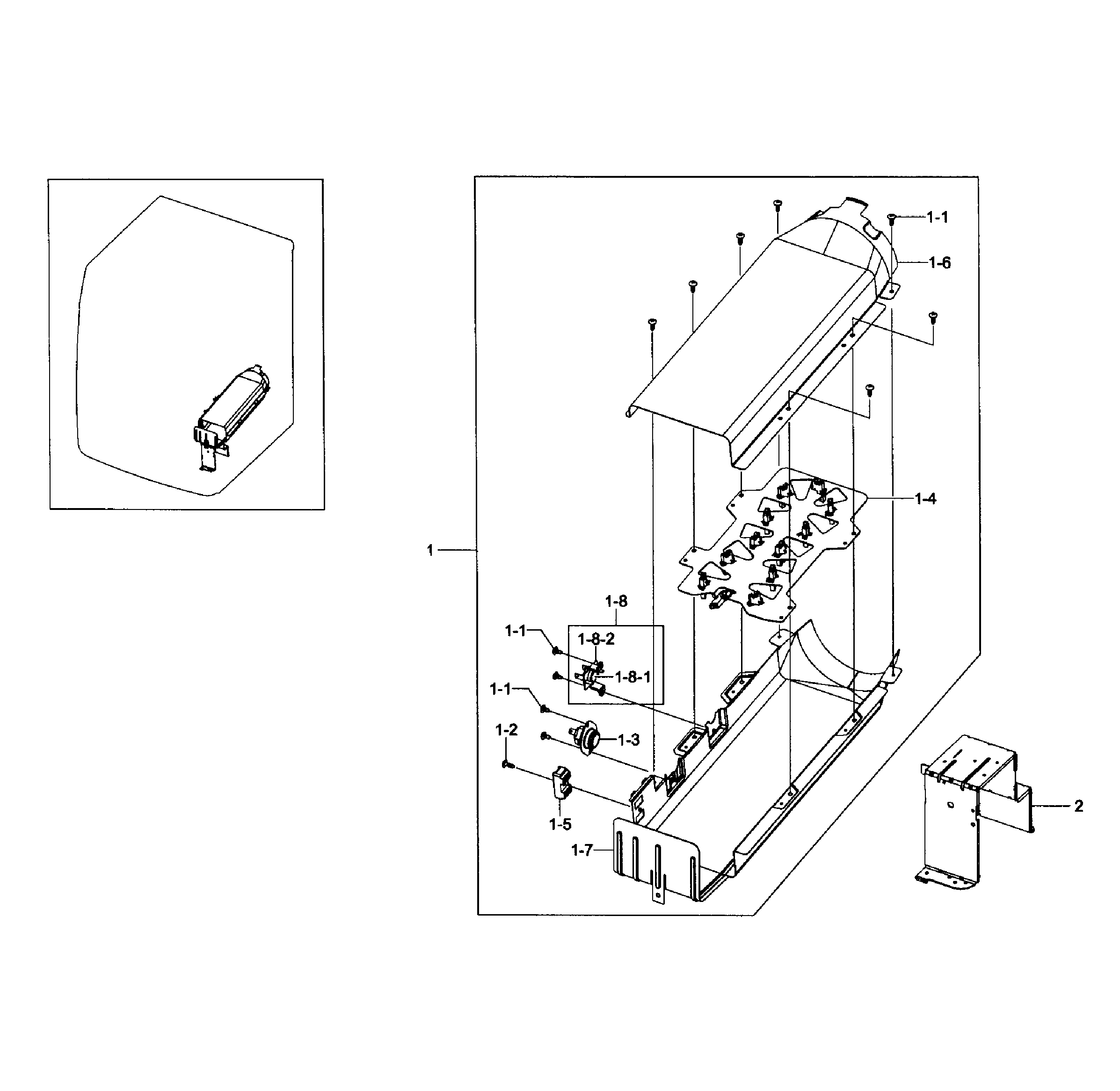

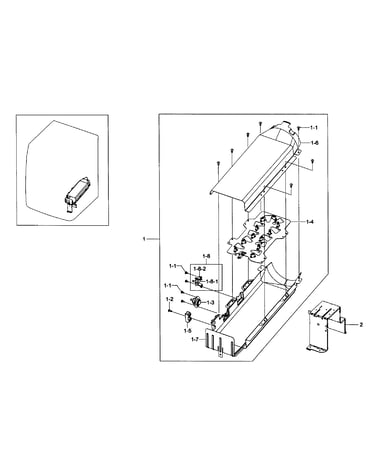

If you’re pricing the repair, compare the heater itself versus the complete heater housing assembly: Samsung dryer heating element DC47-00019A and dryer heating element assembly DC97-14486A.

When it’s smarter to fix the root cause first

A burned-out heater can be a symptom of restricted airflow or overheating. Before installing new parts, we recommend checking these common causes:

• Crushed or excessively long vent duct
• Clogged vent hood or lint buildup in the duct
• Blocked blower housing or damaged blower wheel
• Failed safety thermostat or thermal cut-off
• Loose or heat-damaged wiring at the heater terminals

Quick comparison: common “no heat” parts

Symptom	Most likely area	Example part for DV431AEW
Tumbles, no heat	Heater circuit	Samsung dryer heating element DC47-00019A
Heats briefly, then stops	Overheat protection	Dryer high-limit thermostat DC47-00018A
No heat after overheating event	Thermal cut-off	Dryer thermal cut-off fuse DC47-00015A
Erratic temps, long dry times	Temperature sensing	Dryer thermistor DC32-00007A

Why it matters

Replacing the heating element without correcting airflow or temperature-control issues can cause the new element to fail early. A quick vent and safety-check protects the new heater and restores normal dry times.

Parts and documentation

We list model-matched replacement parts for Samsung DV431AEW on this page, and you can also search by model number on Sears PartsDirect. For wiring diagrams, disassembly guidance, and safety notes, use the owner's manual.

Last updated: February 2026

A Samsung dryer like model DV431AEW lasts 10 to 15 years with normal household use. Consistent airflow maintenance (lint screen and venting), avoiding overloads, and replacing common wear parts early are the biggest factors in reaching the high end of that lifespan.

What affects dryer lifespan the most

• Airflow and venting: Restricted venting overheats the heater and safety thermostats.
• Load size and frequency: Heavy, frequent loads wear the drum support system and motor faster.
• Lint control: Cleaning the lint screen every load reduces heat stress and drying time.
• Timely part replacement: Worn drum support parts and belts can strain the motor.
• Installation and leveling: A dryer that is out of level can increase vibration and wear.

Typical lifespan expectations (quick guide)

Usage pattern	Typical lifespan	What helps most
Light (few loads/week)	12 to 15 years	Keep vent clear, use lower heat when possible
Average (most households)	10 to 15 years	Lint and vent maintenance
Heavy (daily loads)	8 to 12 years	Avoid overloads, replace wear parts early

Maintenance that adds years (DV431AEW)

• Clean the lint screen every load.
• Clean the entire vent run periodically (dryer outlet to exterior hood).
• Keep the dryer level and stable to reduce drum wear.
• If you hear thumping or squealing, stop using the dryer and inspect drum support components.
• Follow the care schedule in the DV431AEW owner's manual.

When a repair is worth doing

If the dryer still tumbles and heats normally, replacing common wear items often restores performance:

• Samsung dryer drum belt 6602-001655
• Dryer thermistor DC32-00007A
• Dryer high-limit thermostat DC47-00018A

Why it matters

A dryer that runs hot or takes too long to dry wears out heating and safety components faster. Strong airflow and early replacement of wear parts help prevent bigger failures such as motor strain or heater damage.

You can order DV431AEW replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.
