GE TPX24BRBBBB refrigerator - b series Parts

On a GE side-by-side refrigerator like model TPX24BRBBBB, the model number is printed on a rating label inside the fresh food (refrigerator) compartment, most often on an upper side wall or near the ceiling.

Look for a paper or foil tag that lists the model and serial numbers. Check these spots first:

• Inside the refrigerator compartment on the upper left wall
• Inside the refrigerator compartment on the upper right wall
• On the ceiling of the refrigerator compartment (near the light)
• Behind the crisper drawers on a side wall
• Along the door frame (hinge side) when the refrigerator door is open

A few simple steps usually make the label easy to spot and read:

• Use a flashlight; the print can be small
• Wipe condensation or dust off the tag with a dry cloth
• Remove the top shelf or slide it forward to improve visibility
• Check both the refrigerator and freezer door frames if you do not see it inside
• Write the model number down exactly as shown (letters and numbers)

We use the model number to match the exact configuration of your GE refrigerator so you get the right replacement parts the first time (for example, a light bulb or door switch that fits your specific build).

If you need a common replacement while you are checking the label, the GE appliance light bulb, 40-watt 40A15 is one of the frequently used items for this model family.

Last updated: February 2026

The most common GE refrigerator problem is not cooling well, and on a GE TPX24BRBBBB side-by-side that usually traces back to airflow or defrost issues (frosted evaporator, weak fan, dirty condenser area) rather than the sealed system.

• Fresh food warm, freezer cold: restricted airflow or a defrost problem
• Both sections warm: condenser fan issue, dirty coils, or power/control problem
• Heavy frost on freezer back wall: defrost system not working
• Clicking or buzzing near the compressor: start/overload or compressor-related issue
• Ice maker or dispenser acting up: dispenser solenoid, auger motor, or ice bucket problems

1. Set temps to typical targets: 37°F fresh food, 0°F freezer.
2. Make sure vents are not blocked by food packages.
3. Listen for the evaporator fan in the freezer; it should run when the compressor runs.
4. Check for a solid frost sheet on the freezer rear panel (classic defrost failure clue).
5. Clean dust from the condenser area and confirm the condenser fan runs.

If your symptoms match, these model-listed parts are frequent solutions:

A cooling complaint is often an airflow or defrost problem. Fixing that early prevents temperature swings that spoil food, reduces ice buildup, and keeps the compressor from running nonstop.

Last updated: February 2026

For your GE TPX24BRBBBB side-by-side refrigerator, the right part number comes from matching the exact model number to the correct parts diagram, then selecting the part by its location and description. This prevents ordering a look-alike part that will not fit or connect correctly.

• Confirm the model number is TPX24BRBBBB (use the rating label inside the fresh food section or on the cabinet frame).

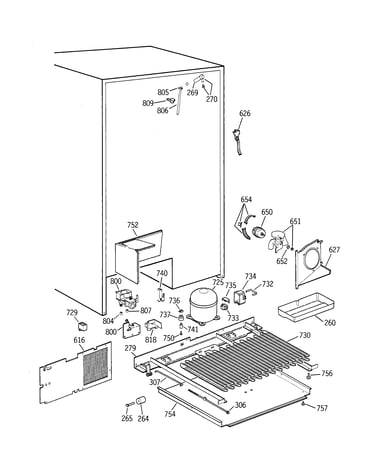

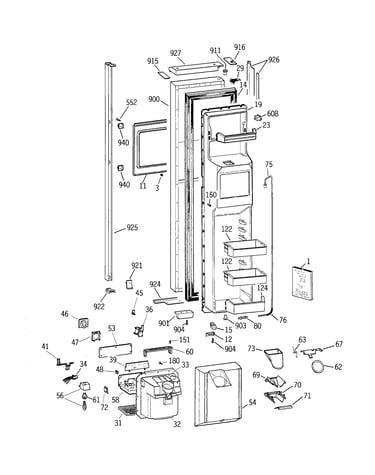

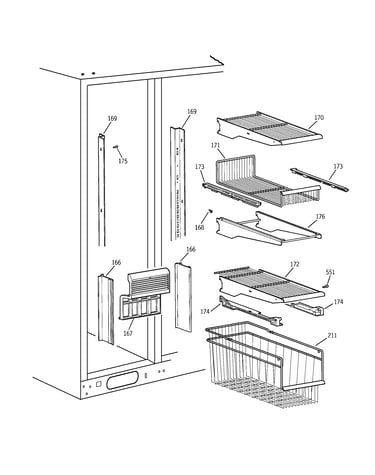

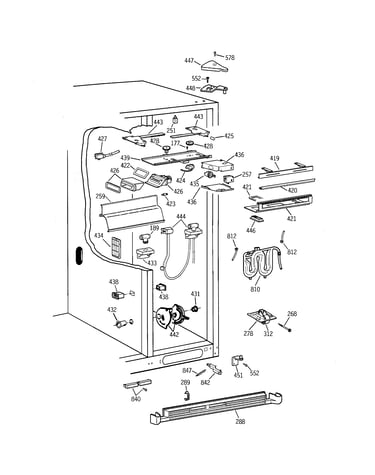

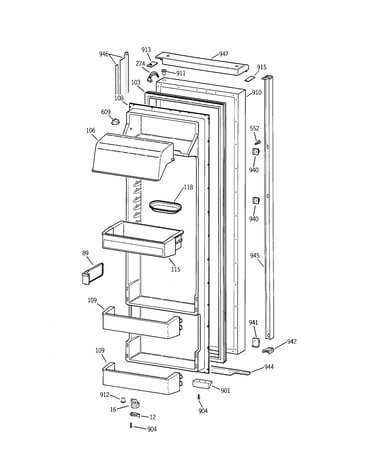

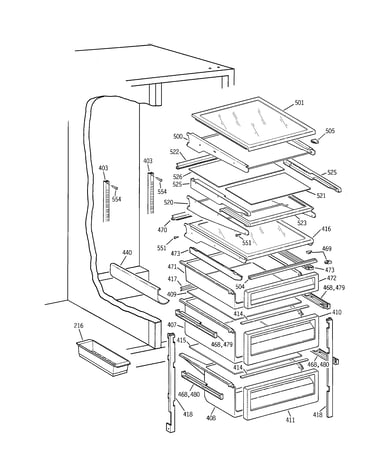

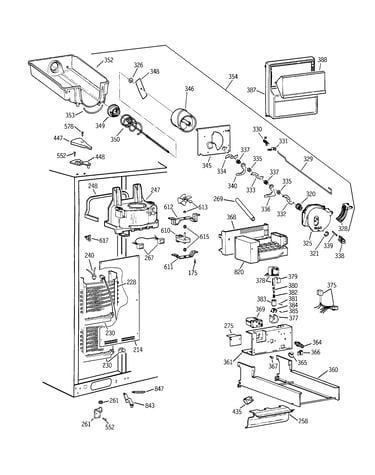

• Use the parts list and exploded-view diagrams for this model to identify the exact part name and reference location.
• Match the part by function and where it installs (freezer door, dispenser area, evaporator section, etc.).
• Cross-check symptoms to the system involved (cooling, defrost, lighting, ice and water).
• Order using the part ID shown for this model to avoid mix-ups.

• Compare the part description to what you see on the refrigerator (shape, mounting points, wire connectors).
• If you are replacing an electrical part, unplug the refrigerator first.
• If multiple parts could cause the symptom (for example, no light), test the simplest items first (bulb, then switch, then socket).

GE refrigerators often use similar-looking parts across different series; using the exact TPX24BRBBBB diagrams and part IDs helps ensure proper fit, correct wiring connections, and normal operation after the repair.

Last updated: February 2026

To order replacement parts for your GE TPX24BRBBBB side-by-side refrigerator, we recommend using the parts list for this model to match the exact part you need, then purchasing the part online through Sears PartsDirect.

• Your full model number: TPX24BRBBBB
• A quick description of the problem (no ice, warm fridge, light out, etc.)
• The part name you are replacing (for example: defrost thermostat, door switch)
• Any visible symptoms (clicking, buzzing, frost buildup, dispenser not dispensing)
• Basic tools for access (typically a screwdriver and nut driver)

If your symptoms match, these are examples of parts available for GE TPX24BRBBBB:

1. Confirm the model number on the appliance rating label matches TPX24BRBBBB.
2. Use the model parts list to locate the exact part by name and diagram position.
3. Match the part by part ID (for example, WR50X122) to avoid ordering the wrong revision.
4. Order the part and keep your receipt and packaging until the repair is complete.

GE side-by-side refrigerators often use similar-looking parts across multiple model families. Ordering by the exact model number TPX24BRBBBB and matching the part ID helps ensure fit, wiring compatibility, and correct function.

Last updated: February 2026
