Kenmore 11082182200 electric compact dryer Parts

The Kenmore 11082182200 is a 240-volt compact electric dryer; most compact dryers of this style measure about 24 inches wide, 22 to 25 inches deep, and 33 to 36 inches high. For the exact cabinet dimensions and clearances for your unit, use the specs in the owner's manual.

Typical dimensions and what to plan for

Compact dryers are designed to fit tighter laundry spaces than full-size 27-inch models. When measuring your space, plan for the dryer plus airflow and door swing.

• Width: typically ~24 in.
• Depth: typically ~22 to 25 in. (add space for the cord and vent)
• Height: typically ~33 to 36 in.
• Door clearance: allow room for the side-swing door to open fully
• Vent clearance: allow space so the exhaust duct is not crushed or kinked

How to measure your dryer correctly

Use a tape measure and record three numbers: width, depth, and height.

• Measure width across the front of the cabinet (left to right)
• Measure height from the floor to the top of the cabinet
• Measure depth from the back panel to the front (exclude the door handle), then note the overall depth with the door closed
• Add 1 to 2 inches behind the dryer for the power cord and vent connection

Quick sizing guide (compact vs full-size)

Dryer type	Typical width	Typical height	Typical depth
Compact electric dryer (like 11082182200)	~24 in.	~33 to 36 in.	~22 to 25 in.
Full-size electric dryer	~27 in.	~38 to 39 in.	~29 to 31 in.

Why it matters

Correct sizing prevents installation headaches like a door that cannot open, a crushed vent that causes long dry times, or a power cord that forces the dryer to sit too far forward.

Last updated: February 2026

For the Kenmore 11082182200 electric compact dryer, the dryer uses a 240-volt (220 to 240V) supply, and the drive motor runs on power provided through that 240V circuit. This model is a 240-volt compact electric dryer, not a 120-volt gas dryer (see the 11082182200 owner's manual).

What this means for your outlet and wiring

Most electric dryers like the Kenmore 11082182200 are designed for a dedicated 240V dryer circuit.

• Electric dryers typically plug into a 240V dryer receptacle (not a standard 120V household outlet)
• The motor itself is not something you wire separately; it is powered through the dryer’s internal wiring
• If the dryer tumbles but does not heat, the 240V supply can be partially lost (one “leg” missing)
• If the dryer is completely dead, check the breaker, cord connection, and terminal block
• Always unplug the dryer or switch off the breaker before opening panels

Quick troubleshooting: 240V power problems vs motor problems

If you are asking because the dryer will not start or will not tumble, separate power issues from motor issues.

Symptom	More likely cause	What to check first
No lights, no response	No power to dryer	Breaker, cord, terminal connections
Runs but no heat	Partial 240V supply	Breaker (both poles), terminal block
Hums but will not start	Start circuit or motor issue	Door switch, start switch, belt load

Parts that commonly relate to “won’t start” complaints

If you find a failed component, we stock common electrical and start-circuit parts for this model, including:

• Dryer push-to-start switch WP3977456 (start command)
• Dryer terminal block WP3397659 (power connection point)
• Dryer thermal fuse WP3399849 (safety cutoff that can stop operation)

Why it matters

Using the correct voltage is critical for safe operation and proper drying. A 240V electric dryer on a 120V outlet will not run correctly, and a loose terminal connection can cause overheating and repeated failures.

Last updated: February 2026

For Kenmore dryer model 11082182200, replacing the start switch typically costs $25 to $150 total. The part itself is usually $20 to $40, and labor (if you hire service) commonly adds $75 to $150 depending on local rates and access to the console.

What you’ll likely pay (parts vs. labor)

Replacement cost depends on whether you’re doing a DIY repair or paying for service.

Cost item	Typical range	Notes
Start switch part	$20 to $40	Model 11082182200 uses a push-to-start style control.
DIY tools/supplies	$0 to $25	Screwdriver, possibly a multimeter.
Professional labor	$75 to $150	Often billed as a minimum service call.
Total (DIY)	$20 to $65	Part plus basic supplies.
Total (pro repair)	$95 to $190	Part plus labor.

How to confirm you’re replacing the right part

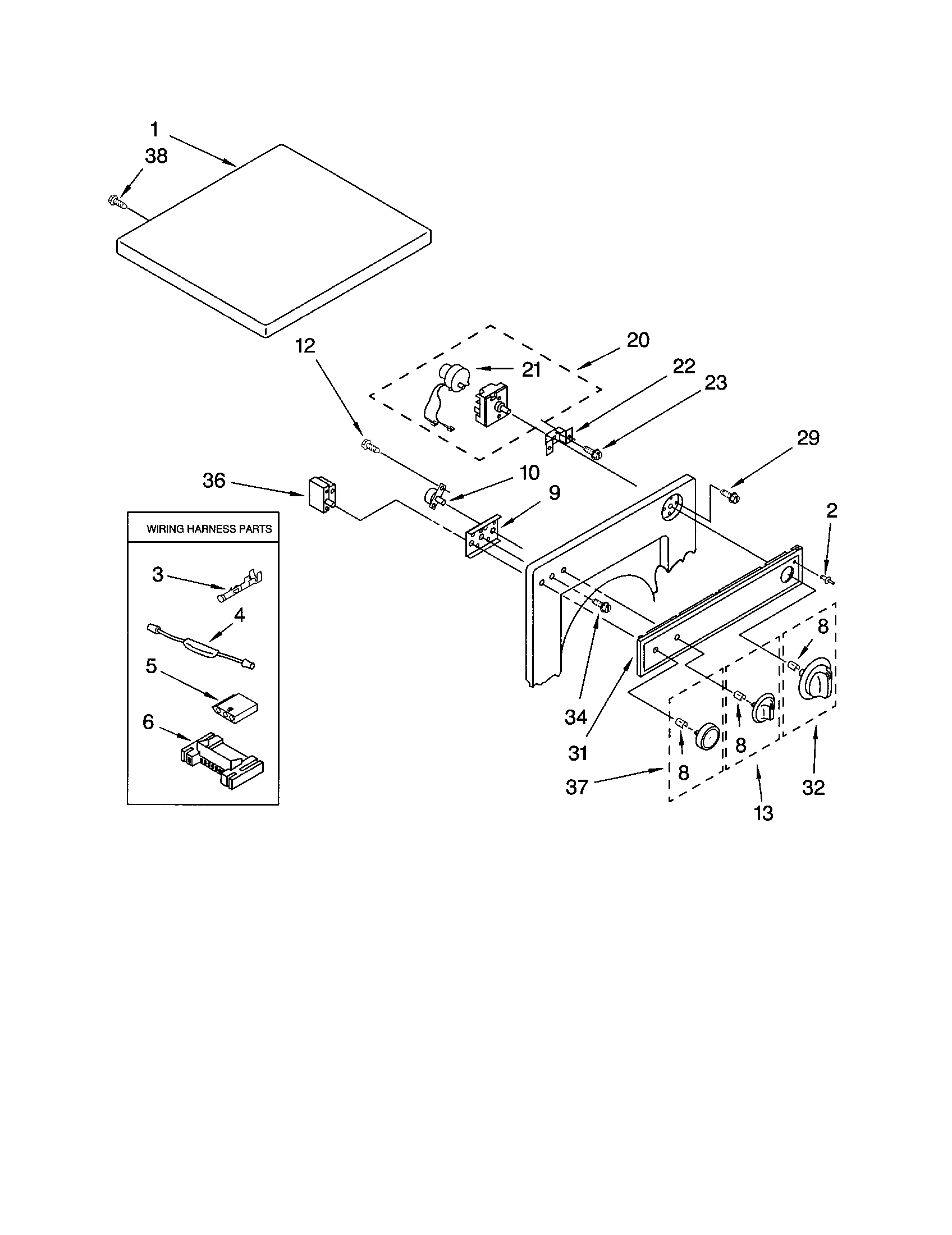

This Kenmore compact electric dryer uses a PUSH TO START button control. Use the wiring diagram and control panel breakdown in the owner's manual to confirm the correct switch and wire locations before ordering.

• Match the model number exactly: 11082182200
• Verify symptoms: button clicks but motor never starts
• Check for a loose or burned connector at the switch
• If the dryer is completely dead, test the thermal fuse first
• Label wires before removal so they go back on the correct terminals

Parts that are commonly involved in “won’t start” repairs

A start switch is only one possible cause. These model-matched parts are often checked during diagnosis:

• Dryer push-to-start switch WP3977456
• Dryer thermal fuse WP3399849
• Dryer terminal block WP3397659

Why it matters

A failing start switch can mimic bigger problems (like a bad motor) and lead to unnecessary parts replacement. Confirming the switch and basic safety devices first helps restore normal operation faster and keeps repair costs under control.

Last updated: February 2026

To reset your Kenmore 11082182200 electric compact dryer, unplug it (or switch the breaker off) for 1 minute, then restore power and try starting a cycle again. This clears a temporary control glitch and is the standard reset for this style of push-to-start dryer.

Quick reset steps

• Turn the dryer OFF.
• Unplug the power cord (or turn the 240V breaker off).
• Wait 60 seconds.
• Restore power.
• Open and close the door once, then select a cycle and press Push to start.

If it still will not start after a reset

A reset only helps if the issue is a temporary interruption. If the dryer still will not run, check these common causes:

• No power: confirm the 240V breaker is fully on (electric dryers often use a 2-pole breaker).
• Door not latching: if the door does not close firmly, the dryer may not start.
• Start switch issue: the push-to-start switch can fail mechanically or electrically.
• Overheat safety trip: a blown thermal fuse can stop the motor from running.

Parts that commonly relate to “won’t start”

Symptom	What to check	Example part for this model
Door won’t stay closed	Latch/catch alignment	Dryer door catch WP3389441
Button does nothing	Start switch	Dryer push-to-start switch WP3977456
Dryer dead, motor won’t run	Thermal fuse (often tied to airflow issues)	Dryer thermal fuse WP3399849

Why it matters

Resetting restores normal operation after a brief power interruption or control hiccup, but it does not fix a failed door switch, start switch, or safety fuse. If the dryer overheated, correcting airflow (lint screen, venting) prevents repeat shutdowns.

For cycle and control details (Auto Dry, Timed Dry, Air Dry, fabric temperature settings), use the owner's manual.

Last updated: February 2026
