Model #GTDS850GD1WS Official GE gas dryer

Here are the diagrams and repair parts for GE GTDS850GD1WS gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

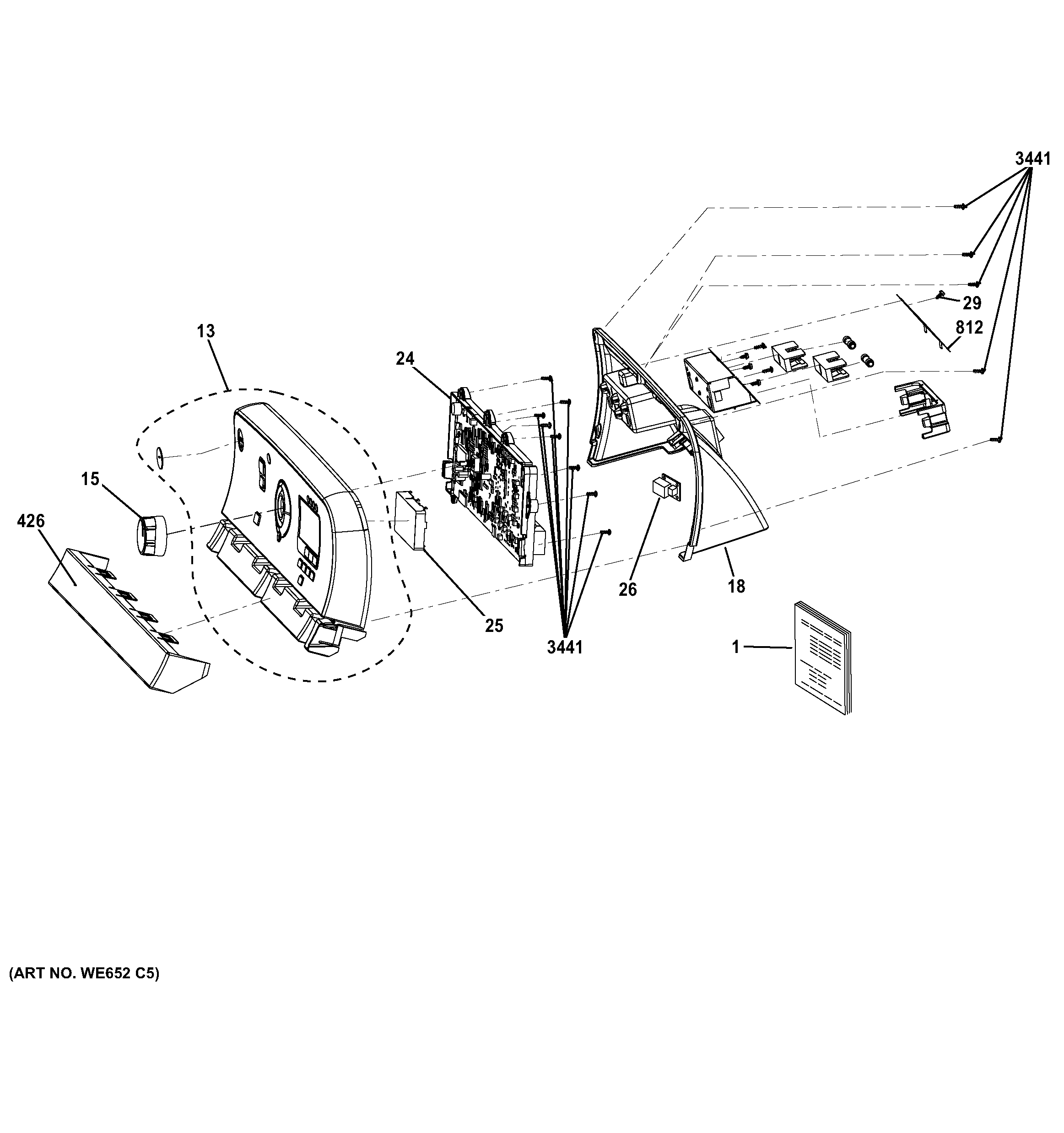

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

Showing 10 of 101 parts

Dryer Door Switch (replaces WE04M0415, WE4M335)#380

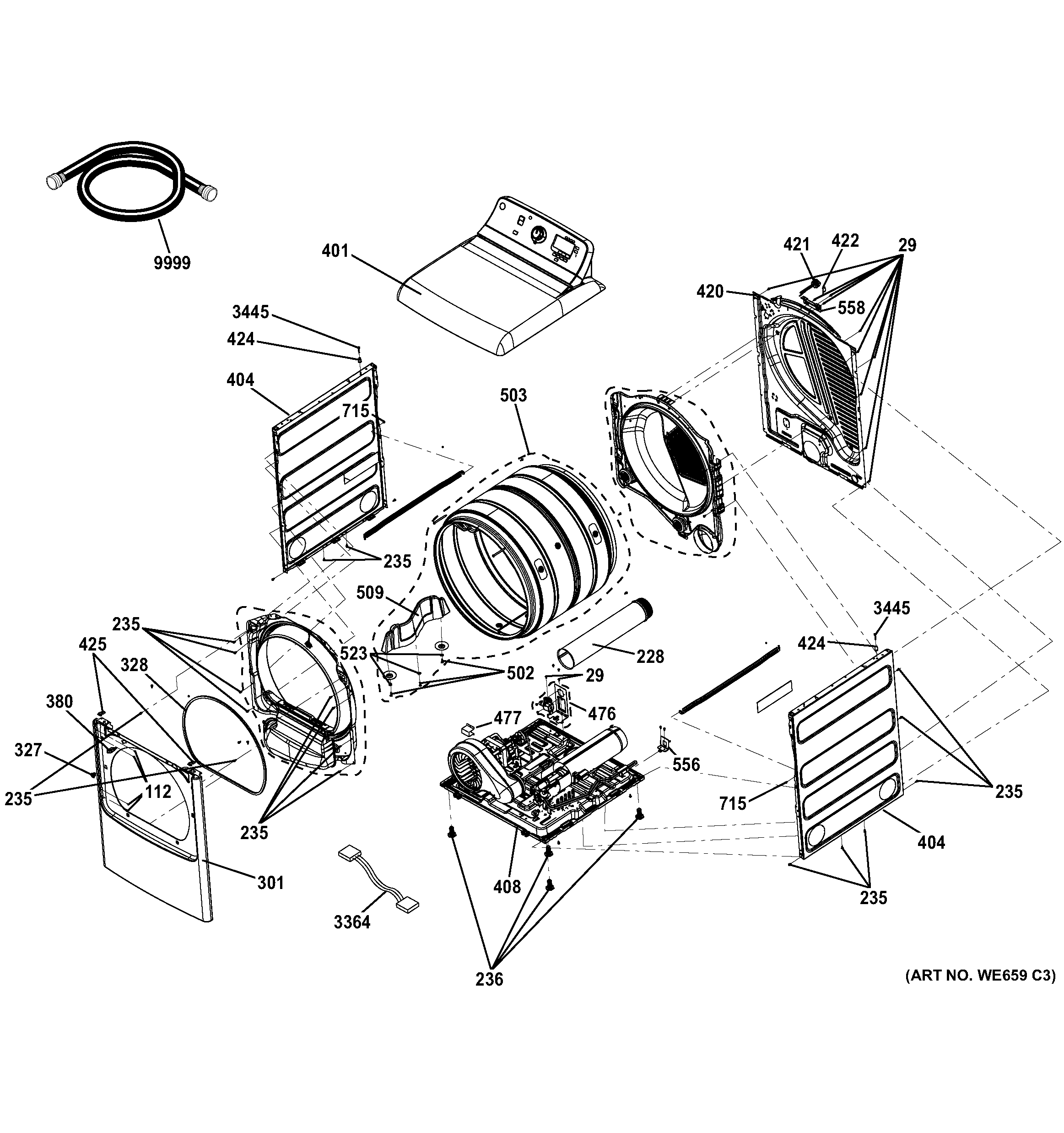

Cabinet Diagram

In Stock
$19.88 |
10% OFF
Was: $22.09
Dryer Radiant Sensor (replaces WE04X0448)#552

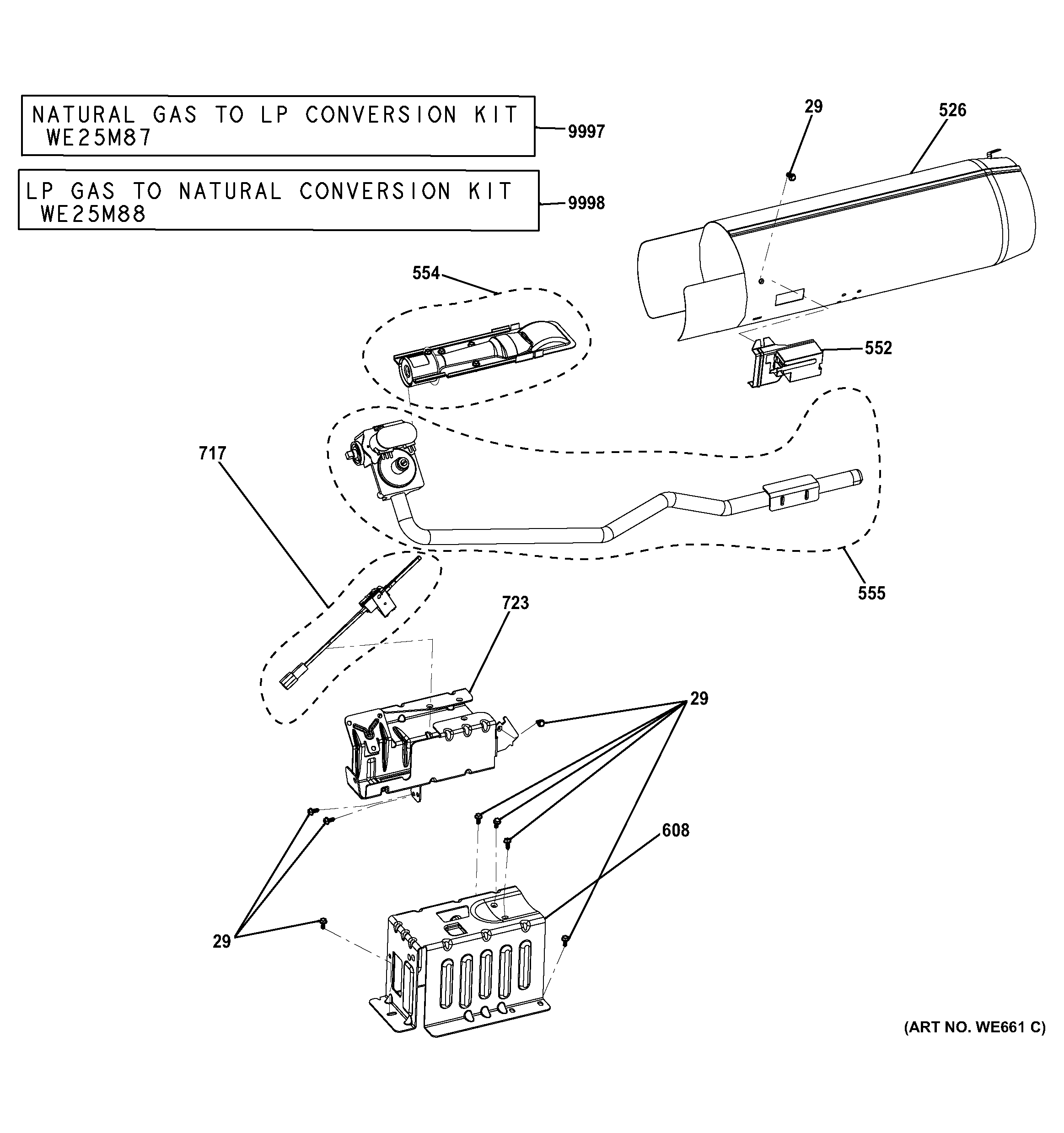

Gas valve & burner assembly Diagram

In Stock
$46.19 |
10% OFF
Phone Price: $51.19
Dryer Moisture Sensor and Grille Assembly#3363

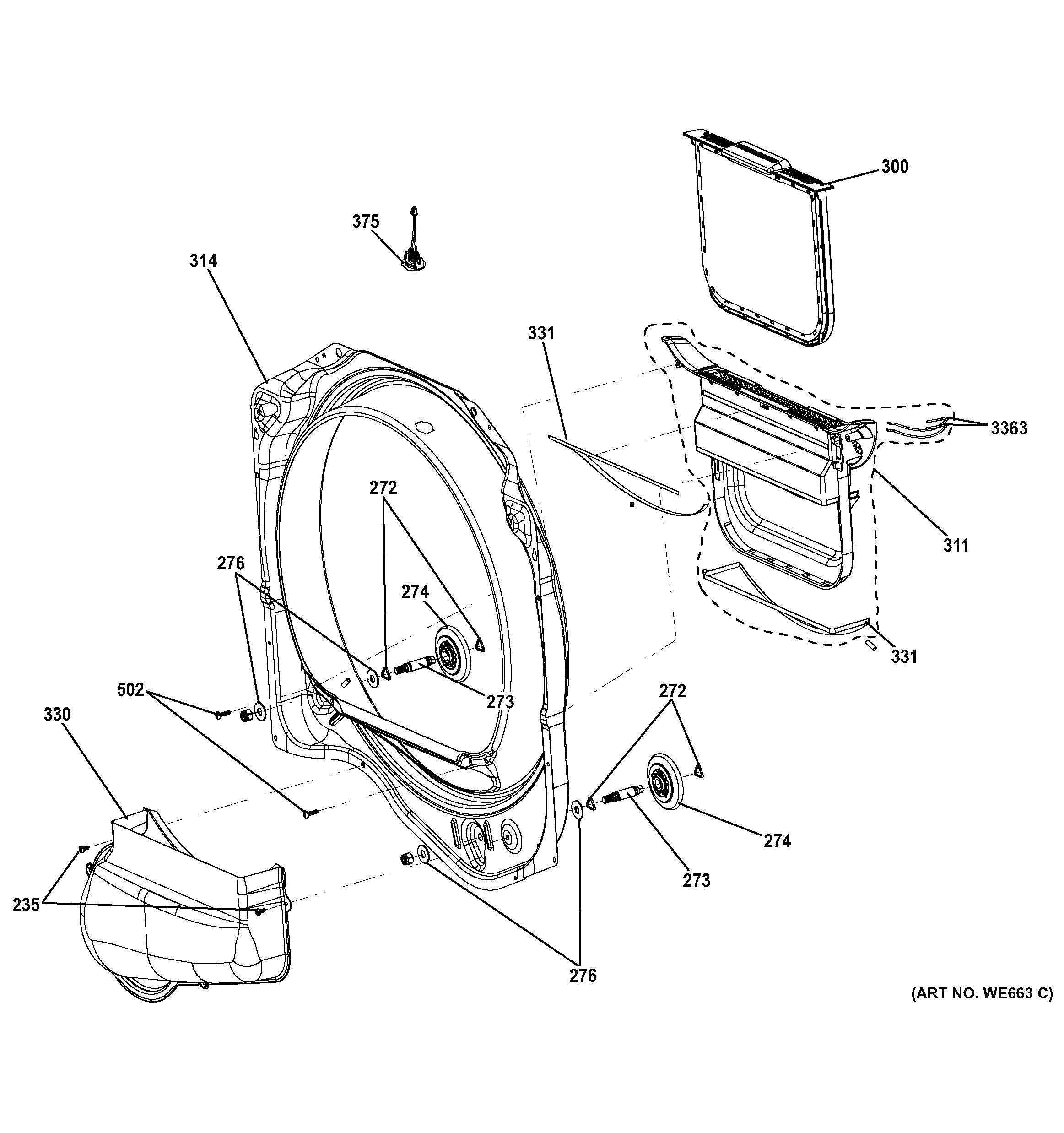

Front roller support Diagram

In Stock
$15.69 |
11% OFF
Phone Price: $17.69
Dryer Door Hinge#750

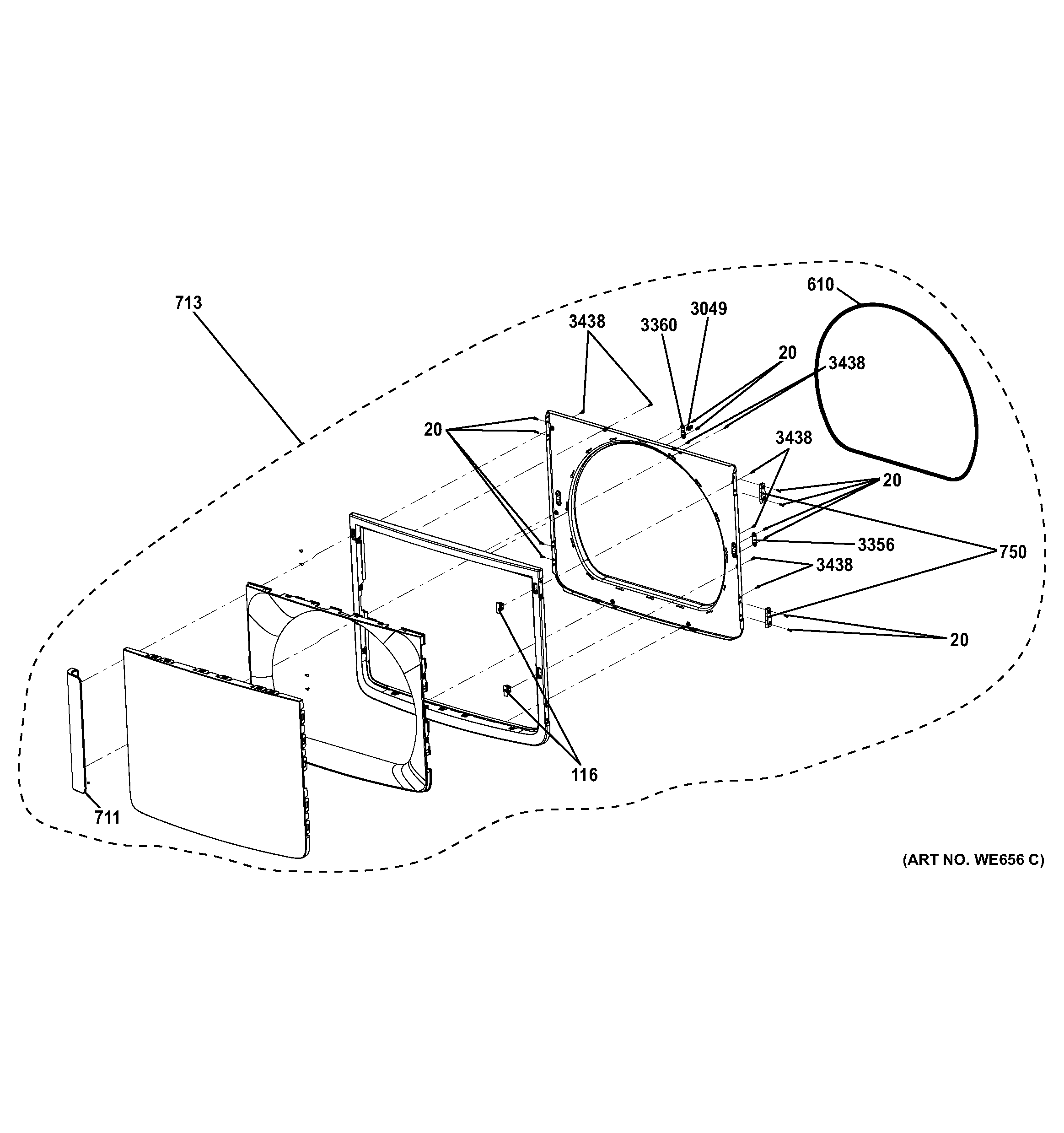

Door assembly Diagram

Dryer door hinge

Part #WE1M1033
This item is not returnable
In Stock
$6.92 |
13% OFF
Phone Price: $7.92
Dryer Power Cord (replaces WE26M0345)#421

Cabinet Diagram

In Stock
$41.99 |
11% OFF
Phone Price: $46.99
Strike Plate#3356

Door assembly Diagram

Strike plate

Part #WE1M569
In Stock
$9.39 |
10% OFF
Phone Price: $10.39
Dryer Drive Motor and Pulley (replaces WE17M0067)#630

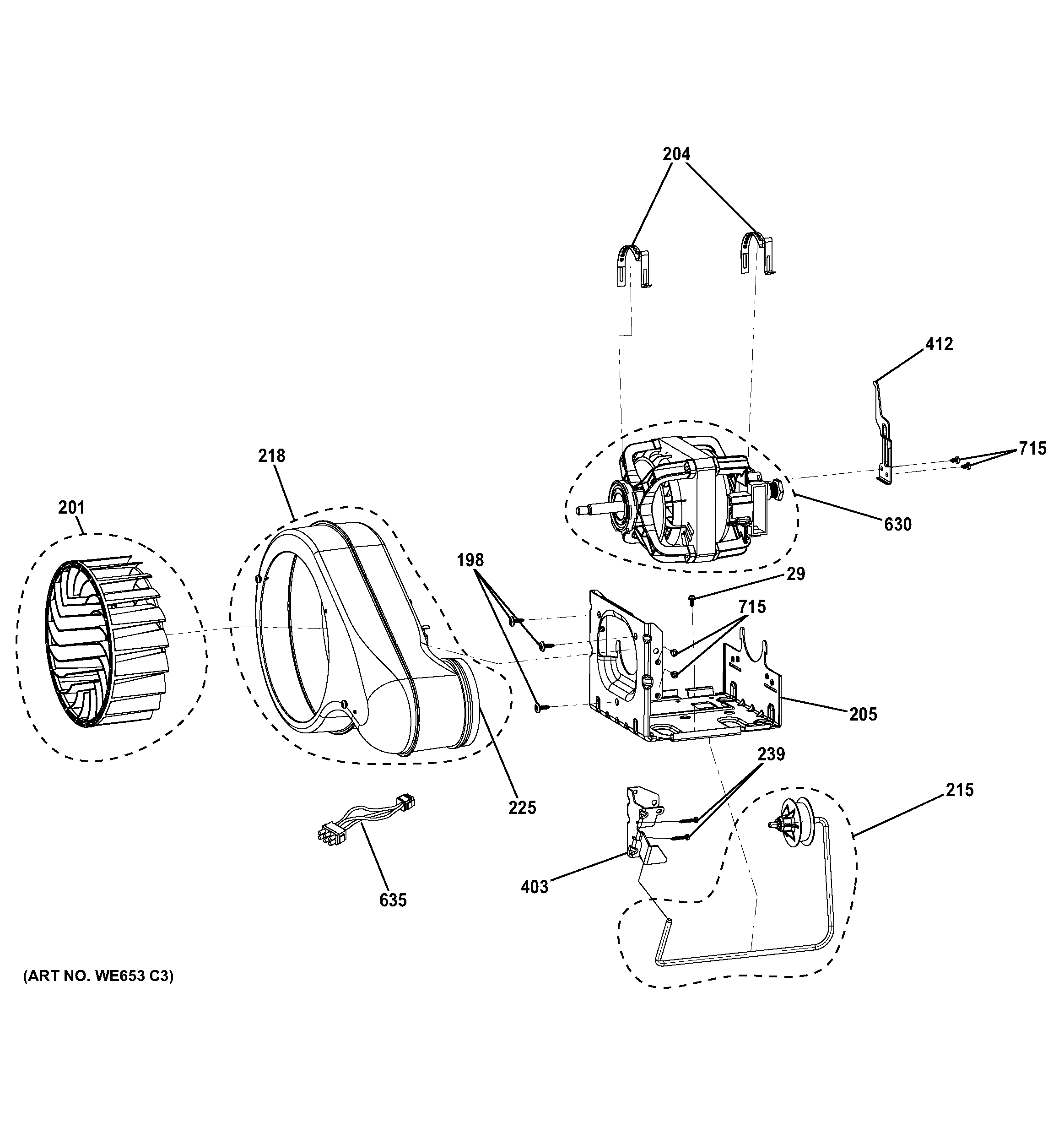

Blower & motor Diagram

In Stock
$286.49 |
$10.00 OFF
Phone Price: $296.49
Dryer Idler Assembly (replaces WE12M0038)#215

Blower & motor Diagram

In Stock
$29.99 |
14% OFF
Phone Price: $34.99
Dryer Burner Igniter (replaces WE04M0449)#717

Gas valve & burner assembly Diagram

Back Order
$82.39 |
6% OFF
Phone Price: $87.39
Tube#23

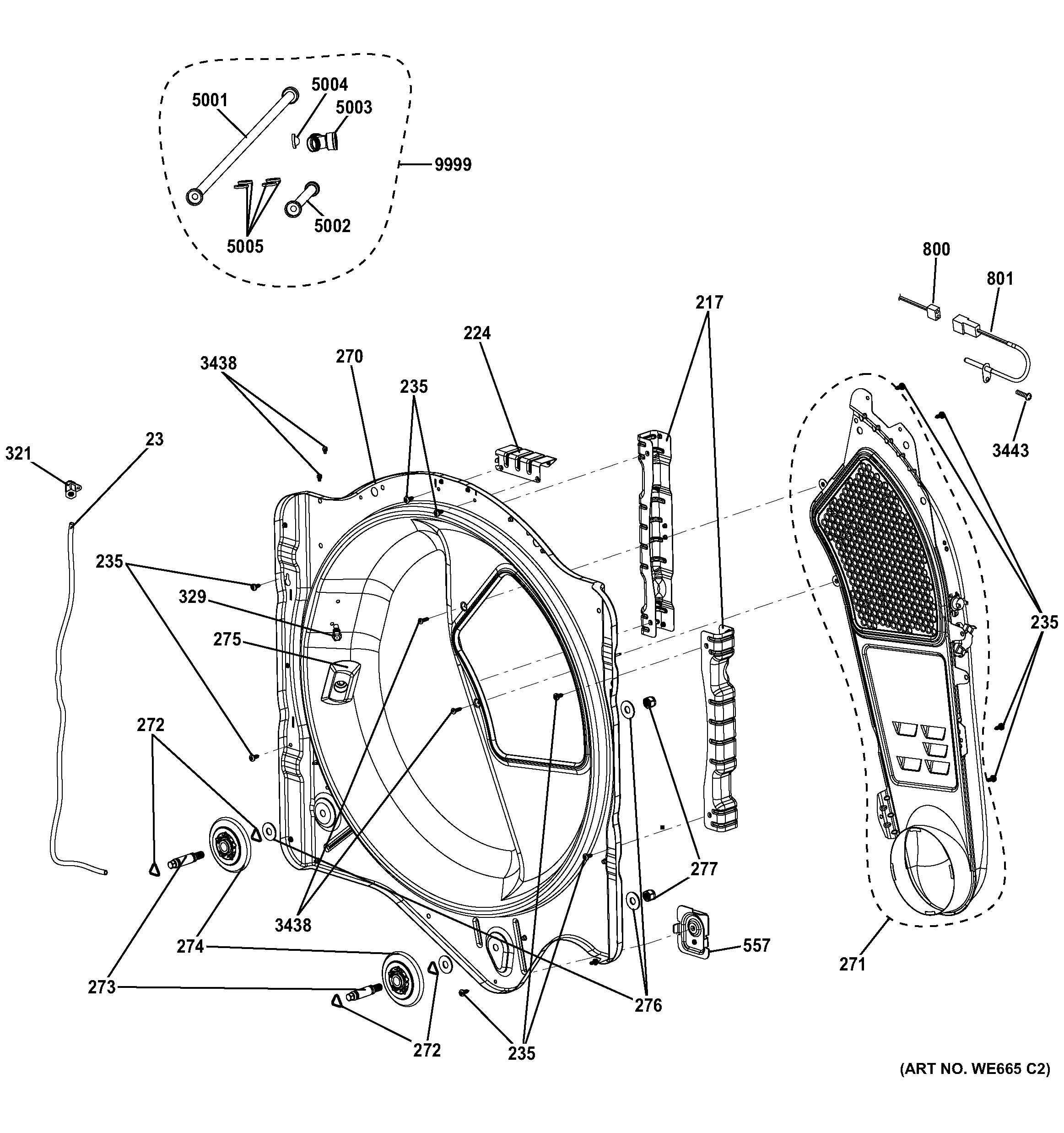

Rear roller support Diagram

Tube

Part #WE1M1035
In Stock
$10.00

Symptoms common to all dryers

Choose a symptom to see related dryer repairs.

Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: bad timer or electronic control board, door switch failure
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: damaged door strike, worn door catch
Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
