AO Smith GVR50 water heater

AO Smith GVR50 water heater Parts

Here are the diagrams and repair parts for AO Smith GVR50 water heater, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GVR50 Water Heaters

  • Water Heater Anode Rod for AO Smith GVR50 - Part 100109624

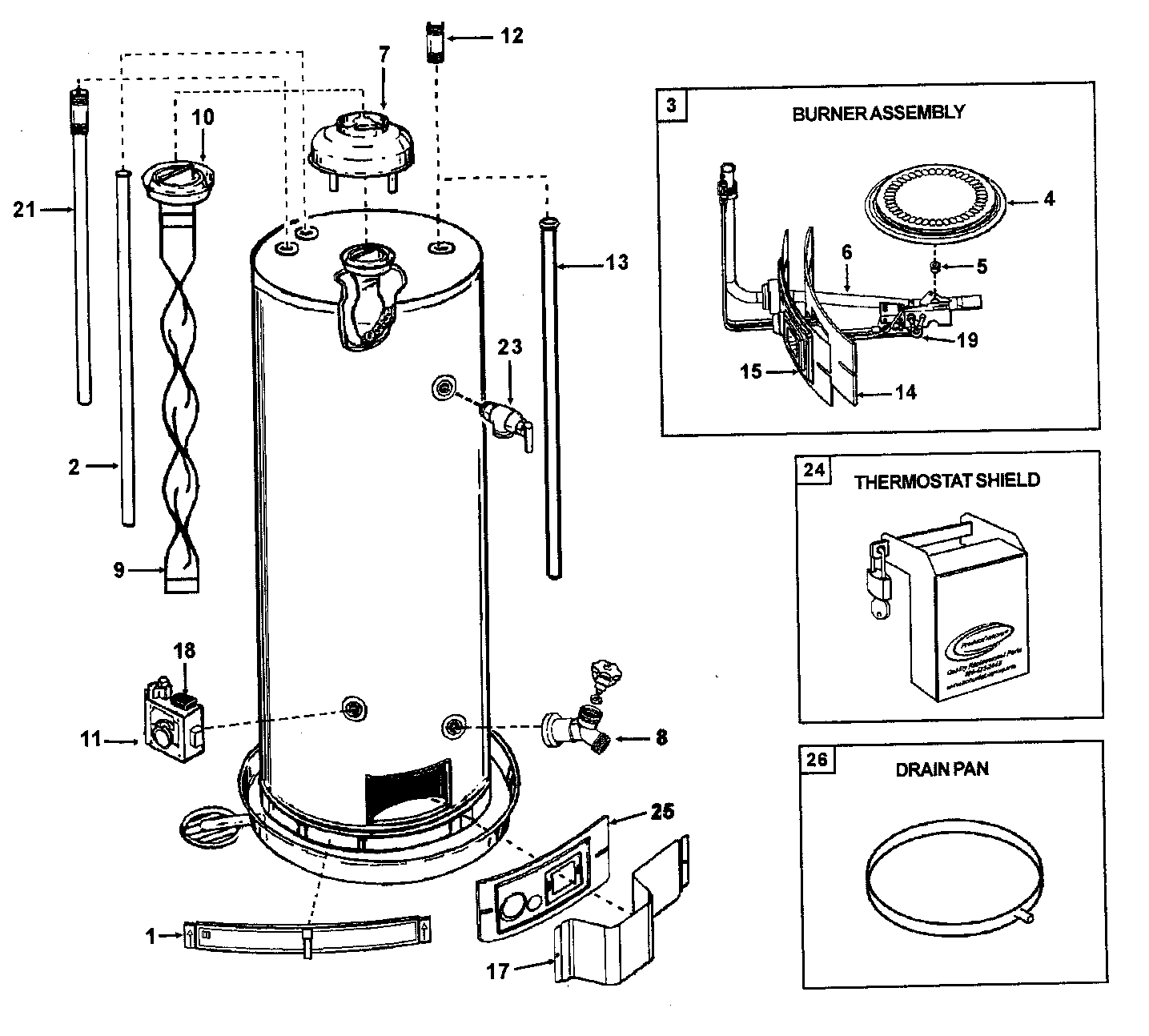

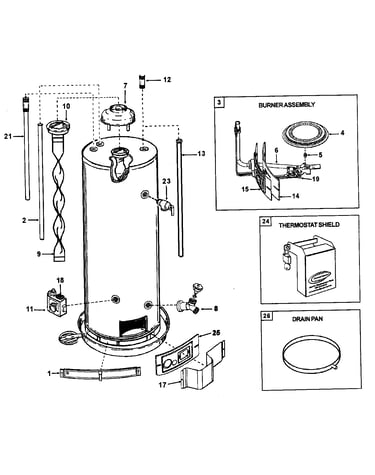

    Water heater diagram

    Anode Rod

    Part #183523-029

    Replaced by #100109624

    Info Icon
    Manufacturer substitution
    This part replaces 183523-029. Substitute parts can look different from the original.
    $62.01
    9% OFF Phone Price : $68.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Water Heater Pilot Assembly for AO Smith GVR50 - Part 100109290

    Water heater diagram

    Pilot Assembly

    Part #183824-180

    Replaced by #100109290

    Info Icon
    Manufacturer substitution
    This part replaces 183824-180. Substitute parts can look different from the original.
    In Stock
    $221.08
    Minus Item
    Qty
    Plus Item
  • K,drain Pan for AO Smith GVR50 - Part 100108459

    Water heater diagram

    Drain Pan

    Part #23912-A

    Replaced by #100108459

    Info Icon
    Manufacturer substitution
    This part replaces 23912-A. Substitute parts can look different from the original.
    In Stock
    $100.36
    Minus Item
    Qty
    Plus Item
  • Water Heater Air Intake Screen for AO Smith GVR50 - Part 100109216

    Water heater diagram

    Screen

    Part #183159-000

    Replaced by #100109216

    Info Icon
    Manufacturer substitution
    This part replaces 183159-000. Substitute parts can look different from the original.
    In Stock
    $34.40
    Minus Item
    Qty
    Plus Item
  • K,orifice,3 for AO Smith GVR50 - Part 100109268

    Water heater diagram

    Orifice

    Part #181791-050

    Replaced by #100109268

    Info Icon
    Manufacturer substitution
    This part replaces 181791-050. Substitute parts can look different from the original.
    In Stock
    $60.18
    Minus Item
    Qty
    Plus Item
  • Ao Smith Water Heater Manifold Door Gasket for AO Smith GVR50 - Part 100109214

    Water heater diagram

    Gasket

    Part #183162-000

    Replaced by #100109214

    Info Icon
    Manufacturer substitution
    This part replaces 183162-000. Substitute parts can look different from the original.
    In Stock
    $54.78
    Minus Item
    Qty
    Plus Item
  • Water Heater Igniter for AO Smith GVR50 - Part 100109221

    Water heater diagram

    Igniter Assembly

    Part #183798-000

    Replaced by #100109221

    Info Icon
    Manufacturer substitution
    This part replaces 183798-000. Substitute parts can look different from the original.
    In Stock
    $37.63
    Minus Item
    Qty
    Plus Item
  • Water Heater Burner for AO Smith GVR50 - Part 100109226

    Water heater diagram

    Burner Head

    Part #182730-000

    Replaced by #100109226

    Info Icon
    Manufacturer substitution
    This part replaces 182730-000. Substitute parts can look different from the original.
    In Stock
    $78.27
    Minus Item
    Qty
    Plus Item
  • K,orifice,3 for AO Smith GVR50 - Part 100109266

    Water heater diagram

    Natural Gas Orifice

    Part #181508-033

    Replaced by #100109266

    Info Icon
    Manufacturer substitution
    This part replaces 181508-033. Substitute parts can look different from the original.
    In Stock
    $58.02
    Minus Item
    Qty
    Plus Item
  • Water Heater Burner Access Door for AO Smith GVR50 - Part 100109299

    Water heater diagram

    Outer Door

    Part #183458-000

    Replaced by #100109299

    Info Icon
    Manufacturer substitution
    This part replaces 183458-000. Substitute parts can look different from the original.
    In Stock
    $62.60
    Minus Item
    Qty
    Plus Item

AO Smith Water Heater GVR50 FAQs

An Ao Smith 50-gallon gas water heater like model GVR50 typically lasts 10 to 12 years. With consistent maintenance and normal water conditions, it’s common to plan for replacement around year 10, especially if you’re seeing rust-colored water, leaks, or unreliable heating.

Typical lifespan and what affects it

Most of the life difference comes down to water quality, sediment, and corrosion protection.

  • Water hardness and sediment: more buildup means more burner run time and tank stress
  • Anode rod condition: a healthy anode rod helps prevent tank corrosion
  • Temperature setting: higher settings can accelerate wear
  • Maintenance habits: periodic flushing helps reduce sediment
  • Installation factors: proper venting and gas combustion reduce strain on components
Maintenance that helps you reach the high end of the range

These steps are practical for many gas water heaters and are especially helpful on a 50-gallon tank.

  • Flush a few gallons from the drain valve periodically to reduce sediment
  • Inspect and replace the anode rod when it’s heavily worn: use the anode rod 100109624
  • Keep the burner area clean and make sure air intake paths are not blocked
  • Watch for pilot issues or delayed ignition and address them early
  • Check for slow seepage at fittings and the base of the tank
Quick guide: repair vs. replace
What you’re seeing Most likely direction Why
Unit is under ~8 years old and heats inconsistently Repair/diagnose Often a serviceable gas control or pilot issue
10+ years old with frequent pilot outages Consider replacement Reliability typically drops as components age
Any age with water pooling at the base of the tank Replace Tank leak usually means the tank has failed
Why it matters

A water heater that’s near end-of-life can fail with little warning. Replacing a worn anode rod and keeping sediment down can extend service life and help maintain hot water recovery and efficiency.

Last updated: February 2026

Ao Smith water heaters are generally a solid, good-quality choice, and many homeowners and plumbers consider them reliable when they are installed correctly and maintained. For your Ao Smith GVR50 gas water heater, long life and consistent hot water depend most on water quality, venting, gas supply, and routine maintenance such as replacing the anode rod.

What “good quality” means for a gas tank water heater

Quality shows up in day-to-day performance and how well the heater holds up over time.

  • Stable burner operation and easy ignition
  • Consistent recovery rate (how fast it reheats)
  • Minimal corrosion inside the tank
  • Fewer nuisance shutdowns (pilot going out)
  • Parts availability for common wear items
Maintenance that most affects lifespan

For a tank-style gas water heater like the GVR50, maintenance matters as much as brand.

  • Replace the sacrificial anode periodically; it protects the tank from rusting out (see anode rod 100109624)
  • Flush sediment from the tank on a routine schedule (especially with hard water)
  • Keep the combustion air intake area clean; lint and dust can affect burner performance
  • Watch for early signs of gas control issues (temperature swings, pilot problems)
  • Address small leaks quickly to prevent corrosion and water damage
Common “quality complaints” and what they usually point to

Many negative experiences trace back to a specific failure mode or installation condition, not the name on the tank.

Symptom Often related to Parts that may apply to GVR50
Pilot won’t stay lit Pilot/thermocouple issues, dirty burner area Pilot assembly 100109290
Burner won’t light or burns poorly Gas orifice restriction, burner issues Orifice 100109268, natural gas orifice 100109266, burner head 100109226
Water temperature is erratic Gas control/thermostat problems Control valve 100109365
Why it matters

A “good” water heater is the one that matches your home’s needs and can be maintained. If your GVR50 is heating well now, staying ahead of corrosion (anode) and combustion issues (pilot, burner, orifice) is the most practical way to protect your investment.

Last updated: February 2026

A typical 50-gallon gas water heater averages about $600 to $1,200 for the tank alone, and about $900 to $3,100 for a professional replacement (heater plus installation). For an Ao Smith GVR50, your final price depends most on venting type, local labor rates, and whether any gas or water piping needs updates.

What drives the price up or down
  • Venting: standard atmospheric venting is usually less expensive than power-venting.
  • Efficiency and features: higher efficiency, electronic ignition, and longer warranties cost more.
  • Installation complexity: tight spaces, code upgrades, or moving the heater increases labor.
  • Condition of existing connections: corroded shutoff valves, old vent pipe, or undersized gas line can add parts and time.
  • Add-ons: drain pan, expansion tank, and seismic strapping (where required) add cost.
Typical cost ranges (what most homeowners see)
Cost item Common range Notes
Water heater unit (50-gal gas) $600 to $1,200 Basic to premium models
Labor and installation parts $300 to $1,900 Varies by region and complexity
Total installed cost $900 to $3,100 Most common “all-in” range
Parts that can affect your total during replacement

Even if you are pricing a full replacement, small parts and accessories often get added to the invoice. For example:

Why it matters

A low “heater-only” price can be misleading because installation details (especially venting and gas line condition) often determine the real cost. Planning for the installed range helps avoid surprises and keeps your hot water system safe and reliable.

Last updated: February 2026
