Whirlpool WRF757SDHZ00 bottom Parts

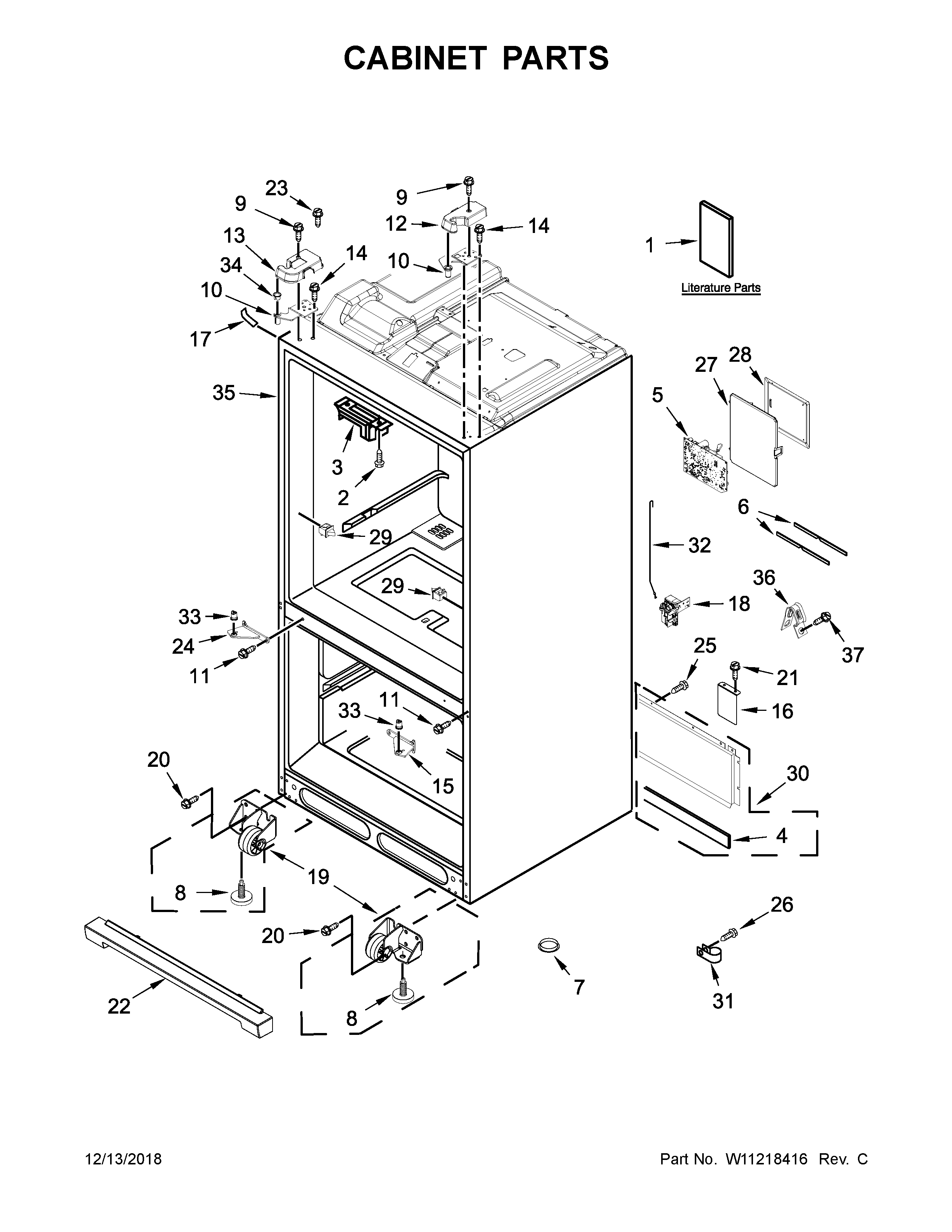

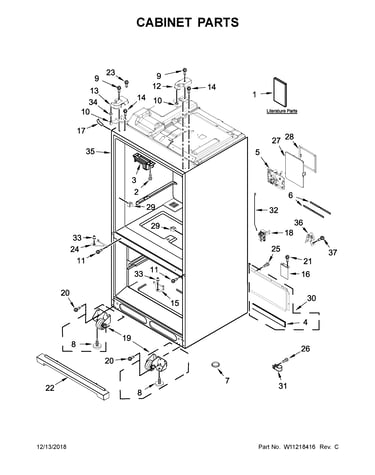

On the Whirlpool WRF757SDHZ00 bottom-mount refrigerator, we remove the base grille by grasping it firmly and pulling it straight toward us; opening the freezer drawer gives access to the brake feet area behind it. For the model-specific steps and safety notes, use the WRF757SDHZ00 use & care manual.

• Unplug the refrigerator (or disconnect power) before working near the bottom front.
• Pull open the freezer drawer so you can reach behind the grille area.
• Place both hands on the base grille.
• Pull the grille firmly straight toward you to release it.
• Set the grille aside on a protected surface to avoid scratches.

To put the grille back on, we align the ends of the grille with the leveling assemblies on each side, then snap it into place.

Removing the grille is mainly for leveling and stability adjustments. Behind it you can typically reach:

• Brake feet (leveling feet)
• Front roller area
• Lower front frame area for basic cleaning

A properly installed base grille helps protect the brake feet and roller area from debris, and removing it is the first step when we need to level the cabinet so the doors and freezer drawer close correctly.

Last updated: January 2026

The most common problems we see on Whirlpool refrigerators like model WRF757SDHZ00 are cooling complaints (fresh food too warm or freezer too warm), ice maker or dispenser issues, and water leaks. Many start with airflow restrictions, dirty condenser coils, or a clogged drain before a part actually fails.

• Not cooling well: confirm temperature set points, make sure vents are not blocked, and clean condenser coils.
• Ice maker not making ice: verify the ice maker is on, water supply is on, and the filter is not overdue.
• Water leaking: check for a clogged defrost drain, loose water line connections, or a cracked reservoir.
• Noisy operation: some sounds are normal; new high-efficiency compressors can run longer and at varying speeds.
• Lights or dispenser acting up: door switch problems can cause odd symptoms.

For model-specific operating checks (recommended temps, control settings, and troubleshooting steps), use the WRF757SDHZ00 use & care manual.

If basic checks do not fix the issue, these model-compatible parts are often involved:

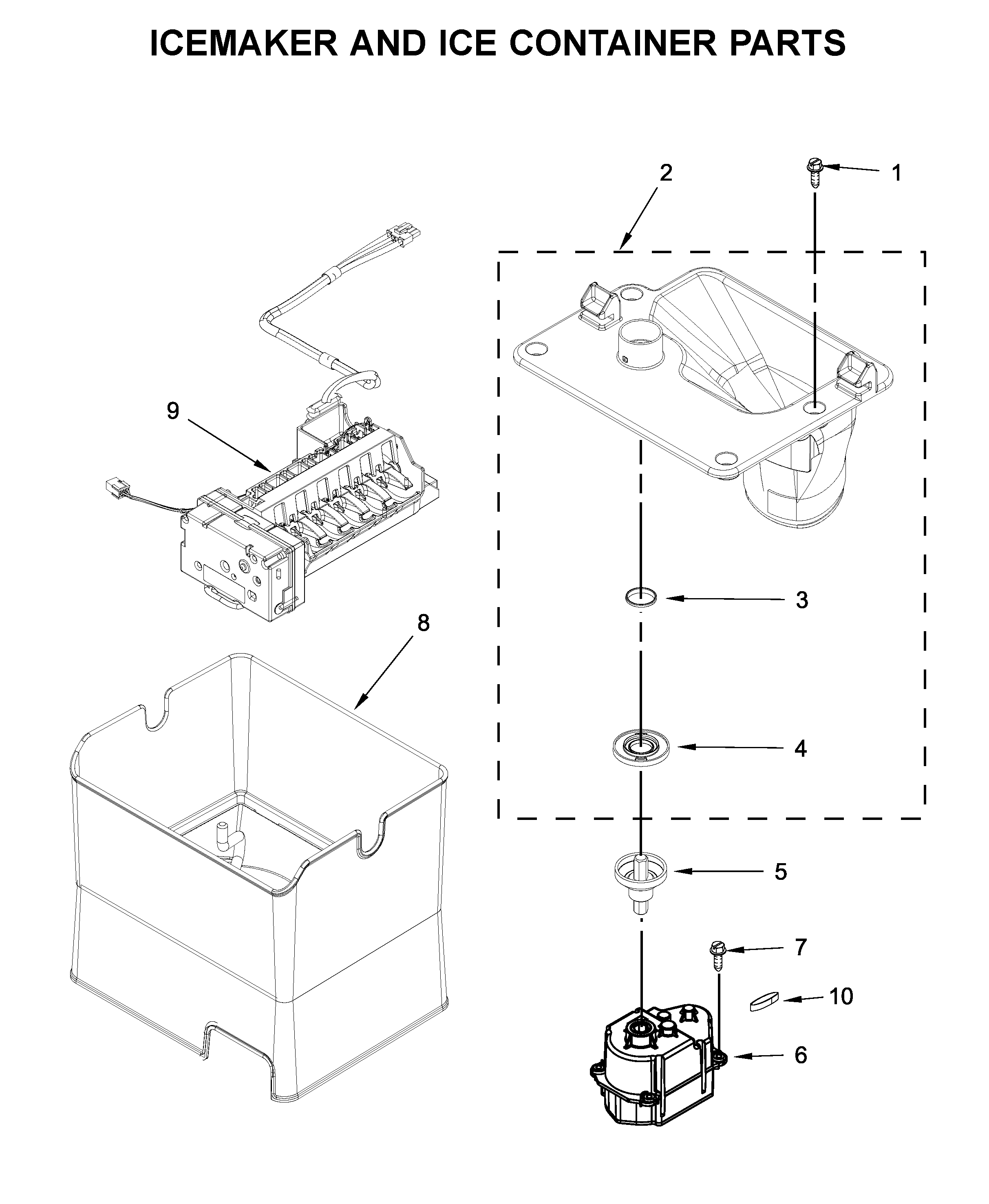

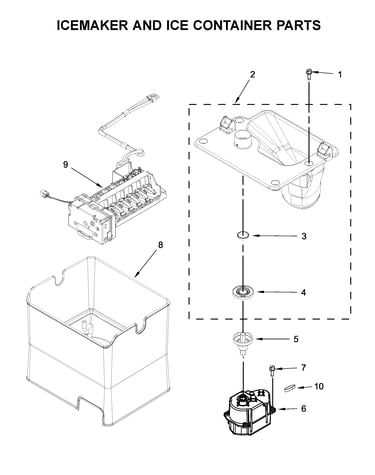

• Refrigerator ice maker W11658802 (no ice, small batches, intermittent production)
• Refrigerator water inlet valve assembly WPW10341329 (no water to dispenser/ice maker, slow fill)
• Refrigerator cartridge wrap assembly EDR2RXD1 (low water flow, poor ice/water quality)
• Refrigerator electronic control board WPW10479155 (erratic temps, dispenser/control issues)

Catching the simple causes first (airflow, filter, drain) prevents food spoilage, reduces strain on the compressor, and helps you avoid replacing parts that are not actually bad.

Last updated: January 2026

On the Whirlpool WRF757SDHZ00, the model number is printed on the model and serial tag located on the inside wall of the refrigerator compartment. Open the fresh food doors and look along the interior side wall for a label that lists both the model and serial number; confirm the exact characters before ordering parts.

• Open the refrigerator (fresh food) compartment doors
• Check the inside wall of the refrigerator compartment (not the freezer drawer)
• Look for a sticker or metal tag that lists Model and Serial
• Write the model number exactly as shown (letters, numbers, and any suffix)
• Take a clear photo of the tag for reference

Having the correct model number and serial number matters because it ensures the parts diagrams and replacement parts match your exact configuration (controls, ice maker, dispenser, and door style).

Even small model-number differences can change which Whirlpool refrigerator parts fit, such as the water filter housing, ice maker, or electronic control board. Using the tag information prevents ordering the wrong part.

For more label-location details and appliance identification tips, use the WRF757SDHZ00 owner's manual.

Last updated: March 2026
