How wide is a Kenmore side by side refrigerator?
For the Kenmore side-by-side refrigerator model 10650042714, the minimum cabinet cut-out width needed for installation is 36 inches. That 36-inch opening is the practical “width” most homeowners plan around; confirm your exact clearances in the 10650042714 owner's manual.
What “36 inches wide” means for fit
The 36-inch figure in the manual refers to the minimum cabinet opening required to slide the refrigerator into place. You also need extra space for ventilation and door swing.
- Plan for 36 in minimum cabinet cut-out width
- Leave 1/2 in clearance on each side and at the top for ventilation
- Leave 2 in clearance behind the refrigerator
- If installed next to a fixed wall, allow about 2 in minimum on the wall side (model-dependent) so doors can open and drawers can be removed
Quick planning guide (common scenarios)
| Installation situation | What to plan for | Why |
|---|---|---|
| Standard cabinet opening | 36 in minimum cut-out | Allows the unit to fit into the space |
| Tight side clearances | Add 1/2 in per side | Improves airflow and cooling performance |
| Against a wall | Add about 2 in on wall side | Helps doors swing open and improves access |
| Water line for ice maker | Extra space behind | Prevents kinks and leaks at connections |
How we recommend measuring before you buy or move it
- Measure the cabinet opening width in at least 3 spots (top, middle, bottom)
- Measure depth from the back wall to the front edge of counters (if counter-depth matters)
- Check for baseboards, trim, and door casing that can reduce usable width
- Confirm you have room to open both doors and pull out crispers/bins
- Measure the path into the kitchen (doorways, hall turns) so the refrigerator can be moved in safely
Why it matters
A side-by-side refrigerator can physically fit a 36-inch opening but still be hard to use if ventilation space and door swing clearance are too tight. Proper clearances help prevent warm temperatures, noisy operation, and drawer access problems.
Last updated: February 2026
What are the most common problems with Kenmore refrigerators?
The most common problems we see on Kenmore refrigerators like model 10650042714 are cooling issues, ice maker and water dispenser failures, water leaks, frost buildup, and unusual noises. Many are caused by airflow restrictions, dirty coils, door seal gaps, or a failing fan or defrost component; use the 10650042714 owner's manual troubleshooting section to narrow it down.
Most common symptoms and what they usually point to
- Not cooling or warm temperatures: blocked vents, dirty condenser coils, evaporator fan problem, or defrost issue
- Ice maker not making ice: water supply issue, clogged filter, frozen fill tube, or ice maker failure
- Water leaking: clogged defrost drain, loose water line, or dispenser tubing issue
- Frost buildup in freezer: door not sealing, frequent door openings, or defrost system problem
- Noisy operation: evaporator fan, condenser fan area, or ice maker/ice bin noise
Quick checks we recommend first (fast DIY wins)
- Confirm power and outlet: the manual recommends a grounded 3-prong outlet and no extension cord.
- Give it time after setup: after a new installation, allow 24 hours to cool completely.
- Check airflow: make sure food packages are not blocking interior vents.
- Clean condenser coils: dust buildup commonly causes poor cooling and long run times.
- Inspect door gaskets: look for gaps, tears, or areas that do not grip paper when the door is closed.
Common part-related fixes for this model
If symptoms match, these are frequently involved parts for model 10650042714:
| Problem area | What fails | Example part on this page |
|---|---|---|
| Water/ice quality or slow dispensing | Clogged water filter | Refrigerator cartridge EDR1RXD1 |
| No ice or intermittent ice | Ice maker module or assembly | Refrigerator ice maker assembly WPW10300022 |
| Warm fridge/freezer, noise from rear freezer | Evaporator fan motor or blade | Refrigerator evaporator fan motor WP2315549 and refrigerator evaporator fan blade WP2169142 |
| Frost buildup, poor cooling after a few days | Defrost heater issue | Refrigerator heater WP2323198 |
Why it matters
Catching the root cause early prevents food spoilage and helps avoid secondary damage. For example, restricted airflow or a weak evaporator fan can look like a “sealed system” problem, but it often has a simpler fix.
Helpful DIY guidance
- For filter and water-flow related issues, follow how to replace the water filter in a Kenmore refrigerator.
- If your model displays an error code, use Kenmore 106 model refrigerator error codes to interpret it before replacing parts.
Last updated: February 2026
What is the code Sy Ef on a Kenmore refrigerator?
On Kenmore model 10650042714, the SY EF code points to a cooling-system feedback problem, most commonly tied to the evaporator fan circuit or the freezer temperature sensing/airflow system. Start by checking for blocked airflow and heavy frost; then inspect the fan and its wiring.
What to check first (fast, no tools)
- Make sure freezer vents are not blocked by food packages.
- Confirm both doors fully close and the gaskets seal all the way around.
- Look for heavy frost on the freezer back wall (a sign of a defrost or airflow issue).
- Power reset: unplug the refrigerator for 5 minutes, then plug it back in.
- Verify temperatures: freezer near 0°F and fresh food near 37°F (typical targets).
Common causes and likely fixes
SY EF is usually triggered when the control does not see the expected temperature change or airflow feedback.
| What you notice | Most likely area | What we typically do |
|---|---|---|

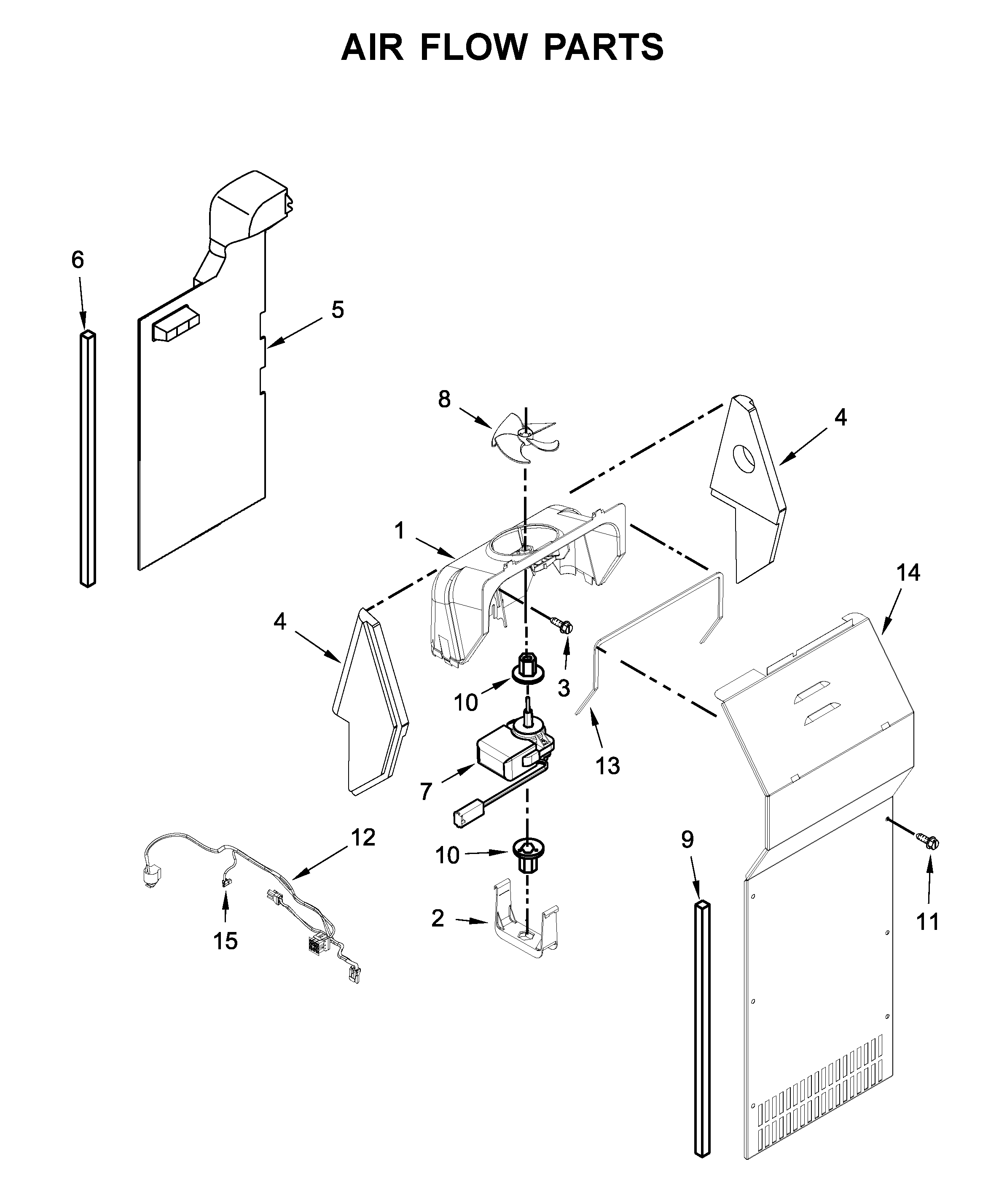

| Freezer warm, little or no air movement | Evaporator fan not running | Check/replace refrigerator evaporator fan motor WP2315549 |
| Fan runs but noisy or rubbing | Fan blade damaged/loose | Inspect/replace refrigerator evaporator fan blade WP2169142 |
| Heavy frost, airflow weak | Defrost system issue | Inspect/replace refrigerator heater WP2323198 if heater is open |
| Intermittent error, fan cuts out | Wiring/thermal protection | Inspect connectors; consider refrigerator evaporator fan motor wire harness and thermal fuse assembly W11545823 |
Why it matters
When the evaporator fan, defrost heater, or related wiring is not working correctly, cold air cannot move from the freezer evaporator to the refrigerator section. That can cause temperature swings, food spoilage, and recurring error codes.
Where to find model-specific guidance
Use the troubleshooting and component location information in the 10650042714 owner's manual to confirm access steps, safety notes, and the correct checks for your exact configuration.
Last updated: February 2026
