Whirlpool WDF530PAYB7 dishwasher Parts

For Whirlpool model WDF530PAYB7, we troubleshoot most common dishwasher problems by checking the door latch, cycle selection, and power first, then confirming water supply and drainage. These steps match the built-in troubleshooting guidance in the WDF530PAYB7 owner’s manual.

Quick checks (most fixes)

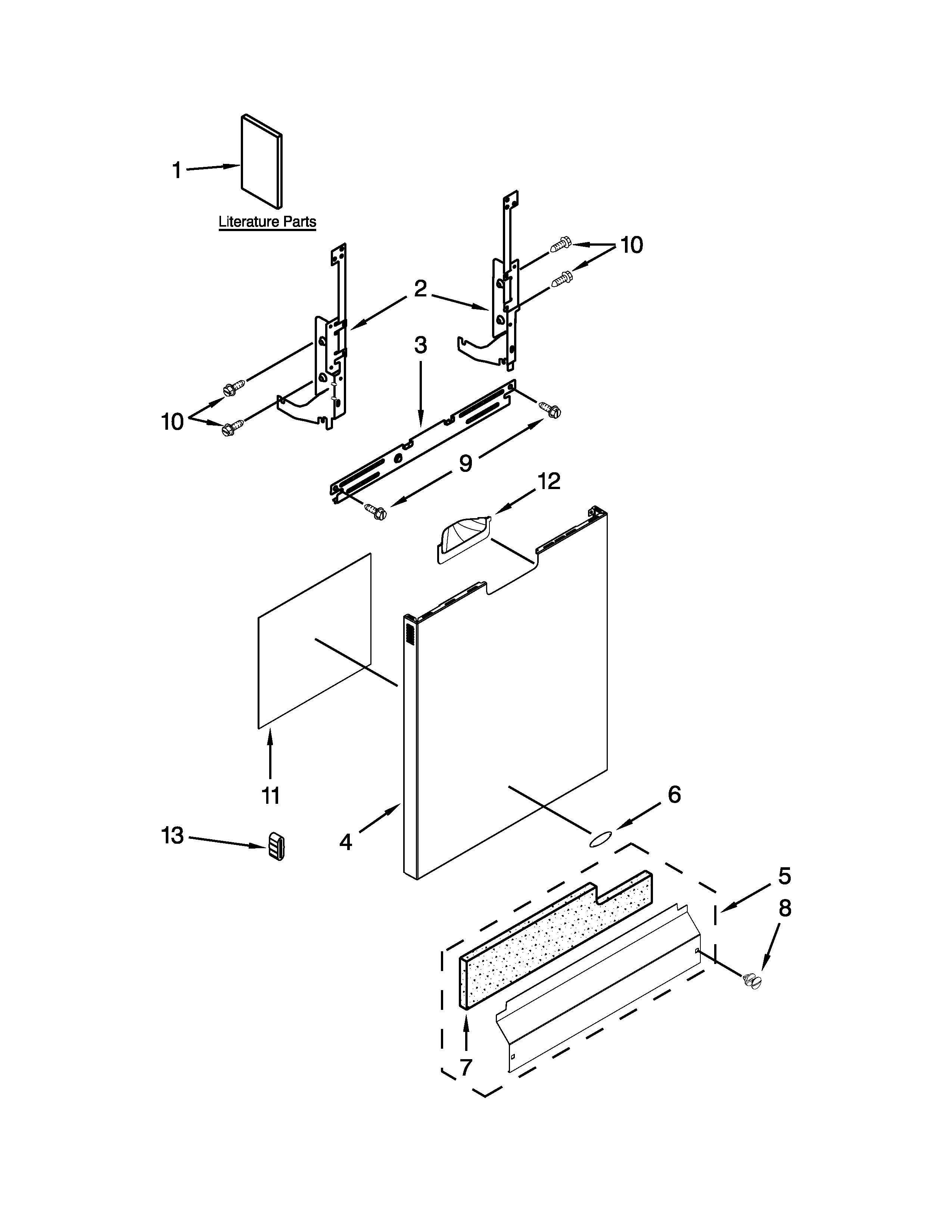

• Make sure the door is fully closed and latched; a loose latch can stop the cycle.
• Confirm you selected the correct cycle and options for the load.
• Verify the dishwasher has power (breaker on, outlet powered).
• Check that the water shutoff valve under the sink is fully open.
• If the unit pauses briefly during wash, that can be normal on some cycles.

If it won’t start or stops mid-cycle

The manual notes that some cycles pause for several seconds during the main wash, so a short stop is not always a failure.

• No lights or no response: check breaker, outlet, and any wall switch controlling the dishwasher.
• Lights on but no run: re-close the door firmly; listen for the latch click.
• Stops and then restarts later: the motor can reset after an overload; wait a few minutes and try again.

Symptom	What to check first	Likely next step

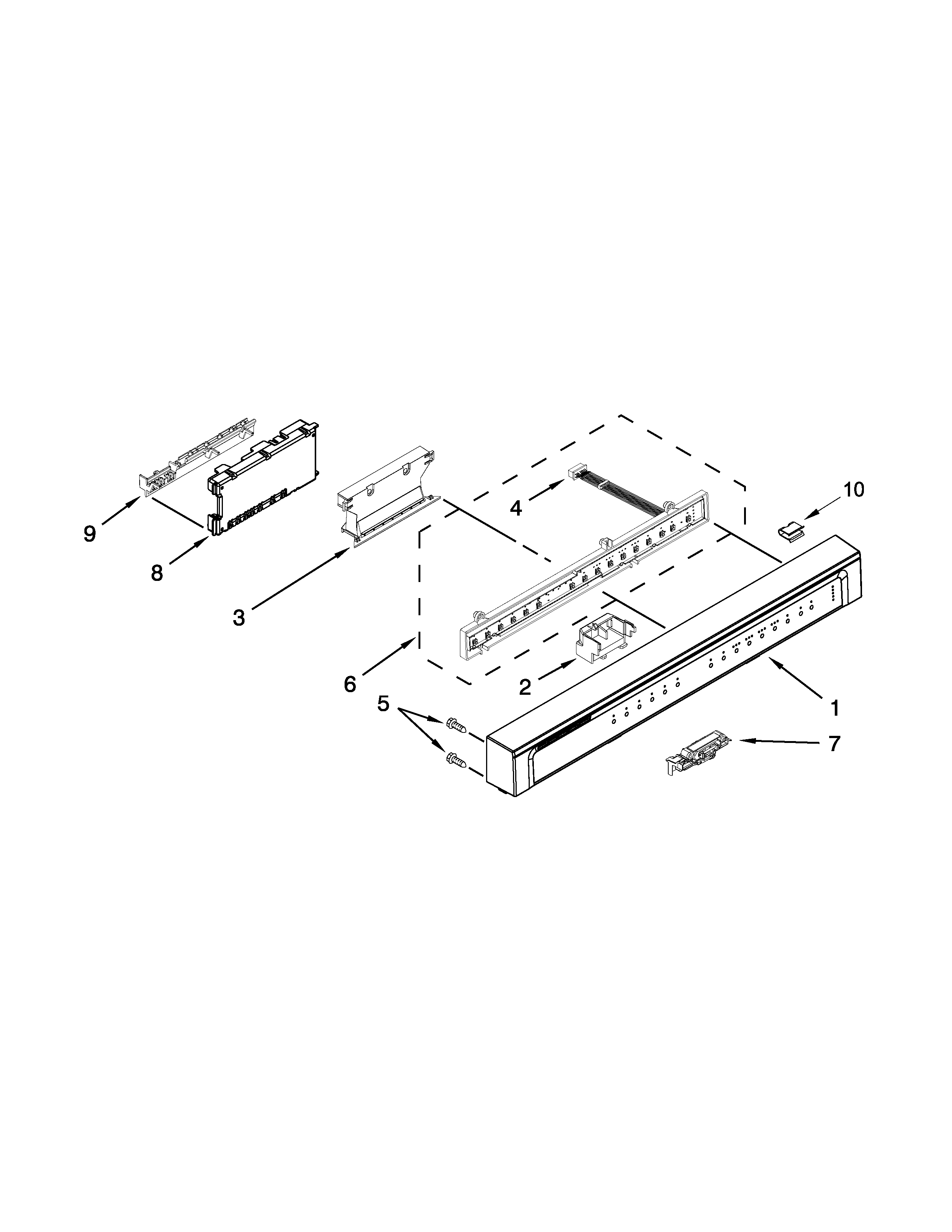

Won’t start	Door fully latched	Inspect/replace dishwasher door latch WPW10653840
Fills slowly or not at all	Water shutoff valve open	Inspect/replace inlet valve (if needed)
Stops during wash	Normal cycle pauses	Reset procedure and re-test

If it won’t drain

Start with the simplest restrictions first.

• Clear standing water and check the sump area for debris.
• Inspect the drain hose for kinks, clogs, or a blocked high loop/air gap.
• Check the sink drain and garbage disposal inlet (a common blockage point).

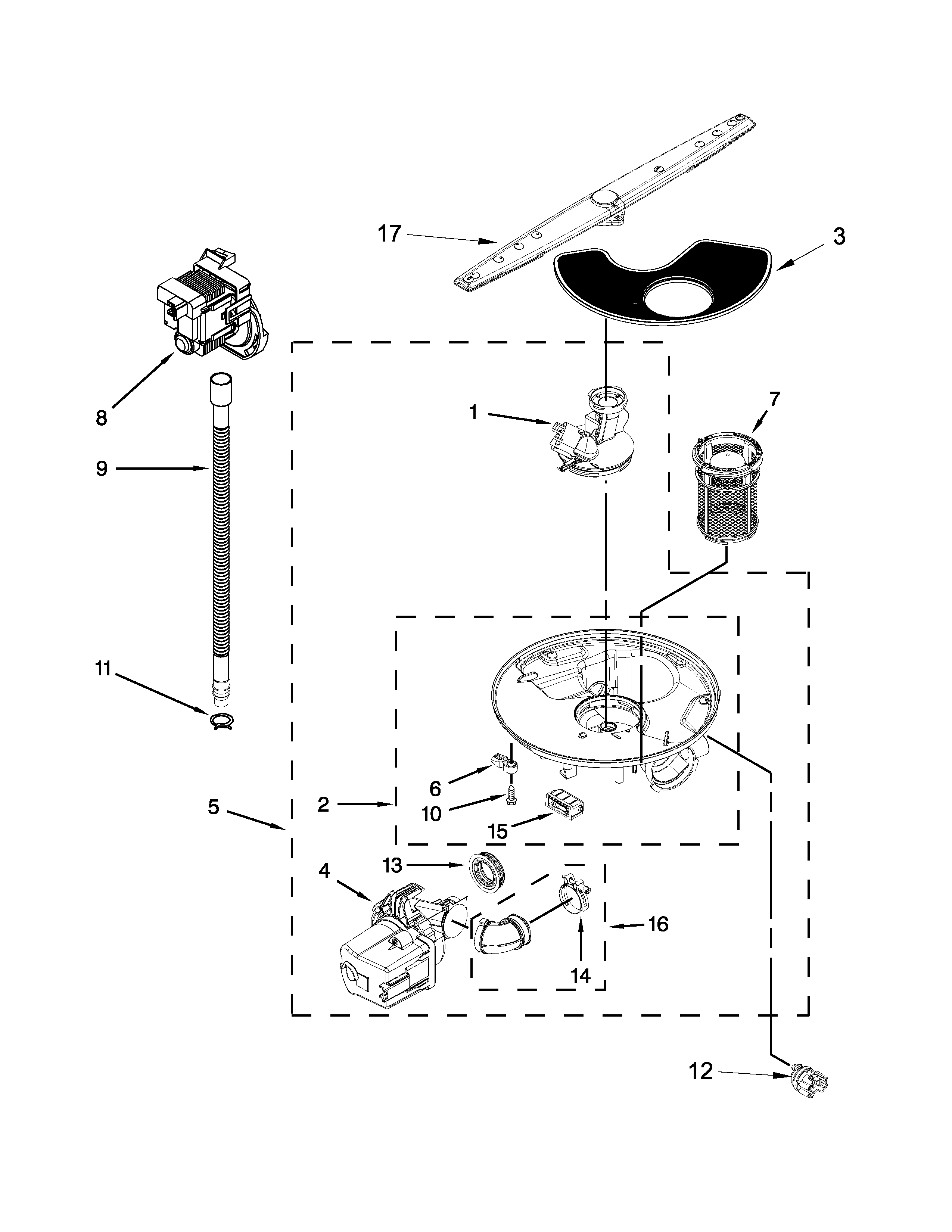

• If the hose and plumbing are clear, test the pump; replacement is typically the dishwasher drain pump WPW10348269.

Error codes and resets

If you see blinking patterns or an error code, use the Whirlpool dishwasher error codes guide to match the code to a specific failure (drain, fill, heating, sensor). For a control reset sequence, follow the how to reset a Whirlpool dishwasher steps.

Why it matters

Dishwasher issues often come from a simple “no-start” condition (door latch or power), a “no-fill” condition (shutoff valve/inlet valve), or a “no-drain” condition (hose/pump). Checking in that order prevents unnecessary parts replacement.

Last updated: February 2026

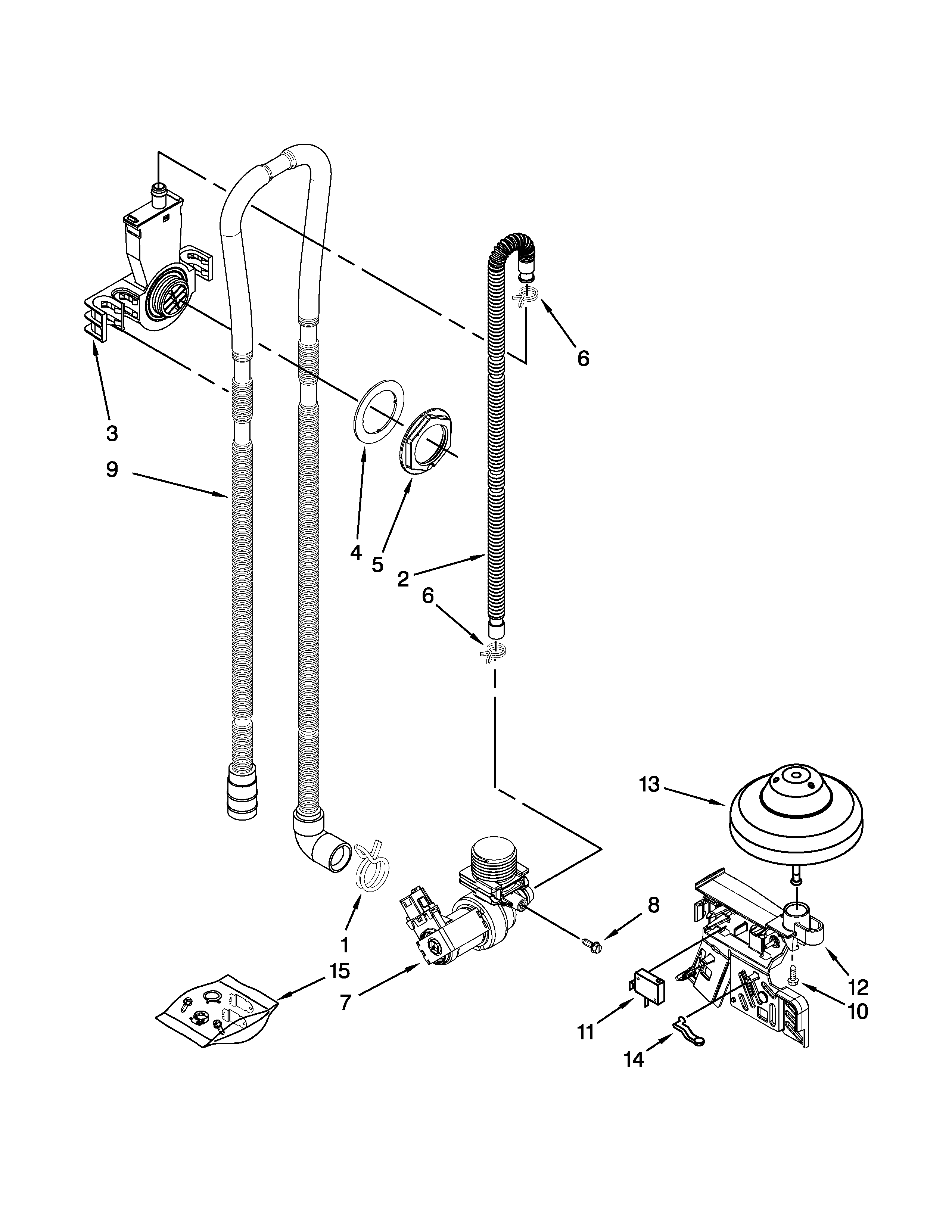

On the Whirlpool WDF530PAYB7 dishwasher, the F6 E1 error points to a water level detection or fill issue. The control is not seeing the expected water level change during filling, so the dishwasher may stop, drain, or refuse to continue the cycle. See the WDF530PAYB7 owner’s manual for model-specific checks.

What usually causes F6 E1

These are the most common conditions that trigger a water level detection fault:

• Water shutoff valve under the sink is closed or only partially open
• Low household water pressure or a kinked supply line
• Inlet screen at the water inlet valve is clogged with debris
• Dishwasher is draining while trying to fill (drain hose routing issue)
• A failed water inlet valve such as the dishwasher water inlet valve W11175771

Quick checks we recommend (in order)

1. Confirm the door is fully closed and latched; many cycles pause or stop if the door is not latched.
2. Verify power and restart: reset the breaker if needed, then try a new cycle.
3. Turn the water supply fully on at the shutoff valve.
4. Inspect the fill path: straighten the supply line and clean any visible inlet screen debris.
5. Check for unintended draining: make sure the drain hose has a proper high loop or air gap so the unit does not siphon.

What you’ll notice: symptoms vs. likely cause

What you see	What it usually means
Unit hums but little or no water enters	Shutoff closed, low pressure, clogged inlet screen, bad inlet valve
Fills briefly then drains and stops	Siphoning from drain hose routing, drain issue
Stops mid-cycle and won’t continue	Water level not detected as expected, door not latched, fill problem

Why it matters

Dishwashers rely on the correct water level for wash performance and heater safety. When the control cannot confirm the fill level, it interrupts the cycle to prevent poor cleaning, overheating, or pump damage.

Last updated: February 2026

Your Whirlpool dishwasher’s model number is printed on the model and serial number label inside the tub, near the door opening. For Whirlpool model WDF530PAYB7, the label is typically on the right-hand or left-hand side of the dishwasher interior near the door.

Where to find the model number label

Check these common spots with the door open:

• On the tub wall just inside the door (right side)
• On the tub wall just inside the door (left side)
• Near the front frame of the dishwasher opening
• On a label that also lists the serial number

Use a flashlight and wipe off any moisture or film so the characters are easy to read.

What to write down (and why)

Record both numbers exactly as shown; they help match the correct Whirlpool dishwasher parts and diagrams.

• Model number (example: WDF530PAYB7)
• Serial number (unique to your unit)
• Any engineering code or additional letters if shown

Quick ID checklist

Item on label	What it’s used for	Example
Model number	Finds the correct parts list and diagrams	WDF530PAYB7
Serial number	Helps confirm production details for service	(varies)
Brand	Confirms manufacturer family	Whirlpool

Why it matters

Dishwashers can look identical but use different components (like a control board, water inlet valve, or spray arm). Using the exact model number prevents ordering the wrong part and helps troubleshooting steps match your unit.

For model-specific details and label location notes, use the WDF530PAYB7 owner's manual.

Last updated: February 2026
