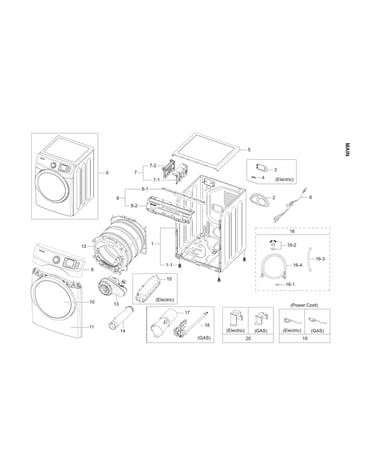

Samsung DV42H5200EF/A3-01 dryer Parts

To find the correct part number for your Samsung dryer, we match parts to the dryer’s model number first. On Samsung model DV42H5200EF, the model and serial tag is typically on the front frame behind the door; if it’s missing, check the back of the dryer for a second tag.

Where to look for the model and serial tag

Check these common locations on Samsung dryers:

• Front frame behind the dryer door (open the door and look around the opening)
• Back panel of the dryer cabinet
• Side panel edge near the door opening (less common)
• Inside the door area near the lint screen housing (varies by design)

How to use the model number to get the right part

Once you have the model number (and ideally the serial number), use it to select parts made for your exact configuration.

• Confirm the model number reads DV42H5200EF (letters and numbers must match exactly)
• Use the parts list for your model to browse by symptom or by section (drum, heater, controls)
• If multiple similar parts appear, match by description and where it installs on the dryer

Examples of common parts you can match by model

These are frequently replaced items for this dryer family:

Symptom	Part to check	Example part on this model page
Dryer won’t heat	Heating circuit parts	Samsung dryer heating element DC47-00019A
Overheats or shuts off	Safety thermostats/fuses	Dryer high-limit thermostat DC47-00018A
Drum won’t tumble	Belt/rollers/motor	Samsung dryer drum belt 6602-001655

Why it matters

Samsung often uses similar-looking parts across multiple dryers, but mounting points, wiring connectors, and temperature ratings can differ. Using the exact model number helps prevent ordering a part that does not fit or does not solve the problem.

For troubleshooting help before ordering, use our Samsung dryer error codes guide to narrow down which component is most likely at fault.

Last updated: February 2026

Most Samsung dryers, including model DV42H5200EF, typically last 10 to 15 years with normal household use and basic maintenance. Keeping airflow strong, preventing overheating, and replacing wear parts early are the biggest factors that help a dryer reach the high end of that range.

What affects dryer lifespan the most

A dryer’s life is usually determined by heat stress, airflow restriction, and mechanical wear. These habits make the biggest difference:

• Clean the lint screen before every load
• Keep the vent duct short, smooth, and free of lint buildup
• Avoid overloading (it strains the drum belt, rollers, and motor)
• Use the right cycle and heat setting for the fabric
• Address new noises early (thumping, squealing, grinding)

Common wear parts that can shorten life if ignored

On DV42H5200EF, these parts are often involved when performance drops or noise starts. Replacing them promptly can prevent bigger damage.

Symptom	Most likely area	Example part on this model
Thumping or rumbling	Drum support system	Samsung dryer drum support roller DC97-16782A
Drum not turning	Drive system	Samsung dryer drum belt 6602-001655
No heat or weak heat	Heating circuit	Samsung dryer heating element DC47-00019A
Overheating or shuts off	Safety temperature control	Dryer high-limit thermostat DC47-00018A

Why it matters

A dryer that is overheating or struggling to move air runs hotter and longer, which accelerates wear on the heating element, thermostats, motor, and wiring. Good airflow and quick part replacement usually cost less than running the dryer until multiple components fail.

Quick rule of thumb for repair vs. replace

Use this simple guide when deciding what to do:

• Under 8 years old: repairs are usually worthwhile
• 10 to 15 years old: repair if it is a single, clear failure (belt, roller, thermostat)
• Over 15 years old: consider total condition, noise level, and how many parts have failed recently

Last updated: February 2026

Yes; for a Samsung DV42H5200EF dryer, replacing the heating element is usually worth it when the dryer is otherwise in good shape, because a no-heat problem is often a single-part failure and the repair cost is typically far less than replacing the whole dryer. Use the correct model-matched part to avoid repeat failures.

When replacement is the smart move

We typically recommend replacing the heating element when these conditions are true:

• The drum tumbles normally and airflow is strong, but clothes stay cold or damp
• The dryer runs without tripping the breaker
• The cabinet is in good condition (no severe rust, burning smell, or repeated overheating)
• You have not had multiple recent major failures (motor, control board, drum issues)
• You can confirm the element is open with a multimeter test

A common model-matched option for this dryer is the Samsung dryer heating element DC47-00019A.

Check these first (they can mimic a bad element)

A heating element can fail, but so can the safety and temperature-control parts that protect it. Before ordering, we look for these quick indicators:

• Restricted venting: long dry times, very hot cabinet, or weak exhaust outside
• Blown thermal cut-off: dryer runs but heat never comes on
• Failed high-limit thermostat: heat cycles oddly or shuts down too soon
• Sensor issues: temperature readings out of range

Parts on this model that often get checked with the element include:

• Dryer high-limit thermostat DC47-00018A
• Dryer thermal cut-off fuse, 320-degree f DC47-00015A
• Dryer thermistor DC32-00007A

Cost and repair value at a glance

Situation	Typical recommendation	Why
Dryer heats never, tumbles fine	Replace element or safety part	Usually a targeted, high-value repair
Long dry times, heat seems weak	Fix venting first	Airflow problems overheat and shorten element life
Multiple major parts failing	Consider overall repair plan	Costs can stack quickly

Why it matters

A failed heating element is often the symptom, not the root cause. If venting is restricted or a thermostat is stuck, a new element can burn out early. Restoring proper airflow and verifying the thermal safety circuit protects your new part and improves drying performance.

For more troubleshooting help, we use the steps in Samsung dryer error codes and then confirm heat circuit parts with a meter.

Last updated: February 2026
