Model #JMS08GV1WH Official GE electric range
Here are the diagrams and repair parts for GE JMS08GV1WH electric range, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 116 parts

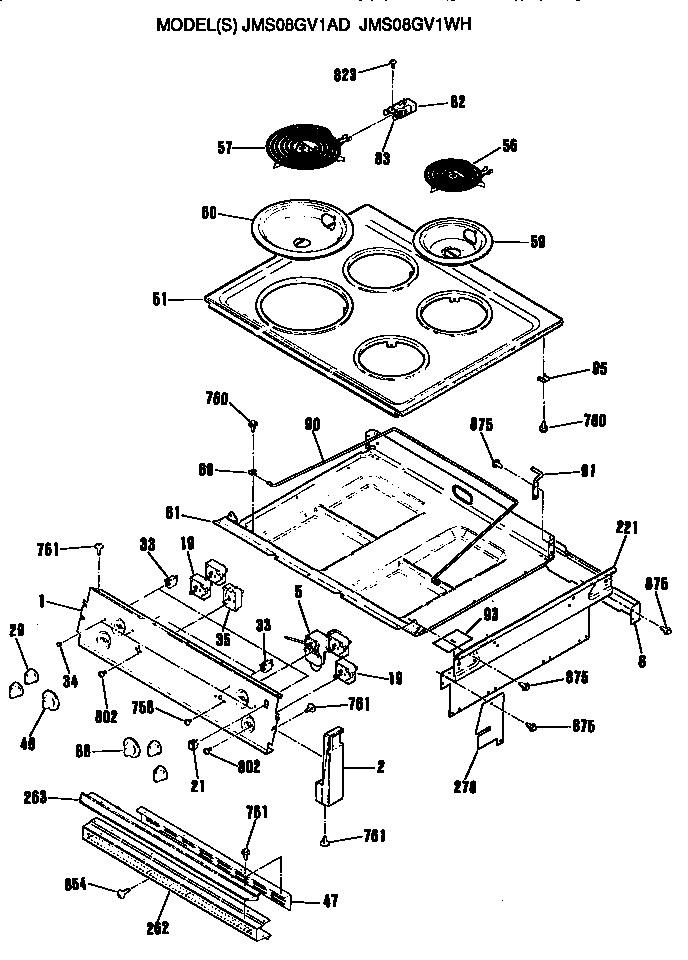

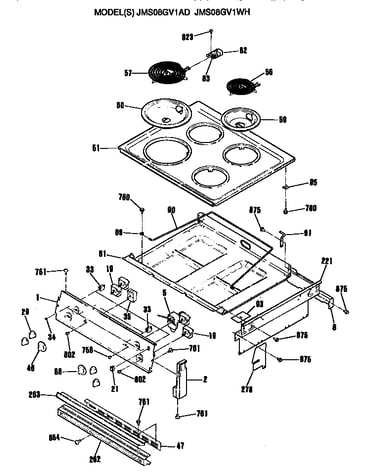

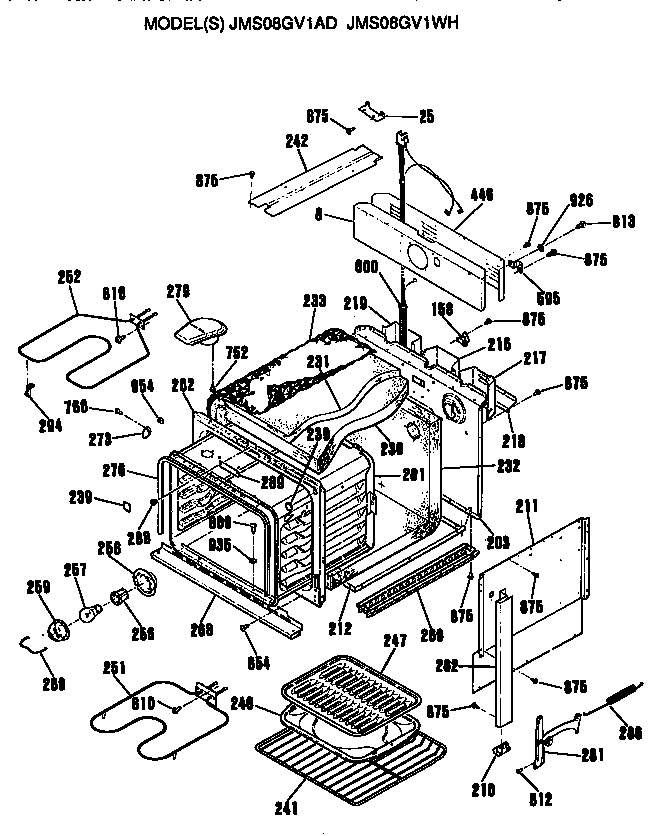

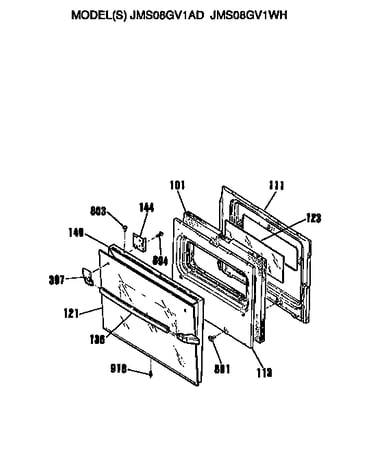

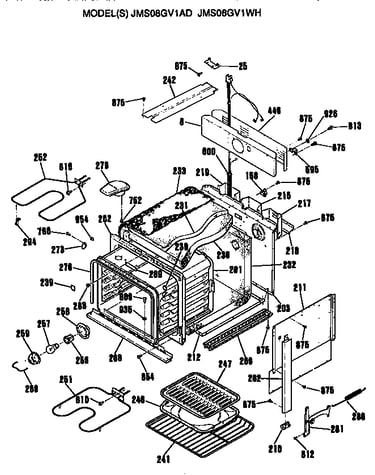

#252
All parts Diagram
Range broil element
#82
All parts Diagram
Terminal block assembly
#294
All parts Diagram
#259
All parts Diagram
Lamp cover
#397
All parts Diagram
Dr hndl ecap
#150
All parts Diagram
6"p.i. s/u
#694
All parts Diagram
#810
All parts Diagram
Screw-10-32
#801
All parts Diagram
Screw-4-pk
#241
All parts Diagram
Oven rack
Symptoms common to all ranges
Repair guides common to all ranges
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it doesn’t control the oven light properly.
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.
Articles and videos common to all ranges
Learn how the self-clean cycle works in an oven.
Learn how to troubleshoot a coil surface element on your stove that won't heat.
Troubleshoot the door lock system to find and fix the problem.
