No. On Whirlpool model WFW9200SQA12, we can’t confirm an “F9 E1” code from the model-specific documentation; this washer’s manual lists drain-related codes such as F21 (Drain Problem). Even so, a drain error rarely means you need a whole new washer; it usually points to a drain restriction or setup issue. See the troubleshooting section in your WFW9200SQA12 washer manual.

What we can verify for WFW9200SQA12

The manual for this model calls out these drain-related checks when a drain problem code appears:

• The drain hose is kinked.
• The drain hose is frozen.
• The drain hose is clogged.
• The drain hose is more than 96 inches (2.4 m) above the floor.
• Excess suds are present (the washer may run a suds routine).

Quick steps to try before replacing parts

1. Cancel the cycle and unplug the washer.
2. Inspect the drain hose from the washer to the standpipe or laundry tub.
3. Confirm the standpipe height is within the 30 to 96 inch range.
4. Check the home drain for a clog (a slow standpipe can mimic a washer failure).

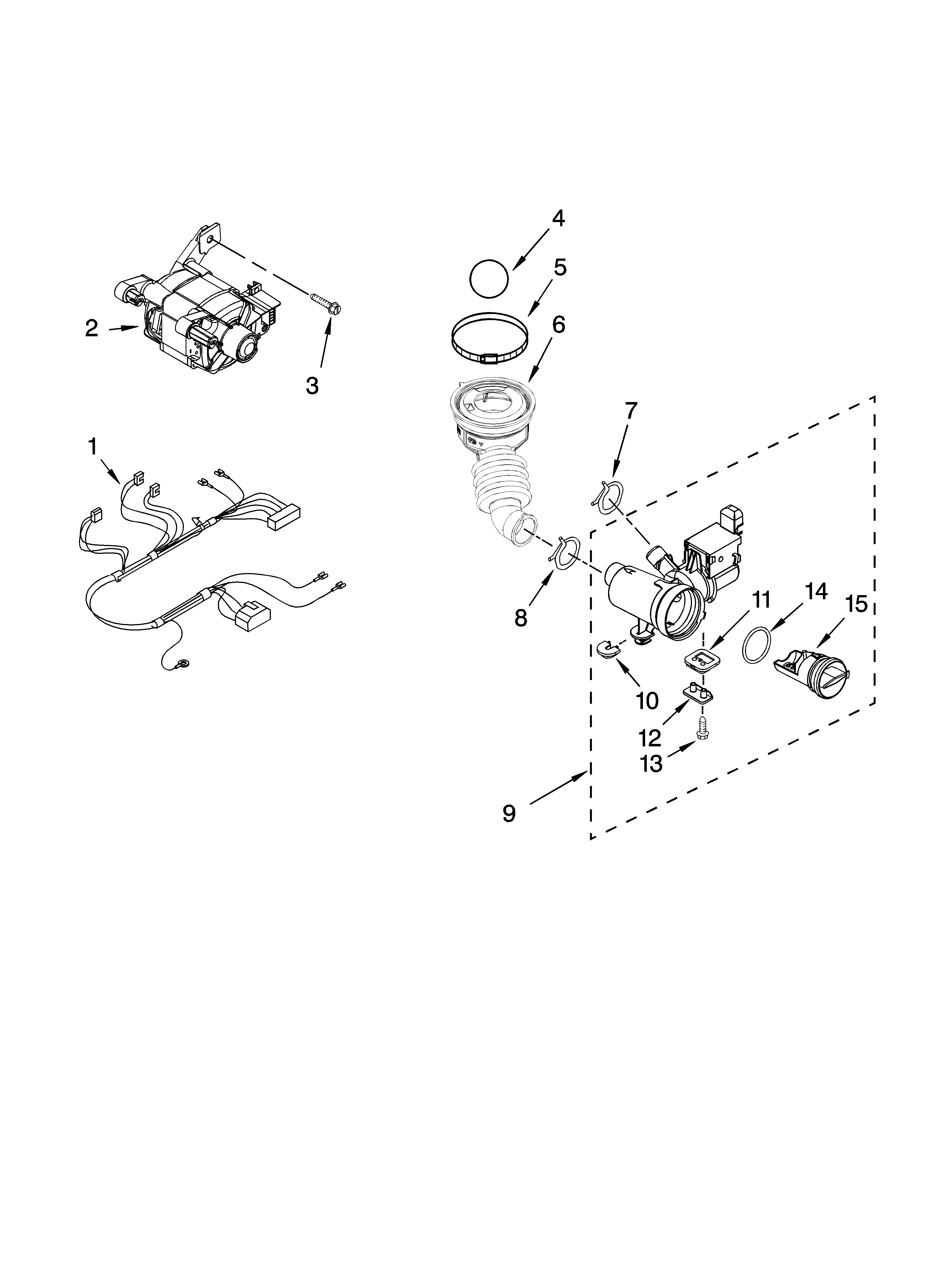

5. Run Drain/Spin and listen for the pump; a steady hum with little flow often indicates a restriction.

What you notice	Likely cause	Best next step
No drain, hose visibly pinched	Kinked drain hose	Re-route hose, remove pinch
Standpipe overflows	House drain restriction	Clear standpipe or call a plumber
Hose cracked or leaking	Worn hose	Replace the drain hose

Parts that can help (when the hose is the issue)

If inspection shows the hose is damaged, soft, or leaking, replacement is often the right fix.

• Hose WP8181737 (Hose): drain hose used to route water out of the washer
• Washer drain hose extension, 4-ft 285863 (Washer Drain Hose Extension, 4-ft): extends the drain hose when extra length is needed

Why it matters

Drain problems can leave water in the tub, keep the door locked longer, and strain the drain pump. Fixing hose routing, standpipe height, and clogs early helps prevent repeat shutdowns and secondary damage.

Last updated: January 2026

For the Whirlpool WFW9200SQA12 front-load washer, common problems we see are drain errors (often tied to a kinked/clogged drain path or excess suds), door lock or door seal leaks, excessive vibration during spin, and musty odor. The WFW9200SQA12 washer manual includes troubleshooting steps and the most common fault codes.

Common problems on WFW9200SQA12 (what to check first)

• Won’t drain or stops mid-cycle: check the drain hose for kinks, clogs, or an overly high standpipe.
• “SUD” message or long cycle times: using non-HE detergent or too much HE detergent can trigger a suds routine.
• Door won’t lock or unlock: make sure the door is fully closed and laundry isn’t pinching the opening.
• Leaks at the front: inspect the door seal for tears, debris, or small items under the seal.
• Vibration or loud spinning: confirm the washer is level and the load is balanced.

Model-specific clues from the manual

These are called out for WFW9200SQA12 troubleshooting:

Code/symptom	What it usually points to	First action
F20	Water inlet problem	Verify both faucets are fully open; check inlet screens
F21	Drain problem	Check drain hose for kinks/clogs; confirm standpipe height
SUD	Excess suds detected	Use HE detergent; reduce dose
F22	Door lock issue	Re-close door firmly; reduce load if overpacked

Parts that are often involved (when symptoms match)

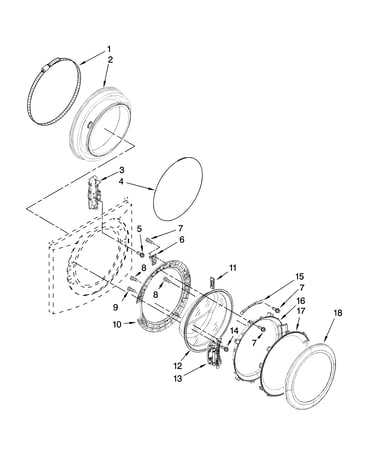

If your symptoms match a door leak or a drain routing issue, these model-compatible parts are commonly involved:

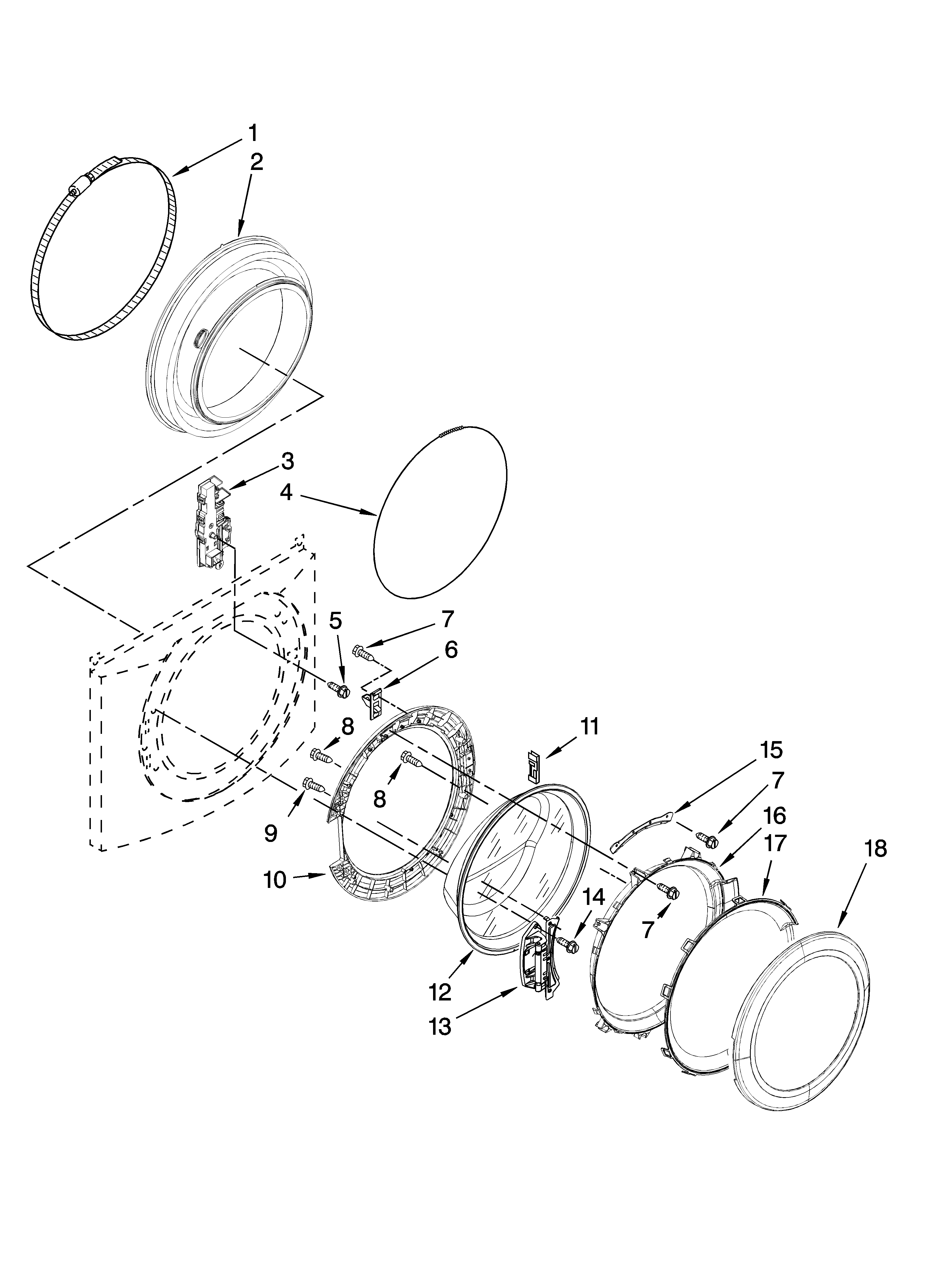

• Washer door boot WP8182119 (door seal that helps prevent leaks at the opening)
• Washer door boot spring clamp WP8182210 (clamp that helps secure the boot)
• Washer drain hose WP8181737 (routes drain water out; kinks/clogs can contribute to drain errors)

Why it matters

Starting with HE detergent use, proper hose routing, leveling, and door-seal cleaning can prevent repeat error codes, reduce odor and leaks, and help protect major components such as the drain system and motor.

Last updated: January 2026

The Whirlpool WFW9200SQA12 washer is a 4.0 cu. ft. front-load washer. Capacity is a helpful sizing guide, but actual usable space can vary a bit depending on bulky items, fabric type, and how tightly the load is packed.

What 4.0 cu. ft. means for everyday loads

A 4.0 cu. ft. drum is typically suited for medium-to-large household laundry loads. For best cleaning and rinsing, we recommend loading so items can tumble freely.

• Load the washer full, but not tightly packed
• Mix large and small items to help balance the load
• Avoid washing single heavy items (add a few towels to balance)
• Use only HE (High Efficiency) detergent to prevent oversudsing
• Check the door seal area for small items after unloading

Quick capacity guide (practical examples)

These examples help visualize what usually fits without overloading.

Load type	Typical fit in 4.0 cu. ft.	Tip
Bath towels	Several towels	Don’t pack them down
Mixed everyday laundry	One full basket	Mix sizes for better tumbling
Bulky items (comforter/blanket)	Often 1 item	Use the Bulky Items cycle when available

Why it matters

Capacity affects cleaning performance, rinse quality, and vibration. Overloading can lead to poor soil removal, longer cycle times, and imbalance during spin.

Helpful model-specific reference

For cycle selection, loading guidance, and HE detergent use, follow the recommendations in the WFW9200SQA12 washer manual.
